HP ProBook 650 G8 Notebook PC
Welcome to the interactive part locator for the HP ProBook 650 G8 Notebook PC
Here’s how to use it… External Views (Click the link to navigate to the views) On this page you will find large icons of each of the external views of this product. To view a specific view in greater detail, simply click that view. Parts List (Click the link to navigate to the parts) On this page, you will find a list of all of the replaceable parts for this product. To view a specific part and its location in the product, click the part name in the list.
That’s it! On every page there is a link that brings you back to either the External Views or the Parts List, enabling you to navigate to whatever view or part you wish to review.
Back to Welcome page
|| |---|
Front
|| |---|
Top

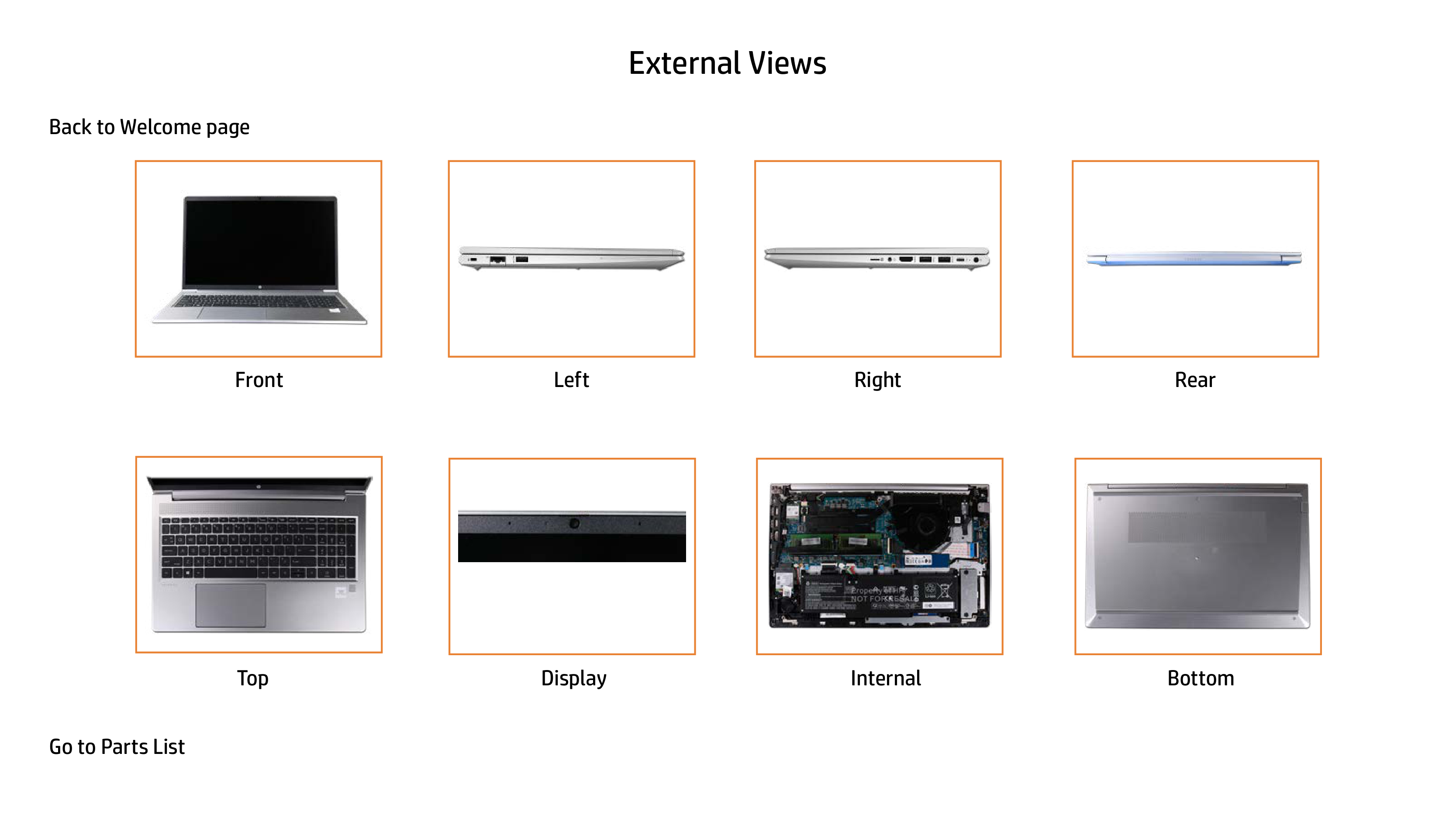

External Views
|| |---|
Left
||
|---|
Right
|| |---|
Display
|| |---|
Internal
|| |---|
Rear
|| |---|
Bottom
Back to External Views
Front View
|| |---|
Back to External Views

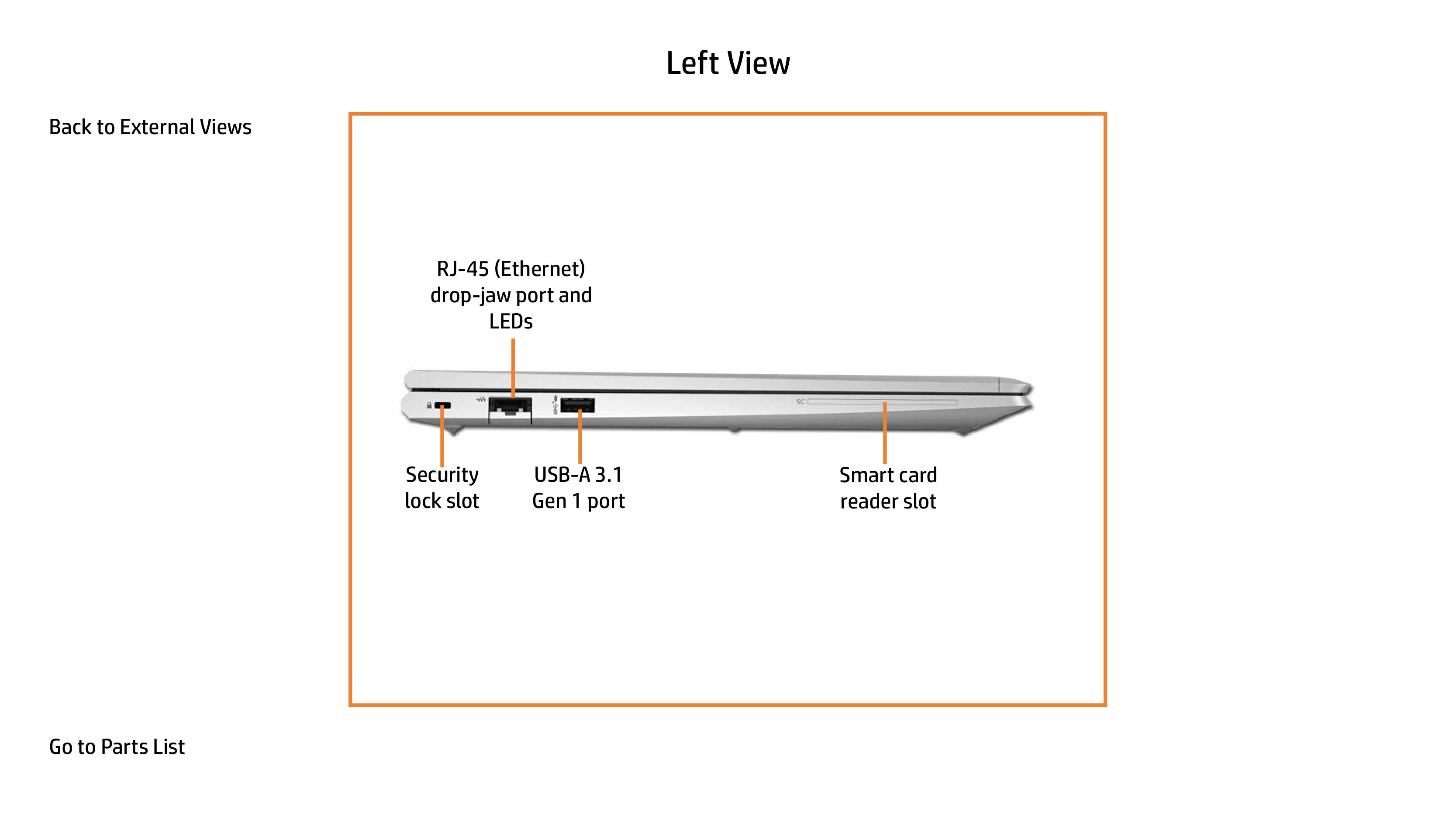

Left View
|
USB-A 3.1 Gen 1 port
RJ-45 (Ethernet) drop-jaw port and LEDs
Security lock slot
Smart card reader slot
| |---|
Back to External Views

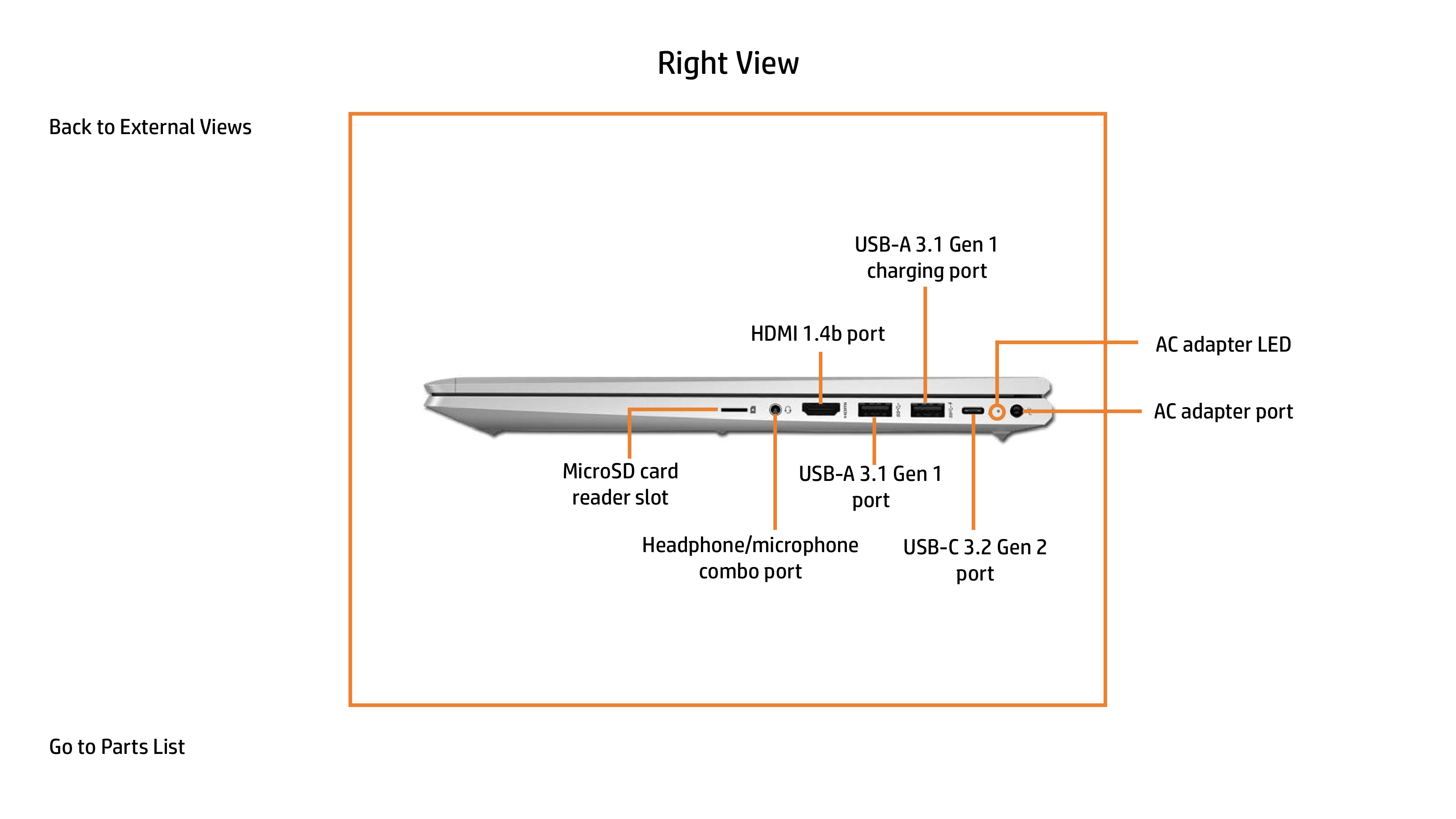

Right View
USB-A 3.1 Gen 1 charging port
HDMI 1.4b port
MicroSD card reader slot
USB-A 3.1 Gen 1 port
Headphone/microphone combo port
USB-C 3.2 Gen 2 port
AC adapter LED
AC adapter port
Back to External Views

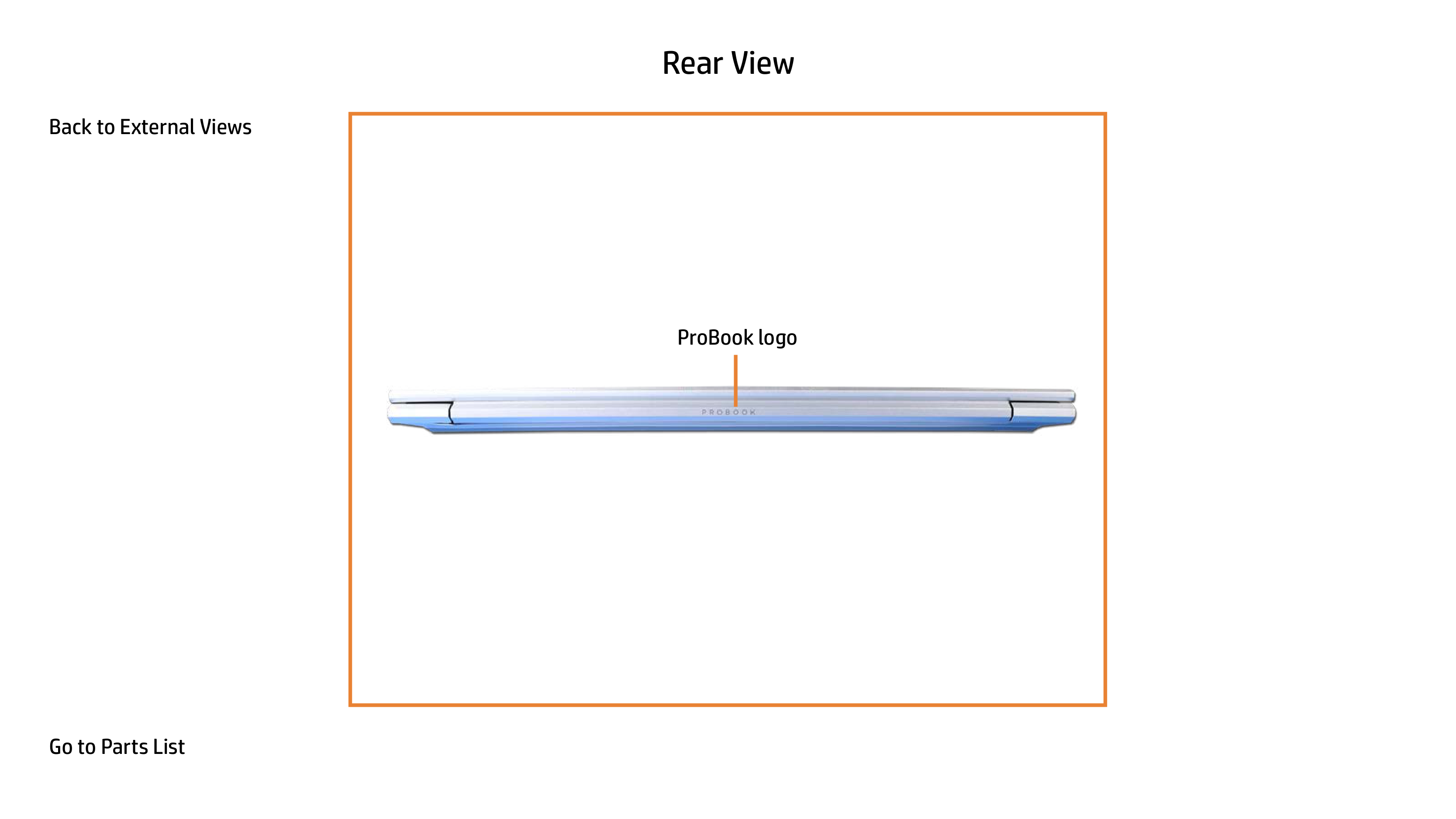

Rear View
|
ProBook logo
| |---|
Back to External Views
Caps lock key and LED
fn key and LED

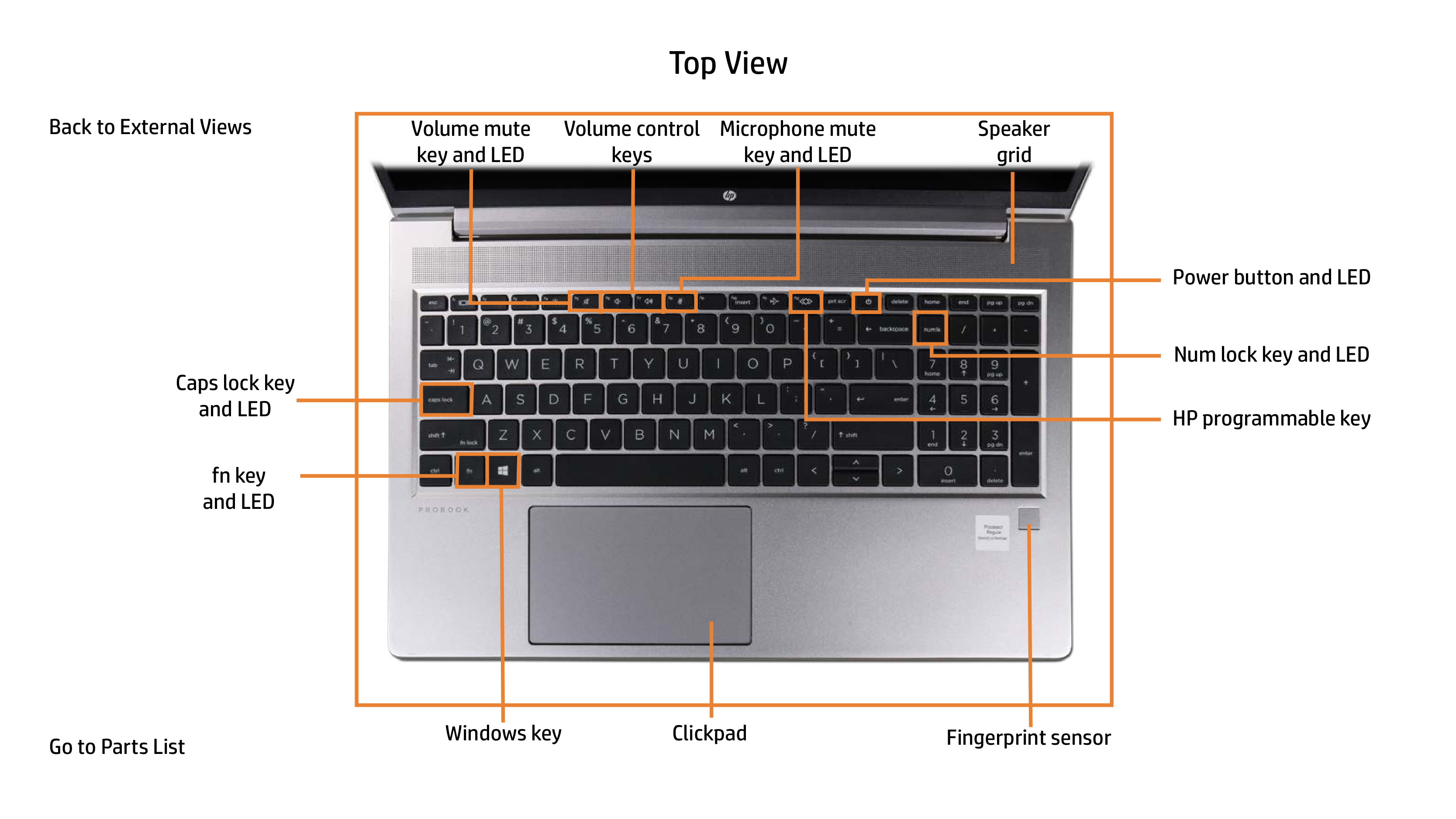

Top View
Volume control keys
Microphone mute key and LED
Speaker grid
Volume mute key and LED
Fingerprint sensorWindows key
Clickpad
Power button and LED
Num lock key and LED
HP programmable key
Back to External Views

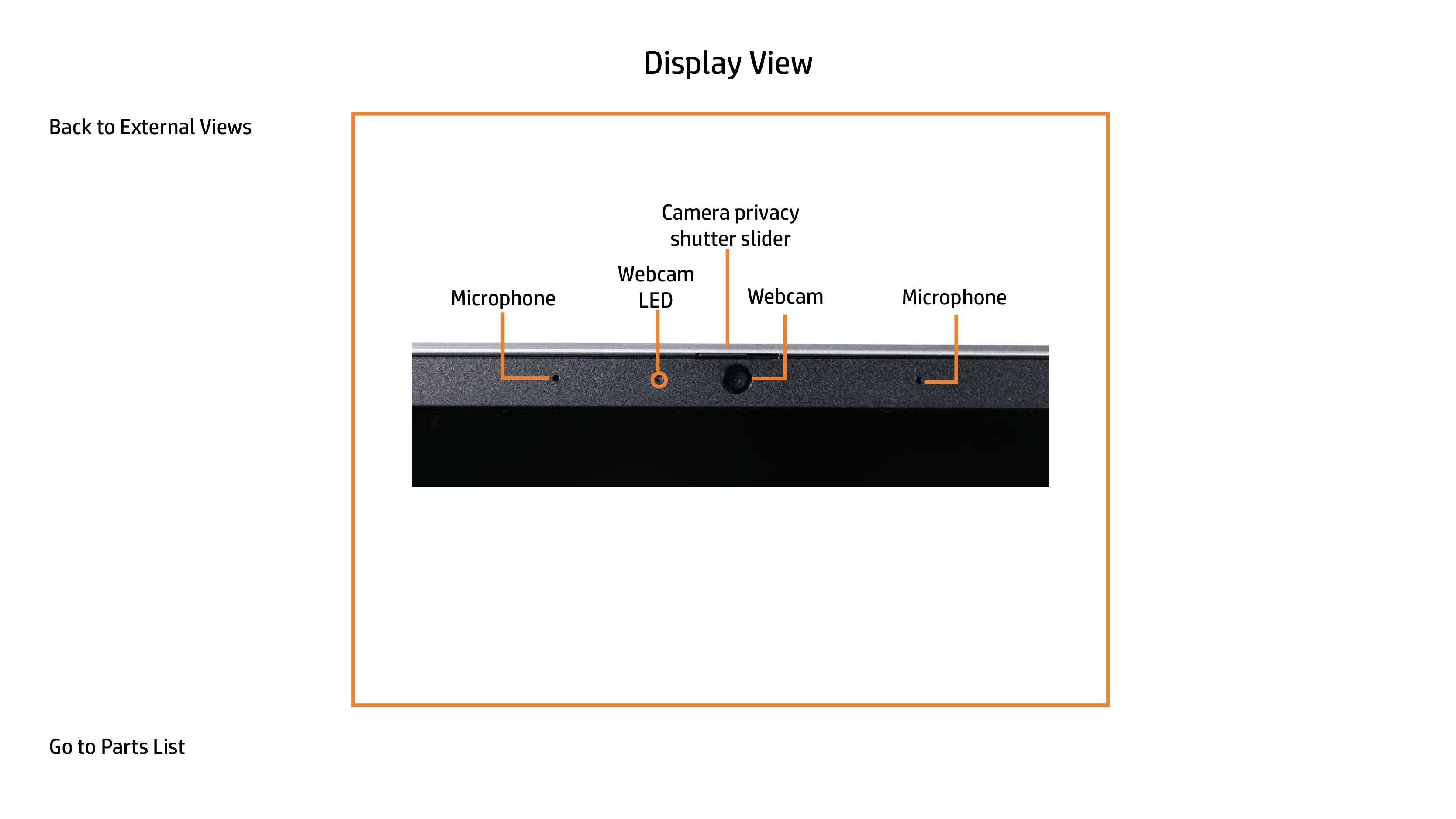

Display View
|
Webcam LEDMicrophone MicrophoneWebcam
Camera privacy shutter slider
| |---|
Back to External Views
Wireless LAN Module
Heat Sink (UMA)
Memory Modules
Wireless WAN Module
RTC Battery

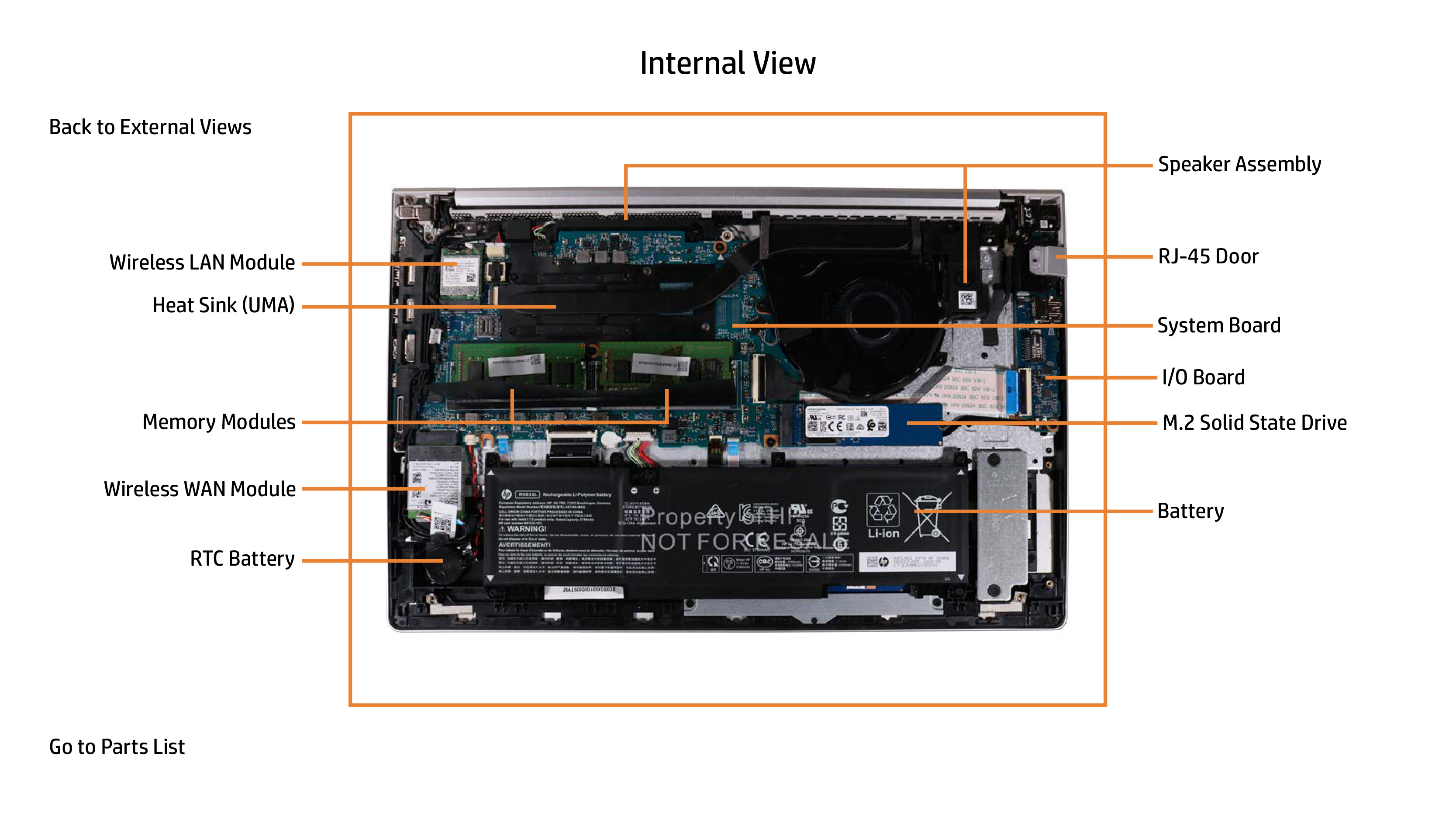

Internal View
Speaker Assembly
RJ-45 Door
System Board
I/O Board
M.2 Solid State Drive
Battery
Back to External Views
Rubber feet

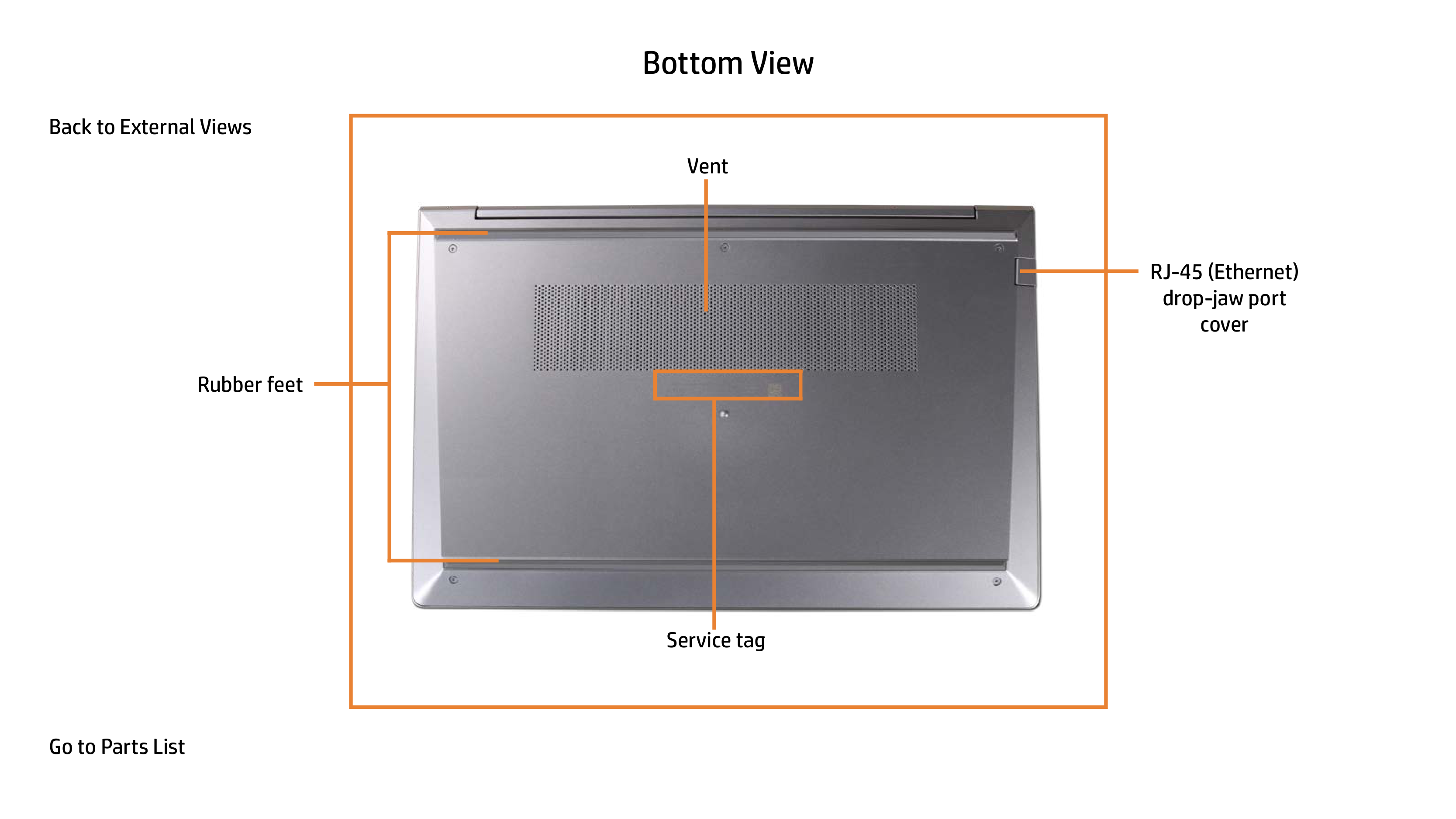

Bottom View
Vent
| | | |---|---| | | |
Service tag
RJ-45 (Ethernet) drop-jaw port cover
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

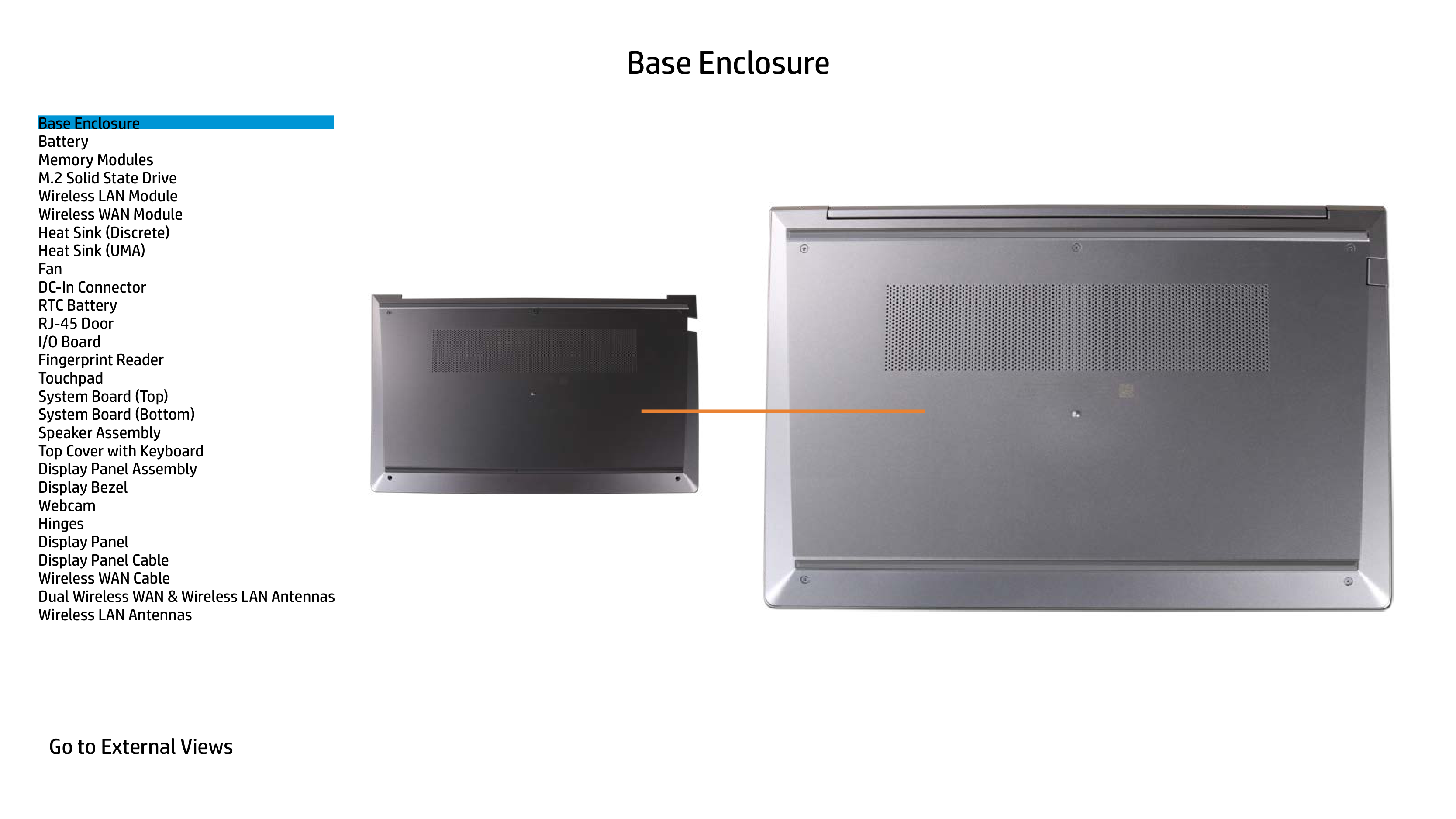

Base Enclosure

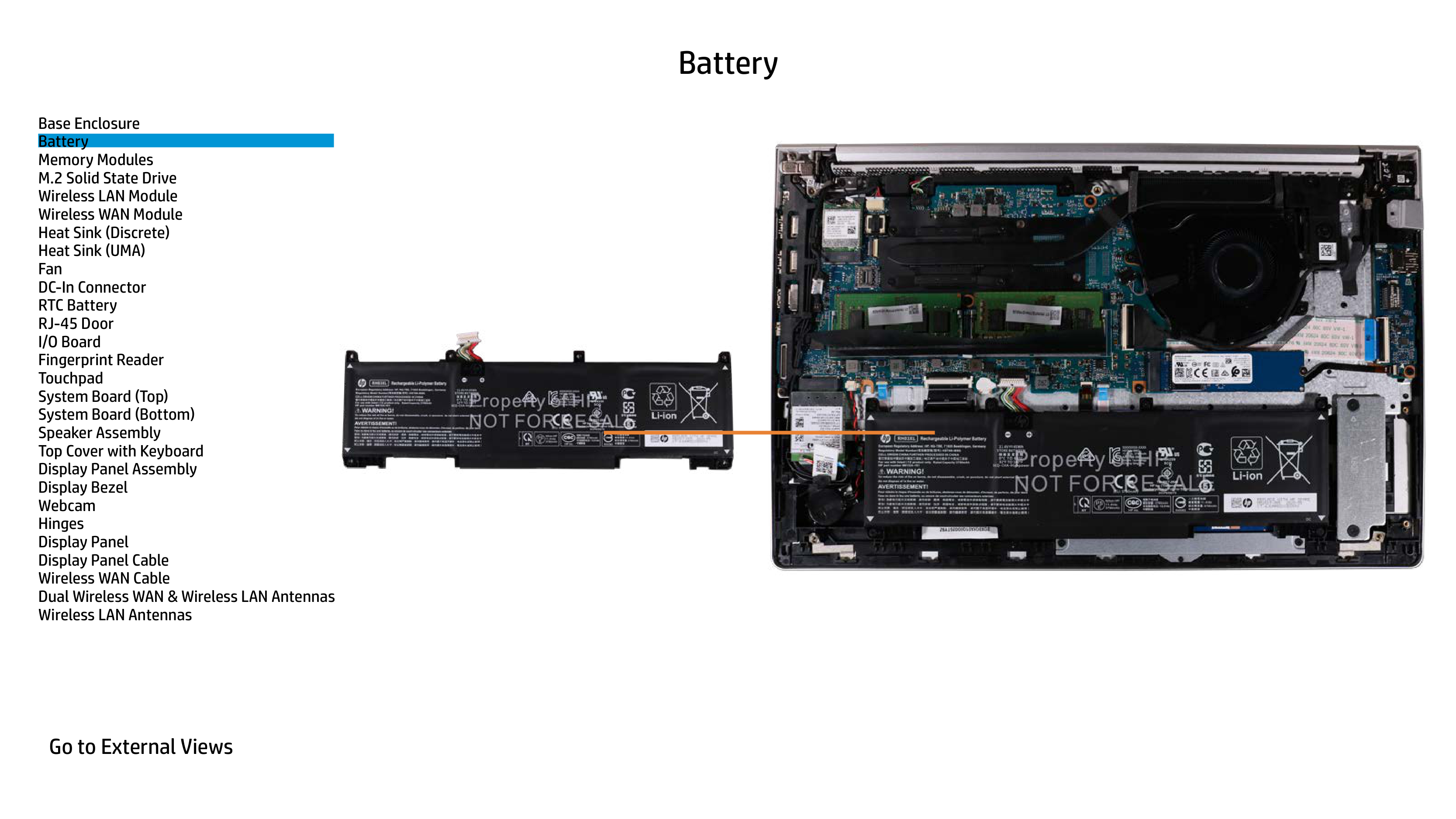

Battery
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

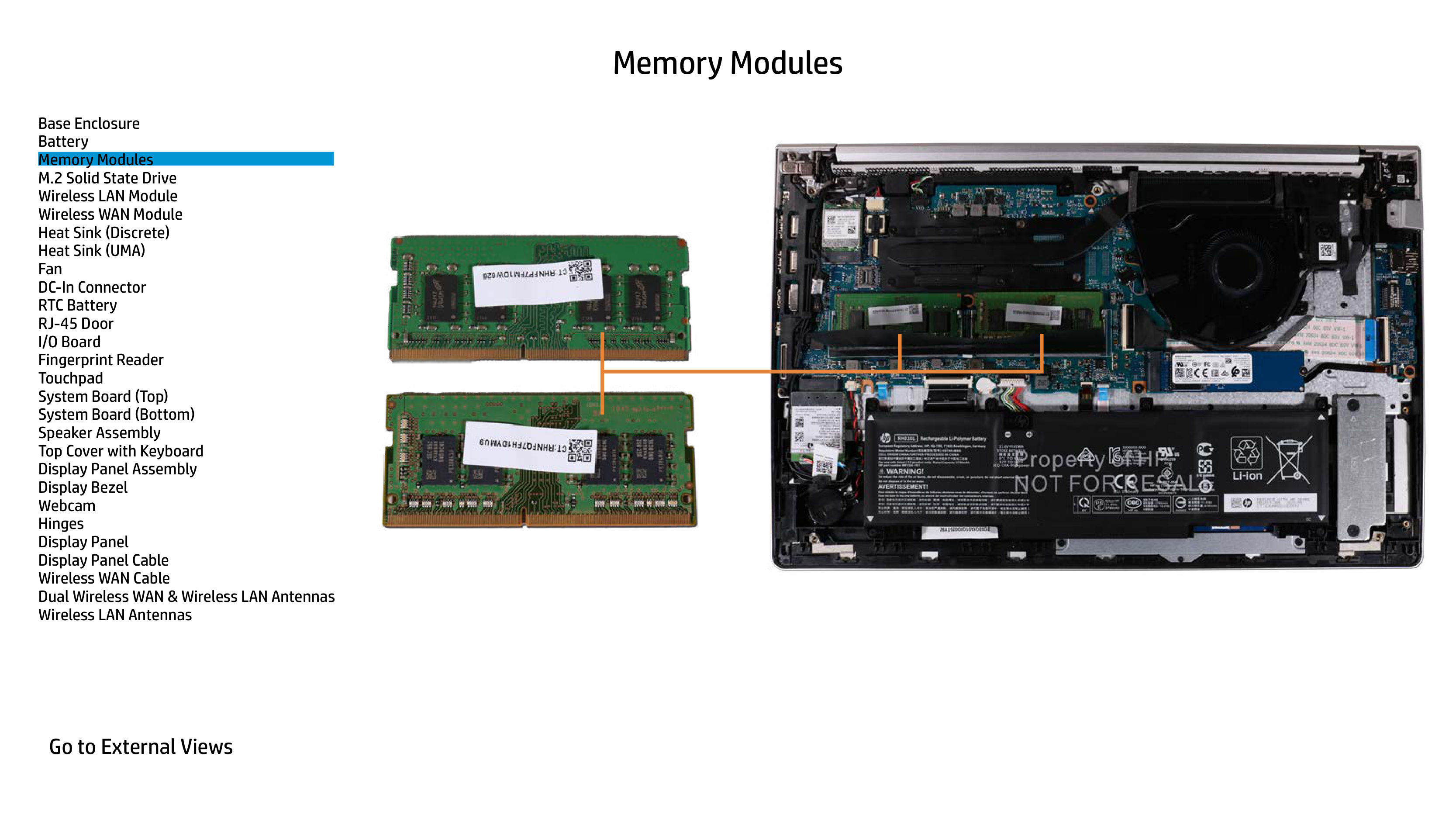

Memory Modules
| | | |---|---| | | |

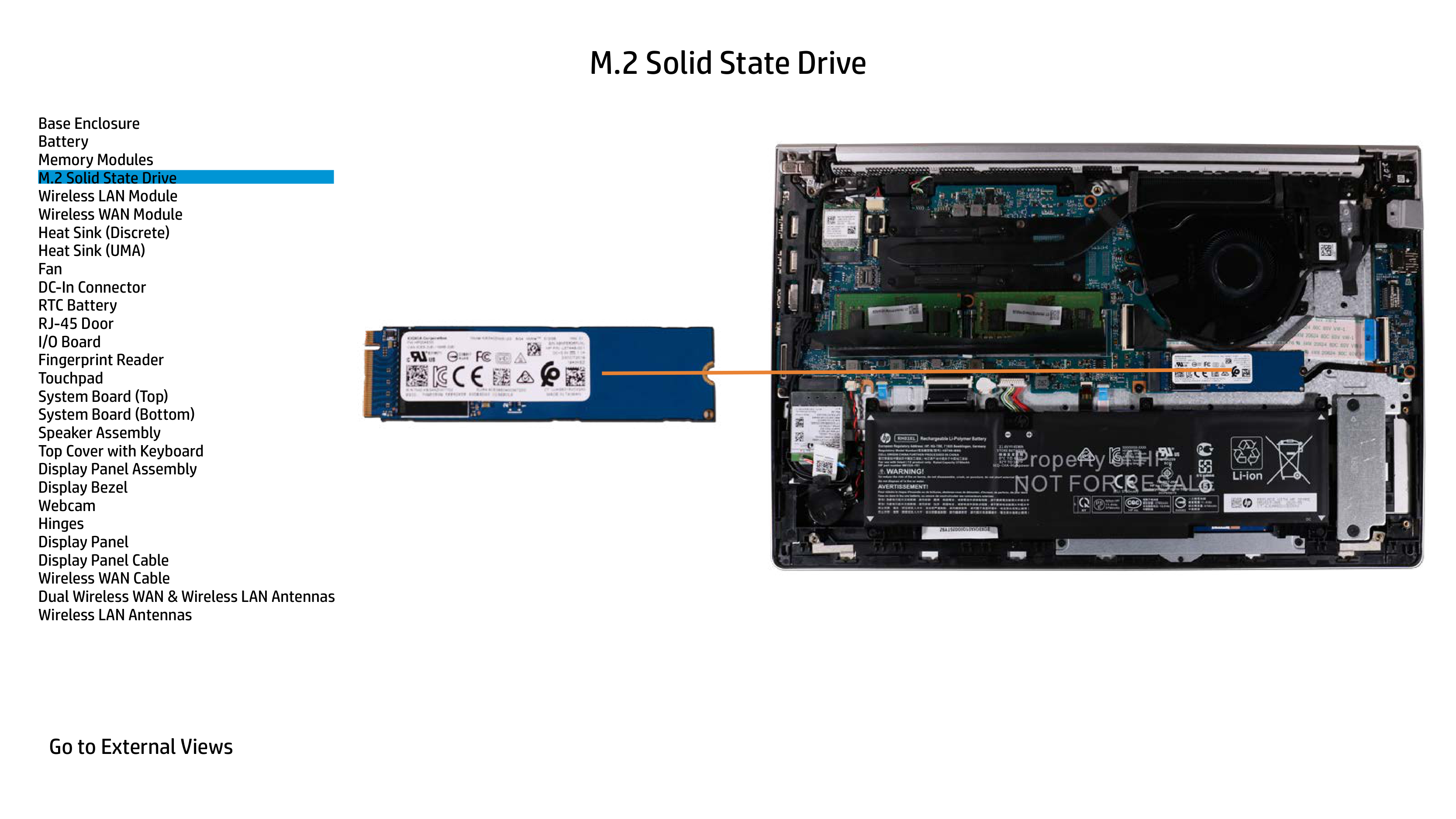

M.2 Solid State Drive
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

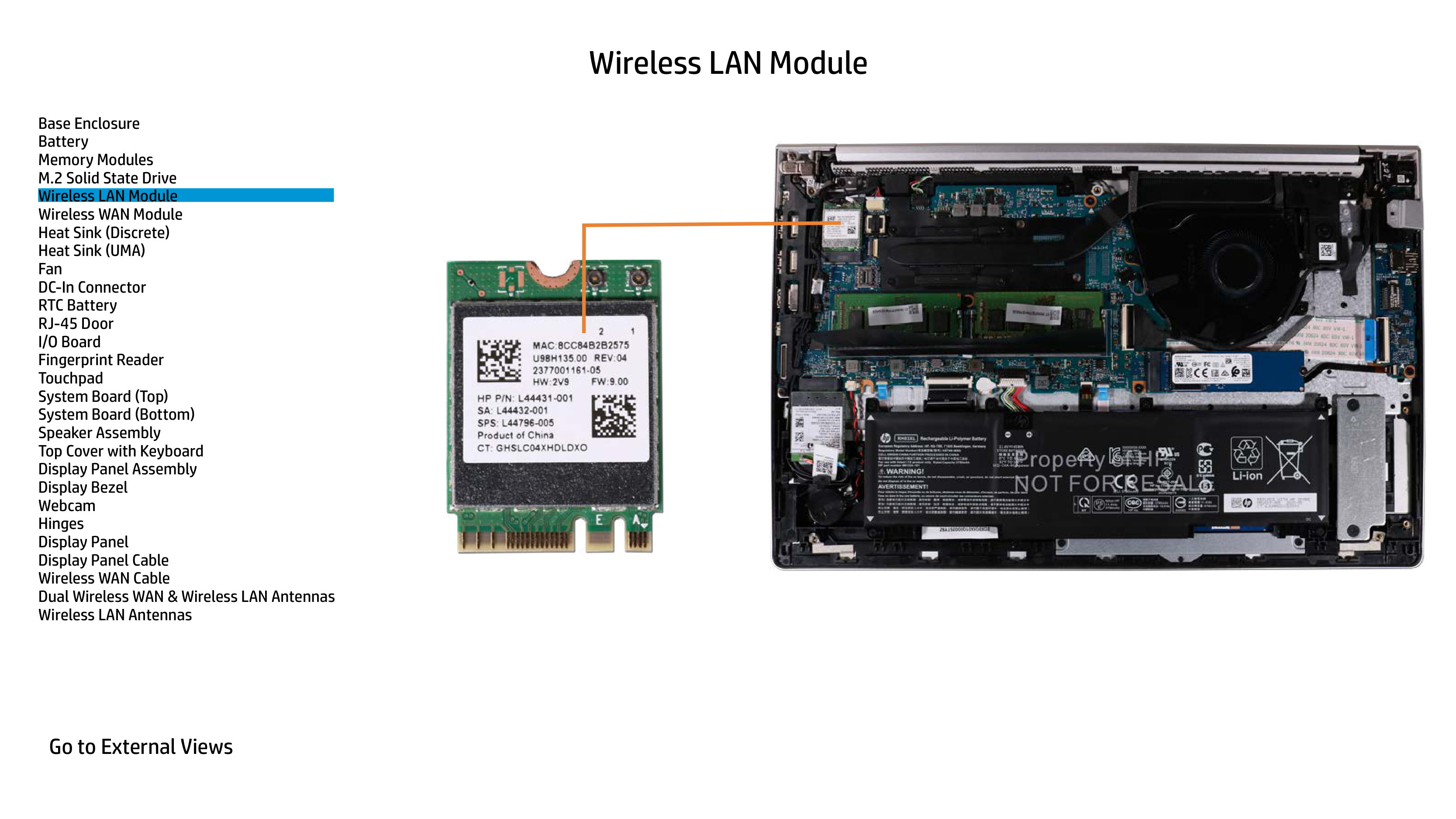

Wireless LAN Module
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

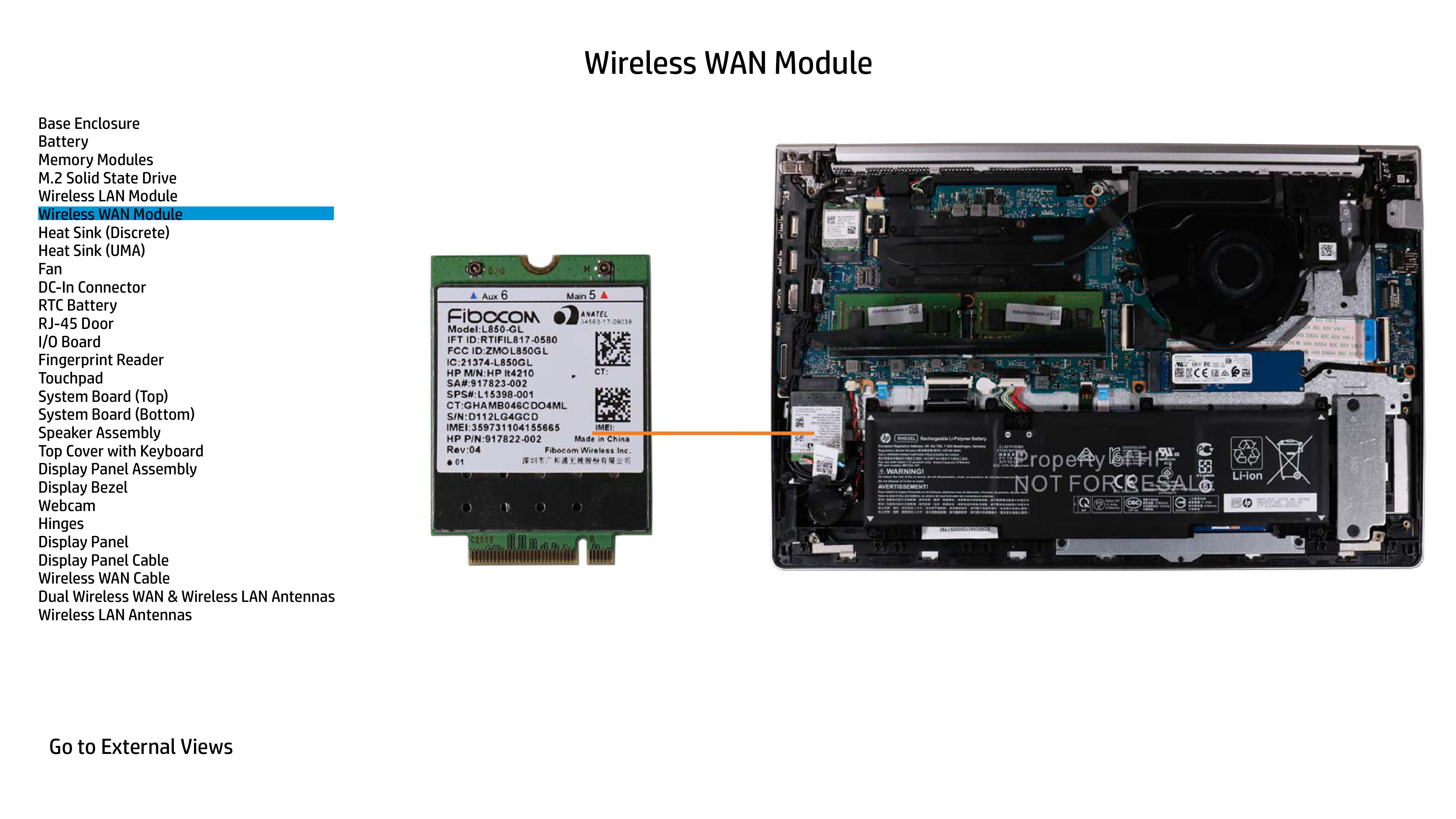

Wireless WAN Module

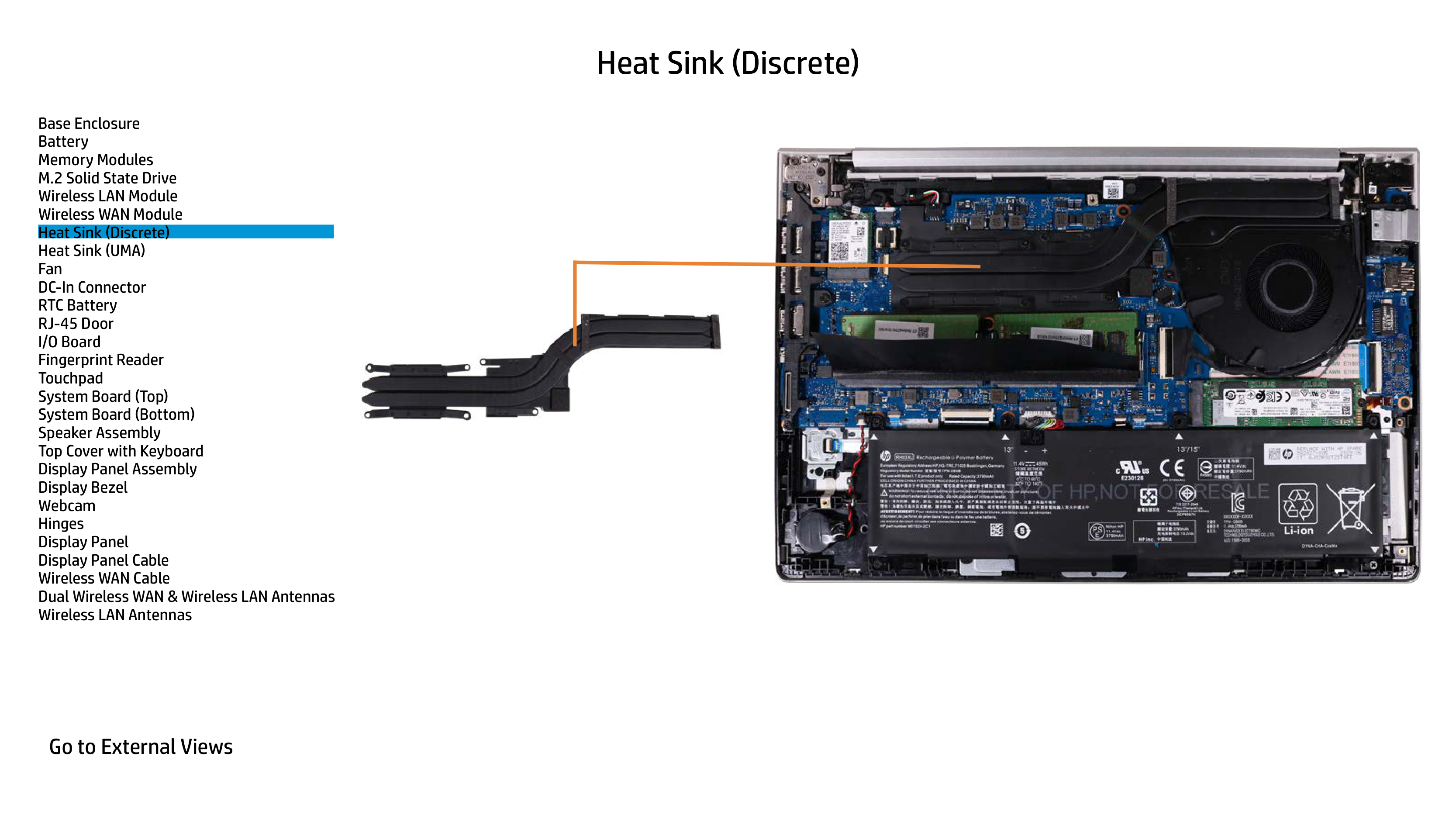

Heat Sink (Discrete)
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

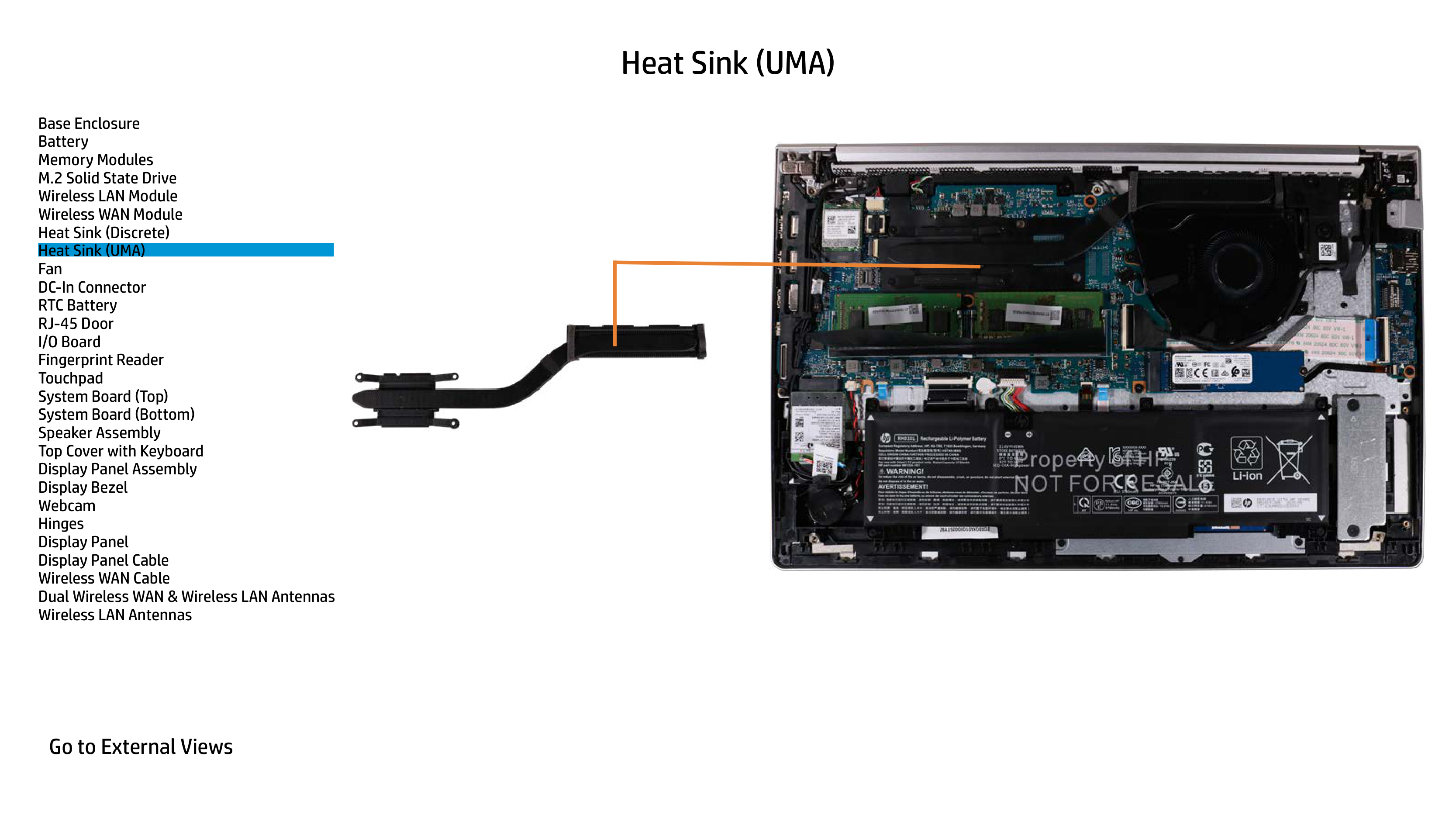

Heat Sink (UMA)
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

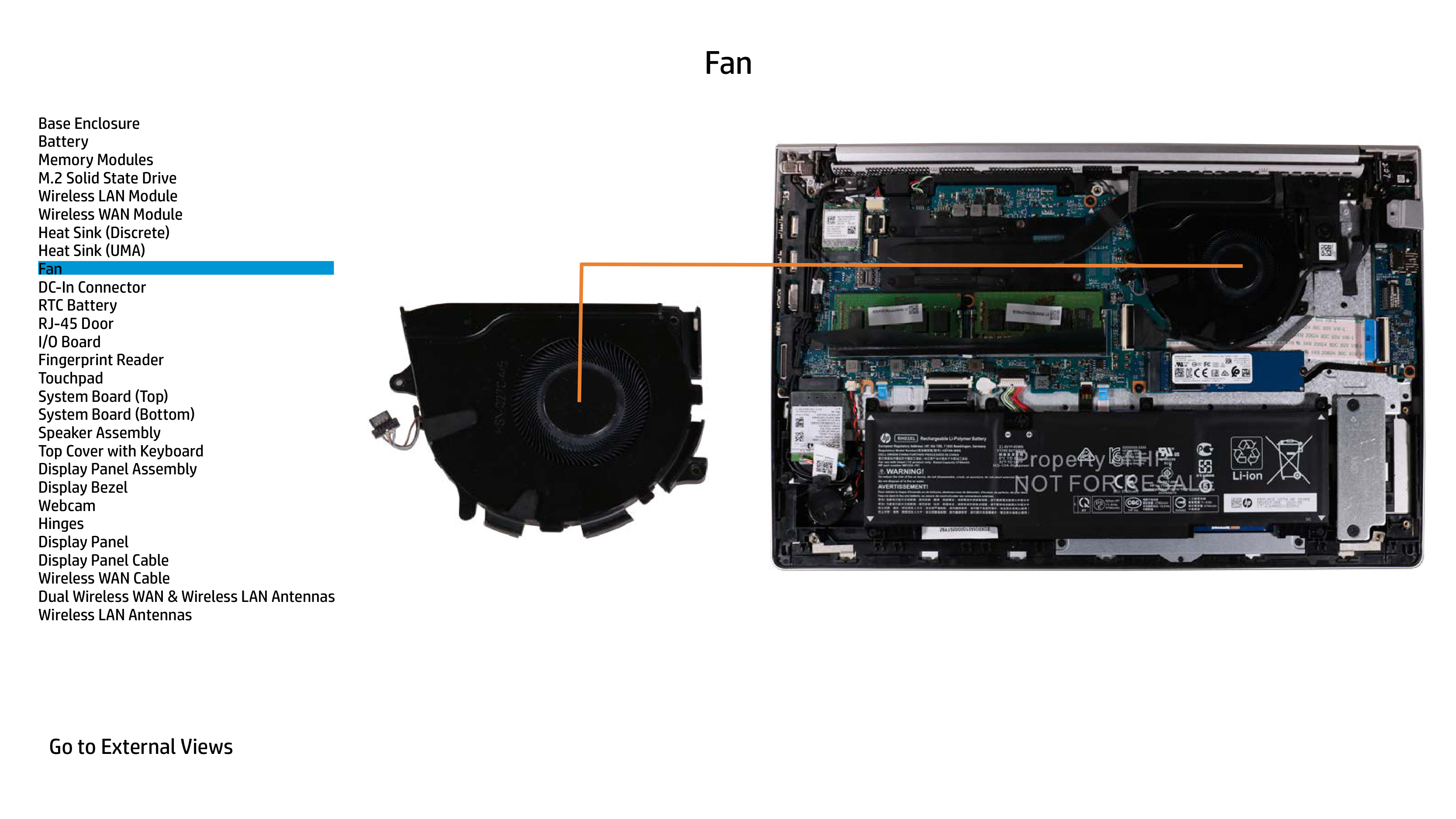

Fan

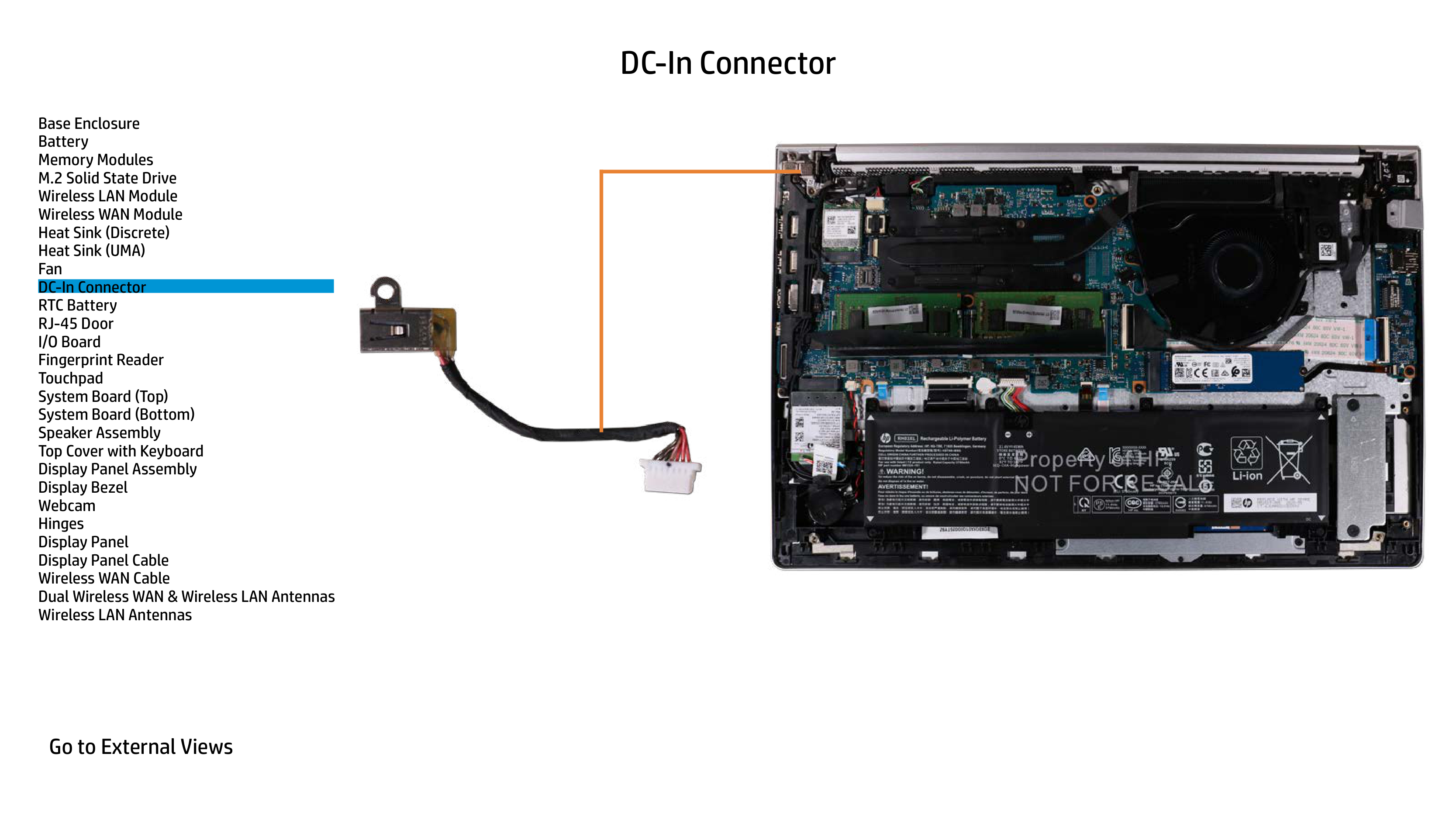

DC-In Connector
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

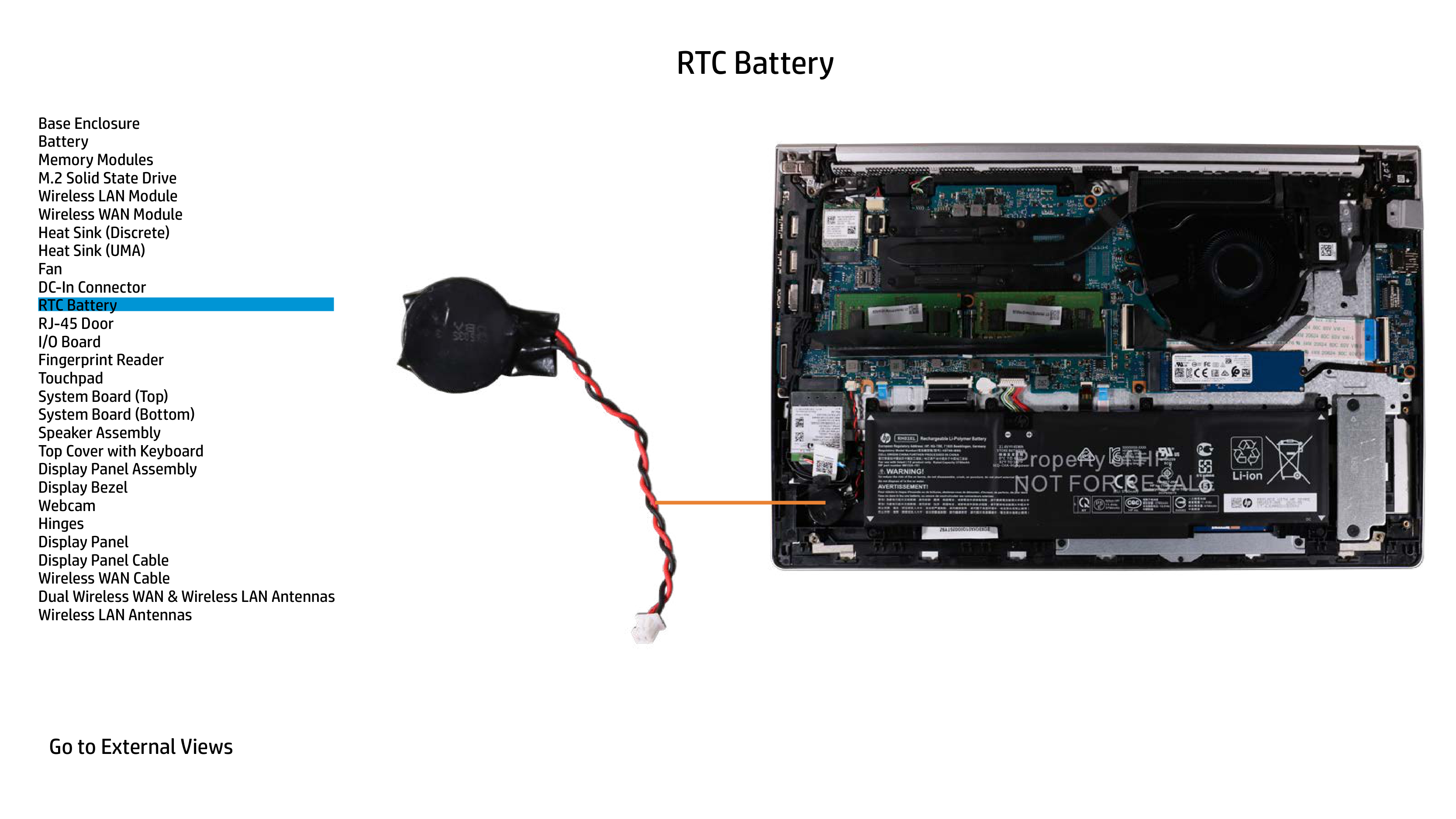

RTC Battery
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

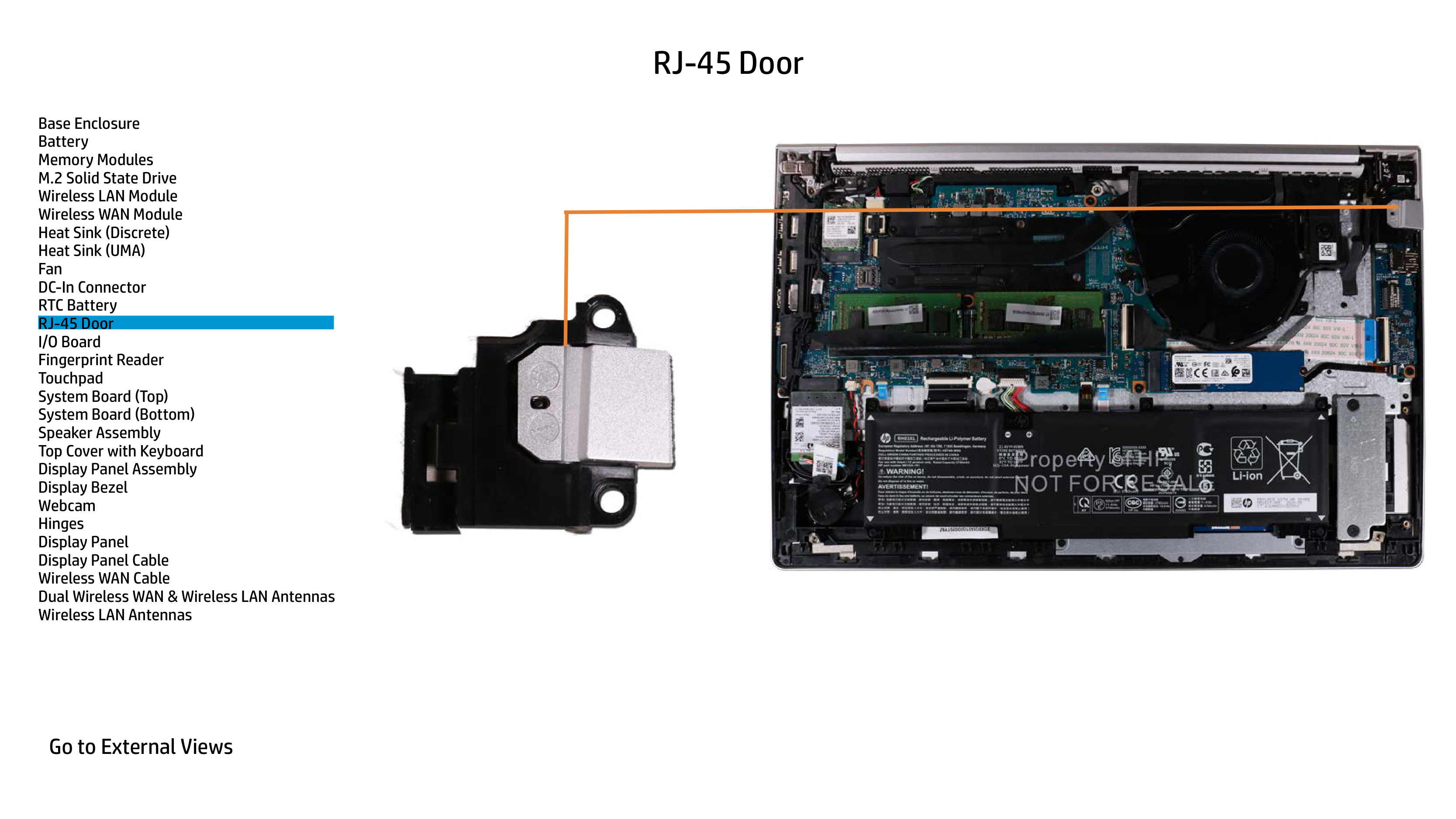

RJ-45 Door
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

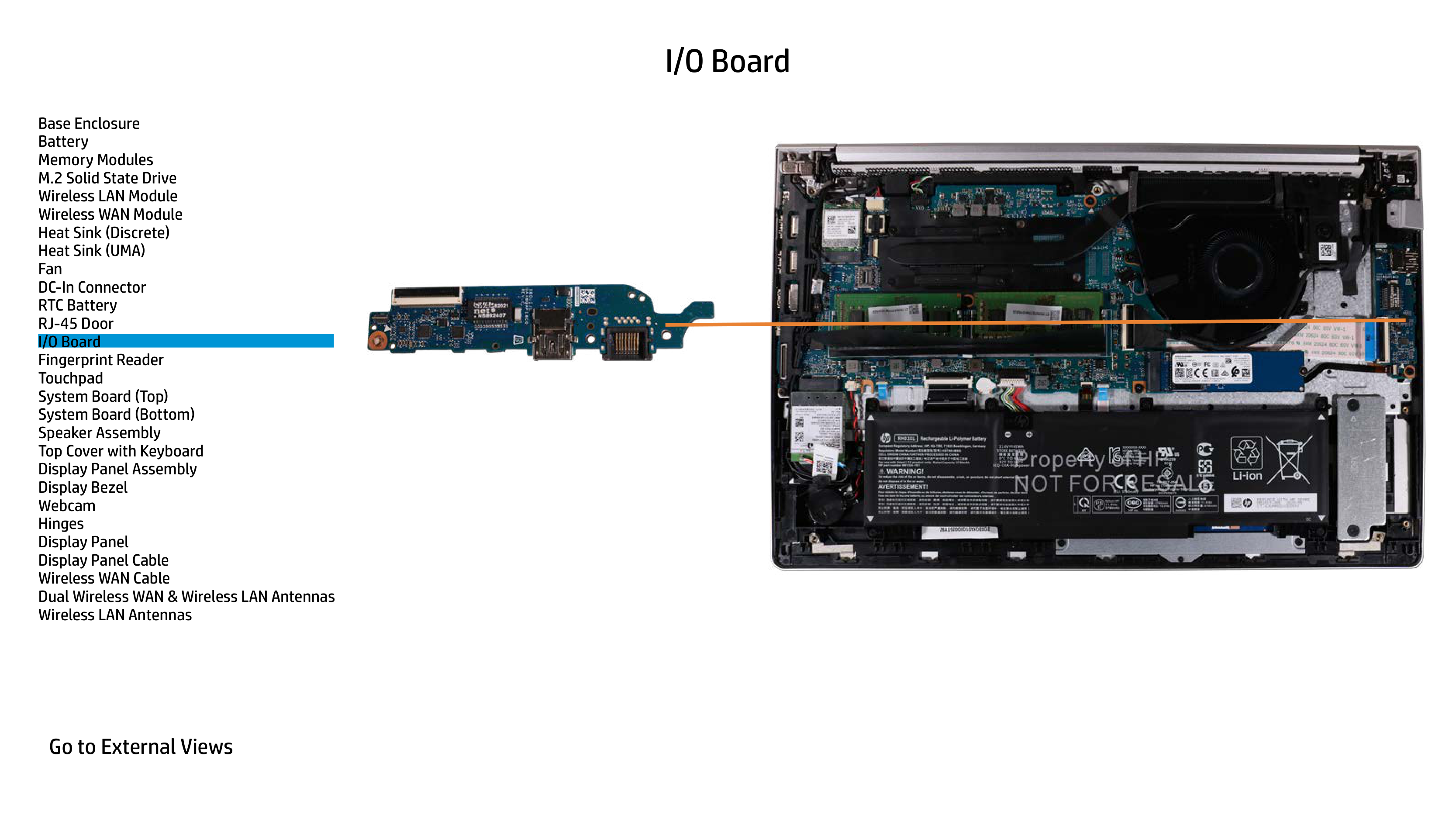

I/O Board
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

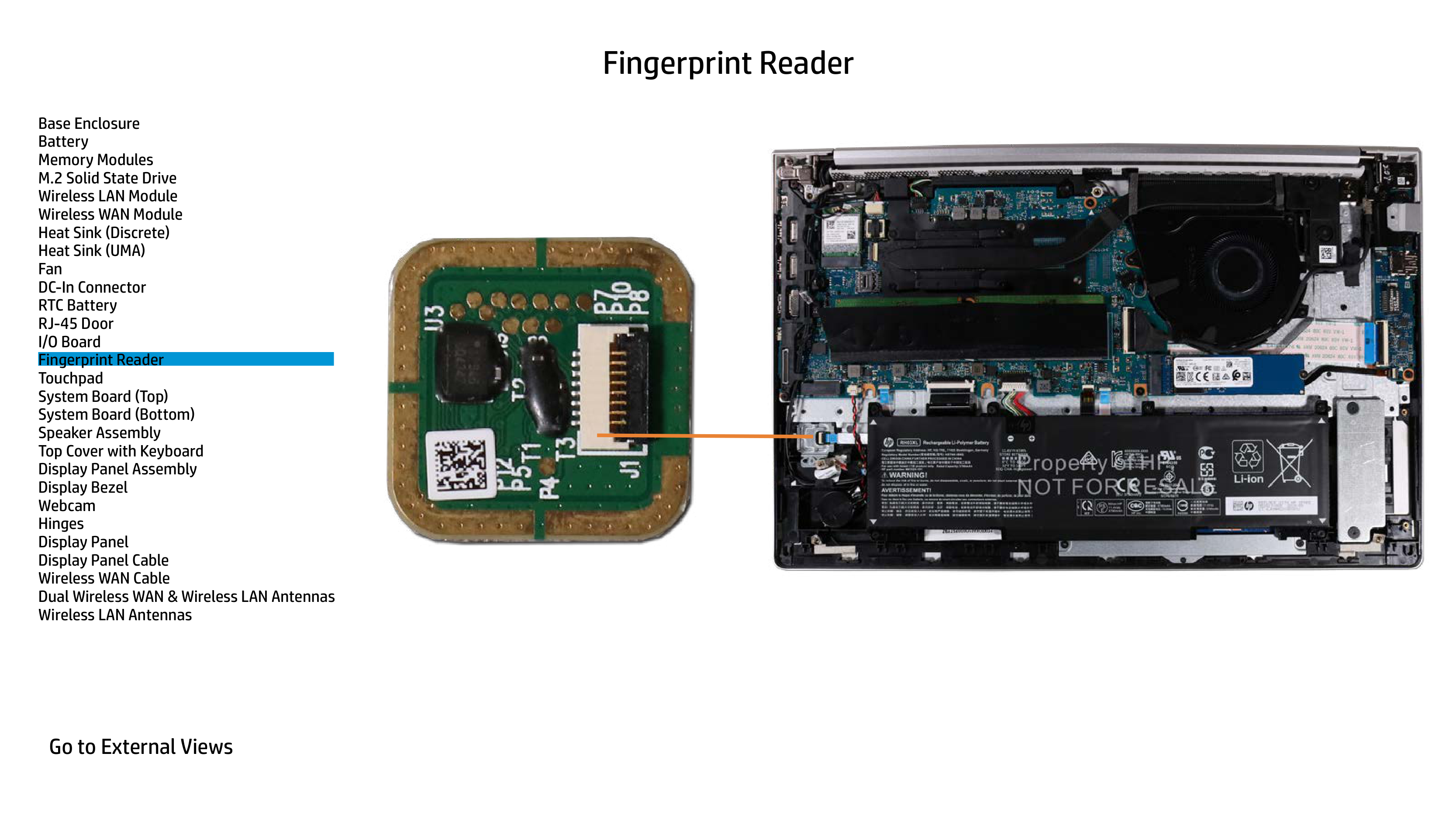

Fingerprint Reader
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

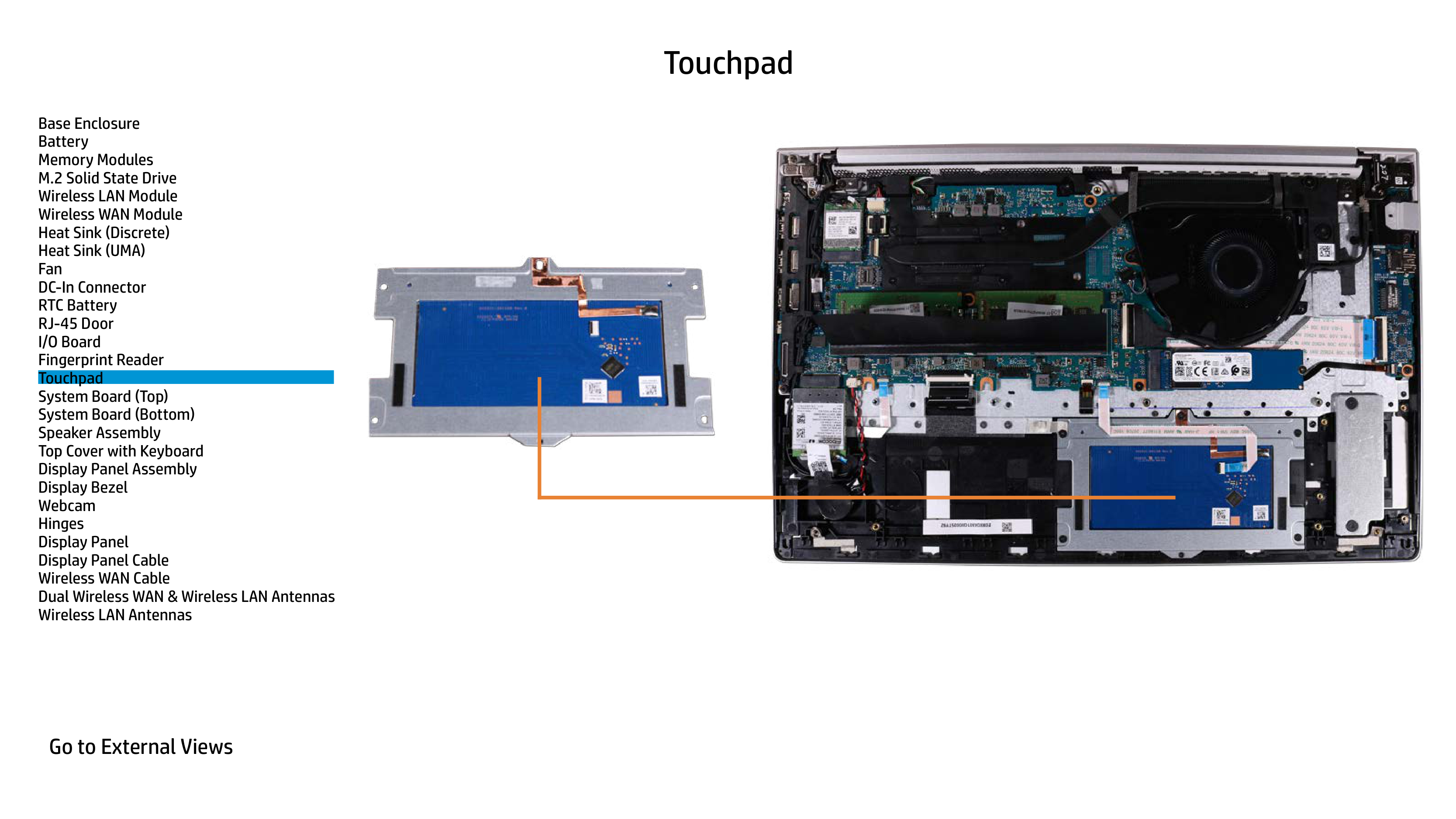

Touchpad
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

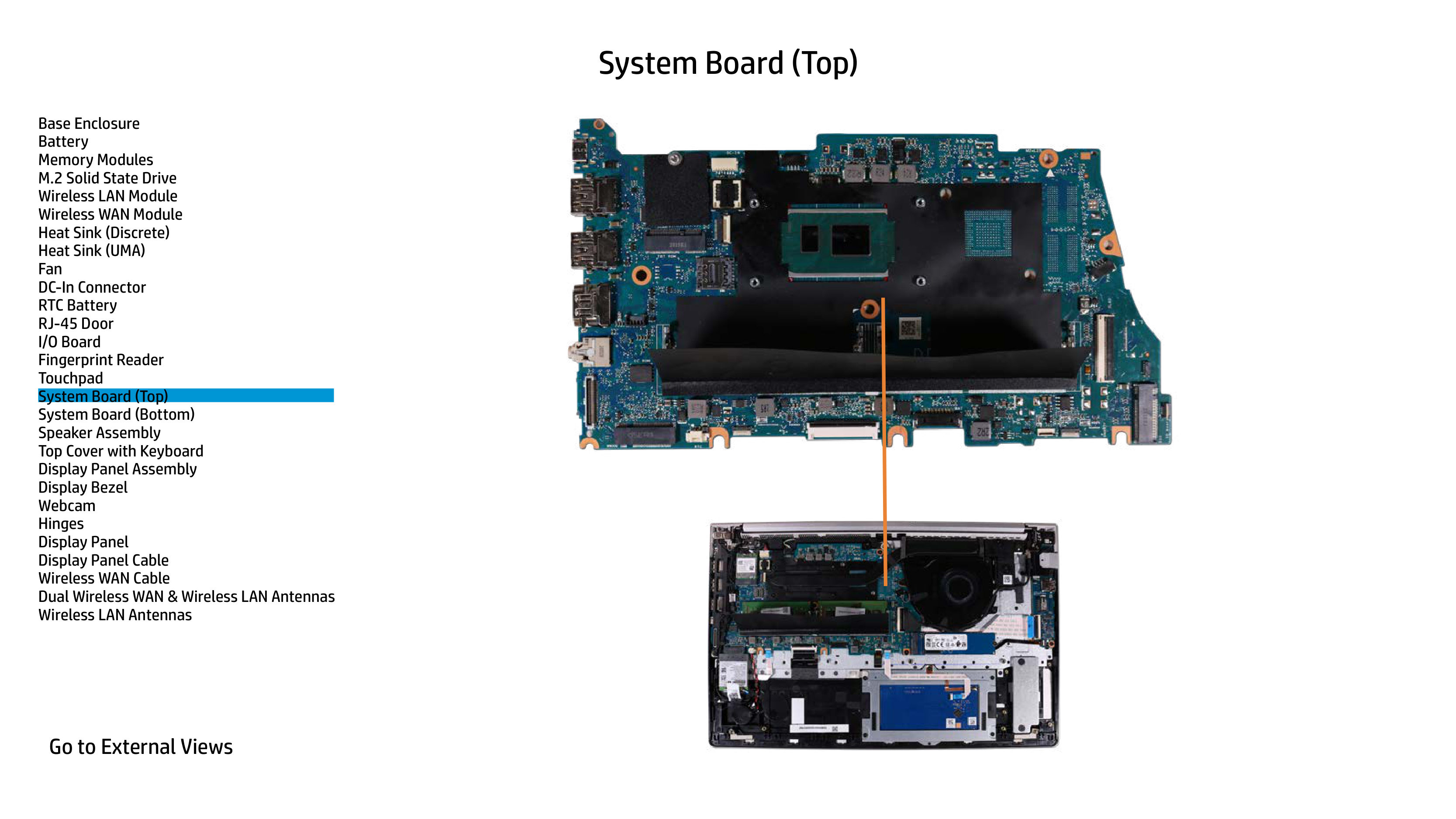

System Board (Top)
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

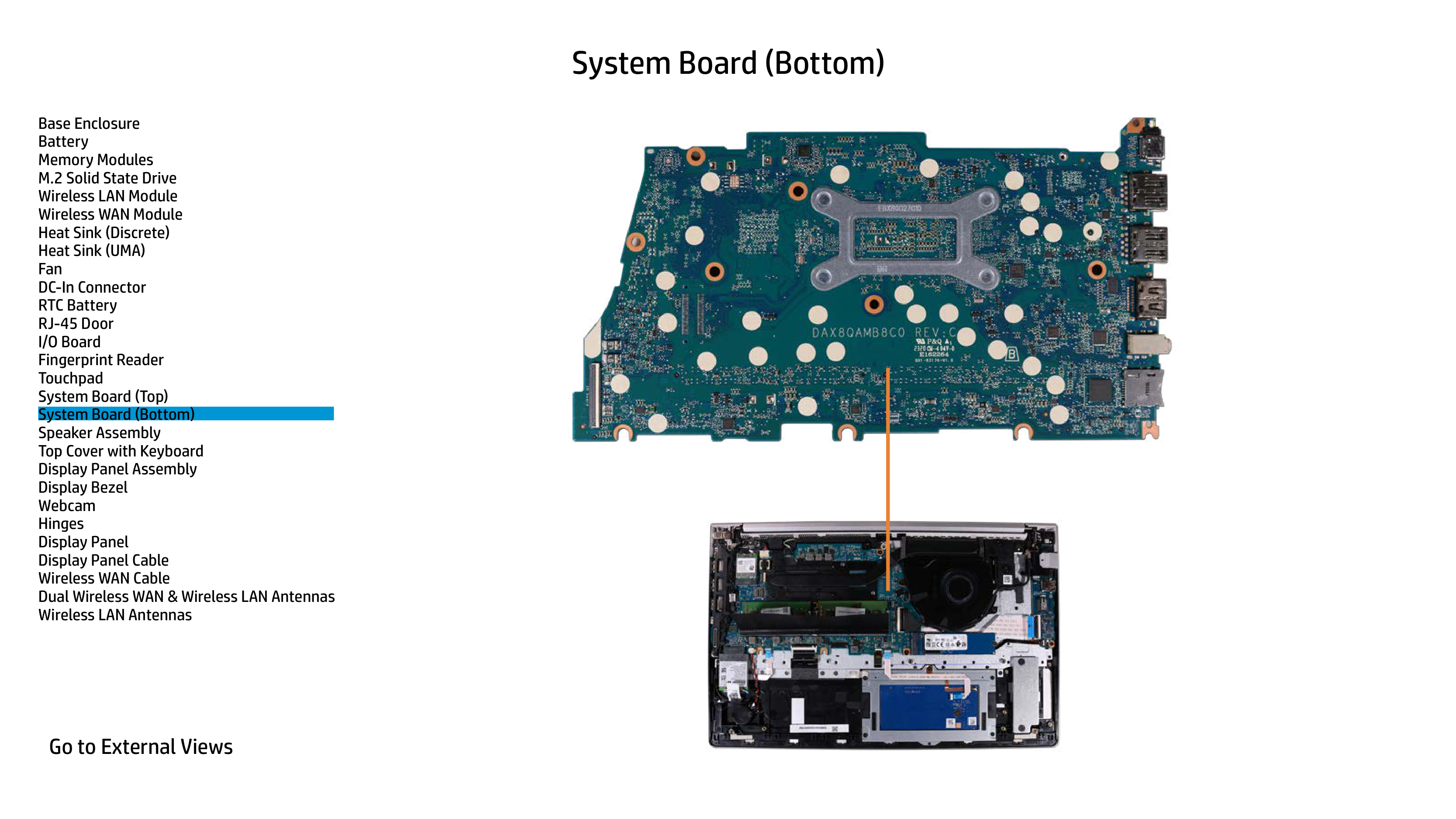

System Board (Bottom)
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

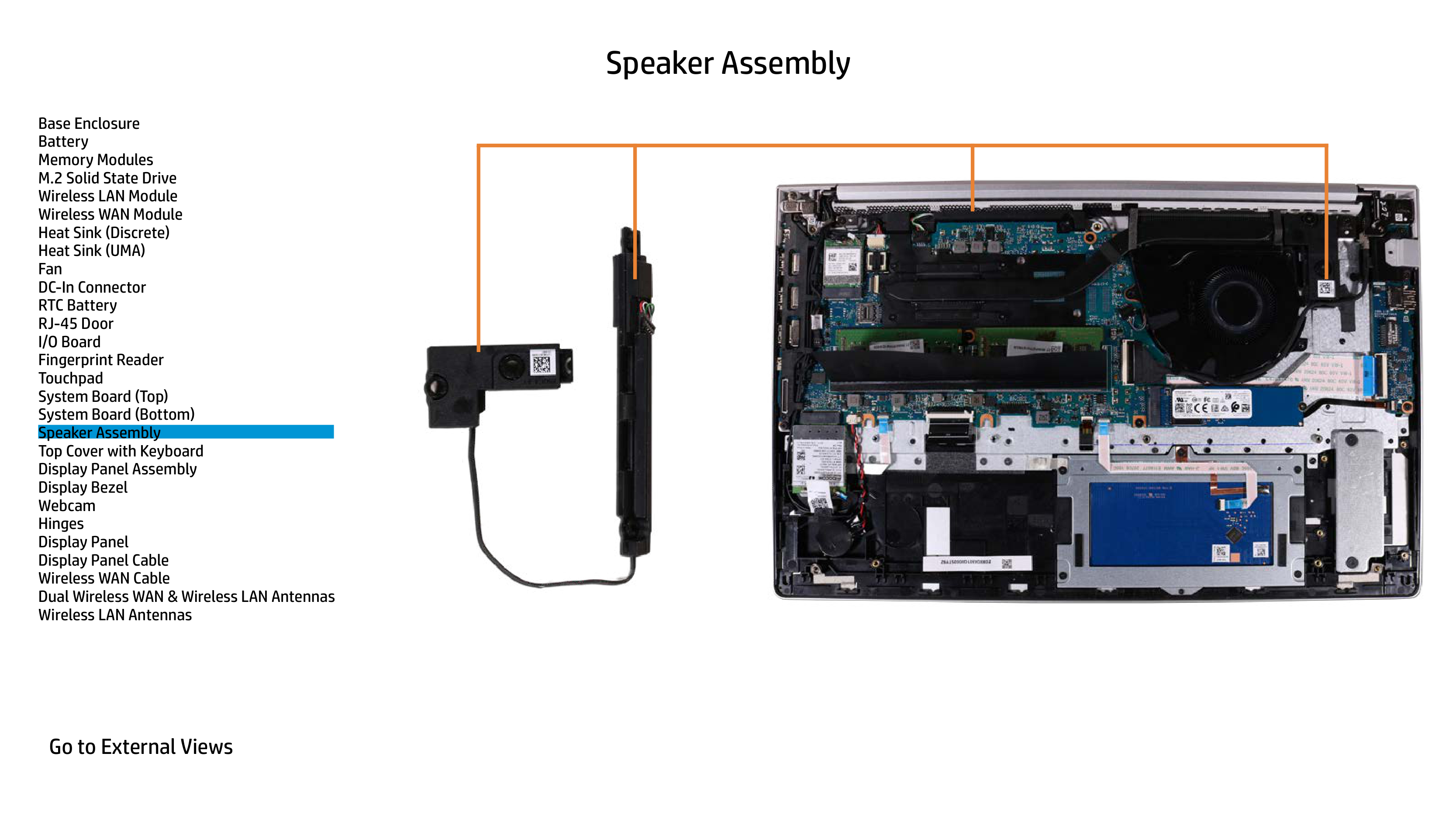

Speaker Assembly

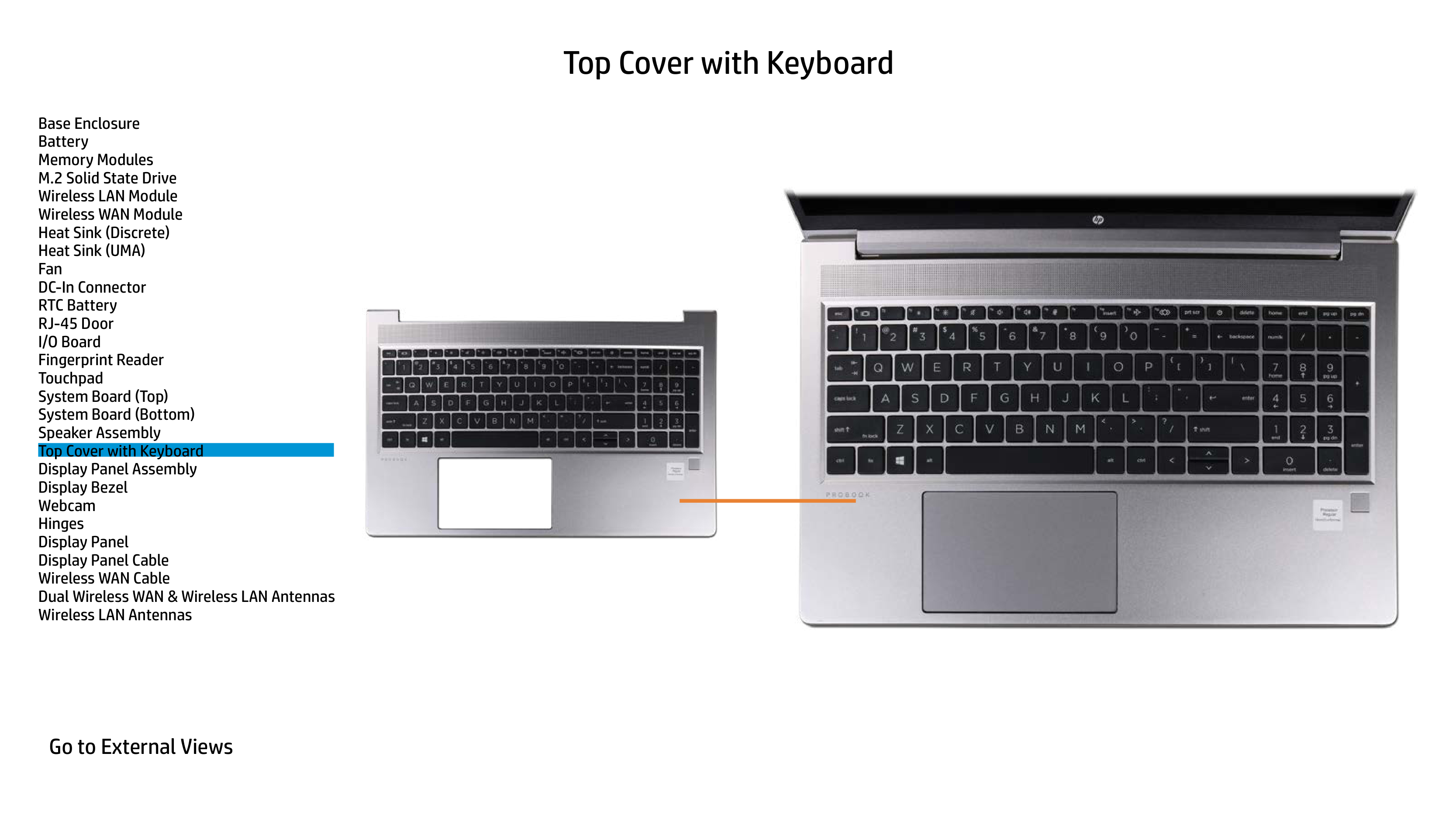

Top Cover with Keyboard
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

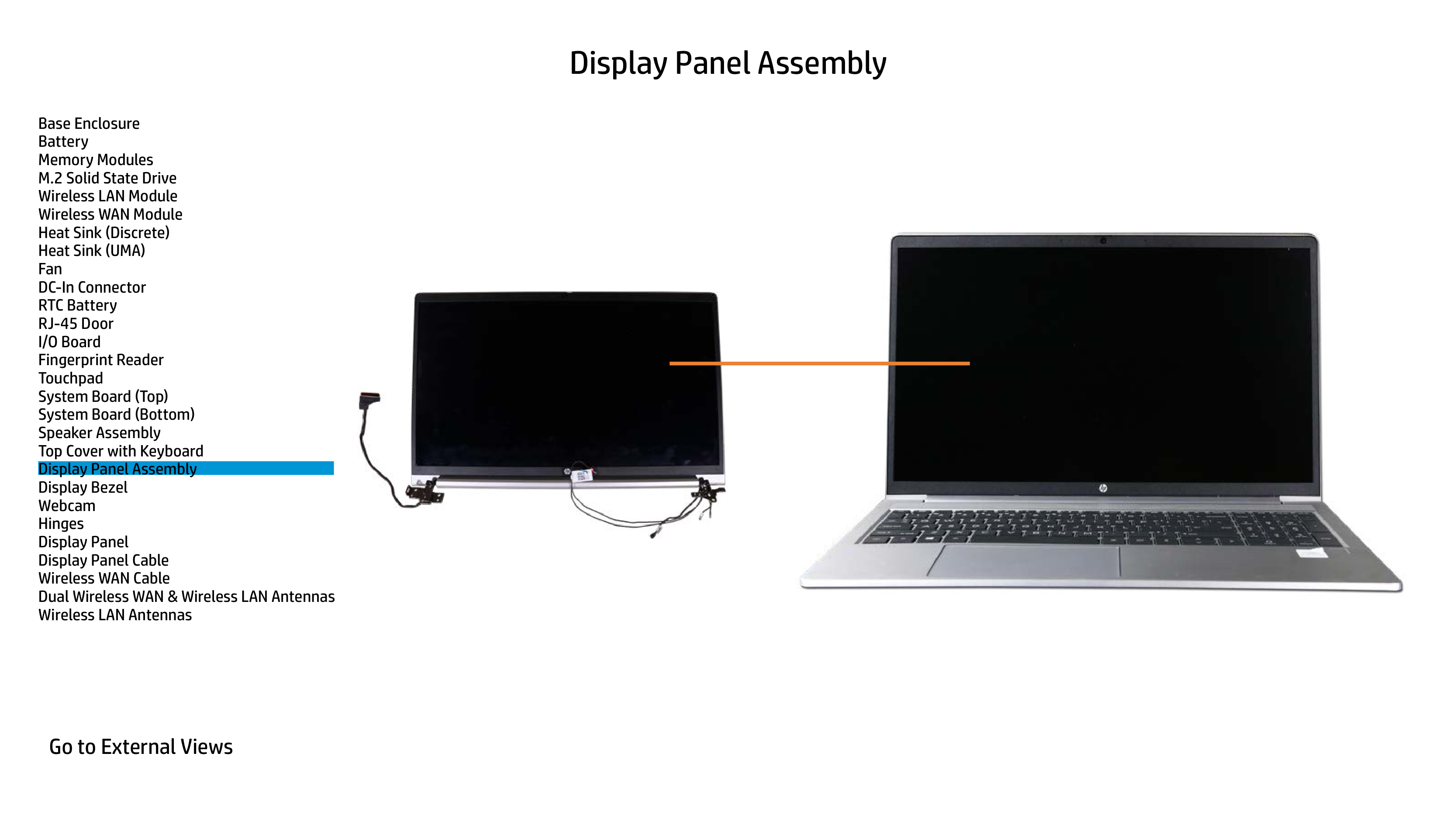

Display Panel Assembly
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

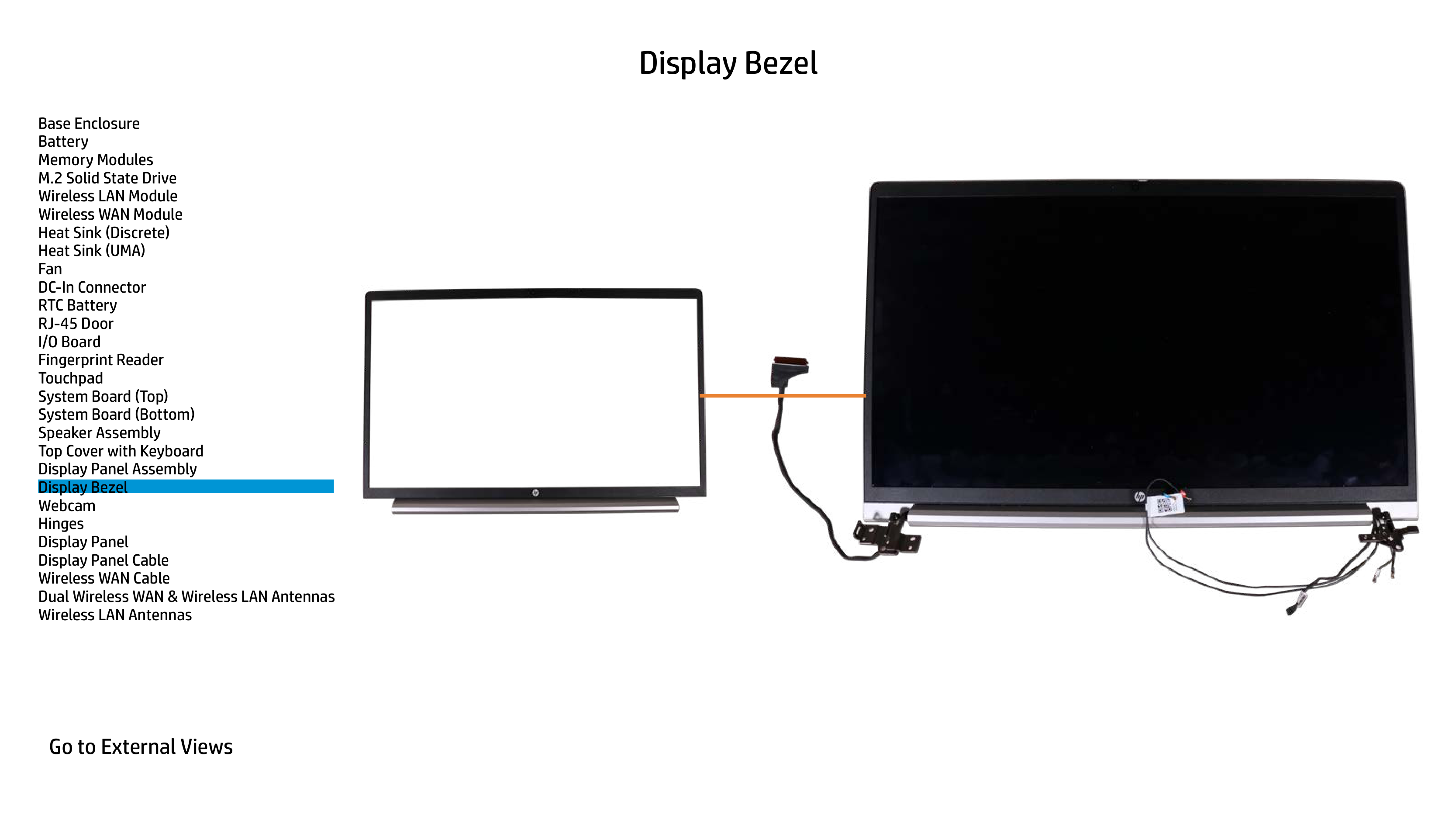

Display Bezel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

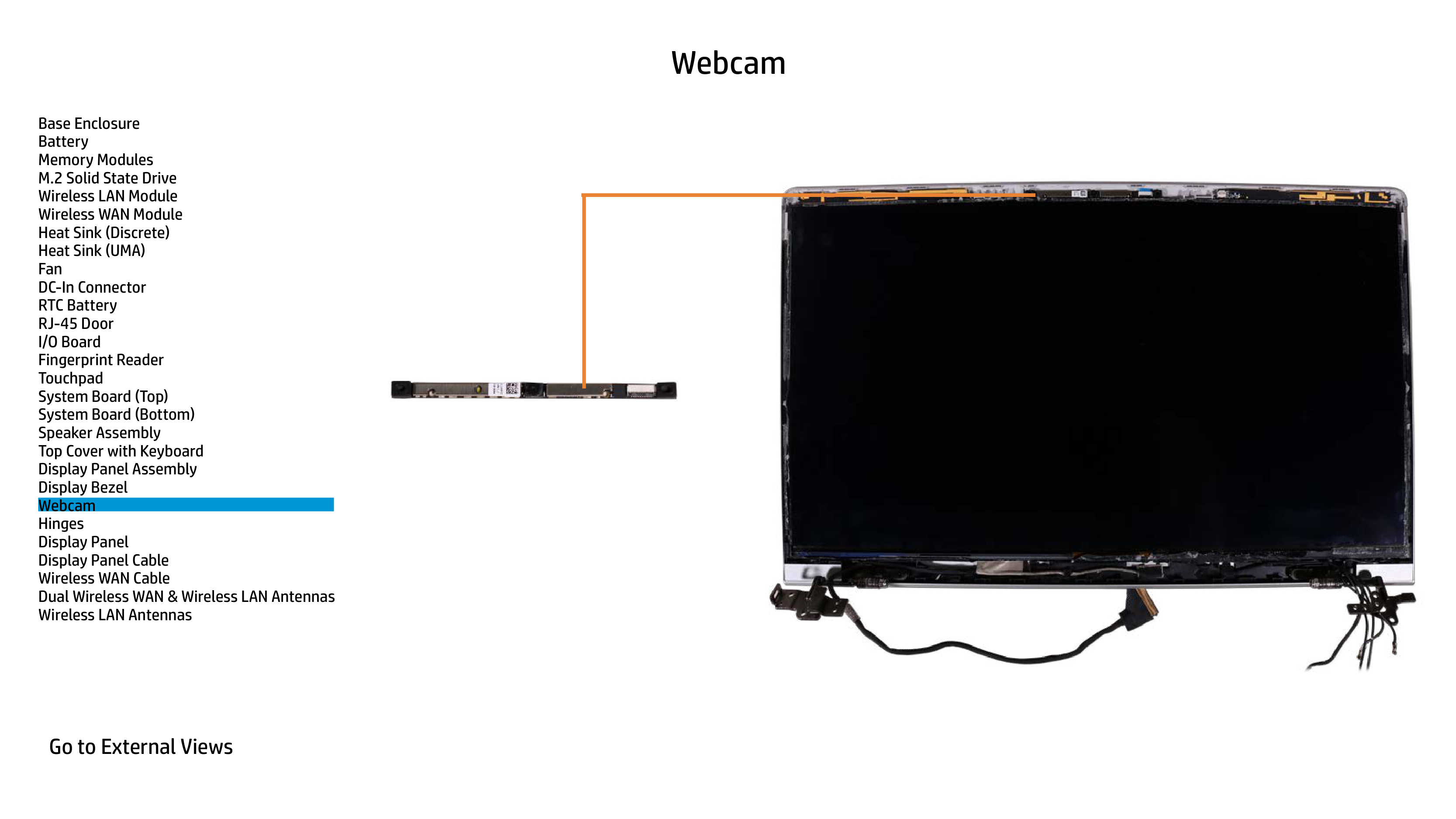

Webcam
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

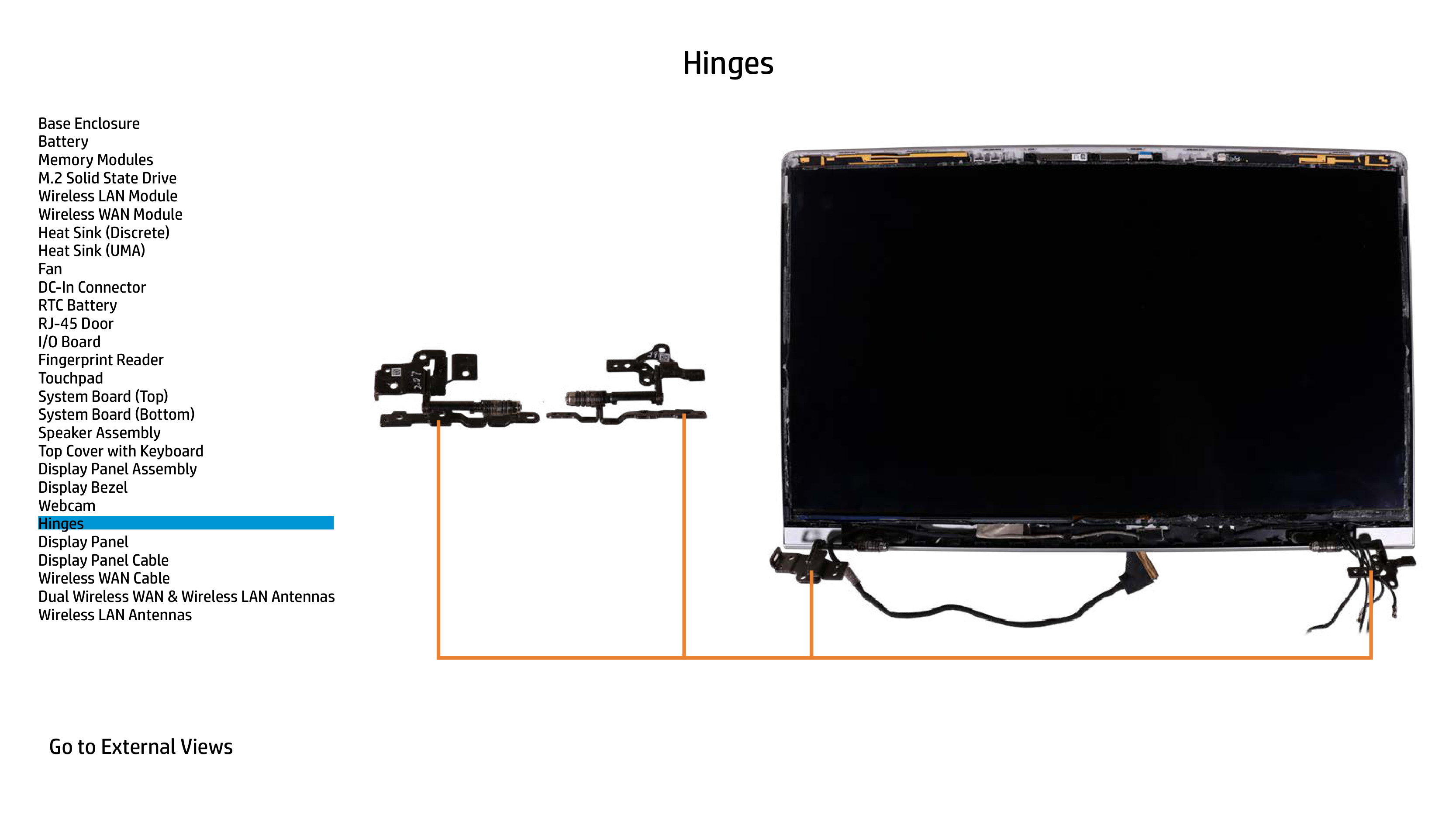

Hinges
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

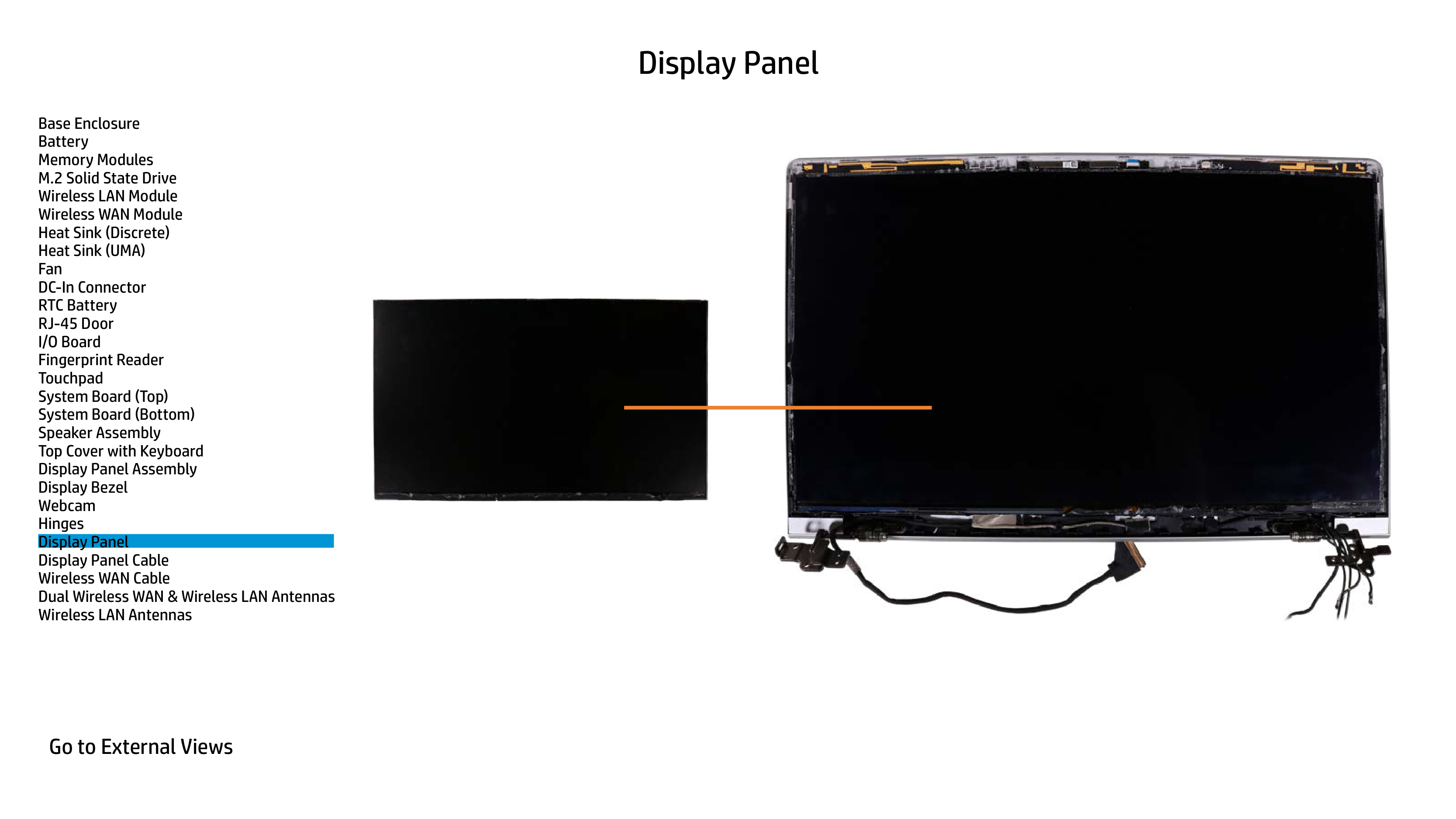

Display Panel
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

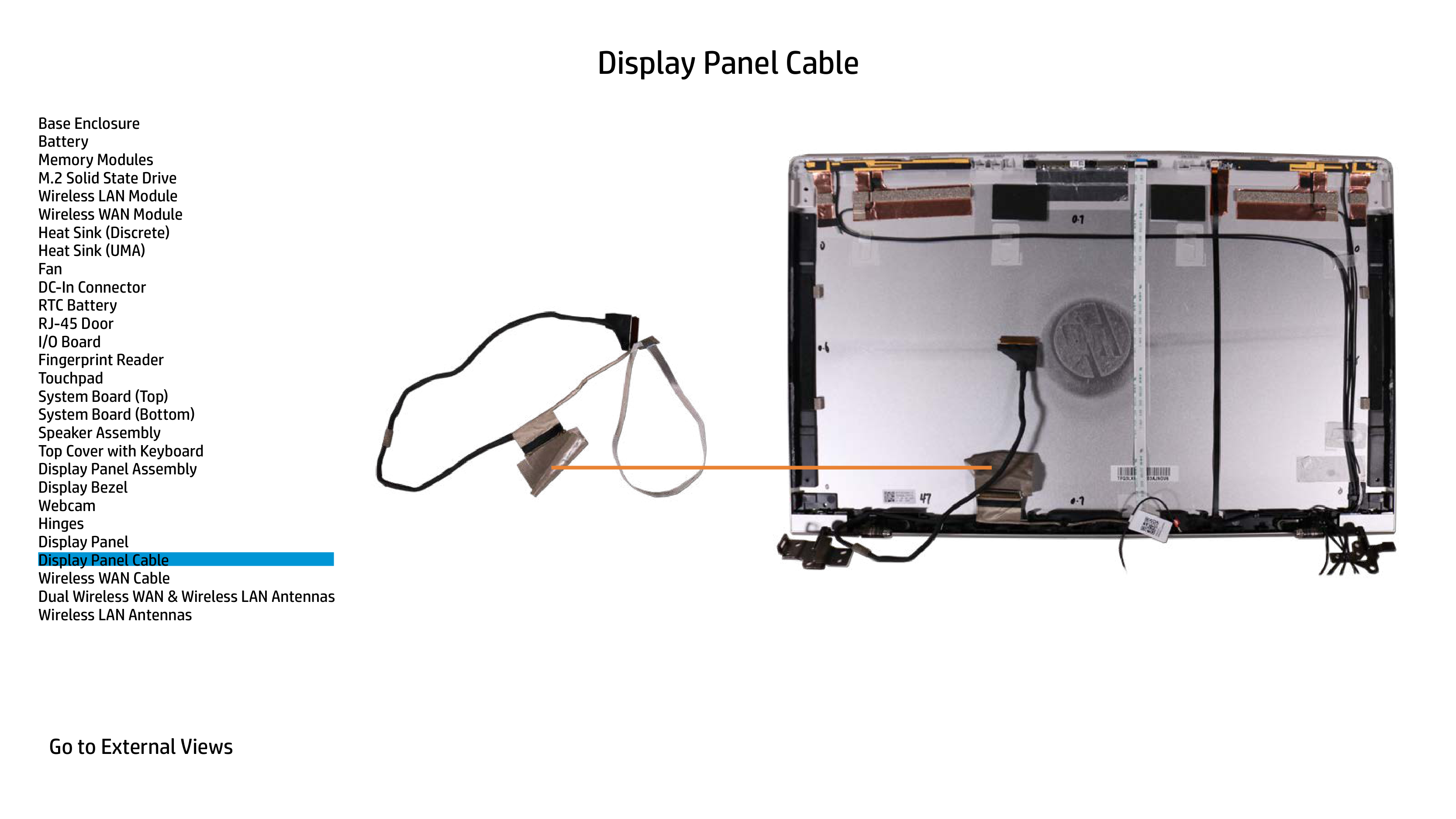

Display Panel Cable
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

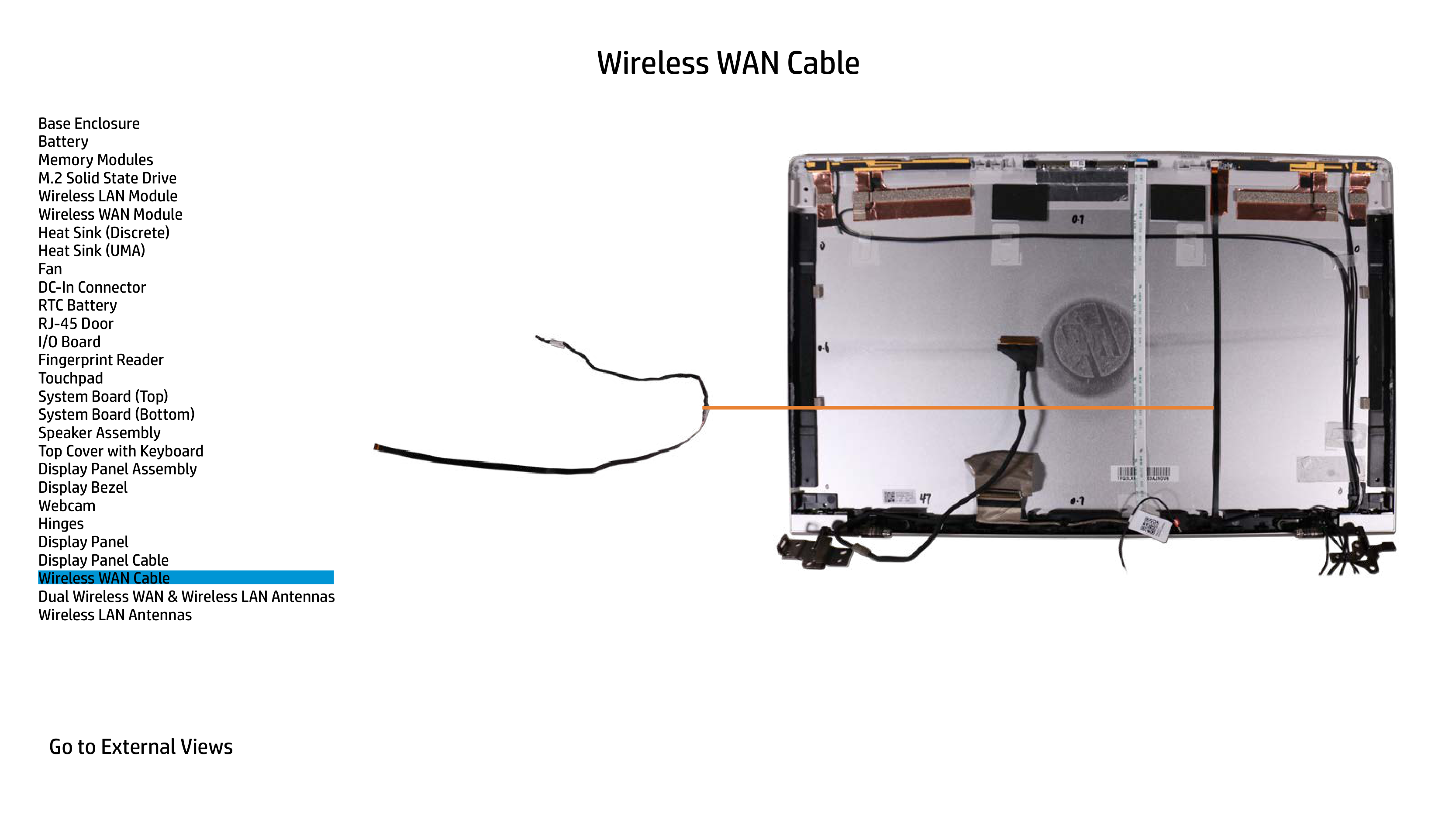

Wireless WAN Cable
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

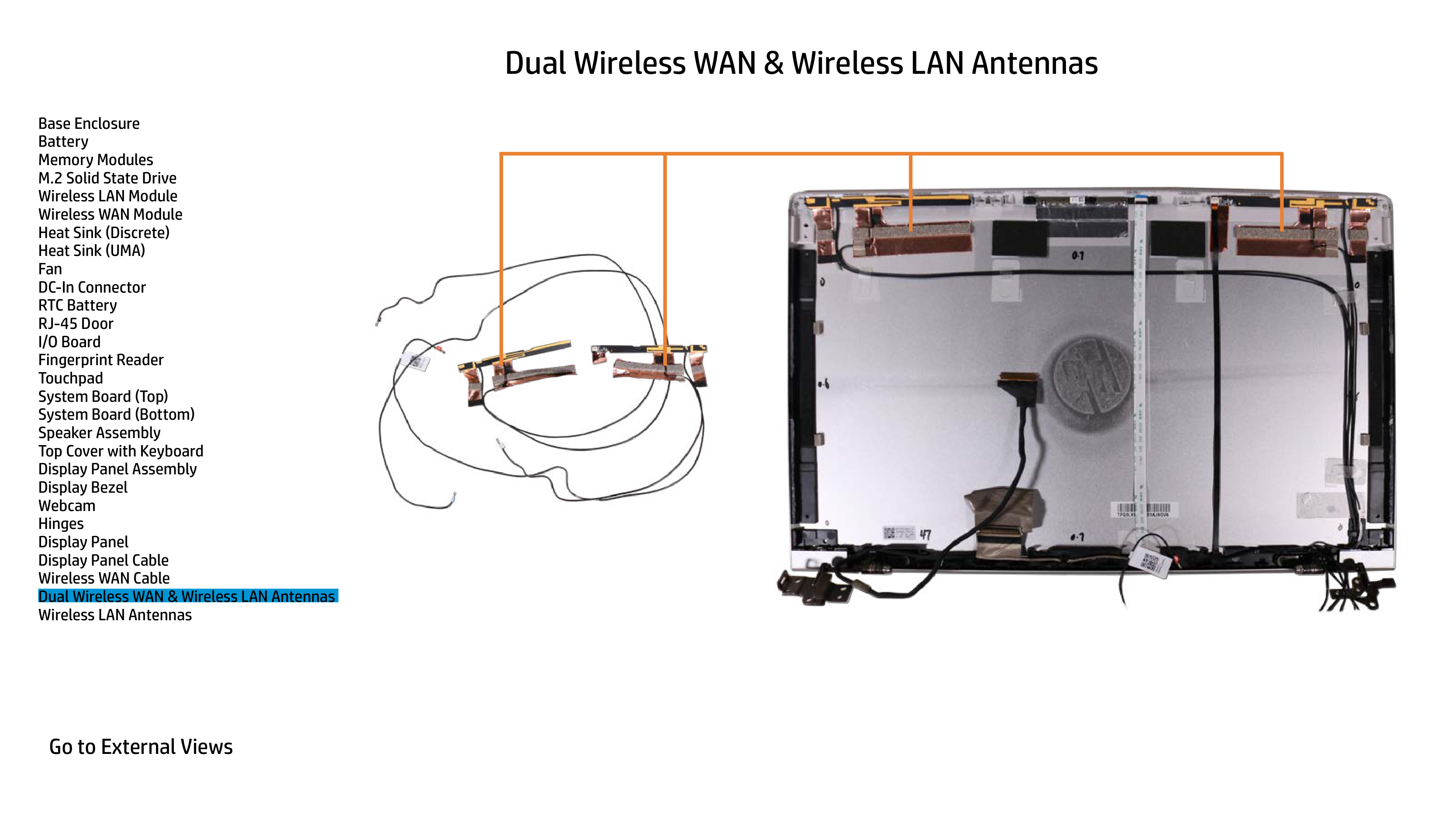

Dual Wireless WAN & Wireless LAN Antennas
Base Enclosure Battery Memory Modules M.2 Solid State Drive Wireless LAN Module Wireless WAN Module Heat Sink (Discrete) Heat Sink (UMA) Fan DC-In Connector RTC Battery RJ-45 Door I/O Board Fingerprint Reader Touchpad System Board (Top) System Board (Bottom) Speaker Assembly Top Cover with Keyboard Display Panel Assembly Display Bezel Webcam Hinges Display Panel

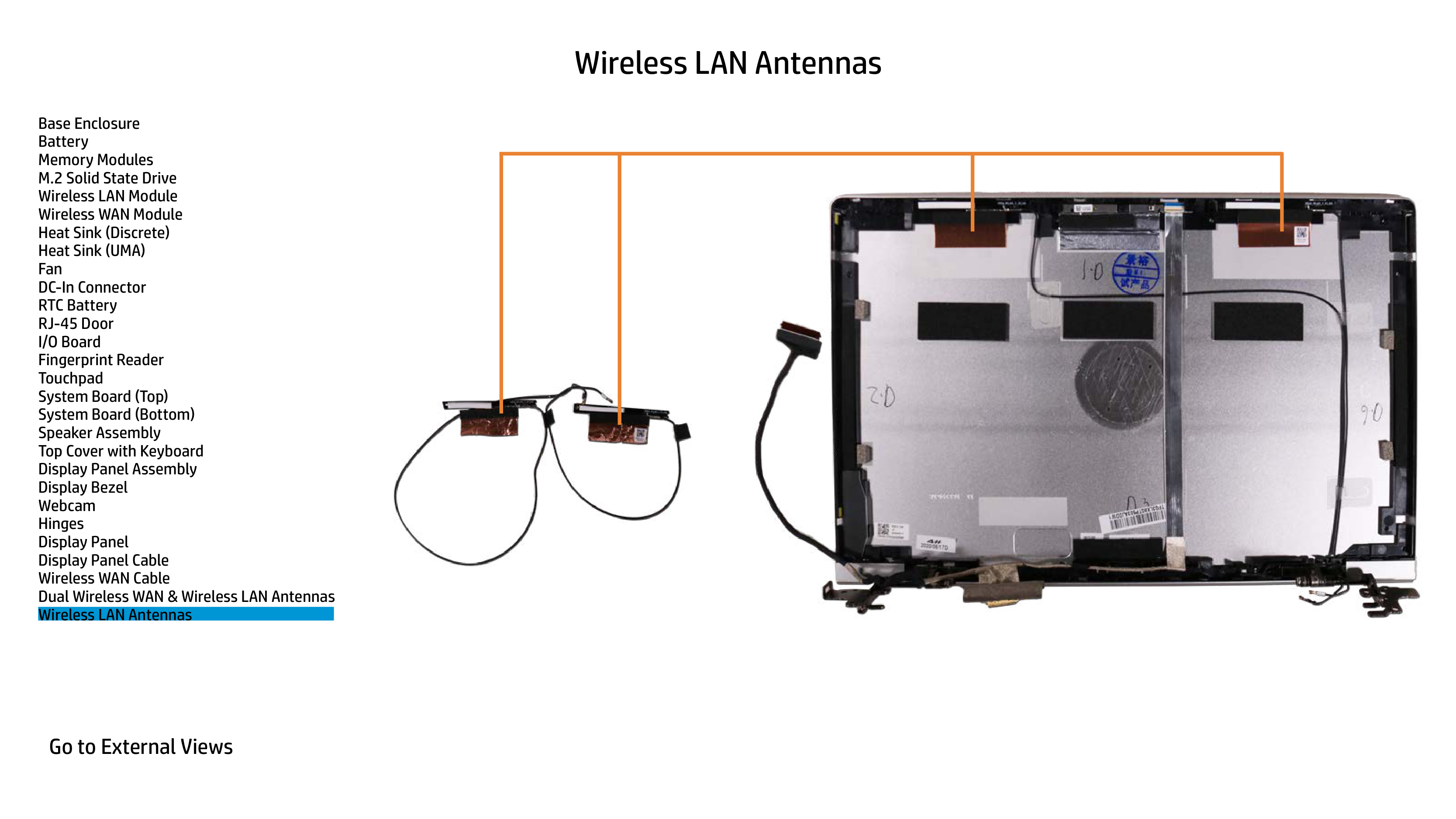

Wireless LAN Antennas
