Image 10 0 Treadmill Imtl39620


®

Model No, 831,297573 Serial No.

Write the serial number in the space above for future reference.

Serial Number Decal

E x E_ R C I S I_ EO u I PM ENT

HELPLINE!

1-800-736-6879

###### USER'S MANUAL


########## TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2 BEFORE YOU BEGIN ....................................................................... 4 ASSEMBLY ............................................................................... 5 HOW TO USE THE HEART RATE MONITOR .................................................... 6 OPERATION AND ADJUSTMENT ............................................................. 7 HOW TO FOLD AND MOVE THE TREADMILL .................................................. 17 MAINTENANCE AND TROUBLE-SHOOTING ................................................... 18 CONDITIONING GUIDELINES ............................................................... 20 PART LIST ............................................................................... 22 ORDERING REPLACEMENT PARTS .................................................. Back Cover FULL ONE YEAR WARRANTY ........................................................ Back Cover

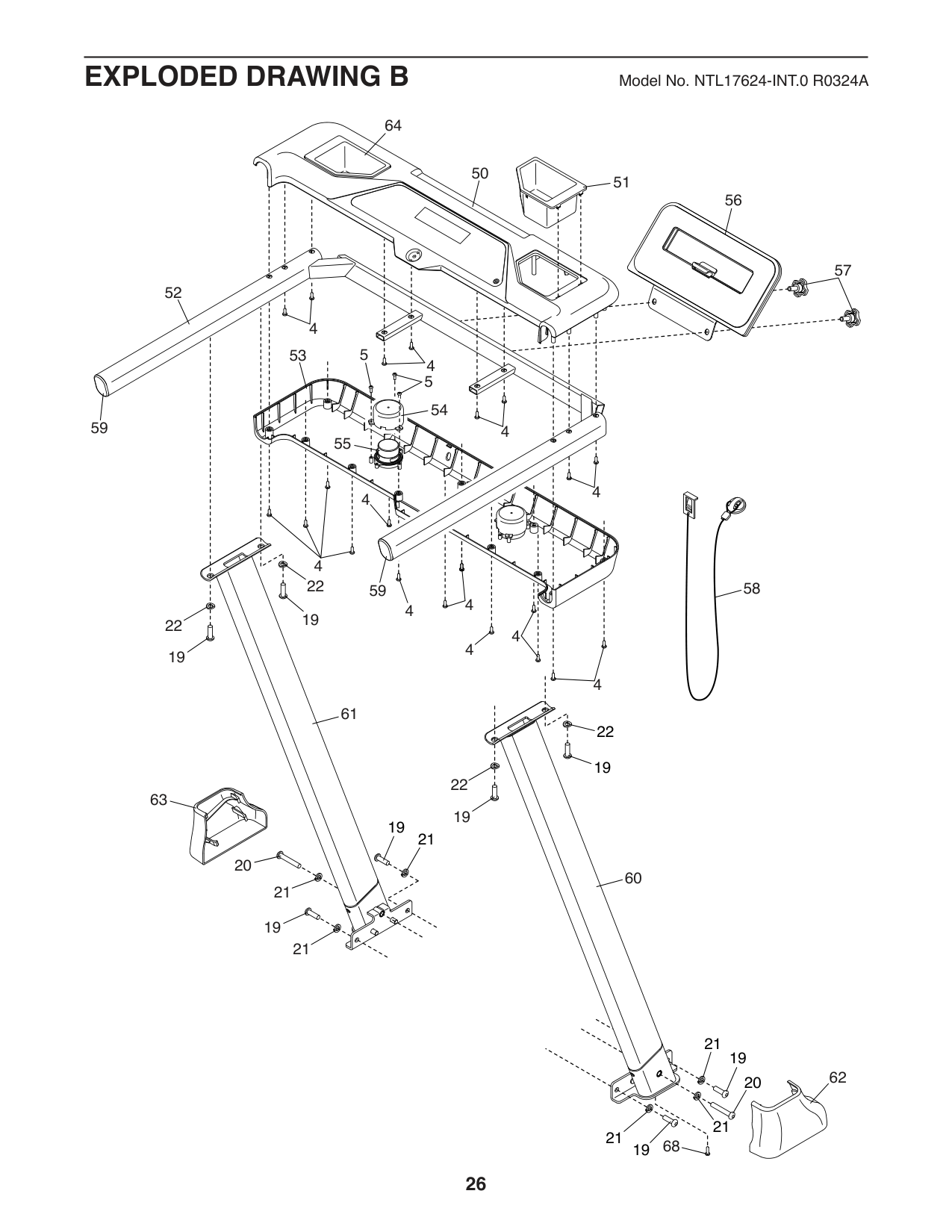

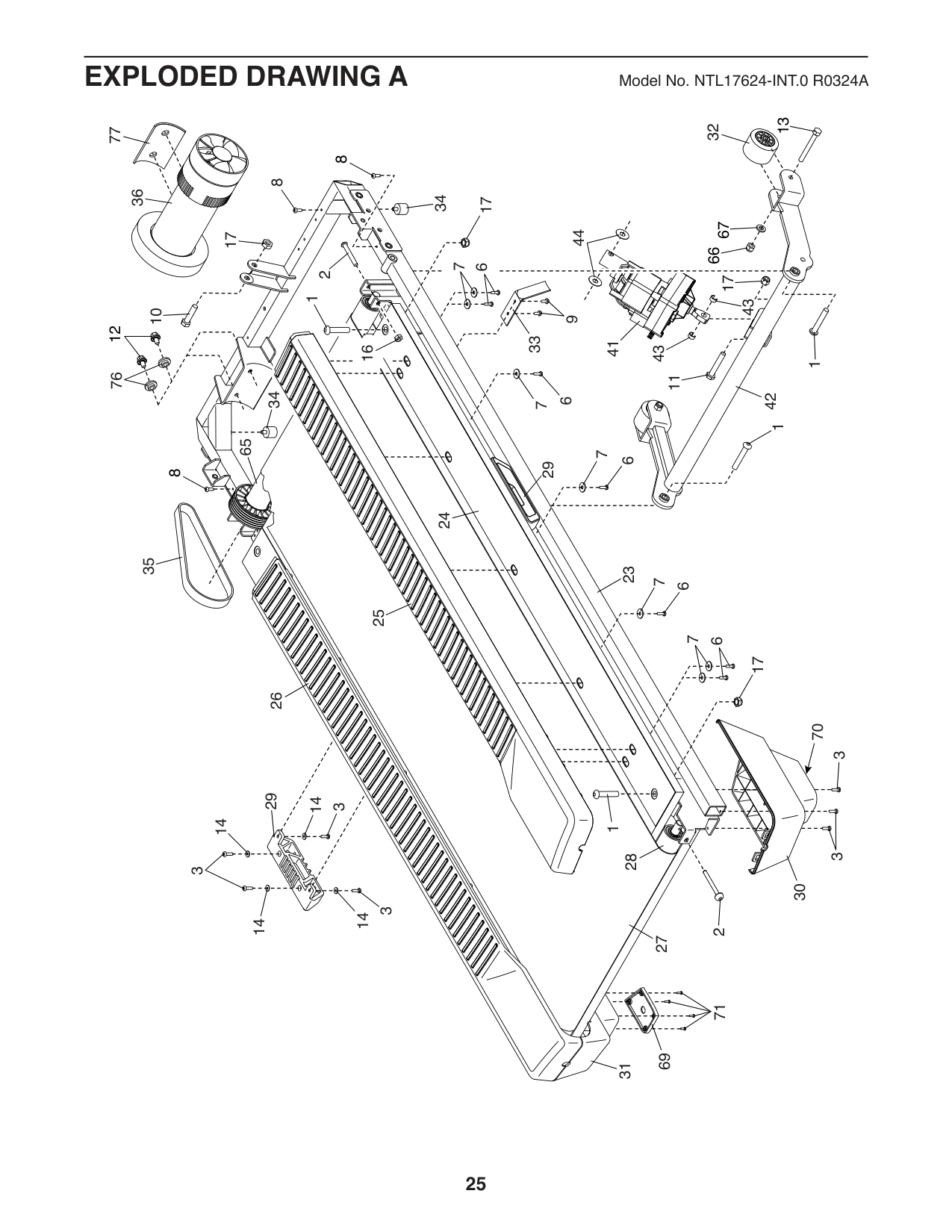

Note: An EXPLODED DRAWING is attached at the center of this manual. Save the EXPLODED DRAWING for future reference.

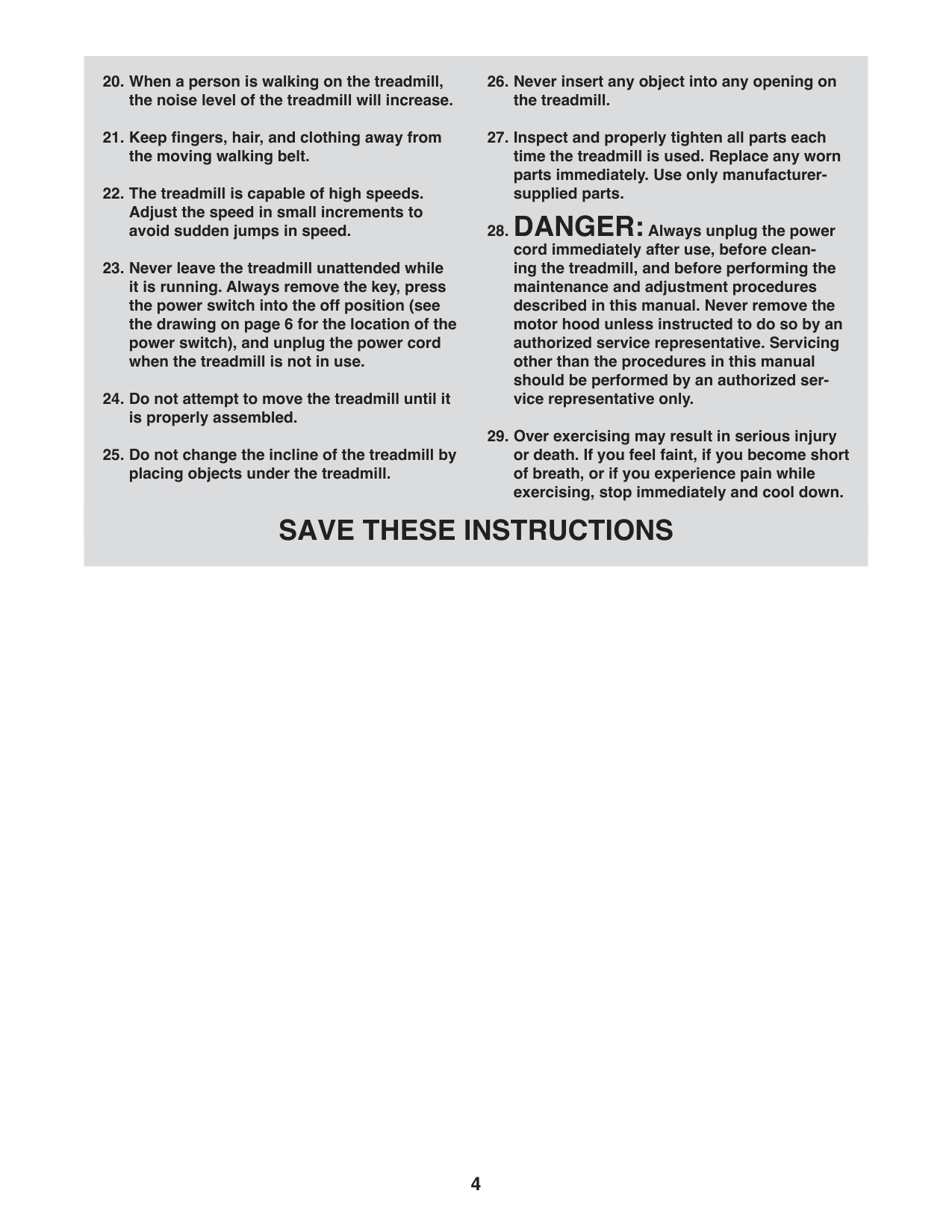

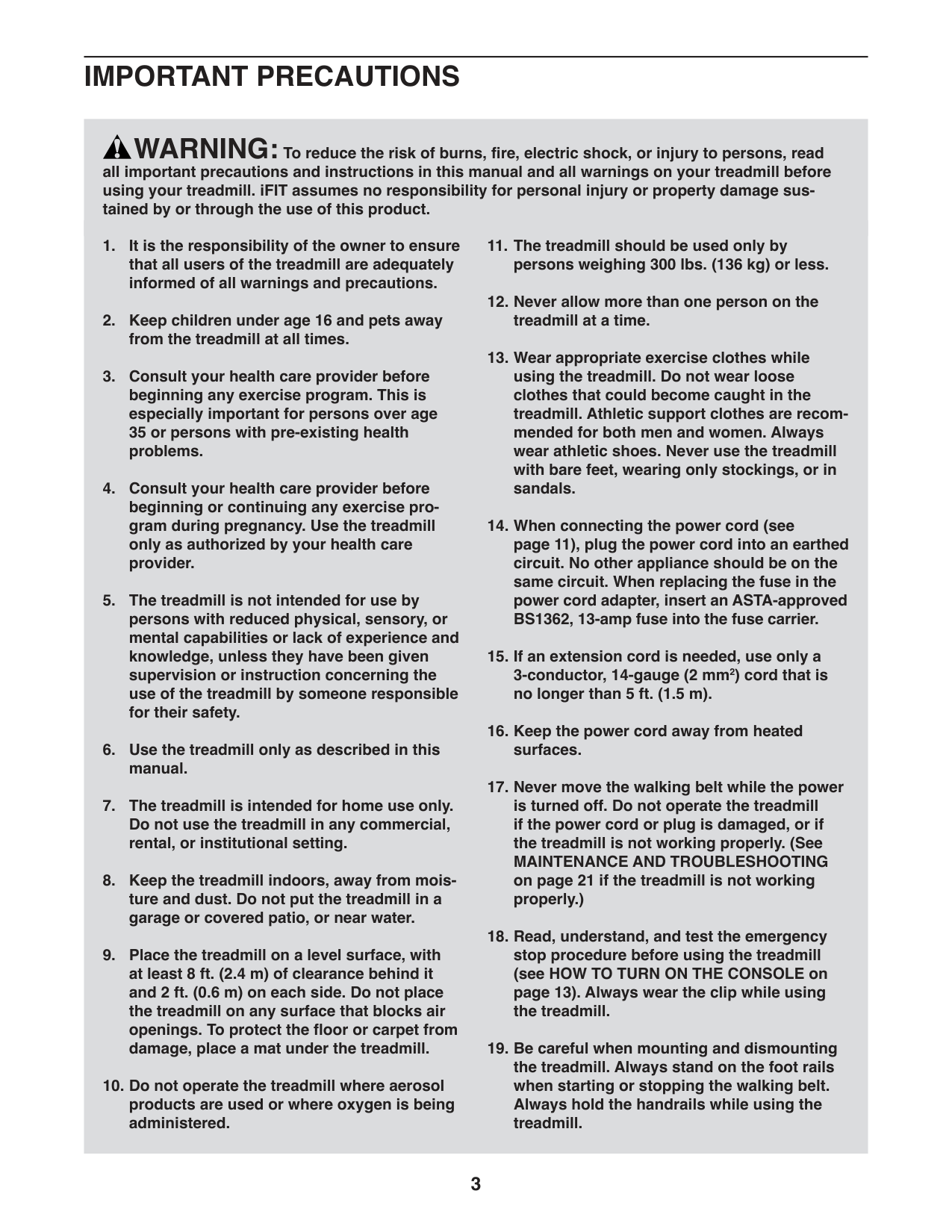

########## IMPORTANT PRECAUTIONS

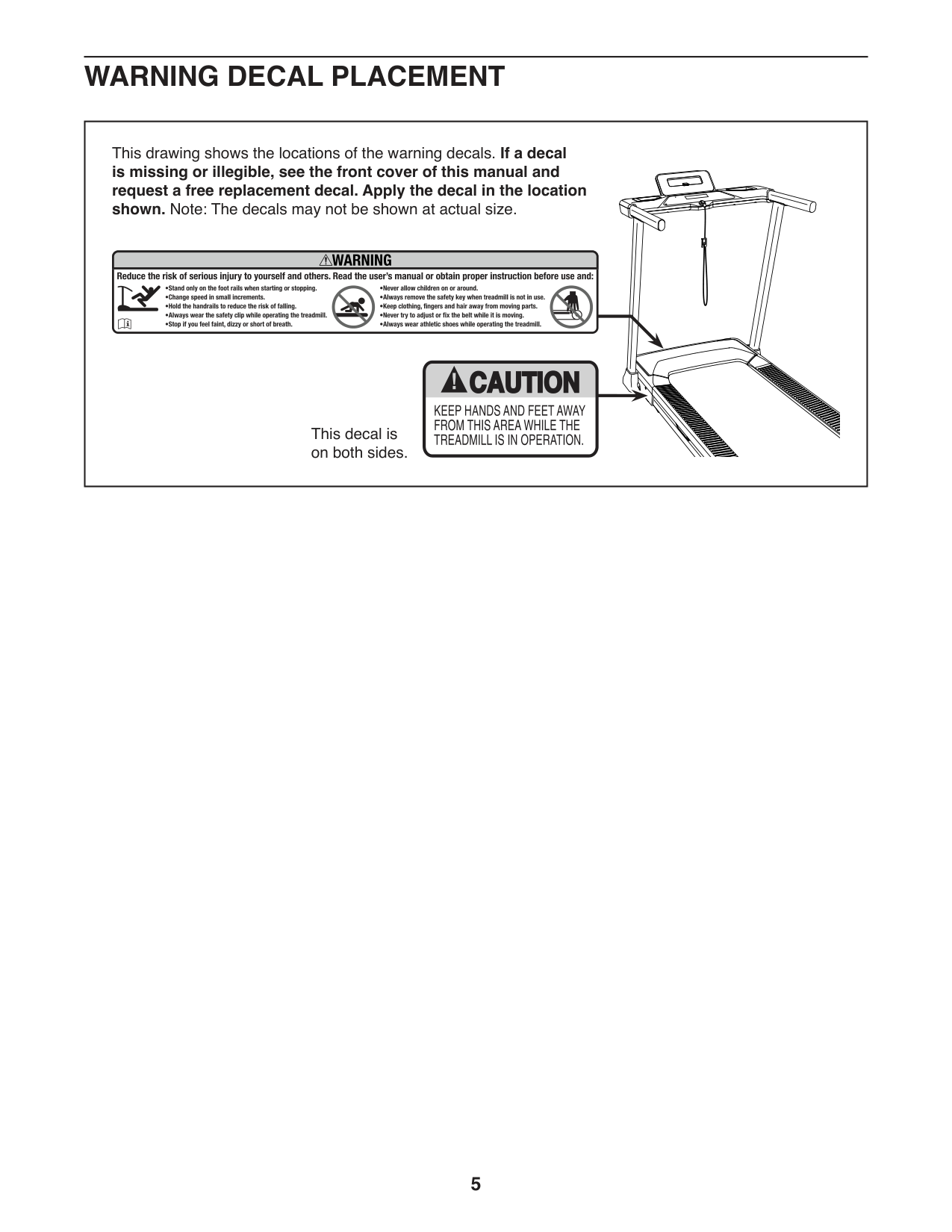

The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our toll-free HELPLINE to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover). Apply the decal in the location shown.

CAUTION "

Never allow children on or around treadmill.

KEEPHANDSANDFEETAWAY FROMTHISAREAWHILETHE TREADMILLIS INOPERATION.

Storage latch must be fully engaged before treadmill is moved or stored. Incline must be set at

P

lowest level before folding treadmill into storage position. •


######### BEFORE YOU BEGIN

Thank you for selecting the IMAGE ®10.6Q treadmill. The IMAGE ®!0.6Q treadmill combines advanced technology with innovative design to let you enjoy an effective form of cardiovascular exercise in the convenience and privacy of your home. And when you're not exercising, the unique IMAGE ®10.6Q can be folded up, requiring less than half the floor space of other treadmills.

1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is 831.297573. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

For your benefit, read this manual carefully before using the treadmill. If you have questions after reading the manual, please call our toll-free HELPLINE at

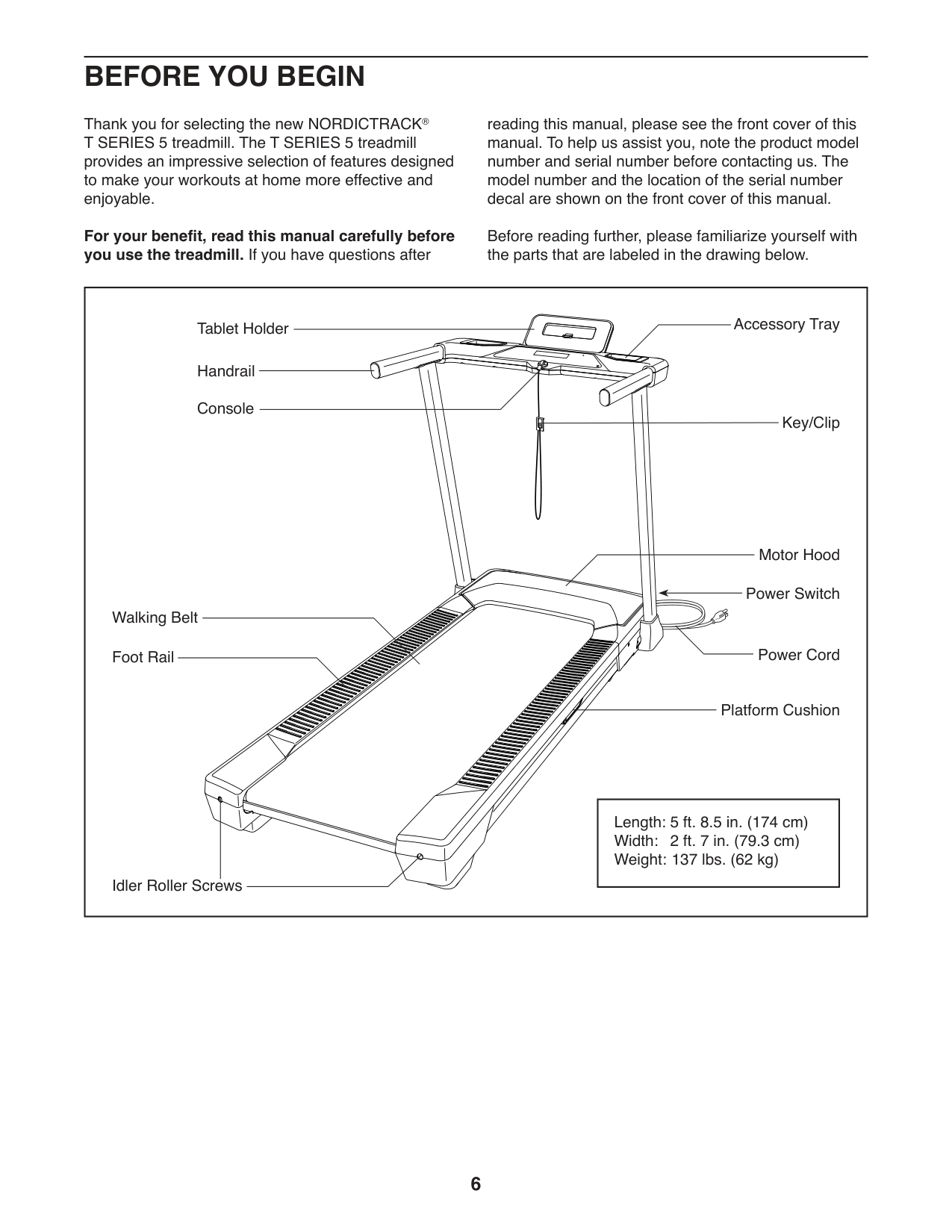

Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.

Console Reading Rack

Water Bottle

(Bottle not included)

Accessory Tray

Handrail

Upright

Lock Knob

On/Off Switch

Walkinc

Circuit

Foot

Power Cord

############ RIGHT SIDE

LrRoller Adjustment Bolt BACK Cushion Knob

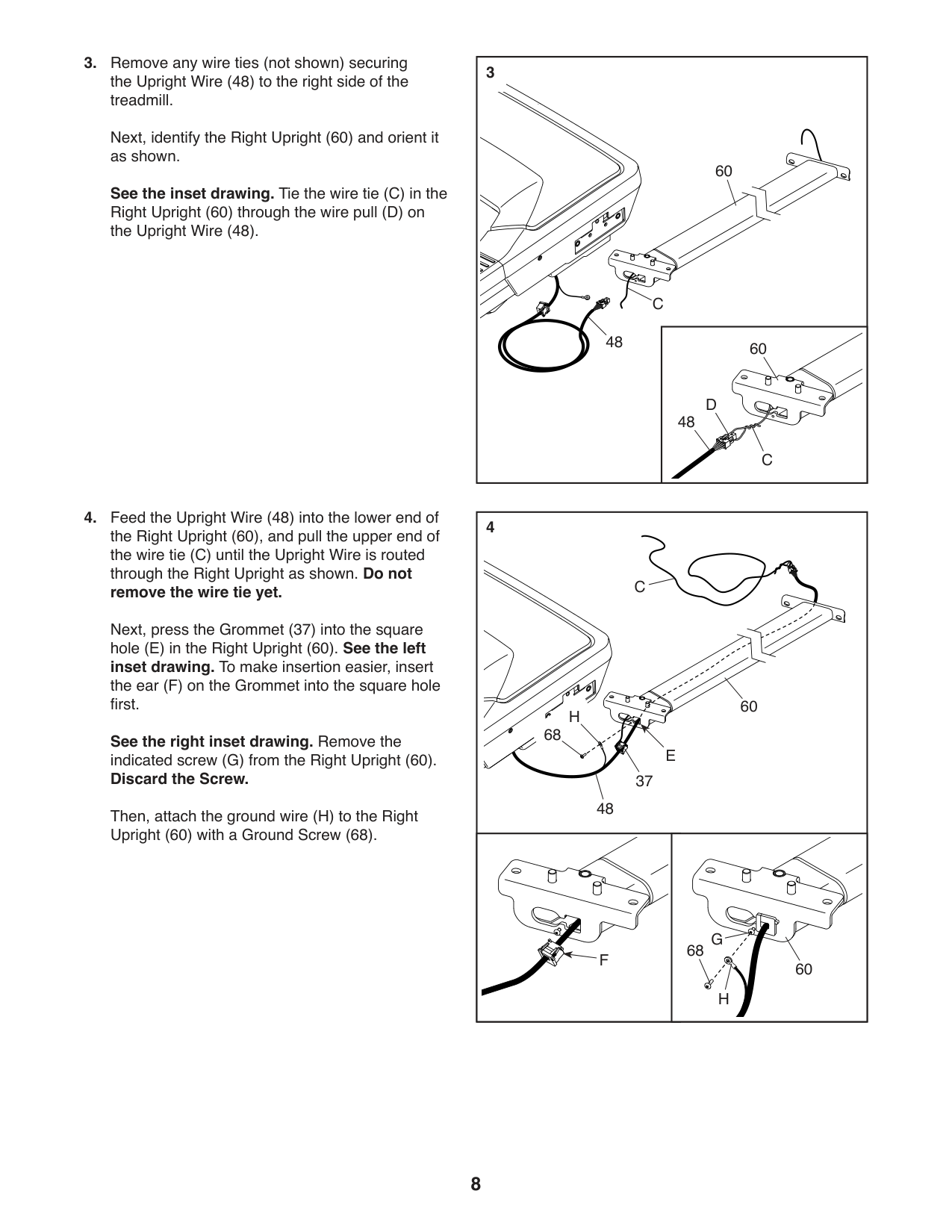

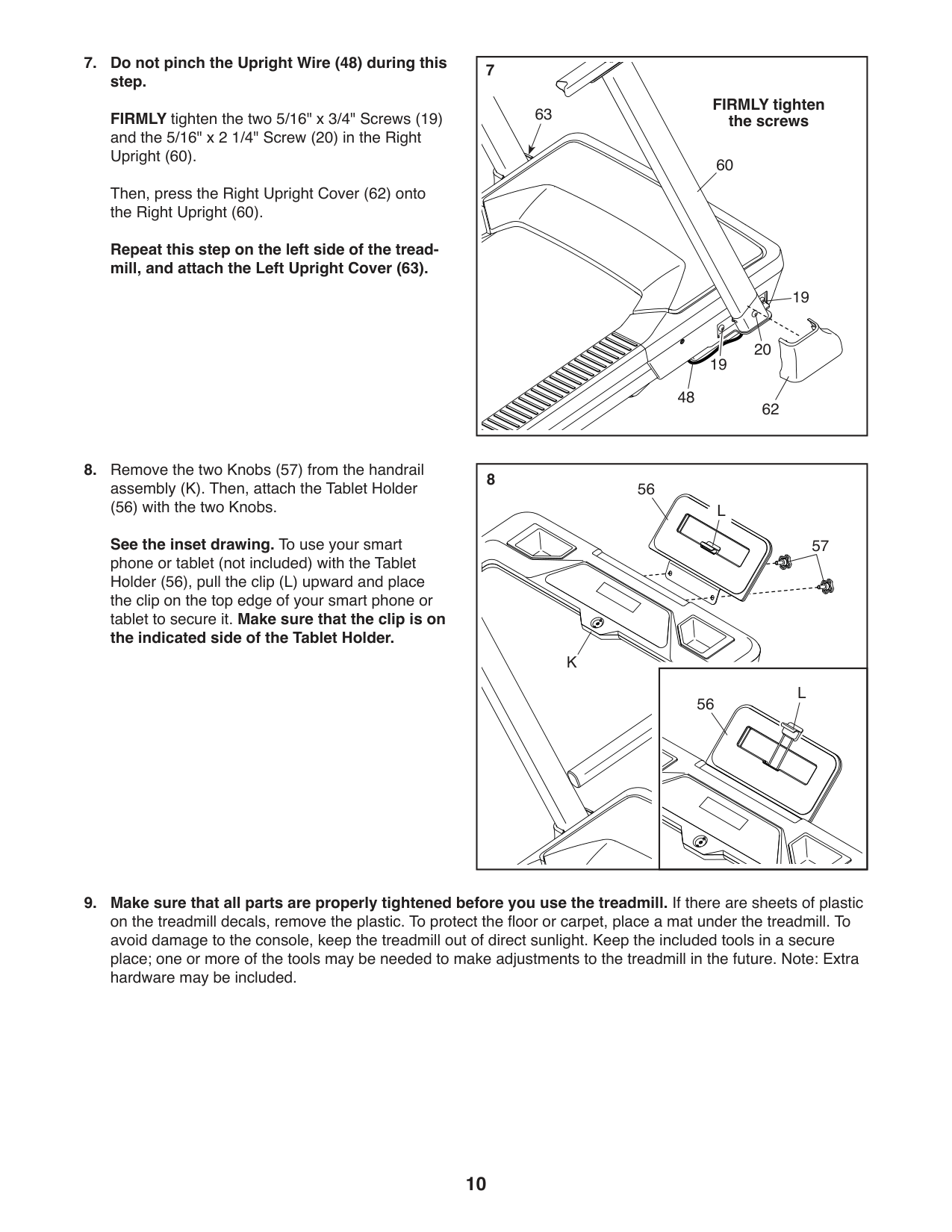

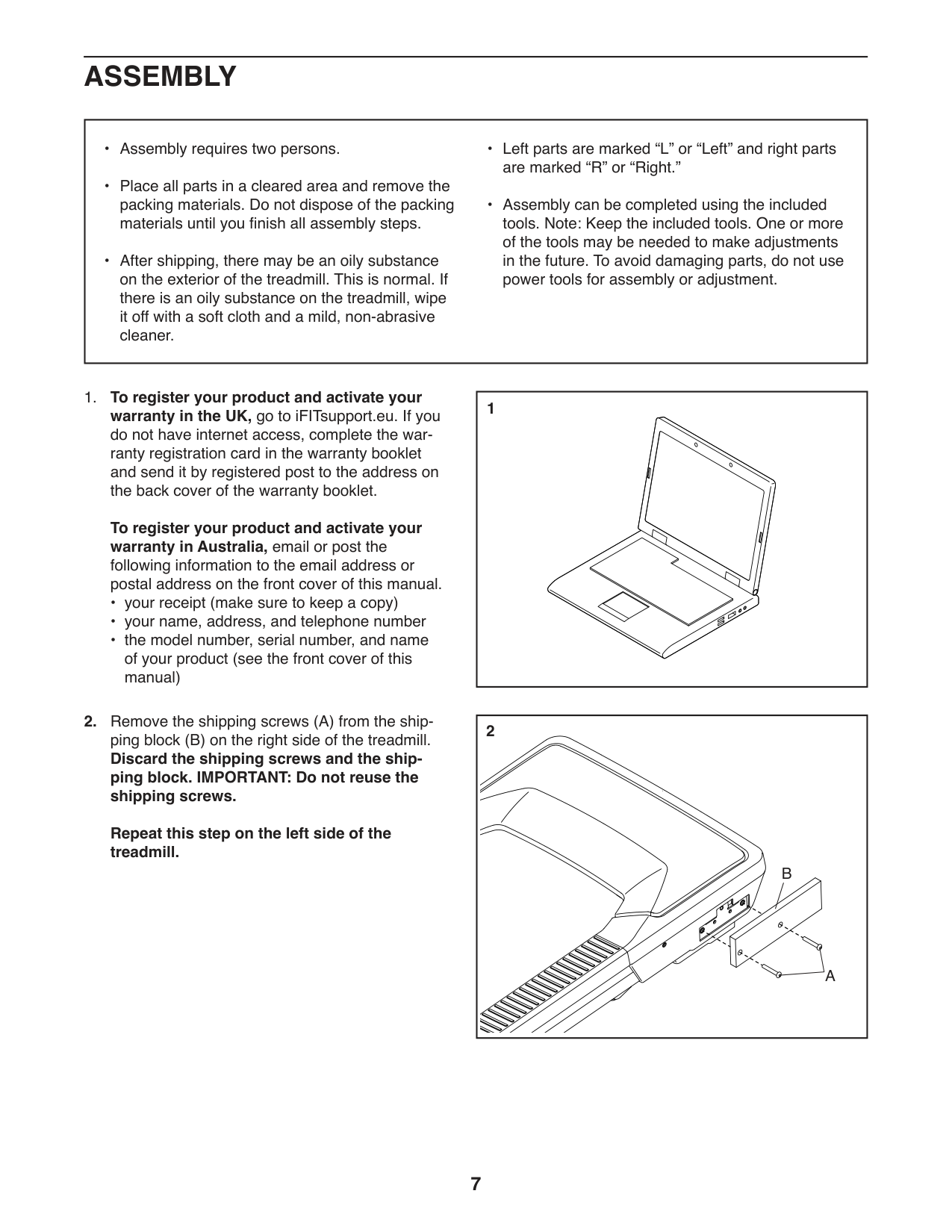

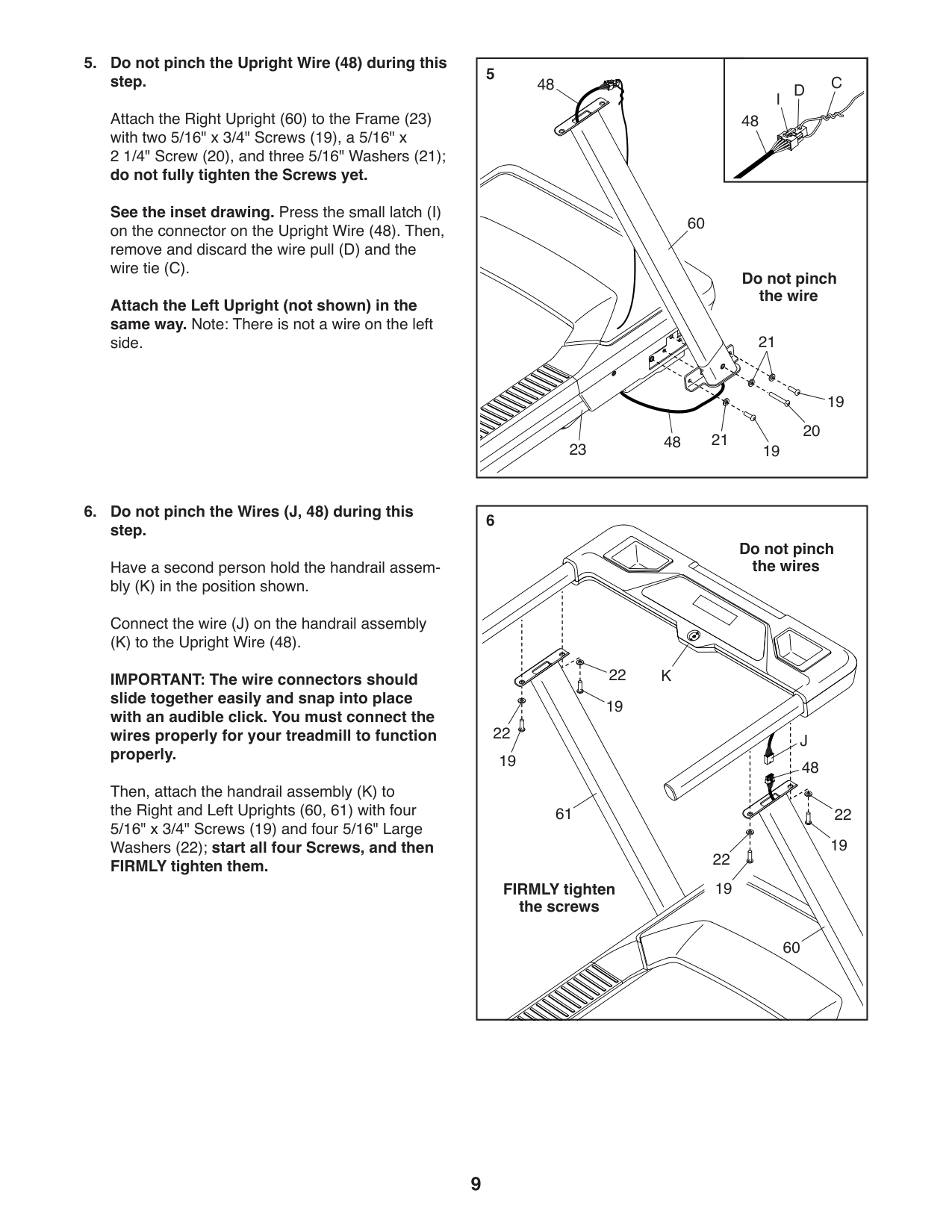

######### ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. No tools are required for assembly. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a smalI amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

(115).

Remove the Lock Knob (99) from the Lock Pin (103). Make sure that the Lock Pin Collar (102) and the Spring (!01) are on the Lock Pin. Insert the Lock Pin into the left Upright (115) and tighten the Lock Knob onto the Lock Pin.

115

\ 99

3 I 'l

P

ii' i j_115

--95


######### HOW TO USE THE HEART RATE MONITOR

############ HOW TO PUT ON THE HEART RATE MONITOR

use, it may remain activated longer than necessary, draining the battery prematurely.

The heart rate monitor consists of two components: the chest strap and the sensor unit (see the drawing below). Insert the tab on one end of the chest strap through one of the holes in the sensor unit. Press the end of the sensor unit under the buckle on the chest strap. The tab should be almost flush with the front of the sensor unit.

_Chest

Strap

HEART RATE MONITOR TROUBLE-SHOOTING

The instructions on the following pages explain how the heart rate monitor is used with the console. If the letters "PLS" appear in the PULSE/CALORIES display or if the displayed heart rate is excessively high or low, try the steps below.

Sensor Unit

Tab

Next, wrap the heart rate moni-

tor around your chest and attach the other end of the chest strap to the sensor unit. Adjust the length of the chest strap, if necessary. The I heart rate monitor should be under your clothing, tight against your skin, and as high under the pectoral muscles or breasts as is comfortable. Make sure that the logo on the sensor unit is facing forward and is right-side-up.

Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side. The electrode areas are the areas covered by shallow ridges. Using saline solution such as saliva or contact lens solution, wet both electrode areas. Return the sensor unit to a position against your chest.

############ HEART RATE MONITOR CARE AND MAINTENANCE

• Thoroughly dry the heart rate monitor after each use. The heart rate monitor is activated when the electrode areas are wetted and the heart rate monitor is put on; the heart rate monitor shuts off when it is removed and the electrode areas are dried. If the heart rate monitor is not dried after each


######### OPERATION AND ADJUSTMENT

############ THE PERFORMANT LUBETM WALKING BELT

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks Iike the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Grounded Outlet Box

_ressor "_ Grounding Pin

Grounding Pin Grounded Outlet

Grounding Plug

Box Adapter

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home's power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right).

Lug i MetalScrew

Surge suppressors are sold at most hardware stores and department stores. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or Iess and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec-

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is

grounded before using an adapter.

tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.


DIAGRAMOF THE CONSOLE

A B C D E F G

\

H L

P Q

Note: If there is a thin sheet of clear plastic on the face of the console, remove it.

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective.

When the console is in the manual mode, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will display instant exercise feedback--you can watch your progress on the LED "track," while the four displays show your heart rate, the number of calories burned, the incline, workout time, speed, pace, distance, and laps completed.

Eight preset programs are also offered: three incline programs automatically control the incline of the treadmill as they guide you through effective workouts; three speed programs automatically control the speed of the treadmill; and two pulse driven programs automatically control the speed and the incline of the treadmill to keep your heart rate within a predetermined range during your workouts.

The console also features two custom programs that allow you to create your own workout programs and store them in the console's memory for future use.

To use the manual mode, follow the steps beginning on page 10. To use an incline program or a speed program, see page 12. To use a pulse driven program, see page 13. To create a custom program, see page 14. To use a custom program, see page 15.

Note: The console can display speed and distance in either miles or kilometers (see SPEED/PACE DISPLAY on page 11). For simplicity, all instructions in this section refer to miles.


DIAGRAM OF THE CONSOLE K. SET WEIGHT buttons--These buttons are used to

enter your weight into the console. Refer to the drawing on the opposite page.

L. SET AGE buttons--These buttons are used to enter your age into the console.

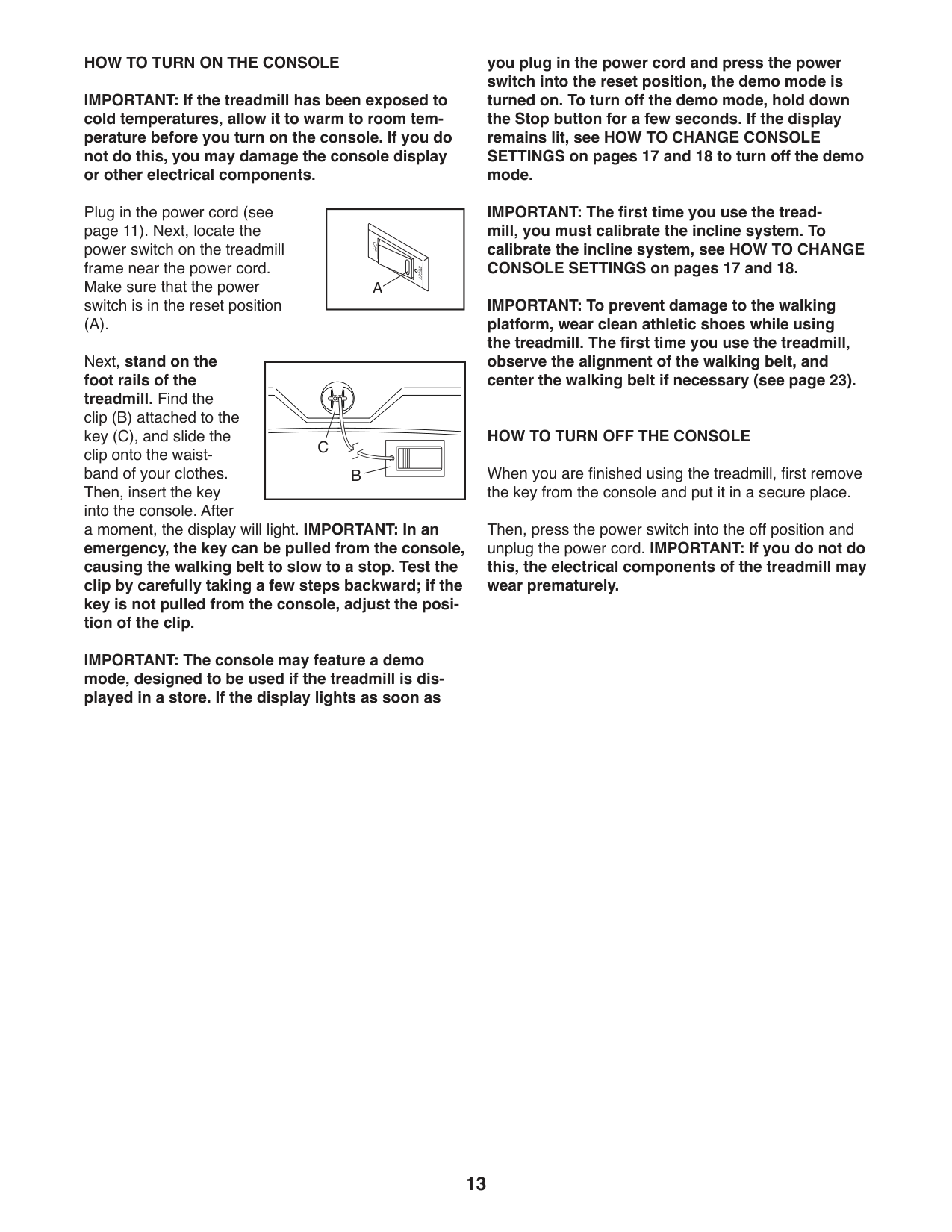

HOW TO TURN ON THE POWER

I! Plug inthepower cord (see page 7).Alldisplays and indicators on the console will flash once and then darken. Note: If the key is in the console when the power cord is plugged in, the letters "PO" will flash in the SPEED/PACE display. If this occurs, remove the key.

##### D

Make sure that the on/off switch located on the front of the treadmill is in the on position.

##### []

Stand on the foot rails of the treadmill and insert the

key into the console. After a moment, the MANUAL indicator will light, the current weight setting will appear in the PULSE/CALORIES display, the the current age setting will appear in the INCLINE/TIME display, and the LED track in the center of the console will light. Every few seconds, the words "PRESS START" will scroll across the LED matrix.

d. PROGRAM SELECT button--This button is used to select the manual mode and the eight preset programs. Note: If the walking belt is moving when the SELECT PROGRAM button is pressed, the walking bett wiii slow to a stop and the displays will be reset. In addition, the treadmill may automatically adjust to the lowest incline level.


I1

heart rate, the heart rate monitor must be worn. To put on the heart rate monitor, see HOW TO USE THE HEART RATE MONITOR on page 6.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 9. Note: When you are familiar with the operation of the console, you may go directly to step 5 if desired. The first time you use the console, please read and follow all steps.

O

############ Press the START button,

Press the START button to start the walking belt. The LED track in the center of the console wil!

B

disappear in a counterclockwise direction. One flashing indicator will then re-appear and the walking belt wiiI begin to move at 1.0 mph. Hold the handrails and step onto the walking belt.

############ Select the MANUAL mode,

When the key is inserted, the manual mode will automatically be selected and the MANUAL indicator wil! light. If a program has been selected, press the PROGRAM SELECT button repeatedly to select the manual mode again.

The LED track represents 1/4 of a mile. As you exercise, the indicators will light one at a time until the entire track is lit.

OOOO@OOOOOOOOOO@OOOO

OOO@OOOOOOOOOOOO@OOO OOOOOOOOOOOOOOOO@OOO

OOOOOOOOOOOOOOOO@OOO OOOOOOOOOO,OOOOO@OOOO _OOOOOOOO _@@@OOOO

b°°°°_°eed_eee°°°°1219

############ /

_ r _r _

[]

The track will then disappear in a counterclockwise direction and a new lap will begin.

############ Enter your weight and age if desired.

Although it is not necessary to enter your weight and age to use the manual mode, the CALORIES display will be more accurate if these numbers are entered.

To stop the walking belt momentarily, press the STOP button once. All displays will pause and the INCLINE/TIME display will begin to flash. To restart the walking belt, press the START button as described above. To stop the walking belt and reset alI displays, hold down the STOP button for two seconds. The console will then be in the same state as if the key had just been inserted.

The current weight setting will appear in the PULSE/CALORIES

display. Press the SET WEIGHT buttons again to enter your weight. Each time one of the buttons is pressed, the weight setting will change by ! pound. If one of the buttons is held down, the weight setting will change in increments of 5 pounds.

D

############ Adjust the incline and speed of the treadmill.

While the walking belt is moving, the incline of the treadmill can be adjusted with the INCLINE buttons. Each time one of the buttons is pressed, the incline will change by 0.5%. The buttons can be held down to change the incline quickly. The incline range is 0% to 12%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.

/

To enter your age, press either of the SET AGE buttons. The

-I I-I

current age setting will appear in the INCLINE/ TIME display. To enter your age, press the

To adjust the speed of the walking belt, press the SPEED buttons. Each time one of the buttons is

/

pressed, the speed will change by 0.! mph. The buttons can be held down to change the speed in increments of 0.5 mph. The speed range of the walking belt is 0.5 mph to 12.0 mph.

SET AGE buttons again. Each time one of the buttons is pressed, the age setting will change by ! year. If one of the buttons is held down, the age setting will change in increments of 5 years. Note: Once you have entered your weight and age, the numbers will be saved in the console's memory, even if the power cord is unplugged.

lO


B Follow your progress with thefour displays. PULSE/CALORIES display--Tills display o ,,_s_ ,_o_,_e o

DISTANCE/LAP display--This display shows both the distance you have walked and the number of laps you have completed (one lap equals 1/4 mile). The display will alternate between one number and the other every seven seconds.

shows both your heart [ [_]5_ ]rate(iftheheartrate-monitor is worn) and the approximate number of calories you have burned. The display will alternate between one number and the other every seven seconds.

Note: If the speed is displayed in miles per hour, the distance will be displayed in miles; if the speed is displayed in kilometers per hour, the distance will be displayed in kilometers.

Note: The heart rate monitor will sample your heart rate every few seconds; it may take up to ten seconds before an accurate heart rate is shown. If your heart rate is not shown, see HEART RATE MONITOR TROUBLE-SHOOTING on page 6.

[]When you are finished exercising, stop the

walking belt and remove the key.

INCLINE/TIME display--This display shows both the incline of the treadmill and the elapsed time. (If a preset program or a custom program is selected, the display will show the time remaining in the program.) The display will alternate between one number and the other every seven seconds.

Step onto the foot rails, press the STOP button, and remove the key from the console. Store the key in a secure place. In addition, press the on/off switch to the off position. (See the drawing near the bottom of page 9.)

Note: Each time the INCLINE buttons are pressed, the display will show the incline setting.

SPEED/PACE display--This display shows both the speed of the walking belt and your current pace (minutes per mile). The display will alternate between one number and the other every seven seconds.

Note: Each time the SPEED buttons are pressed, the display will show the speed setting.

Note: The speed can be displayed in either miles per hour (mph) or kilometers per hour (kph). To check the unit of measurement, first hold down the STOP button while inserting the key

....IE 1

o S_£o PAc_ o

into the console. The SPEED/PACE display will show an "E" for "English" (miles) or an "M" for "Metric" (kilometers). Press the SPEED "+" button to change the unit of measurement. Remove and then reinsert the key.


heart rate, the heart rate monitor must be worn. To put on the heart rate monitor, see HOW TO USE THE HEART RATE MONITOR on page 6.

#### D B

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 9.

O

############ Press the START button.

############ Select one of the incline or speed programs.

Press the START button to start the program. After a moment, the walking belt will begin to move. Hold the handrails and begin walking.

When the key is inserted, the manual mode wilI automatically be selected and the MANUAL indicator will light. To select one of the incline or speed programs, press the PROGRAM SELECT button repeatedly until the desired INCLINE or SPEED indicator lights. Note: The first incline program and the first speed program are twenty-minute programs. All other preset programs are thirty-minute programs.

If an incline program is selected: When the START button is pressed, the walking belt will begin to move at 1.0 mph and the incline will adjust to the incline setting shown in the first column of the LED matrix. After one minute (or 90 seconds if a thirtyminute program is selected), the second column of the LED matrix will begin to flash and the incline will adjust to the incline setting shown in the second column. After another minute (or 90 seconds), the third column will begin to flash and the incline will adjust to the setting shown in the third column. The program will continue in this way until the twentieth column is flashing and no time remains in the TIME display. The walking belt will then slow to a stop.

When an incline or speed program is selected, the LED matrix will show all of the incline or speed settings of the program.

The speed of the walking belt can be adjusted during the incline program with the SPEED buttons. To stop the program momentarily, press the STOP button once. AII displays will pause and the INCLINE/TIME display will begin to flash. To restart the program, press the START button. To end the program before it is completed, hold down the STOP button for two seconds. The console will then be in the same state as if the key had just been inserted.

000000@000000@000000 00000@@00@@0@@@00000

....000@@@@@@@@@@@@@@000 000@@@@@@@@@@@@@@000

Ioooooooo&;ooooooooo1

O@OQ@G@@@_I_@@O@O@@_O0@0@@@@@@@Q000@@

Each incline program has twenty incline settings, and each speed program has twenty speed settings. One setting is shown in each vertical column of the LED matrix. The first column will be flashing. Note: Every few seconds, the words "PRESS START" will scroll across the LED matrix.

While the incline program is in progress, the difficulty level of the program can be adjusted, if desired, with the INCLINE buttons. Press the INCLINE "+" button once. The letters "MAX" will appear in the LED matrix, and the INCLINE/TIME display will show the maximum incline that the treadmill will reach during the program. This information will be displayed for three seconds. Press the INCLINE "+" button again. Each time the button is pressed, the maximum incline setting and all other settings of the program will increase slightly. The INCLINE "-" button can be used in the same way to decrease the difficulty level of the program. Note: The profile shown in the LED matrix will not change; the profile shows relative incline settings.

[]

############ Enter your weight and age if desired.

Although it is not necessary to enter your weight and age to use an incline program or a speed program, the CALORIES display will be more accurate if these numbers are entered.

To enter you weight and age, refer to step 3 on page 10. If you have already entered your weight and age, or if you do not want to enter this information, go to step 4.


tf a speed program is selected: When the START button is pressed, the walking belt will begin to move at 1.0 mph, the speed setting shown in the first column of the LED matrix. After one minute (or 90 seconds if a thirty-minute program is selected), the second column of the LED matrix will begin to flash and the speed will adjust to the speed setting shown in the second column. After another minute (or 90 seconds), the third column will begin to flash and the speed will adjust to the setting shown in the third column. The program will continue in this way until the twentieth column is flashing and no time remains in the TIME display. The walking belt will then slow to a stop.

n F.I

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 9.

############ Select one of the pulse driven programs.

When the key is inserted, the manual mode will automatically be selected and the MANUAL indicator will light. To select one of the pulse driven programs, press the PROGRAM SELECT button repeatedly until the desired PULSE DRIVEN indicator lights. Note: Both pulse driven programs are thirtyminute programs.

The incline of the treadmill can be adjusted during the speed program with the INCLINE buttons. To stop the program momentarily, press the STOP button once. All displays will pause and the INCLINE/ TIME display will begin to flash. To restart the program, press the START button. To end the program before it is completed, hold down the STOP button for two seconds. The console will then be in the same state as if the key had just been inserted.

The pulse driven

While the speed program is in progress, the difficulty level of the program can be adjusted, if desired, with the SPEED buttons. Press the SPEED "+" button

OOOOOOOOOOO@@@@@@e@O OOOOOOOO@@@@@@@@@@@O _OOOOO@@@@@@@@@@@@@O _

programs automatically control the speed and incline of the treadmill to keep your

once. The letters "MAX" will appear in the LED matrix, and the SPEED/PACE display will show the maximum speed that the treadmill will reach during the program. This information will be displayed for three seconds. Press the SPEED '%" button again. Each time the button is pressed, the maximum speed setting and all other settings of the program will increase slightly. The SPEED "-" button can be used in the same way to decrease the difficulty level of the program. Note: The profile shown in the LED matrix will not change; the profile shows relative speed settings.

oooooooooo;0oooooeee i

OOOO@@@@@@@@@@@@@@@O O@@@@@@@@@@@@@@@@@@O

@@@@@@@@_tlt2@@@@@@@

_ J • /

heart rate near predetermined settings during your workout. When one of the pulse driven programs is selected, the LED matrix wili show ali of the heart rate settings of the program. Each program has twenty heart rate settings. One setting is shown in each vertical column of the LED matrix. The first column will be flashing. Note: Every few seconds, the words "ENTER AGE" will scroll across the LED matrix.

Follow your progress with the LED displays,

Refer to step 7 on page 11.

E!

############ Enter your weight and age.

############ Remove the key from the console.

Although it is not necessary to enter your weight to use a pulse driven program, you must enter your age before one of these programs can be started.

When the program has ended, remove the key from the console. All displays and indicators on the console will darken.

To enter you weight and age, refer to step 3 on page 10 If you have already entered your weight and age, press either of the SET AGE buttons to verify the age setting. The words "PRESS START" will then scroll across the LED matrix every few seconds.


#### B

Put on the heart rate monitor.

The heart rate monitor must be worn when a pulse driven program is used. See HOW TO USE THE HEART RATE MONITOR on page 6. Note: A pulse driven program can be started without a heart rate reading; however, the speed and/or incline of the treadmill will automatically decrease if your heart rate is not detected during the program.

Insert the key into the console. See HOW TO TURN ON THE POWER on page 9. Select one of the custom programs,

To select one of the custom programs, press the CUSTOM PROGRAM 1 or CUSTOM PROGRAM 2 button. The letters "CP 1" or "CP 2" will appear in the SPEED/ PACE display to show which program you have selected.

O

############ Press the START button.

Press the START button to start the program. After a moment, the walking belt wiiI begin to move. Hold the handrails and begin walking.

While the first column of the LED matrix is flashing, the walking belt will move at 1.5 mph. After 90 seconds, the second column of the LED matrix will

begin to flash. As the program progresses, the speed and/or incline of the treadmill will change at any time to keep your heart rate near the heart rate setting shown in the flashing column. When the twentieth column begins to flash, the walking belt wilI move at 1.5 mph until no time remains in the TIME display. The walking belt will then stow to a stop and the program will be completed.

Custom programs are workout programs that you create. The programs are stored in the console's memory, and can be changed as many times as desired. Custom programs control both the speed and the incline of the treadmill. When one of the custom programs is selected, the LED matrix will show the speed settings of the program (until you have created a program, all speed settings wil! be the same). The first column will be flashing. Note: Every few seconds, the words "PRESS START" will scroll across the LED matrix.

If your heart rate is not detected during the program, the letters "PLS" will flash in the PULSE/CALORIES

display and the speed andtor incline of the treadmill will automatically decrease. See HEART RATE MONITOR TROUBLE-SHOOTING on page 6.

E!

############ Enter your weight and age if desired,

While the program is in progress, minor adjustments can be made to the speed or incline of the treadmill with the SPEED or INCLINE buttons. However, if

It is not necessary to enter your weight and age to create a custom program; however, the CALORIES display will be more accurate if these numbers are entered.

you increase the speed, the incline will automatically decrease; if you decrease the speed, the incline will increase. If you increase the incline, the speed will decrease; if you decrease the incline, the speed will increase. The console will always attempt to keep your heart rate near the heart rate setting shown in the flashing column. Note: When the incline reaches the lowest setting, the speed cannot be increased any further. When the incline reaches the highest setting, the speed cannot be decreased any further.

To enter you weight and age, refer to step 3 on page !0. If you have already entered your weight and age, or if you do not want to enter this information, go to step 4.

#### B

############ Press the START button.

Press the START button to start the program. After a moment, the walking belt will begin to move. Hold the handrails and begin walking.

############ Follow your progress with the LED displays.

Refer to step 7 on page ! 1.

############ Remove the key from the console,

When the program has ended, remove the key from the console. AII displays and indicators on the console will darken.


_"_ Press the RECORD button and program the de-

############ sired speed and incline settings.

When the RECORD button is pressed, the indicator on the button will light. Speed and incline settings can be programmed only when the indicator on the button is lit.

_1 Insert the key into the console, See HOW TO TURN ON THE POWER on page 9.

B Select one of the custom programs. To select one of the custom programs,

Refer to the LED matrix. Each custom

-- -- ,t! /CO0000000 €

theOOSTOIEP IPROGRAM]or CUSTOM PROGRAM 2 button. The letters "CP 1" or "CP 2" will appear in the SPEED/ PACE display to show which program is selected.

program is divided into one-minute segments. One speed setting and one incline

0 SPEED PAC_ 0

, OOOOO@@@O¢ ooo@@@@@e_ OOO@@@@@@_ O@@@@@@@@_

@@@@@@@@_ NqW_

setting can be programmed for each one-minute segment. The speed setting of the first segment is shown in the flashing column of the LED matrix. (The incline settings are not shown in the LED matrix.) To program the desired speed and incline settings for the first segment, simply adjust the speed and incline of the treadmill to the desired levels with the SPEED and INCLINE buttons. Every few times the SPEED "+" or "-" button is pressed, an additional LED will light or darken in the flashing column.

When a custom program is selected, the LED matrix will show the speed settings of the program. If the program is more than twenty minutes tong, only the first nineteen settings will be shown. The first column will be flashing. Note: Every few seconds, the words "PRESS START" will scroll across the LED matrix.

_1 Enter your weight and age if desired, It is not necessary to enter your weight and age to use

When the first one-minute segment of the program is completed, the current speed setting and the current incline setting will be stored in memory. All columns in the LED matrix will then move one position to the left, and the speed setting of the second segment will be shown in the flashing column. Program speed and incline settings for the second segment as described above.

a custom program; however, the CALORIES display will be more accurate if these numbers are entered.

To enter you weight and age, refer to step 3 on page 10. If you have already entered your weight and age, or if you do not want to enter this information, go to step 4.

Repeat this procedure until you have programmed speed and incline settings for as many segments as desired. Custom programs can have from one to forty segments. When you are finished, hold down the STOP button for two seconds. The speed and incline settings you programmed and the number of segments will then be stored in memory. To use the program again, see HOW TO USE A CUSTOM PROGRAM at the right.

############ B Press the START button,

Press the START button to start the program. After a moment, the walking belt will begin to move. Hold the handrails and begin walking.

Refer to the LED matrix. Each custom

OOOOOO@OOOOOO@OOOOOO OOOOO@@@O@@O@@@OOOOO " OOO@O@o@@@@@@@@@@ooo OOO@@@@@@@@@@@@@@OOO O@@@@@@@O@@@@@@@@@@O @@@@@@@@21@_@@@@@@@

program is divided into one-

Note: To pause the program temporarily while you are programming speed and incline settings, press the STOP button once. All displays will pause and the TIME display will begin to flash. To restart the program, press the START button.

O00OOO00OlOOOOOOOO01

minute segments. One

speed setting and one in-

cline setting are programmed for each segment. The speed setting of the first segment is shown in the flashing column of the LED matrix. The speed settings of the next six segments are shown in the six columns to the right. (The incline settings are not shown in the program display.)

Remove the key from the console.

When the program has ended, remove the key from the console. All displays and indicators on the console will darken.


HOW TO SELECT THE INFORMATION MODE

When the first one-minute segment of the program is completed, a!l columns of the LED matrix will move one position to the left, the speed setting of the second segment will be shown in the flashing column, and the speed of the treadmill will change accordingly. The incline will also change according to the settings that you programmed previously.

The console features an information mode that keeps track of the total time and distance accumulated on the treadmill.

To access the information mode, hold down the STOP button while inserting the key into the console. The

The program will continue in this way until the speed setting of the last segment is shown in the flashing column and no time remains in the TIME display. The walking belt will then slow to a stop.

INCLINE/TIME display will show the total number of hours accumulated on the treadmill. The DISTANCE/

LAP display will show the number of miles accumulated (if the total number of miles exceeds 999, the thousands and ten thousands digits will be shown in the right half of the SPEED/PACE display). The left half of the SPEED/PACE display will show which unit of measurement is currently selected: an "E" for "English" (miles) or an "M" for "Metric" (kilometers). To change the unit of measurement, press the SPEED "+" button.

Note: If the program is too easy or too difficult, the speed or incline setting of the current segment can be adjusted with the SPEED or INCLINE buttons. Adjustments will not be stored in memory. To reprogram the speed or incline setting of the current segment, press the RECORD button. The indicator on the button will light. Speed and incline settings can be programmed only when the indicator on the button is lit. Adjust the speed or incline setting of the current segment with the SPEED or INCLINE buttons. After the segment is completed, press the RECORD button again. The new setting will then be stored in memory.

To exit the information mode, remove the key from the console.

HOW TO ADJUST THE CUSHION LEVEL OF THE TREADMILL

The treadmill is specially designed to cushion the impact as you walk or run. The cushion level is controlled with the knob on the right side of the treadmill. For a softer cushion level, turn the knob counterclockwise. For a firmer cushion level, turn the knob clockwise. Note: The faster you run on the treadmill, the firmer the cushion level should be. If the cushion level is too soft, the treadmill may bounce excessively.

To stop the program momentarily, press the STOP button once. All displays will pause and the INCLINE/ TIME display will begin to flash. To restart the program, press the START button. To end the program before it is completed, hold down the STOP button for two seconds. The console will then be in the same state as if the key had just been inserted.

Follow your progress with the LED displays.

Refer to step 7 on page 11.

############ Remove the key from the console.

When the program has ended, remove the key from the console. All displays and indicators on the console will darken.


######### HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

2

Make sure that the pin on the lock knob is inside of the catch.

Pin

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

############ HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the pin on the lock knob is inside of the catch.

HOW TO LOWER THE TREADMILL FOR USE


######### MAINTENANCE AND TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. If further assistance is needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or Iess and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

c

Tripped

######## d On 7;,

Position (/jj_

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If

the circuit breaker has tripped, wait for five minutes and then press the switch back in.

############ PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or tess and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

b. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

############ PROBLEM: The walking belt is off-center when walked on


C. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the alien wrench, turn both rear roller adjustment bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

############ PROBLEM: The heart rate monitor does not function properly

If the heart rate monitor still does not function properly, the battery should be changed. To replace the battery, locate the battery cover on the back of the sensor unit. Insert a coin into the slot in the cover and turn the cover counterclockwise to the "open" position. Remove the cover.

Remove the old battery from the sensor unit. Insert a new OR 2032 battery, making sure that the writing is on top. In addition, make sure that the rubber gasket is in place in the sensor unit. Replace the battery cover and turn it to the closed position. I

_t_r:r

############ PROBLEM: An error code (El, E20, E21, E22, E23, OR E24) appears on the console

a. If an error code appears, remove the key from the console, wait for a moment, and then reinsert it. If the error code appears again, catI our Customer Service Department. Do not use the treadmill until the problem is corrected.

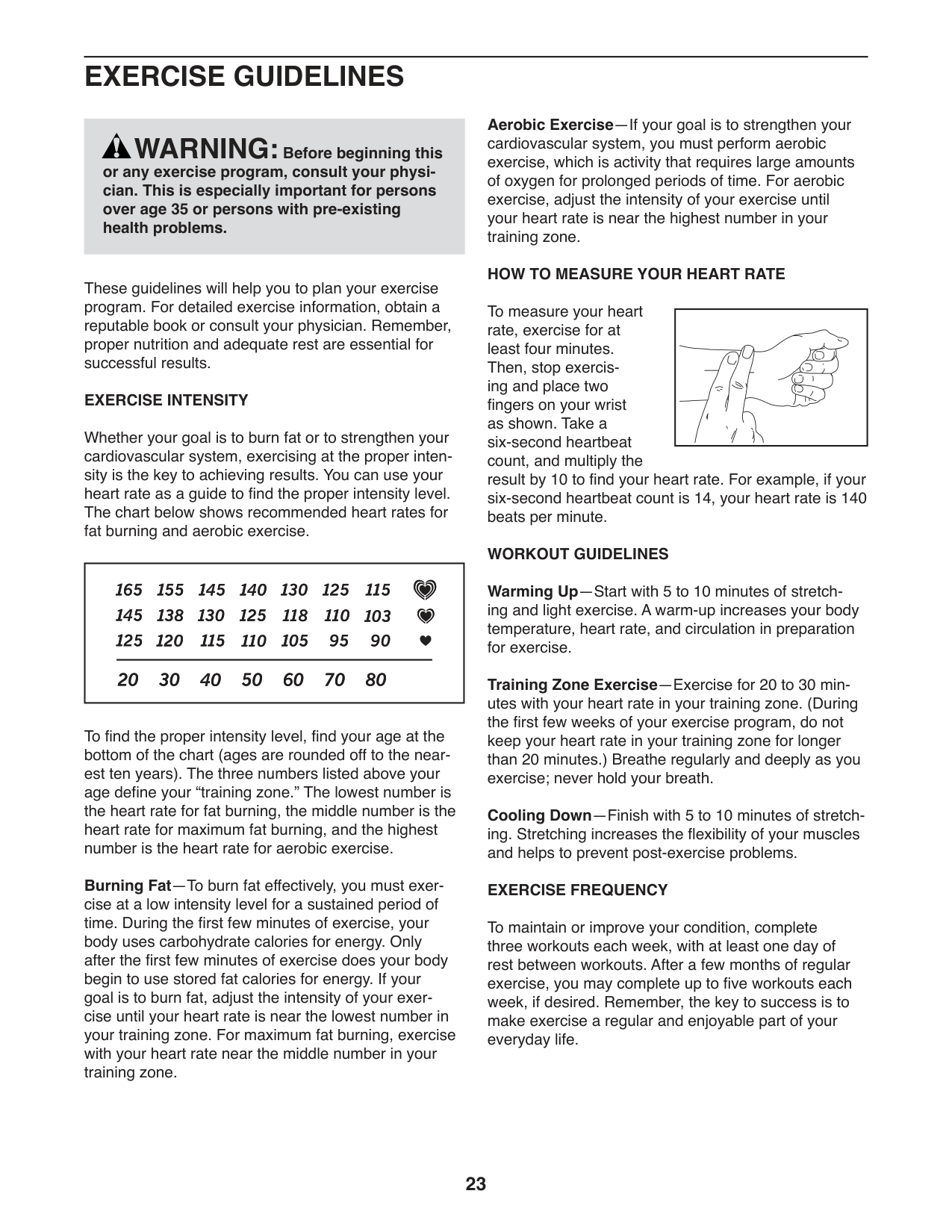

######### CONDITIONING GUIDELINES

Burning Fat

To burn fat, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goat is to burn fat, adjust the intensity of your exercise untii your heart rate is near the low end of your training zone as you exercise.

The following guidelines will help you to plan your exercise program. Remember--these are general guidelines. For more detailed information about exercise, obtain a book or consult your physician.

############ EXERCISE INTENSITY

Whether your goal is to burn fat or strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. For effective exercise, your heart rate should be maintained at a level between 70% and 85% of your maximum heart rate as you exercise. This is known as your training zone.

############ Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be "aerobic." Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the

You can find your training zone in the table below. Training zones are listed according to age and physical condition.

lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the middle of your training zone.

Training Zone(Beats/Min,) Age Unconditioned Conditioned

############ WORKOUT GUIDELINES

Each workout should include the following three important parts: (1) a warm-up, (2) training zone exercise, and (3) a coo!-down.

20 138-167 133-162 25 136-166 132-160 30 135-164 130-158 35 134-162 129-156 40 132-161 127-155 45 131-159 125-153 50 129-156 124-150 55 127-155 122-149 60 126-153 121-147 65 125-151 119-145 70 123-150 118-144 75 122-147 117-142 80 120-146 115-140 85 118-144 114-139

############ Warm-up

Warming up prepares the body for exercise by increasing circulation, delivering more oxygen to the muscles, and raising the body temperature. Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up (see SUGGESTED STRETCHES on page 21).

############ Training Zone Exercise

After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise--never hold your breath.


Cool-down

tween workouts. After a few months, you may complete up to five workouts each week if desired.

Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

The key to success is to make exercise a regular and enjoyable part of your everyday life.

############ Exercise Frequency

To maintain or improve your condition, complete three workouts each week, with at least one day of rest be-

############ SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce.

############ 1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2

############ 2, Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3

############ 3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

############ 4, Quadriceps Stretch

With one hand against a walI for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5

############ 5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for !5 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.


PART LIST--Model No. 831.297573 R0399A Note: To identify the parts listed below, refer to the EXPLODED DRAWING attached at the center of this manual. Key No. Qty. Description Key No. Qty. Description

!0" ! Motor/Pulley/Flywheel/Fan 62 1 Motor Bracket


Description Platform Washer Stop Bracket Incline Decal Small Star Washer Incline Disk Console Bracket Screw Incline Motor I-Bolt Receiver Belly Pan Hinge Upright/Base Upright Cover (left outside)

Key No.

Qty, 2

Key No, Qty. Description 1

Console Wire Harness Battery Cover Spring Spacer !4" White Wire, 2 Female 14" White Wire, Male/Female 14" Blue Wire, 2 Female


3O

19

51

19

12

18

53

54

_47 57

119

3 55

21

15

13

78

52

60

66

67 65

2 2 56 _71

/

65


20 118

71 73

74

70

j'_ 74

77

78

####### .L

75

42

78

73

69

97

98

_>

113

78

99

116

87

21 86

"-..

71

2

88

114

9O

94

91

53

47

_112 17


SEARS

The model number and serial number of your IMAGE ®10.6Q treadmilI are listed on a decal attached to the frame. See the front cover of this manual to find the location of the decal.

Model No. 831.297573

########### QUESTIONS?

All replacement parts are available for immediate purchase or special order when you visit your nearest SEARS Service Center. To request service or to order parts by telephone, call the toil-free numbers listed at the left.

If you find that:

When requesting help or service, or ordering parts, please be prepared to provide the following information:

call our toll=free HELPLINE

########### 1-800-736-6879

Monday-Saturday, 7 am-7 pm Central Time (excluding holidays)

########### REPLACEMENT PARTS

If parts become worn and need to be replaced, call the following toll-free number

1-800-FON-PART (1-800-366-7278)

######### FULL ONE YEAR WARRANTY

For one year from the date of purchase, if failure occurs due to defect in material or workmanship in this SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

############ SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Part No. 153493 J00453-0 R0399A Printed in USA (c)1999 Sears, Roebuck and Co.
