Samsung RF28JBEDBSR FlexZone Refrigerator

Rf28Jbedbsr

28 cu. ft. 4-Door French Door Refrigerator with Food ShowCase Fridge Door Features

Large Capacity – 28 cu. ft.

Food ShowCase Fridge Door

Metal Cooling

Ice Master Ice Maker in the Refrigerator

High-Efficiency LED Lighting

External Filtered Water and Ice Dispenser

FlexZone™ Drawer with Metal Cooling,

4 Temperature Control Settings and Smart Divider

Twin Cooling Plus®

ENERGY STAR®-Compliant

Power Freeze and Power Cool Options

EZ-Open Handle™ on Freezer Door

and FlexZone™ Drawer

Two Humidity-Controlled Crispers

Tempered Glass Spill-Proof Shelves

Gallon Door Bin

Convenience

CoolTight Door

Dispenser Light

Door Alarm

Water Filter Indicator

Child Lock

ENERGY STAR®-Rated: CEE Tier 1: More Efficient 720 kWh/yr Signature Features Food ShowCase Fridge Door Available Colors Stainless Steel

Food Showcase With Metal Cooling

• Innovative door-in-door design gives easy access to on-the-go items such as drinks and condiments.

Stainless steel paneling locks in cold and seals in freshness

while maintaining consistent temperature throughout the refrigerator.

Flexzone™ Drawer With Metal Cooling

• Metal Cooling cools food faster.1 • Counter-height drawer is optimized for family organization with easy access for kids.

Adjustable Smart Divider and four customizable temperature control settings

from Chill to Soft Freeze. 1Compared to Samsung refrigerator with plastic cooling plate.

Large Capacity

Our 28 cu. ft. extra-large-capacity Four-Door French Door

has enough room to fit up to 28 bags of groceries.2 2 Grocery comparison based on each cubic foot of usable space equaling one paper bag. Metal Cooling Ranked “Highest in Customer Satisfaction with French Door Refrigerators, in a Tie.” * – J.D. Power Black Stainless

Total Capacity: 27.8 cu. ft. Refrigerator: 15.7 cu. ft.

Food ShowCase Fridge Door

5 Tempered Glass Spill-Proof Shelves

– 1 Slide-In, 1 Slide-Out, 1 Foldable Half, 2 Fixed

2 Humidity Controlled Crispers

6 Door Bins

– Right Door: 1 Gallon Bin, 1 Slide-Out , 1 Regular Bin – Left Door: 3 Regular Bins

High-Efficiency Top and Side LED Lighting

FlexZone™ Drawer: 3.8 cu. ft.

EZ-Open Handle™

4 Temperature Settings with Smart Divider:

– Meat/Fish (29°F) – Cold Drinks (33°F) – Deli/Snacks (37°F) – Wine/Party Dishes (42°F) Freezer: 8.3 cu. ft.

EZ-Open Handle™

1 Drawer Divider

High-Efficiency LED Lighting

Accessories Water Filter: HAF-CIN Warranty One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years Labor on Digital Inverter Compressor *Compressor, evaporator, condenser, drier, connecting tubing Product Dimensions & Weight Dimensions (WxHxD with hinges, handles and doors): 35 3/4" x 70" x 36 1/2" Dimensions (WxHxD without hinges and door): 35 3/4" x 68 7/8" x 29 3/8" Dimensions (WxHxD with hinge and door, no handle): 35 3/4" x 70" x 34" Weight: 390.2 lbs. Shipping Dimensions & Weight (WxHxD) Dimensions: 38 1/4" x 75 3/4" x 36 1/4" Weight: 416.7 lbs. Color Model # UPC Code Stainless Steel

Rf28Jbedbsr

887276142364 Black Stainless

Rf28Jbedbsg

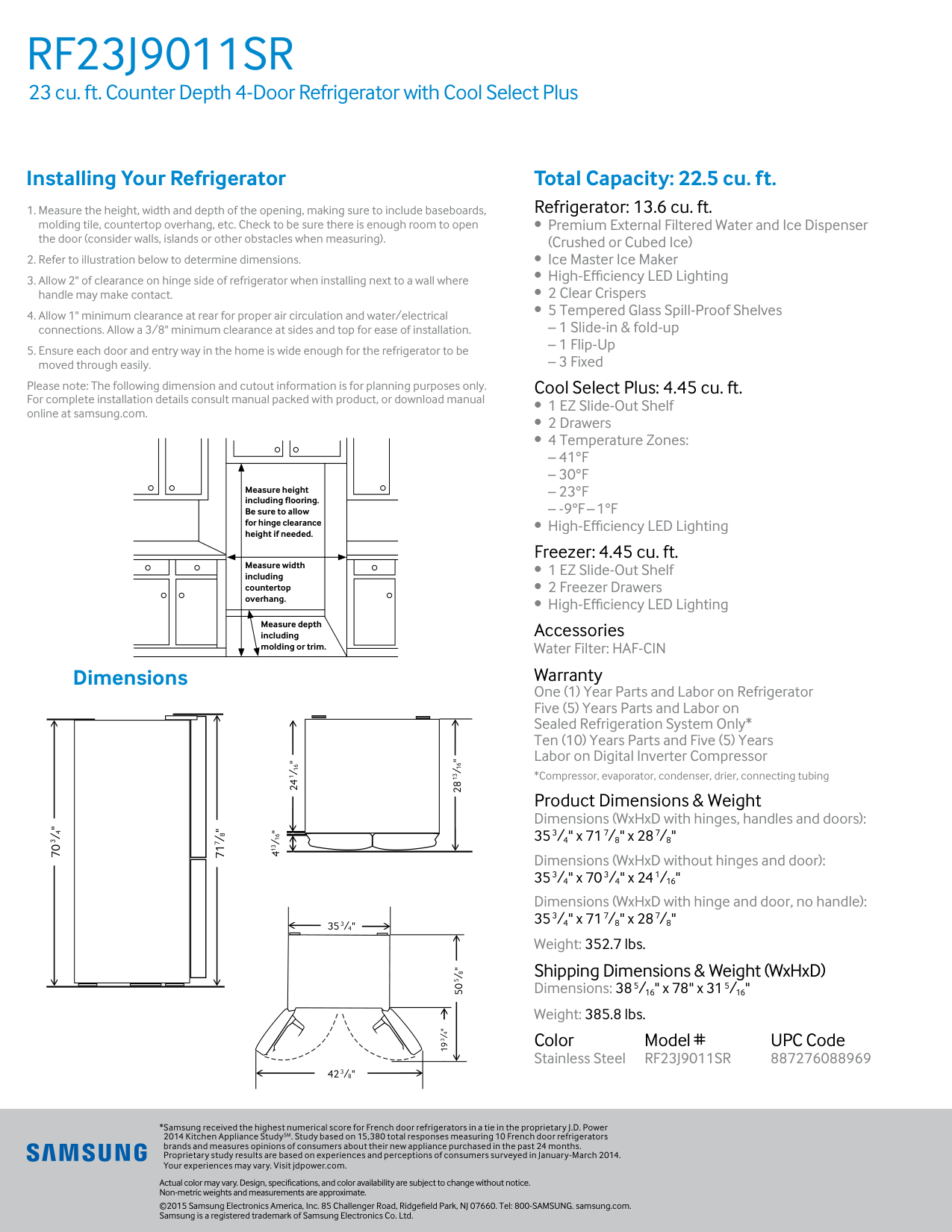

887276142357 Measure height including flooring. Be sure to allow for hinge clearance height if needed. Measure width including countertop overhang. Measure depth including molding or trim. Installing Your Refrigerator

Measure the height, width and depth of the opening, making sure to include baseboards,

molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

Refer to illustration below to determine dimensions.

Allow 2" of clearance on hinge side of refrigerator when installing next to a wall where

handle may make contact.

Allow 1" minimum clearance at rear for proper air circulation and water/electrical

connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

Ensure each door and entryway in the home is wide enough for the refrigerator to be

moved through easily. Please note: The following dimension and cutout information is for planning purposes only. For complete installation details consult manual packed with product, or download manual online at samsung.com.

Rf28Jbedbsr

28 cu. ft. 4-Door French Door Refrigerator with Food ShowCase Fridge Door Dimensions 21 3/8" 3 3/8" 35 3/4" 7⁄ 16" 29 7/8" 33 3/4" 36 1/4" 1 3/8" 22 1⁄4" 9 1⁄16" 69 7⁄8" 35 1⁄8" 5/8" 7/16" 2 3/8 36 1/2" 34" 70" 35 1/8" 22 9/16" 8 5/16" 2" 5/8" 7/16" 1 1/4" 35 3/4" 7/16" 29 3/8" 20 3/4" 4 7/8" *Samsung received the highest numerical score for French door refrigerators in a tie in the proprietary J.D. Power 2014 Kitchen Appliance StudySM. Study based on 15,380 total responses measuring 10 French door refrigerators brands and measures opinions of consumers about their new appliance purchased in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January-March 2014. Your experiences may vary. Visit jdpower.com. Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2015 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
