Troy Bilt Tb30r

Ask AI

— answers from the official manual

Answers from the official manual.

Common questions

Common Questions

26 total
1

How do I safely start the engine on the TB30R?

Insert the key into the ignition switch module, place the PTO lever in the disengaged (OFF) position, and engage the parking brake. Move the throttle/choke control all the way forward into the choke position, then turn the ignition key clockwise to the START position — do not hold the key in the START position for longer than ten seconds. After the engine starts, release the key and move the throttle to the FAST position to deactivate the choke. (Page 19)

2

What should I do to prepare the TB30R for off-season storage?

You must either completely empty the fuel system or treat the gasoline with a fuel stabilizer to prevent gum deposits from forming in the carburetor. If emptying the system, drain fuel into an approved container outdoors, run the engine until it falters, then use the choke to exhaust all remaining fuel from the carburetor. Additionally, clean and lubricate the tractor thoroughly and store it in a dry, clean area away from corrosive materials such as fertilizer. (Page 25-26)

3

How do I use the Reverse Caution Mode on the TB30R?

Turn the key from the NORMAL MOWING (Green) position to the REVERSE CAUTION MODE (Yellow) position on the key switch module, then press the orange triangular REVERSE PUSH BUTTON at the top right corner of the module — the red indicator light will illuminate when activated. Once active, the tractor can be driven in reverse with the cutting blade (PTO) engaged. Always look down and behind while backing, and do not use this mode when children or others are nearby. (Page 20)

4

What is the recommended maintenance schedule for the TB30R?

Before each use, check the engine oil level. Every 25 hours, clean and re-oil the air filter foam pre-cleaner (if equipped), lube front axles and rims, clean engine cooling fins, and lubricate the steering rack and pinion. Every 100 hours, replace the air filter element, change the engine oil and oil filter (if equipped), check the spark plug condition and gap, and replace the fuel filter. (Page 22)

5

How do I connect the battery cables correctly on the TB30R?

Always connect the POSITIVE (Red) wire to its terminal first, followed by the NEGATIVE (Black) wire when installing the battery. When removing the battery, disconnect the NEGATIVE (Black) wire first, followed by the POSITIVE (Red) wire. Reversing the connections could change the polarity and result in damage to the engine's alternating system. (Page 14)

6

What causes uneven cutting on the TB30R and how do I fix it?

An uneven cut is typically caused by a deck that is not leveled properly, a dull blade, or uneven tire pressure. To correct the issue, perform the Leveling the Deck adjustment, sharpen or replace the blade, and check the tire pressure in all four tires. The front of the deck should be between 0" (level) and 1/4" lower than the rear of the deck. (Page 31)

Show 20 more questions

Full Manual

2 pages

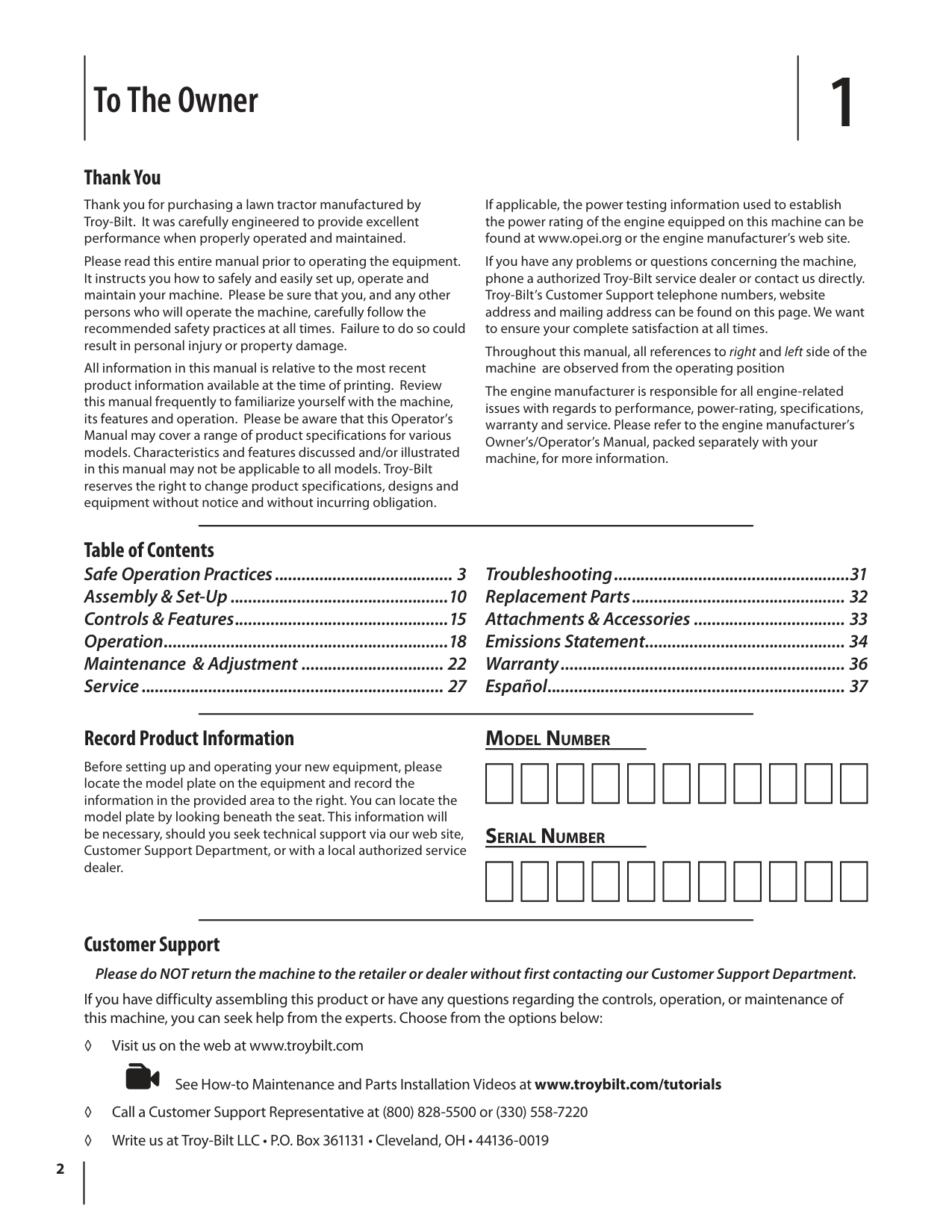

Page 1

![image 1](673e5848416a3232e8862cbf_19294046934_images/imageFile1.png)

![image 2](673e5848416a3232e8862cbf_19294046934_images/imageFile2.png)

Troy bilt tb30 service manual

Page 2

Troy bilt tb30r service manual. Troy bilt tb30 review. Troy bilt lawn tractor troubleshooting. Troy bilt tb30 specs. Troy-bilt tb30 manual. Troy bilt service manual. Troy bilt tb30 won't start. Troy bilt tb3024 manual.

Important Safety Guidelines • Assembly and Setup • Controls and Operation • Product Care READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS BEFORE OPERATING THIS MACHINE. FAILURE TO COMPLY MAY RESULT IN PERSONAL INJURY. Operator’s Manual Form No. 769-11837 (October 7, 2016) Important Safety Guidelines ..................... 2 Assembly and Setup ........................................... 7 Controls and Operation .......................................10 Product Care ..........................................................14 Note: This Operator’s Manual covers multiple models. Features may vary by model. Not all features in this manual are applicable to all models. Read the safety guidelines before operating the machine. Failure to comply with these instructions may result in personal injury. Page 4: Slope Operation A missing or damaged discharge cover can cause blade contact or thrown object injuries. Be aware of slopes and stop the blade when crossing them to avoid loss of control and tip-over. Page 5: Service Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and do not understand the dangers. Use extreme caution around children. Important Safety Information and Assembly Instructions for Riding Mower Product: READ MANUAL BEFORE USE! This product comes with safety symbols that need to be understood. It's crucial to read and follow all instructions in the manual before attempting assembly and operation. Symbols on the machine indicate potential dangers, so pay attention to them. DANGER - Gasoline is flammable. Allow the engine to cool for at least two minutes before refueling. WARNING - Carbon monoxide is deadly. Never run the engine indoors or in a poorly ventilated area. Assembly requires care. Tighten the shoulder bolt and lock nut using specific wrenches, then remove the pedestal cap mount hex screw from the steering console. Keep the screw for later use. Installing the mulch plug and deck chute is essential. Don't operate the tractor without them installed. The rear engine cover must be connected correctly, with equal tire pressure maintained at all times. The controls and features are located on the tractor, including the clutch/brake pedal, speed control & parking brake lever, fuel level indicator, ignition switch module, shift lever, fuel fill cap, throttle/choke lever, deck lift lever, cup holder, PTO (blade engage) lever, and oil fill cap. Read all safety rules and instructions before operating the machine. The shift lever is situated on the control panel, beneath the seat, and the Fuel Lever Indicator is located below the seat on the left side of the tractor. This component has three positions: Forward, Reverse, and Neutral. Engaging the parking brake is crucial for safety; failure to do so can result in serious injury or death. To engage the parking brake safely: Fully depress the clutch-brake pedal and hold it down with your foot. Remove objects that could be thrown by the blades. Stopping the Engine: Shut off the engine and remove the key to minimize the risk of damage to your lawn. WARNING: If you strike a foreign object, stop the hot exhaust from your tractor's running engine immediately. Disconnect the spark plug wire and ground against the engine if necessary. Mulching: Once activated (indicator light ON), the tractor can be driven in reverse with the cutting blade engaged. A mulch kit has been supplied with your unit. Always look down and behind before and while backing to avoid accidents. Maintenance & Adjustments: Close the oil drain valve by rotating it clockwise, then reinstall the cap. Refill the engine with new motor oil as instructed in the Engine Owner's Manual. Lubricate the steering rack and pinion gear under the front of the unit every 25 hours of operation or once per season. Approximately 10 psi for rear tires and 14 psi for front tires can cause the brake to malfunction. Have your brakes properly adjusted by an authorized Troy-bilt Service Dealer. Off Season Storage: Drain the fuel from the tank, located on the left side of the engine, and may be attached with a tie strap. Never store lawn tractor indoors or in poorly ventilated areas where fuel fumes may reach an open flame. Removing the deck belt with the cutting deck still installed on the tractor can be tricky, but taking off the deck first makes it much easier. Then, you can change the deck belt and put the cutting deck back on. Be careful when jump-starting your mower's blades, though - never try to revive a damaged or frozen cutting blade. If that happens, turn off the engine, remove the battery, and make sure the vehicles aren't touching each other with their ignition keys off. Before removing any parts, be aware that some components require special tools (like an air/impact wrench) to change the tractor's drive belt. It might be a good idea to consult an authorized Troy-bilt Service Dealer or phone Customer Support for help on ordering a Service Manual. If your engine won't start, check if the PTO/Blade is engaged - simply place the blade engage lever in the disengaged (OFF) position. You can also look for a disconnected spark plug wire and reconnect it. If you're out of gas or have stale fuel, fill up with fresh, clean gasoline that's less than 30 days old. Some replacement parts include: - Drive Belt (Mowing Deck): 954-04318 - Deck Spindle Cutting Blade (30”): 918-04822A - Battery: 925-1707D - Fuel Tank Cap: 951-12179A (or 951-04366 for California) - Key Assembly: 625-05002 For attachments and accessories compatible with the Troy-bilt Lawn Tractor, check with your retailer or an authorized Service Dealer. Be aware that this model is not designed for ground-engaging attachments. Lastly, familiarize yourself with the emission control warranty statement on your outdoor equipment engine. In California, new engines must meet the State's stringent anti-smog standards, while in other states, 1997 and later model year equipment must adhere to U.S. regulations. Servicio - Solution to Problems - Annual Warranty for Lawn Tractor 26J Mini-Rider WARNING: READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE OPERATING THIS MACHINE. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY. Page 39 Visit our website at www.troybilt.com See tutorial videos on installation, maintenance, and parts at www.troybilt.com/Tutorials Call our Customer Service Representative at (800) 828-5500 or (330) 558-7220 Write to Troy-Bilt LLC at P.O. Box 361131, Cleveland, OH 44136-0019... Important Safety Precautions WARNING: The presence of this symbol indicates important safety instructions that must be followed to avoid putting yourself and others at risk. Read and follow all instructions in this manual before operating this machine. Page 41 Pay attention to the lawn mower and direction of discharge Statistics show that 60% of operators do not point the mower at anyone. Never operate a lawn tractor without proper training, as this can result in serious injury or death. Page 42 Service Do not change transmission to neutral for descent Excessive speed can cause the operator to lose control of the machine, resulting in severe injuries and even death. Safe handling of gasoline: Do not pull heavy loads behind attachments Be extremely cautious when handling gasoline to avoid personal injury or property damage. Page 43 Before cleaning, repairing, or inspecting the machine, make sure the blade(s) and all moving parts have come to a stop. Disconnect the spark plug wire and lay it across the motor to prevent accidental start-up. Page 44 Safety Symbols This page explains and describes the safety symbols that may appear in this product. Read, understand, and follow all instructions before attempting to assemble or operate the machine. Symbol Description WARNING—... Page 45 Symbol Description FLAMMABLE GASOLINE Never let the motor run for at least two minutes before refueling. WARNING— CARBON MONOXIDE Never direct a motor indoors or in an area with poor ventilation. Motor exhaust contains carbon monoxide, an odorless and deadly gas. Page 46 Important Safety Precautions... Assembly and Configuration Contents of box: One lawn tractor, one seat assembly, one steering pedestal cover, one wheel/axle assembly for direction, one rear motor cover, ... Page 48 Tighten the bolt and nut with a 9/16" or 7/16" wrench. Remove the factory-installed mounting screw located on the steering pedestal of the lawn tractor. Guard the screw for later instructions. Slide the pedestal cover towards the tractor (1) and turn it slightly to the right to fit the clip in place. Page 49 Install the two washers that come with the hardware package and secure them with two safety screws. See Figure 3-7. Wing Perch Figure 3-8 Installation of the attachment screw WARNING! Never operate this tractor without the attachment screw or cover installed. Page 50 Place the rear motor cover Connect battery cables Remove the hexagonal bolts from two factory-installed installations PROPOSITION 65 of California Warning: The located on the mounting support of the motor cover, terminals, and related accessories are to be installed in the back. Page 51 Tire Pressure WARNING! Tire pressure must remain consistent at all times. Never exceed the maximum inflation pressure shown on the tire flank. The recommended operating pressure for tires is: • Approximately 10 psi for rear tires •... Controls and Features Throttle Control Brake/Pedal Shifter Speed and Hand Brake Gear Indicator Fuel Level Gauge Fill-up Combustion Module Ignition Switch Power Takeoff (PTO) (Mowing Attachment) Strangler/Stopper Cup Page 53 Accelerator / Strangulator For the engine to stop, turn the ignition switch in the opposite direction of the OFF position. See Figure 4-3. The throttle control is located on the left side of the tractor, situated in the right guardrail, and allows you to regulate the speed of the lawn mower. Functioning Platform Elevation La palanca de control de velocidad, ubicado en el lado izquierdo del tablero del tractor de la consola, le permite regular la elevación de la plataforma se utiliza para cambiar la altura de velocidad baja del tractor del césped. Operating Installation Fender Warning Avoid severe injuries or death To place the brake pedal: • Know the location and function of all controls. Press the brake pedal fully down with your foot and keep it that way. Page 56 Engine Stop Place the gearshift in neutral, Apply the parking brake, WARNING! If you hit something Turn off the engine and remove the key. That will minimize the chance of your lawn getting burned and reduce the risk of an unexpected cable break. Page 57 Mulching Press the reverse push button (orange, triangular button) in the upper right corner of the ignition switch module A mulch kit is available as a separate file attachment. The red indicator light on the upper left side of the ignition switch module indicates that the grass cutting process involves multiple recirculations below the cutting platform. Maintenance and Adjustments Maintenance Open the drain valve cover as shown in Figure 6-1. WARNING! Before performing any type of maintenance, turn... To maintain or service the tractor, begin by disconnecting all valves and allowing oil flow. On page 59, under "Batería," it is noted that the battery is sealed and does not require maintenance. However, the levels necessary for lubrication of the cremallera and piñón are located in the front part of the unit. Given text MTD Consumer Group Inc, along with the U.S. Environmental Protection Agency (EPA) and California Air Resources Board (CARB), would like to explain the warranty coverage for the Emissions Control System (ECS) of their four-wheel drive, small engine, outdoor power equipment, starting from 2006 and later models. In California, new outdoor power equipment engines must be designed, built, and equipped to meet the requirements outlined in ... Page 71 8. During the entire warranty period for the mentioned motor and four-wheel drive unit, MTD Consumer Group Inc will maintain a sufficient supply of under-warranty parts to satisfy the expected demand for such parts. 9. Any replacement part can be used to fulfill maintenance or repair obligations under warranty and will be provided free of charge to the owner. The provisions of this warranty cover the cost of repair for blades, teeth, grass bags, wheels, and other unique issues arising from the sale. Troy-Bilt will not be liable for any loss or damage incidental or resulting from ...
