Integra T500

Name: Integra T500
Brand: Integra

Download PDF Manual Ask about this product

Ask AI

— answers from the official manual

Answers from the official manual.

Common questions

Common Questions

10 total

How do I lubricate the running deck of my treadmill?

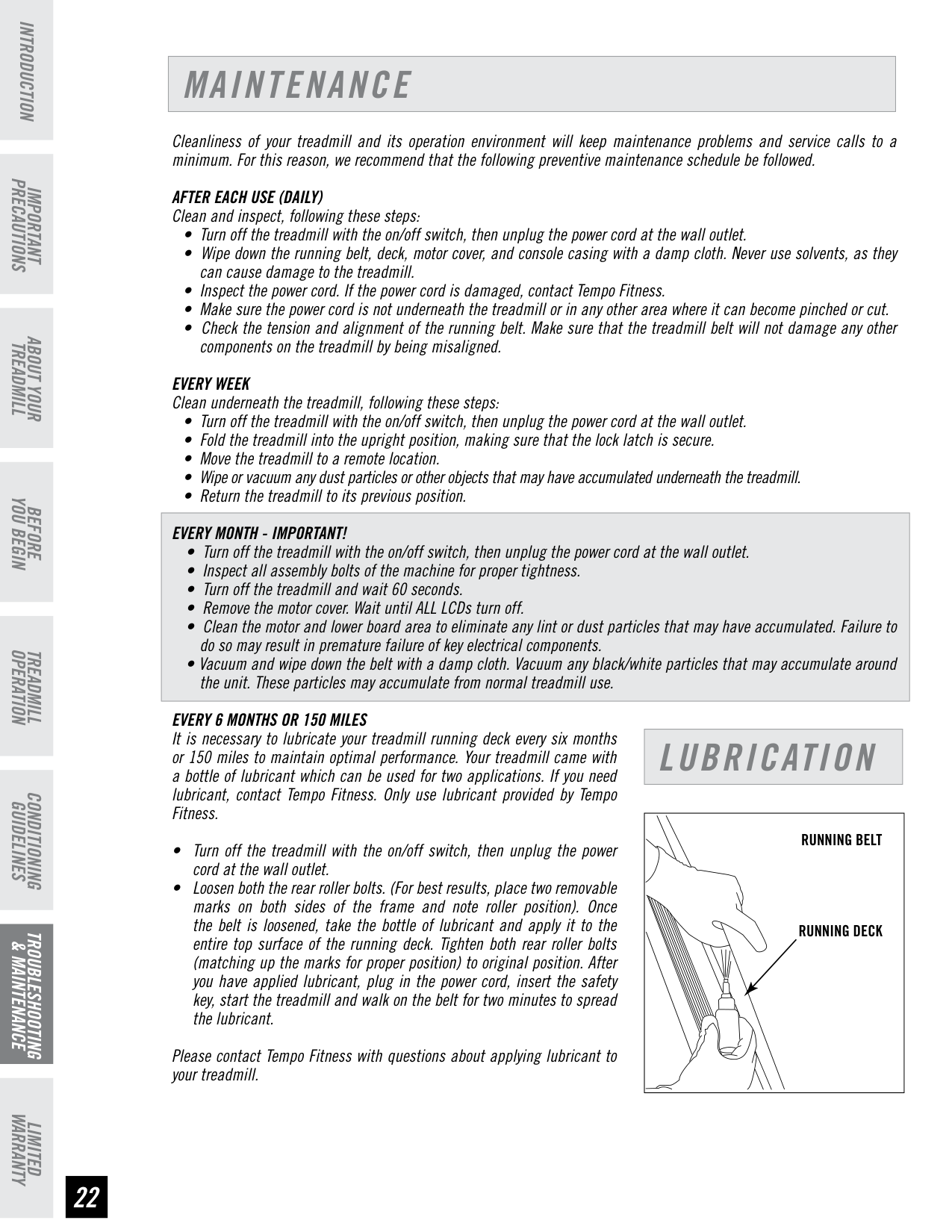

To lubricate your treadmill's running deck, first turn off and unplug the treadmill from the wall outlet, loosen both rear roller bolts, apply lubricant to the entire top surface of the running deck, tighten the bolts back to their original position, plug in the treadmill, insert the safety key, start it, and walk on the belt for two minutes to spread the lubricant. Ensure this maintenance is done every six months or 150 miles. (Page 23)

What is the maximum weight capacity for users of this treadmill?

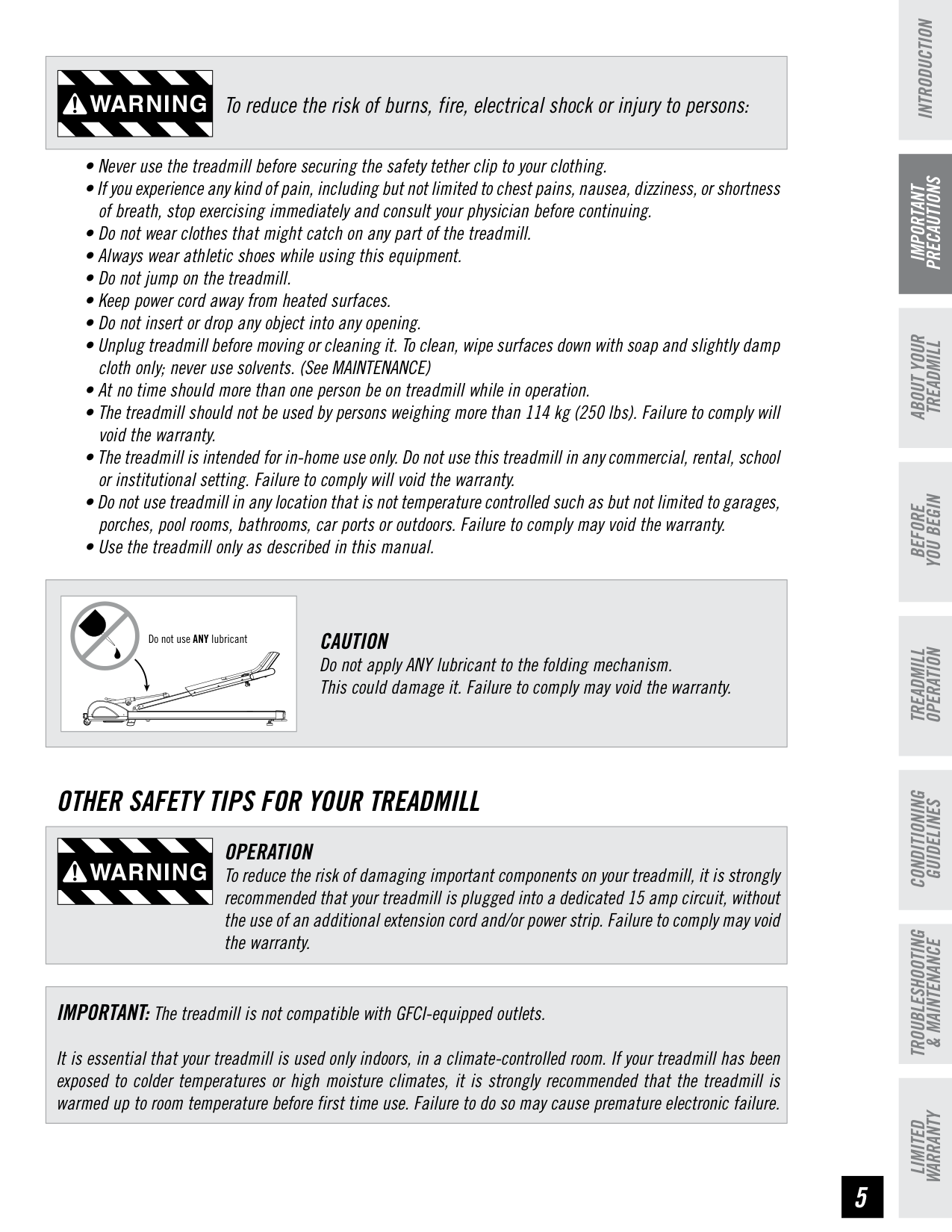

The maximum user weight capacity for your Integra T500 treadmill is 114 kg (250 lbs). Exceeding this limit can void the warranty and cause damage to the machine. (Page 6)

How often should I clean my treadmill running belt?

After each use, turn off the treadmill with the on/off switch, unplug it at the wall outlet, and wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Avoid using solvents as they can damage your treadmill. (Page 22)

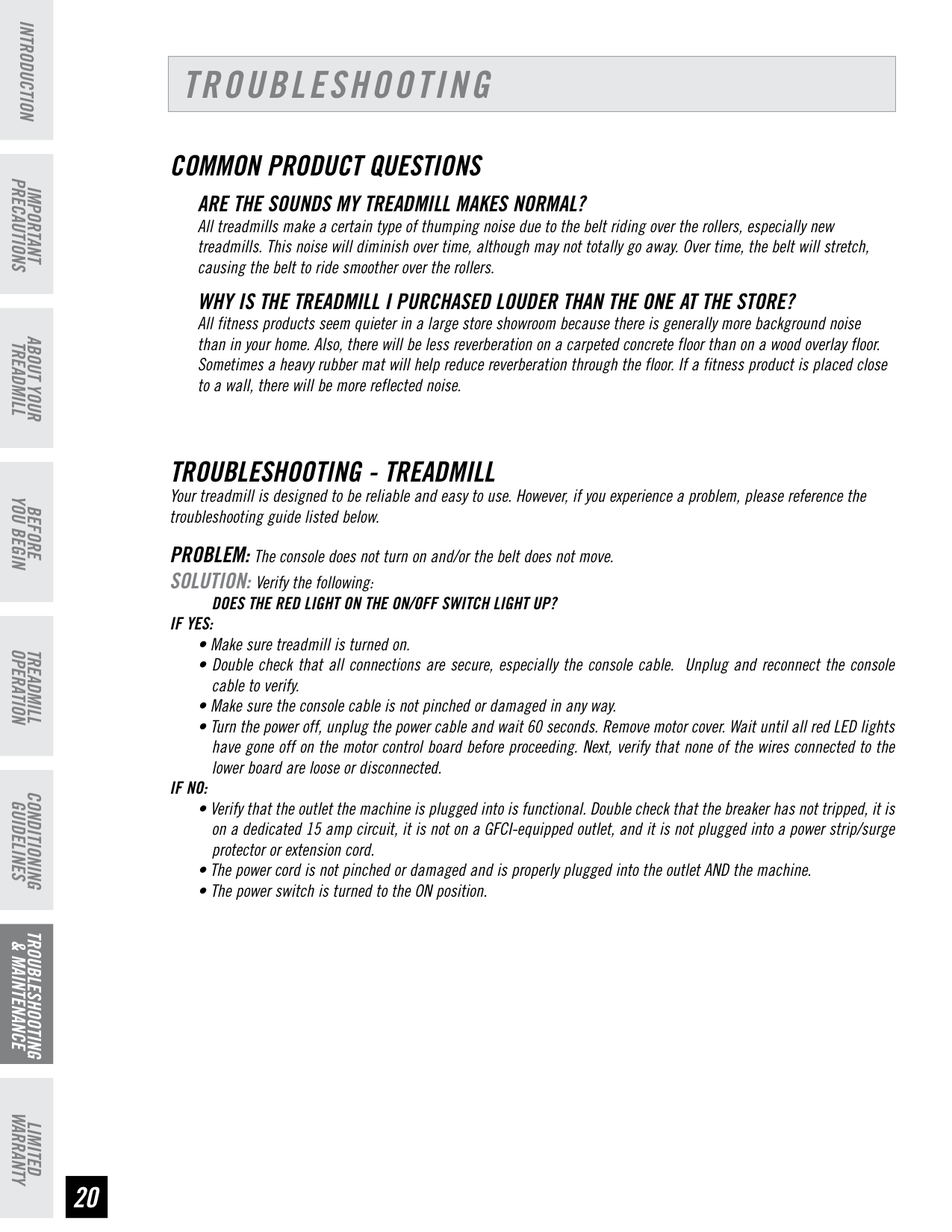

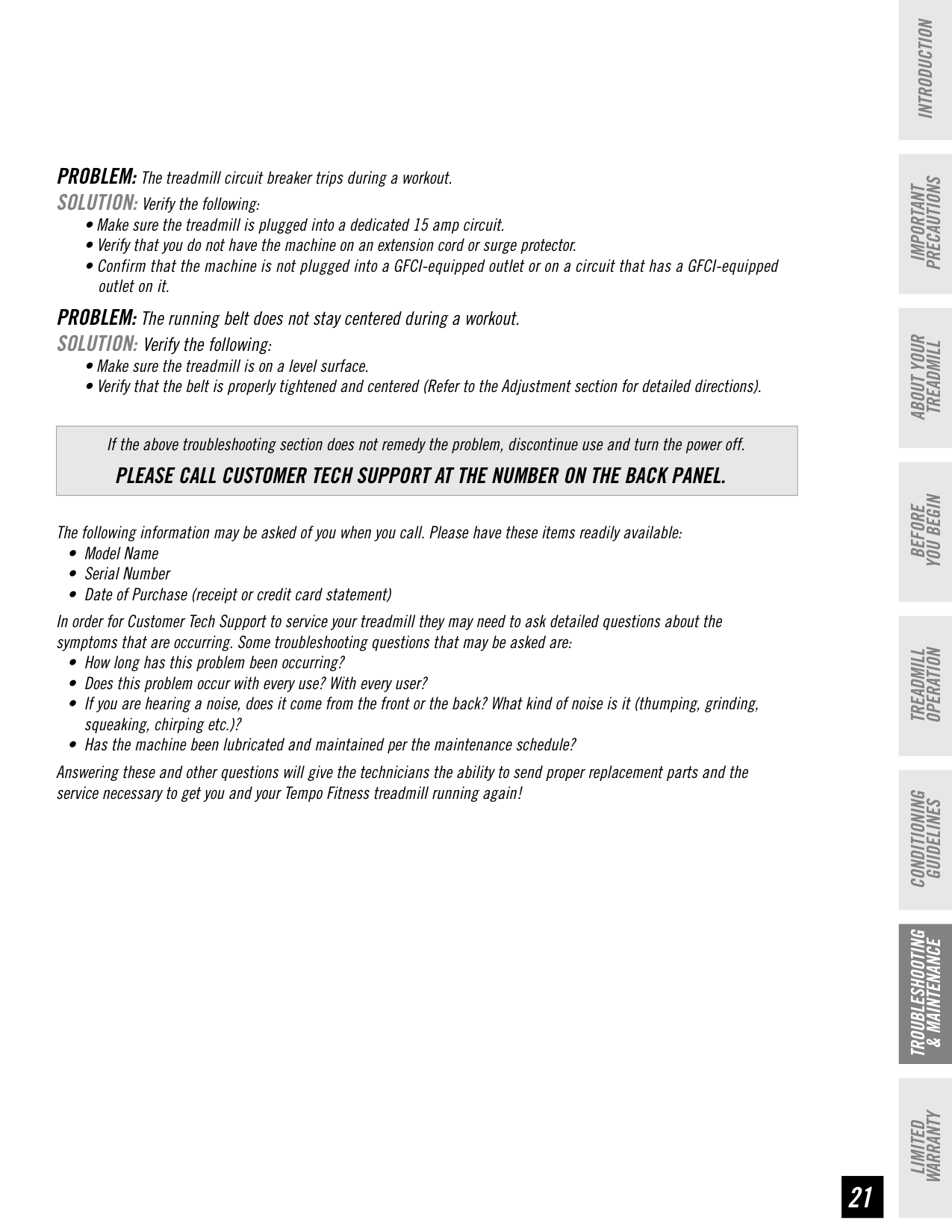

What should I do if my treadmill does not turn on?

First check that the red light on the ON/OFF switch lights up, then verify connections are secure, including the console cable. If the light doesn’t come on, ensure the outlet is functioning properly and the machine isn't connected to a GFCI-equipped outlet or extension cord. Disconnect power for 60 seconds if needed. (Page 21)

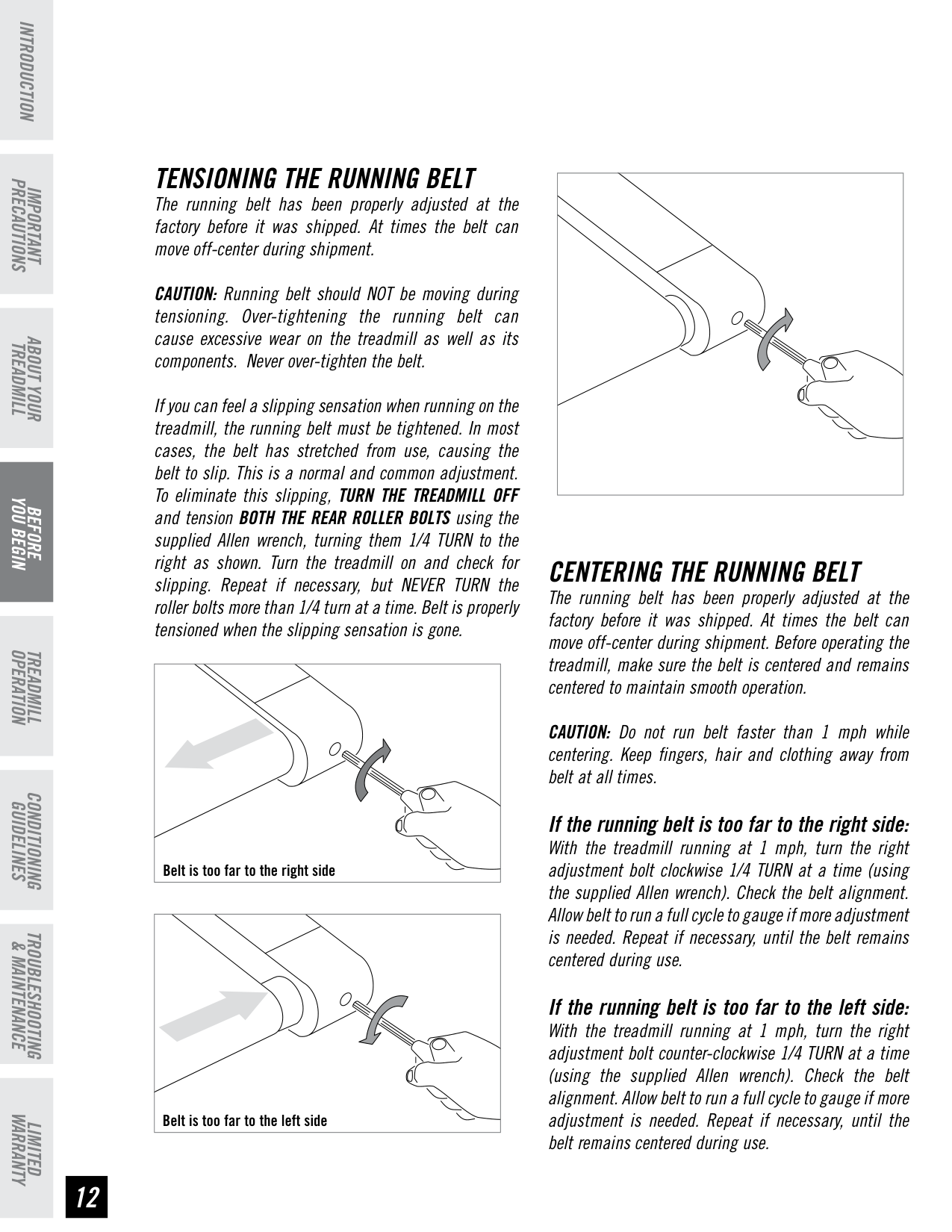

How can I adjust the running belt tension?

If you sense slipping, turn off the treadmill and tighten both rear roller bolts clockwise by a quarter-turn using an Allen wrench; recheck after one cycle. Repeat as needed but do not exceed ¼-turn increments per session. The running belt is correctly tensioned when it no longer slips. (Page 12)

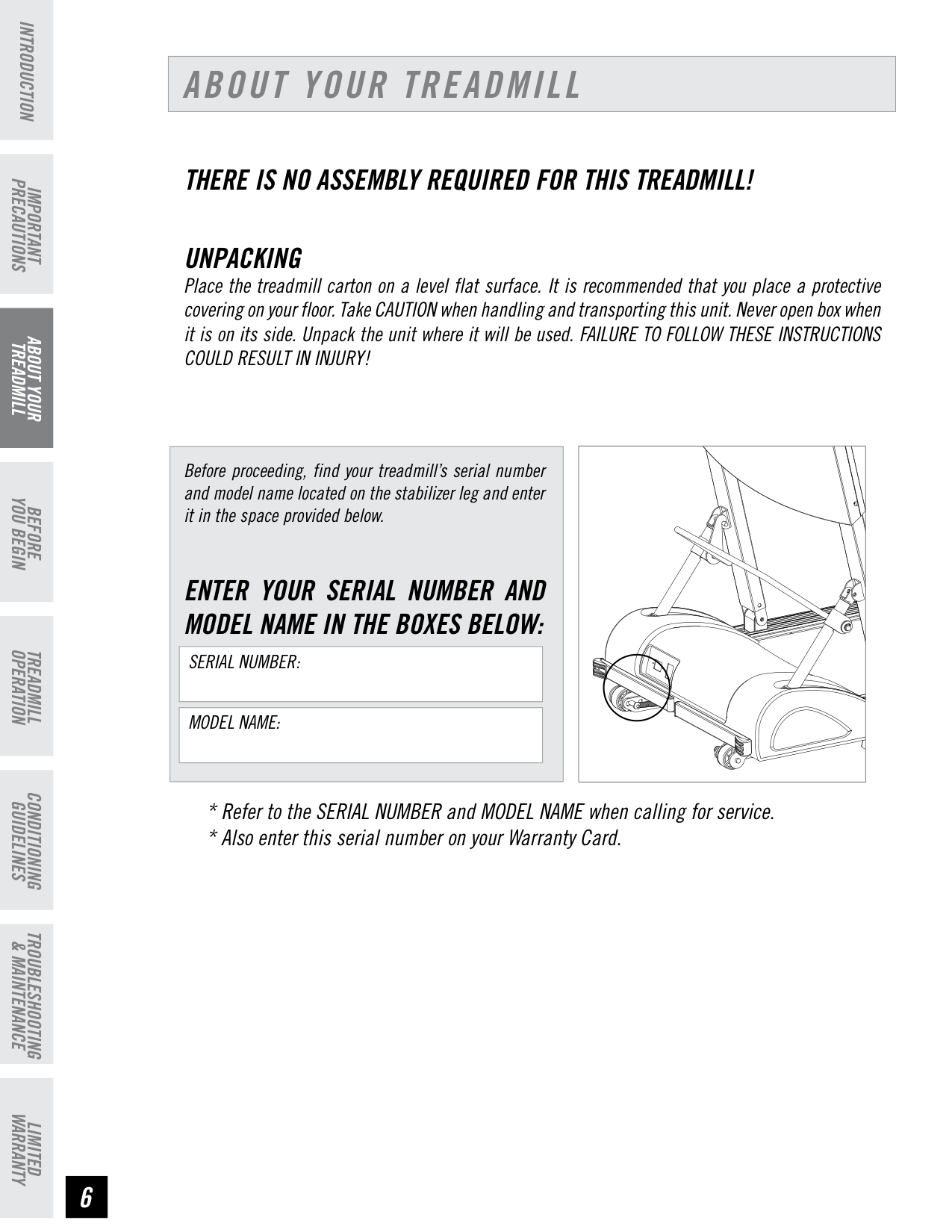

Where can I find the treadmill's serial number?

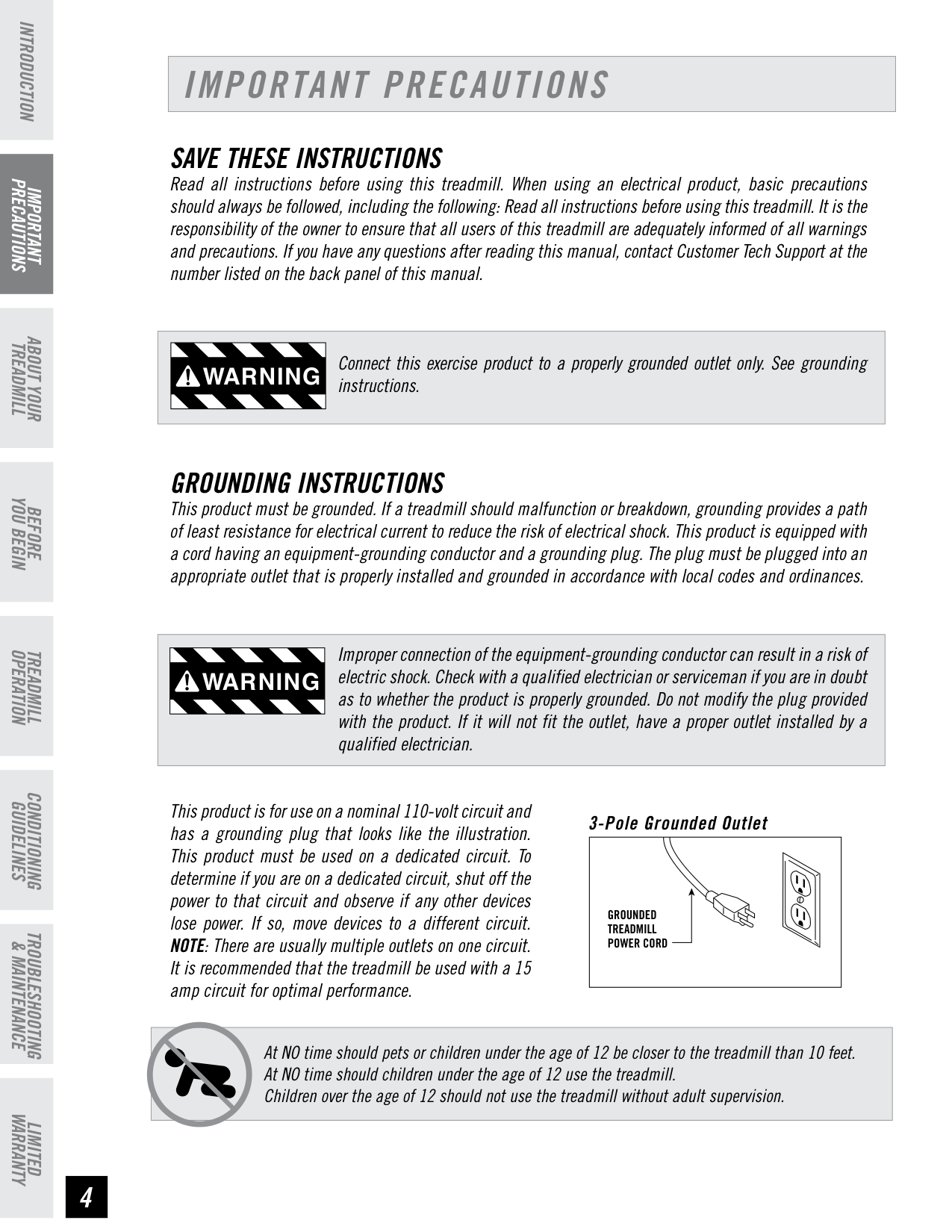

The serial number for your treadmill is located on the stabilizer leg and should be written down upon receipt of the product, usually in a box provided specifically for this information. (Page 4)

Show 4 more questions

What are common issues to address during weekly maintenance?

How do I handle errors or malfunctions with my treadmill?

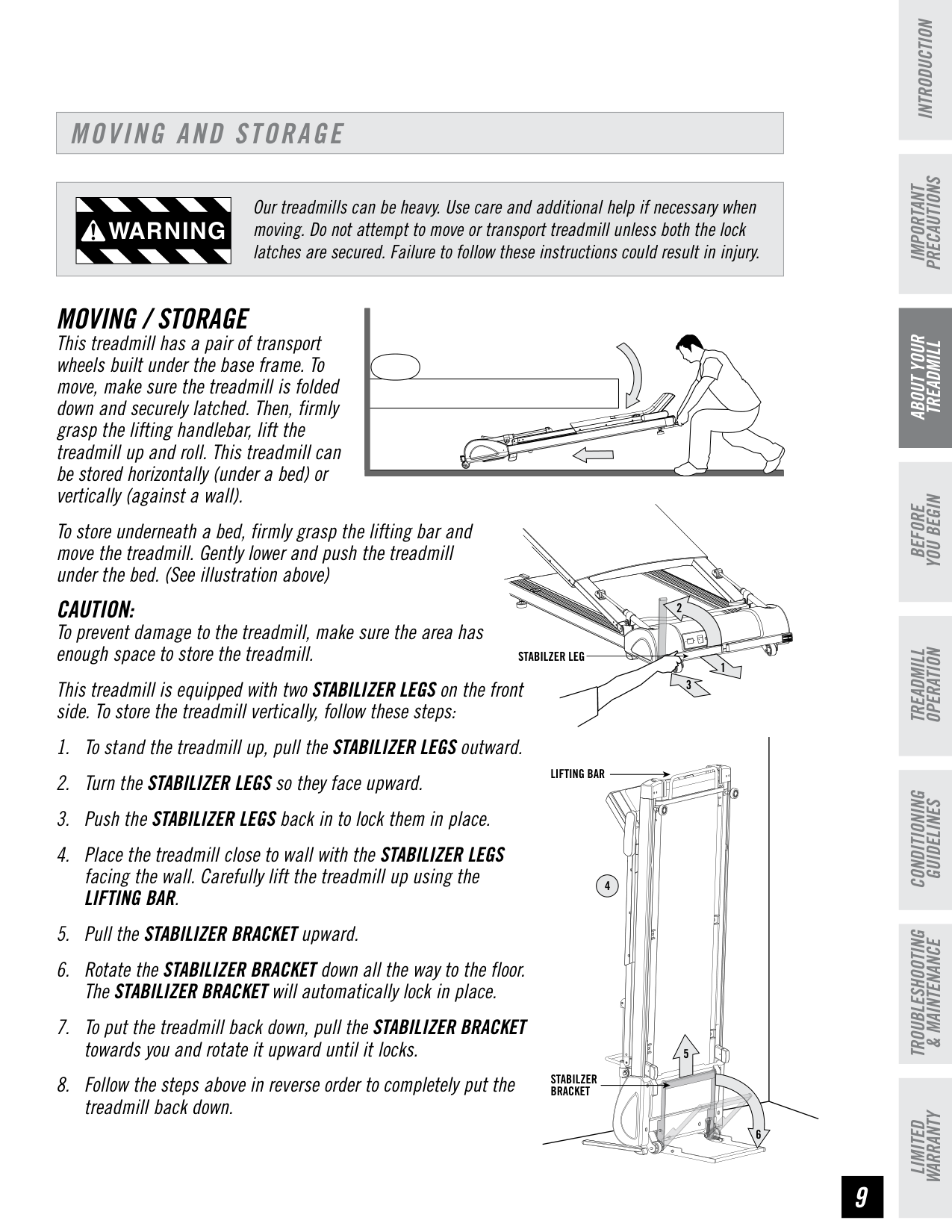

How do I secure the treadmill for moving and storage?

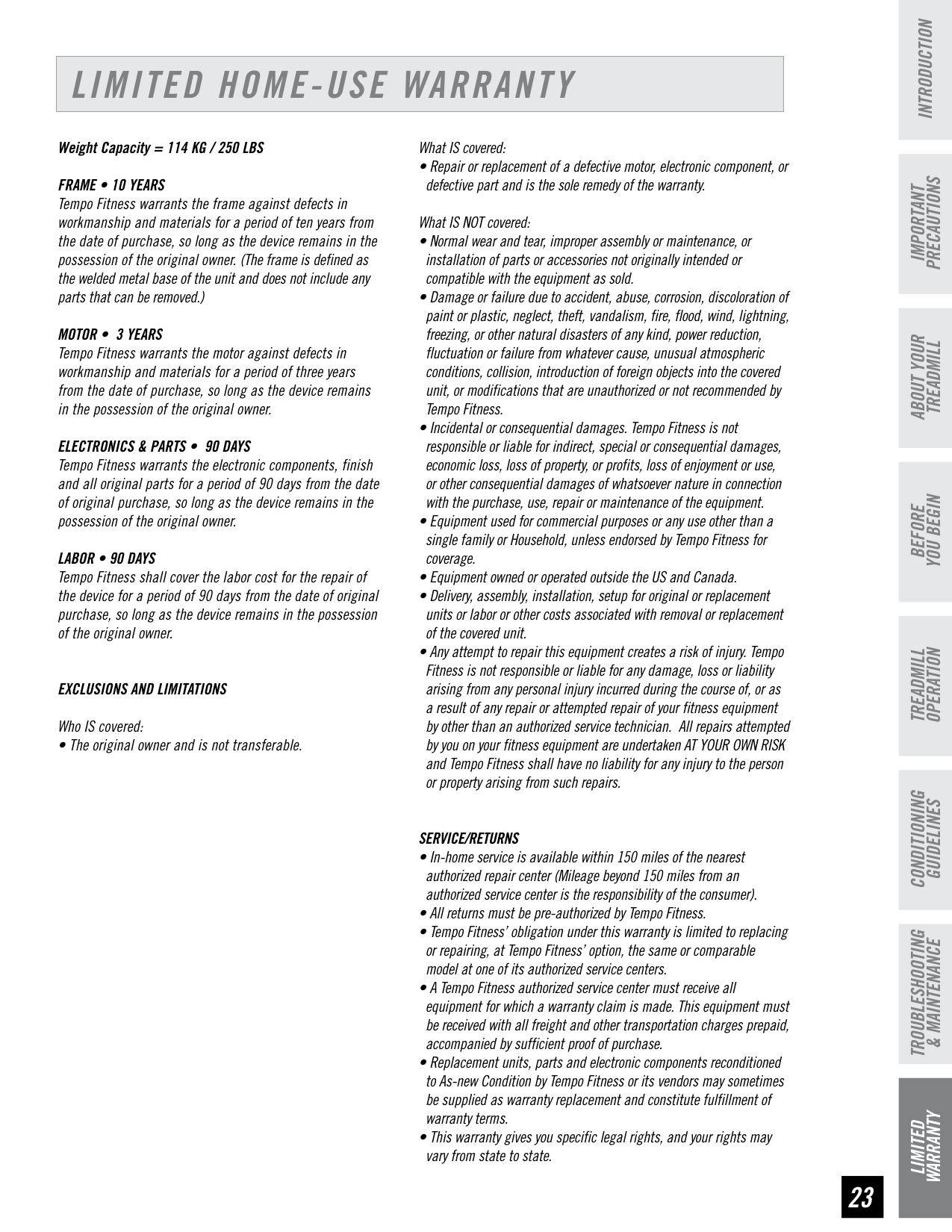

What is the warranty period for the treadmill's electronics?

Full Manual

24 pages

Page 1

Page 2

Page 3

Page 4

Page 5

Page 6

Page 7

Page 8

Page 9

Page 10

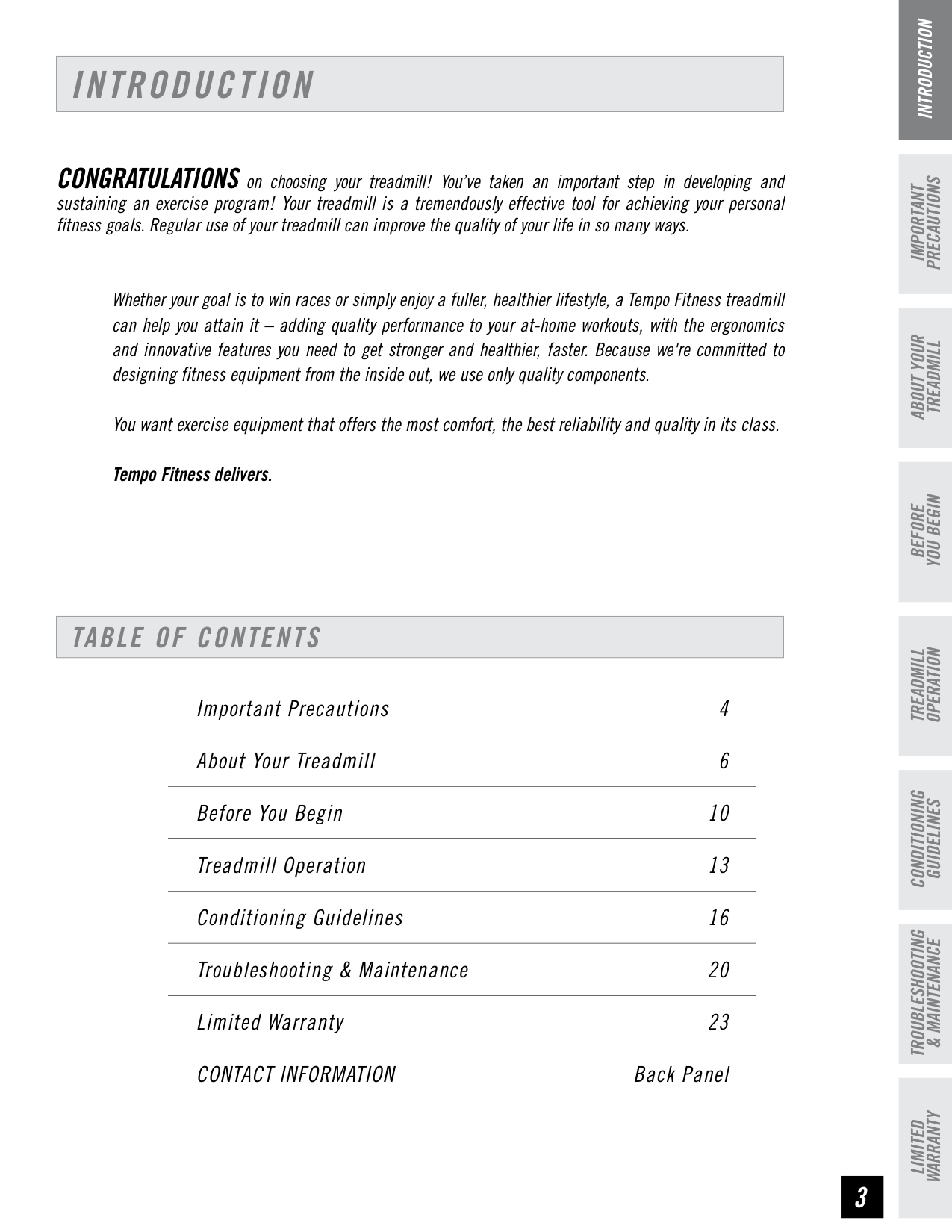

The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your workout when you use your treadmill in the comfort of your home. This guide provides you with basic information for using and enjoying your new machine.

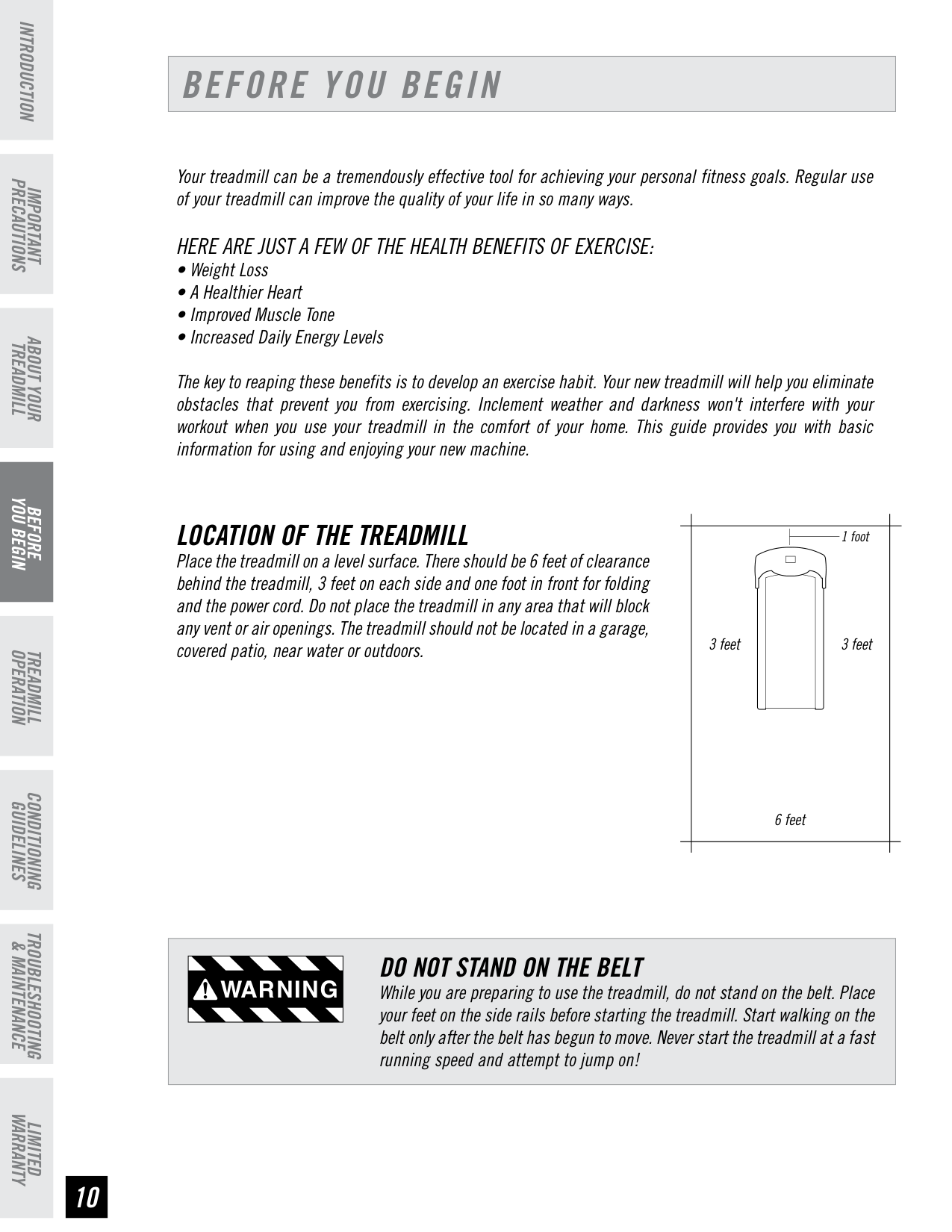

##### LOCATION OF THE TREADMILL

Place the treadmill on a level surface. There should be 6 feet of clearance behind the treadmill, 3 feet on each side and one foot in front for folding and the power cord. Do not place the treadmill in any area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio, near water or outdoors.

| | | | |---|---|---| | |3 feet

6 feet

3 feet

1 foot| | | | | |

|DO NOT STAND ON THE BELT

While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails before starting the treadmill. Start walking on the belt only after the belt has begun to move. Never start the treadmill at a fast running speed and attempt to jump on!

|WARNING| |---| | |---|

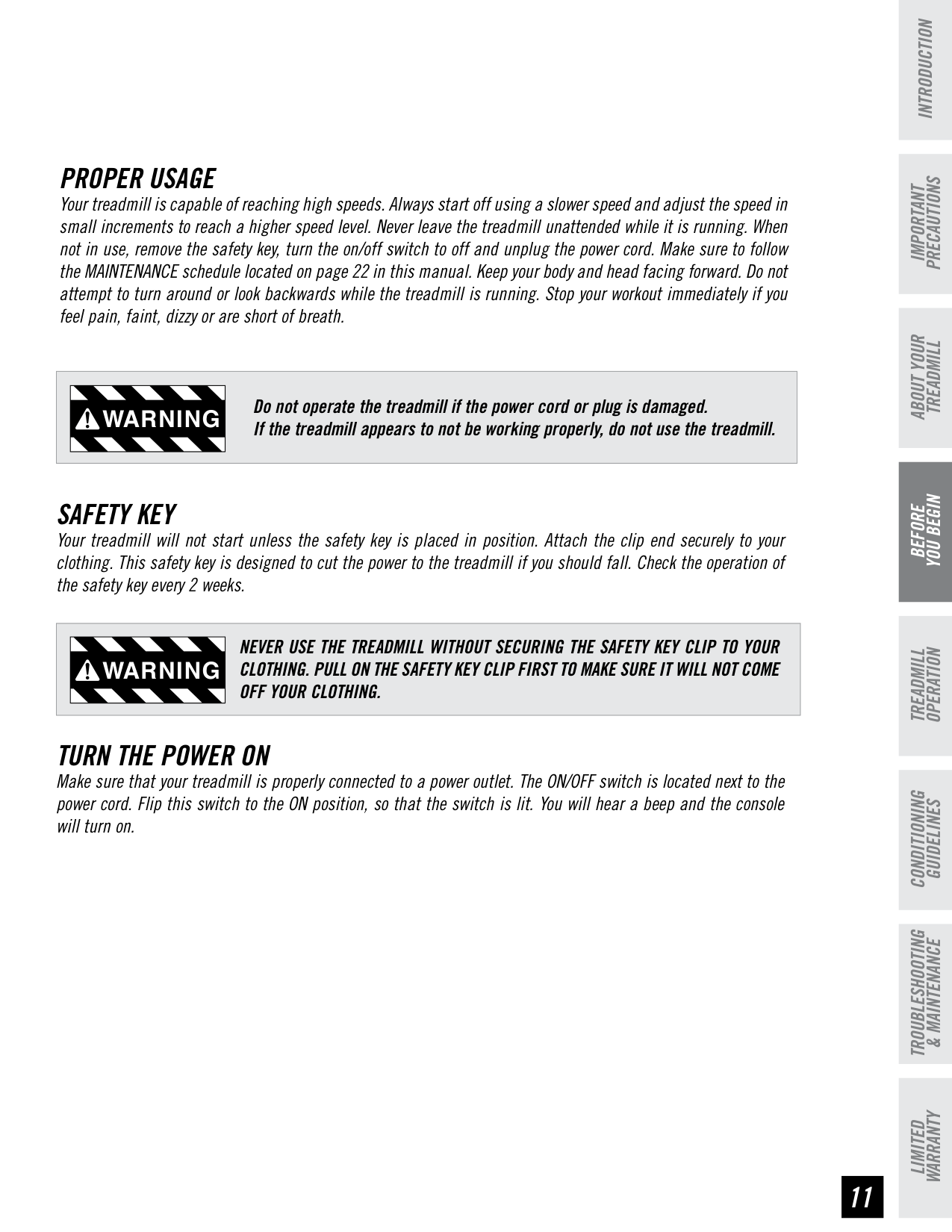

##### PROPER USAGE

Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow the MAINTENANCE schedule located on page 22 in this manual. Keep your body and head facing forward. Do not attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you feel pain, faint, dizzy or are short of breath.

|Do not operate the treadmill if the power cord or plug is damaged. If the treadmill appears to not be working properly, do not use the treadmill.

|WARNING| |---| | |---|

##### SAFETY KEY

Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation of the safety key every 2 weeks.

|NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.

|WARNING| |---| | |---|

##### TURN THE POWER ON

Make sure that your treadmill is properly connected to a power outlet. The ON/OFF switch is located next to the power cord. Flip this switch to the ON position, so that the switch is lit. You will hear a beep and the console will turn on.

Page 11

Page 12

Page 13

Page 14

Page 15

Page 16

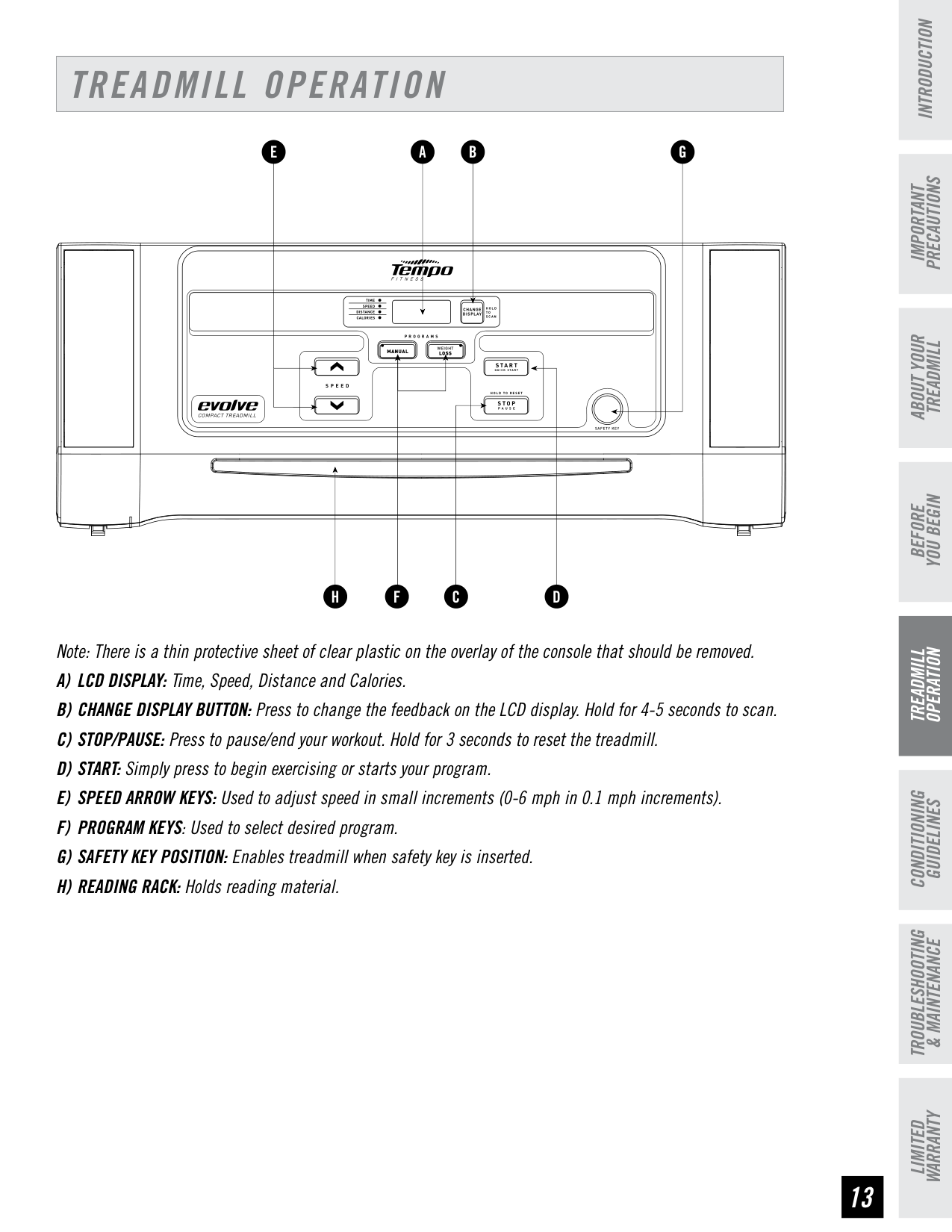

TREADMILL OPERATION

CONDITIONING GUIDELINES

TROUBLESHOOTING & MAINTENANCE

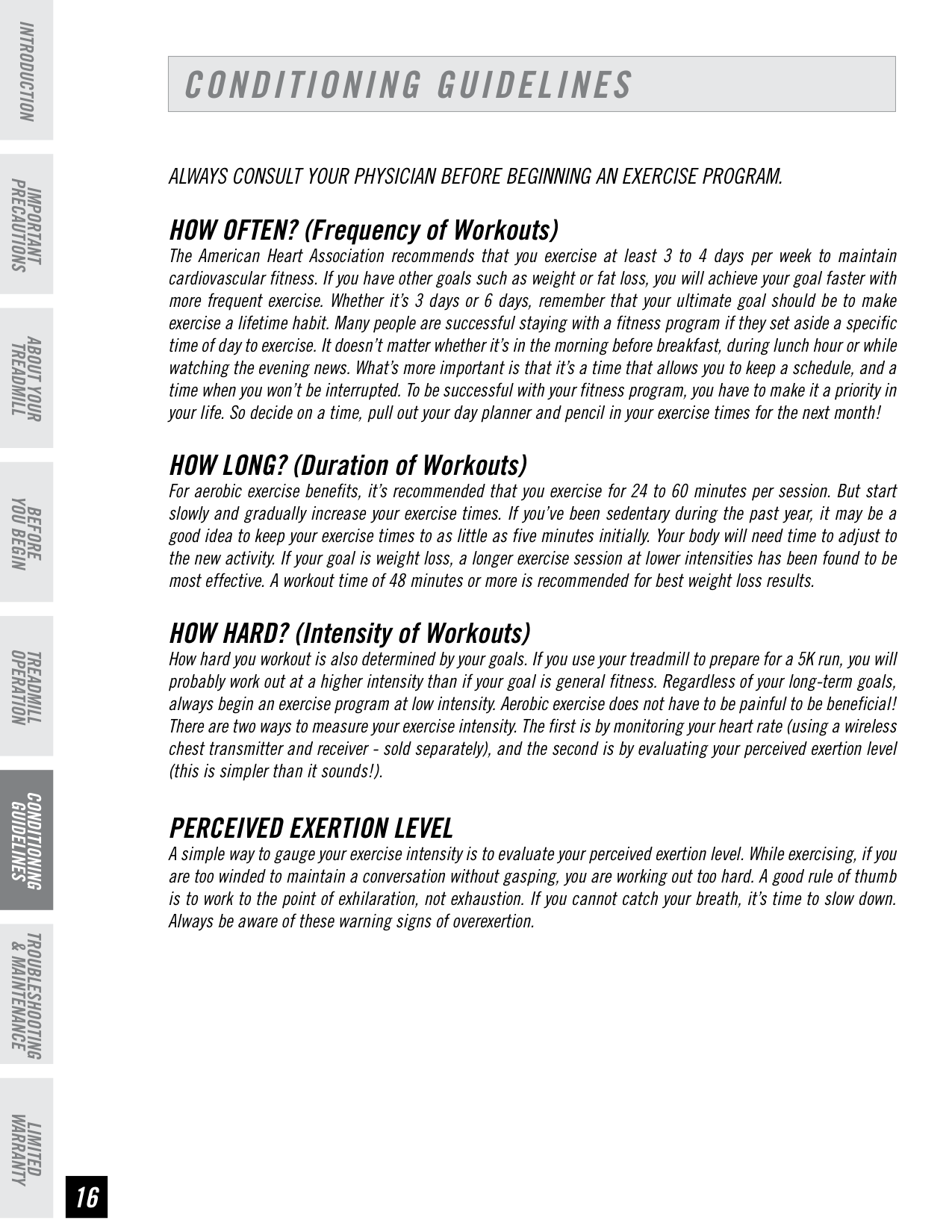

|CONDITIONING GUIDELINES| |---|

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.

##### HOW OFTEN? (Frequency of Workouts)

The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!

##### HOW LONG? (Duration of Workouts)

For aerobic exercise benefits, it’s recommended that you exercise for 24 to 60 minutes per session. But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.

##### HOW HARD? (Intensity of Workouts)

How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long-term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using a wireless chest transmitter and receiver - sold separately), and the second is by evaluating your perceived exertion level (this is simpler than it sounds!).

##### PERCEIVED ExERTION LEVEL

A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down. Always be aware of these warning signs of overexertion.

PRECAUTIONS ABOUT YOUR

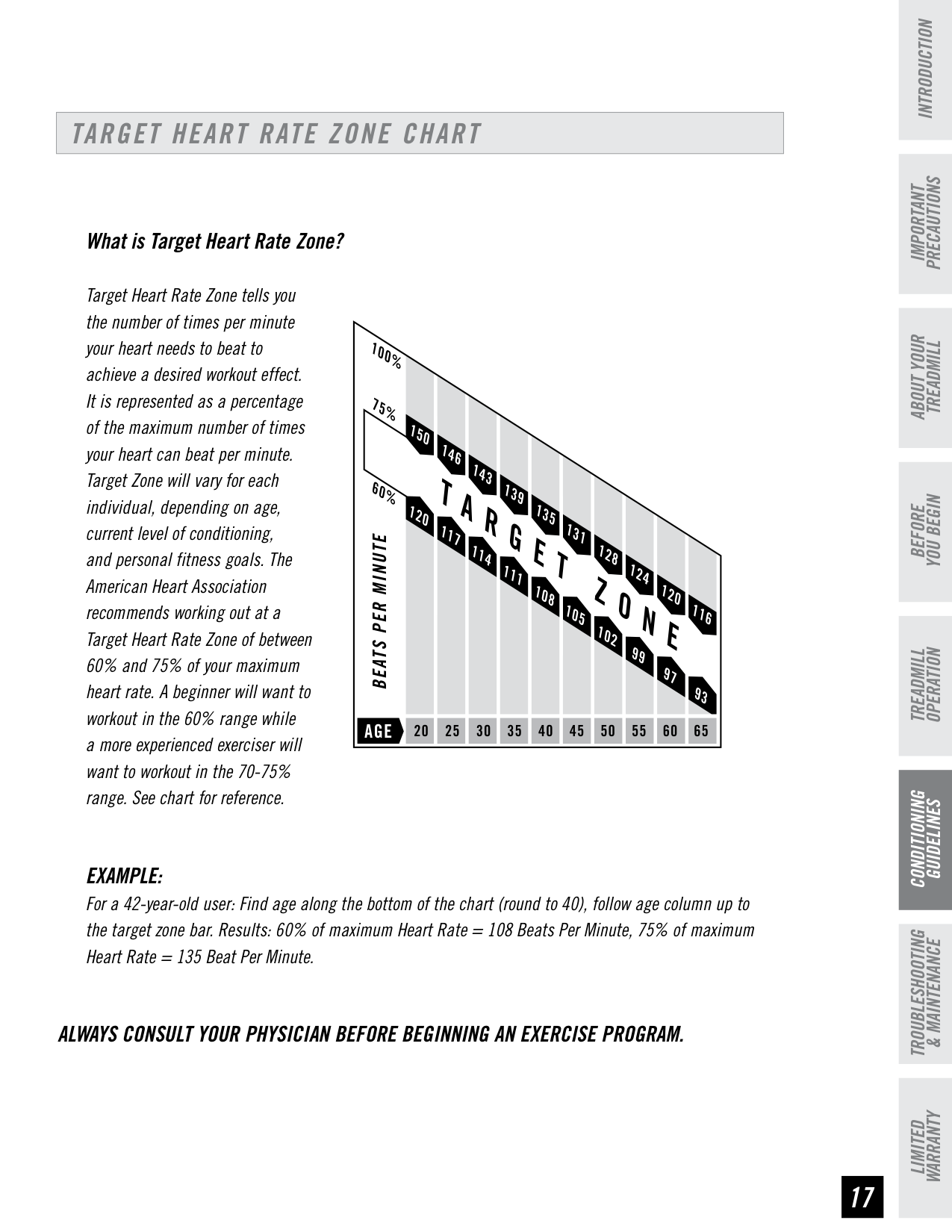

######### What is Target Heart Rate Zone?

Target Heart Rate Zone tells you the number of times per minute your heart needs to beat to achieve a desired workout effect. It is represented as a percentage of the maximum number of times your heart can beat per minute. Target Zone will vary for each individual, depending on age, current level of conditioning, and personal fitness goals. The American Heart Association recommends working out at a Target Heart Rate Zone of between 60% and 75% of your maximum heart rate. A beginner will want to workout in the 60% range while a more experienced exerciser will want to workout in the 70-75% range. See chart for reference.

100%

TREADMILL BEFORE

75%

150

Page 17

Page 18

Page 19

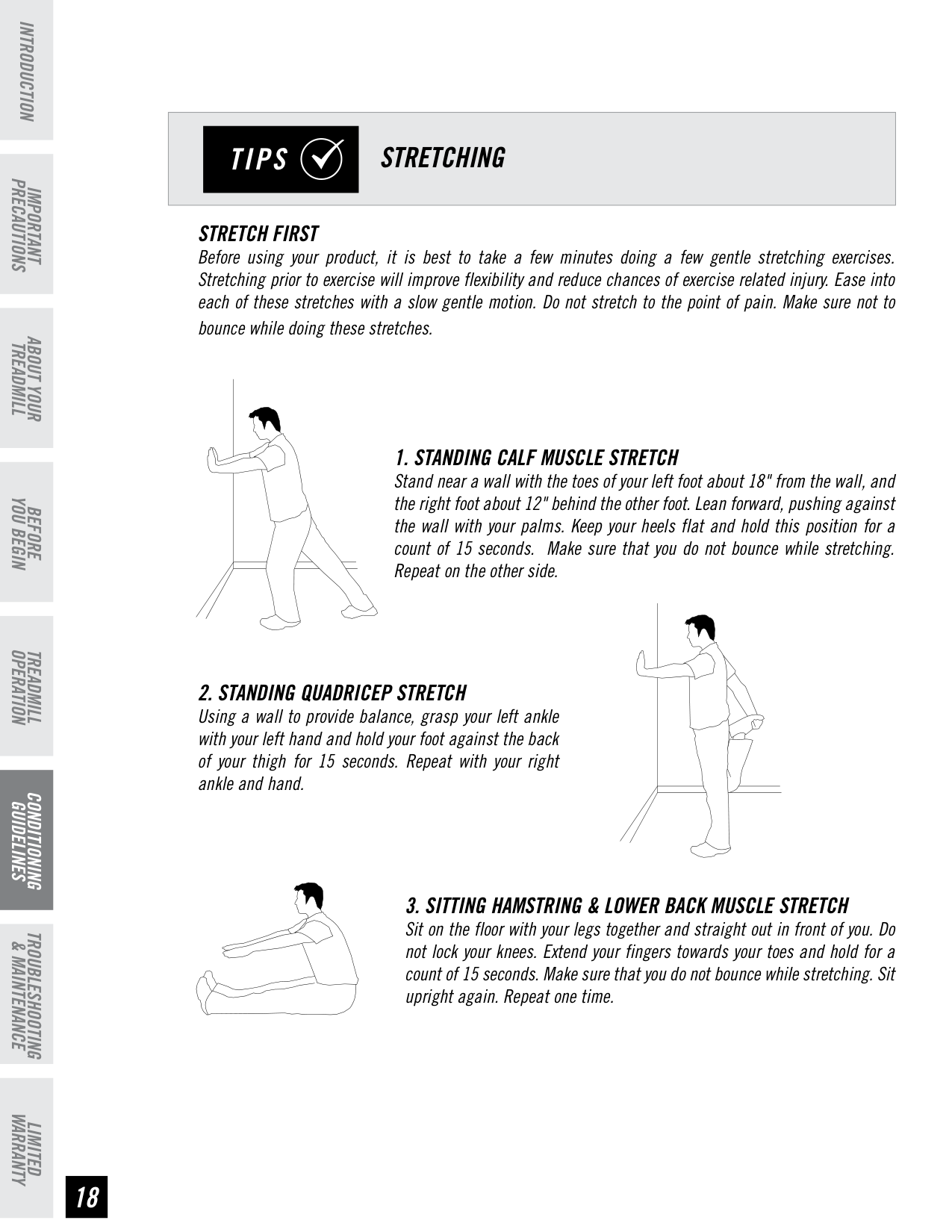

Stand near a wall with the toes of your left foot about 18" from the wall, and the right foot about 12" behind the other foot. Lean forward, pushing against the wall with your palms. Keep your heels flat and hold this position for a count of 15 seconds. Make sure that you do not bounce while stretching. Repeat on the other side.

######### 2. STANDING QUADRICEP STRETCH

Using a wall to provide balance, grasp your left ankle with your left hand and hold your foot against the back of your thigh for 15 seconds. Repeat with your right ankle and hand.

######### . SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH

Sit on the floor with your legs together and straight out in front of you. Do not lock your knees. Extend your fingers towards your toes and hold for a count of 15 seconds. Make sure that you do not bounce while stretching. Sit upright again. Repeat one time.

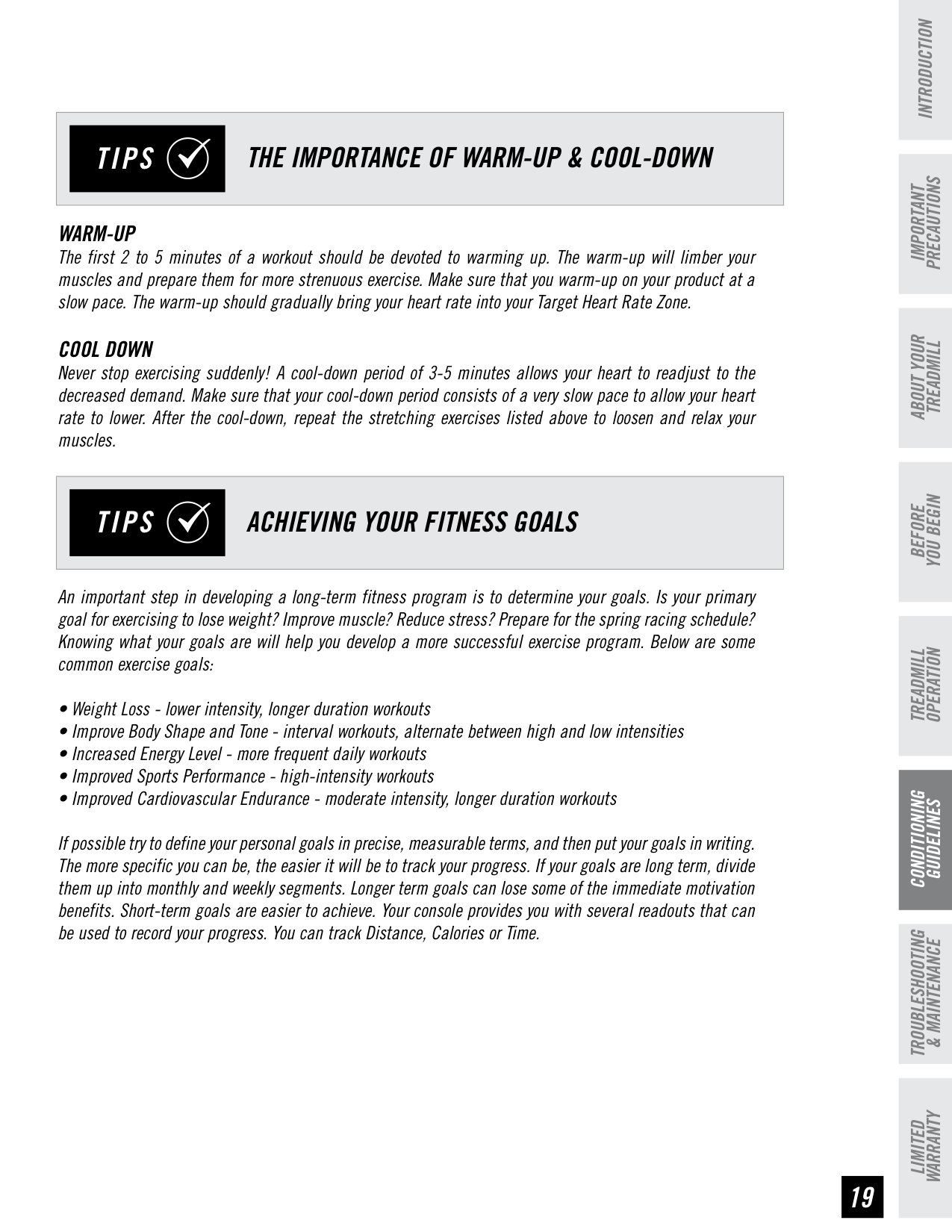

|THE IMPORTANCE OF WARM-UP & COOL-DOWN

|TIPS

| |---| | |---|

######### WARM-UP

The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a slow pace. The warm-up should gradually bring your heart rate into your Target Heart Rate Zone.

######### COOL DOWN

Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the decreased demand. Make sure that your cool-down period consists of a very slow pace to allow your heart rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your muscles.

|ACHIEVING YOUR FITNESS GOALS

|TIPS

| |---| | |---|

An important step in developing a long-term fitness program is to determine your goals. Is your primary goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program. Below are some common exercise goals:

• Weight Loss - lower intensity, longer duration workouts

• Improve Body Shape and Tone - interval workouts, alternate between high and low intensities

• Increased Energy Level - more frequent daily workouts

• Improved Sports Performance - high-intensity workouts

• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts

If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing. The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation benefits. Short-term goals are easier to achieve. Your console provides you with several readouts that can be used to record your progress. You can track Distance, Calories or Time.

Page 20
