Page 1
Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352 use & care
Refrigerator
A17856402 (September 2021) Introduction........................................................2 Important Safety Information.....................3 Features...............................................................7 Installation..........................................................9 Door Removal................................................... 11 Door Handle Installation..............................16 Water Supply Connection........................... 17 Controls And Settings..................................19 Automatic Ice & Water Dispenser..........26 Ice Maker..........................................................30 Storage Features........................................... 32 Storing Food and Saving Energy............38 Normal Operating Sounds.........................39 Filter Replacement.......................................40 Care & Cleaning.............................................43 Troubleshooting ...........................................45 Limited Warranty..........................................50 Page 2

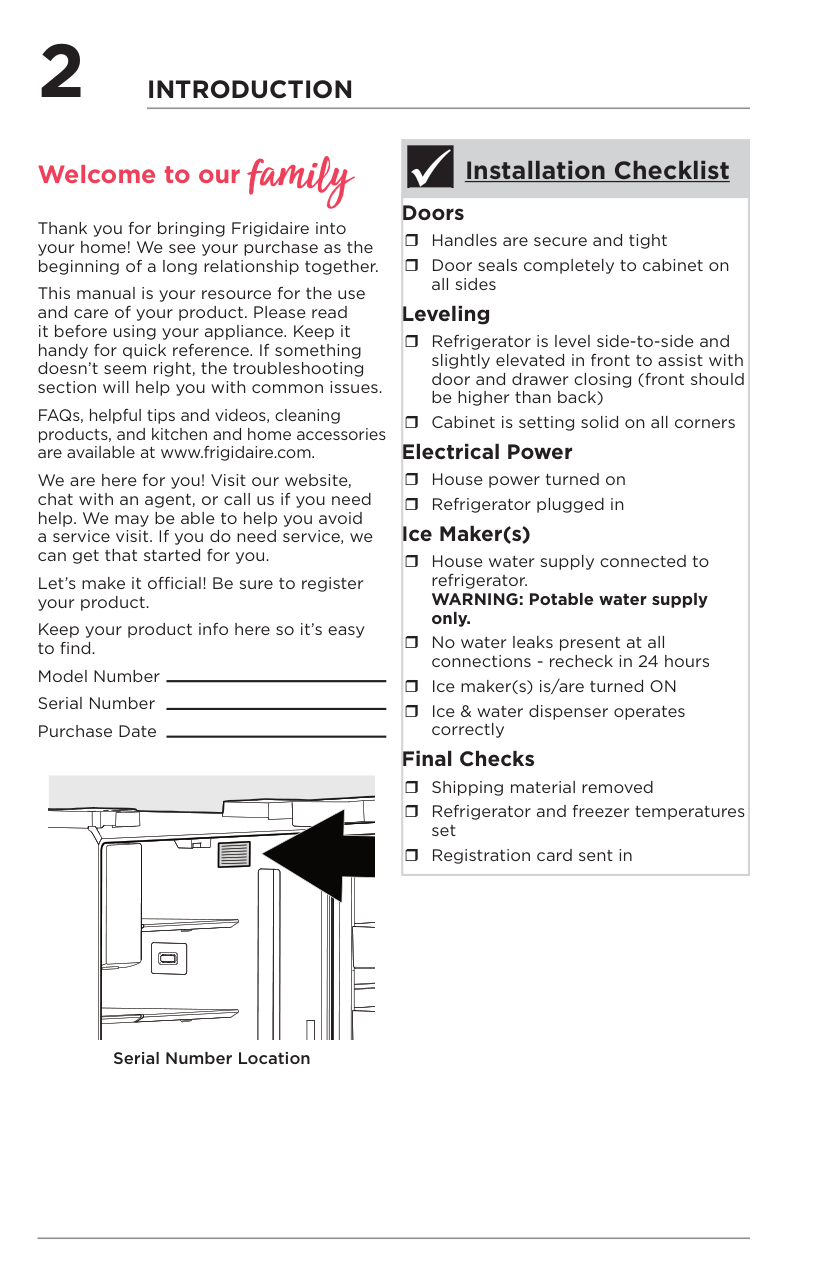

2
Introduction
Doors Handles are secure and tight
Door seals completely to cabinet on all sides Leveling
Refrigerator is level side-to-side and slightly elevated in front to assist with door and drawer closing (front should be higher than back)
Cabinet is setting solid on all corners Electrical Power
House power turned on
Refrigerator plugged in Ice Maker(s)
House water supply connected to refrigerator. WARNING: Potable water supply only.
No water leaks present at all connections - recheck in 24 hours
Ice maker(s) is/are turned ON
Ice & water dispenser operates correctly Final Checks
Shipping material removed
Refrigerator and freezer temperatures set
Registration card sent in Installation Checklist Welcome to our family Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together. This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues. FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com. We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you. Let’s make it official! Be sure to register your product. Keep your product info here so it’s easy to find. Model Number Serial Number Purchase Date Serial Number Location
Page 3
3

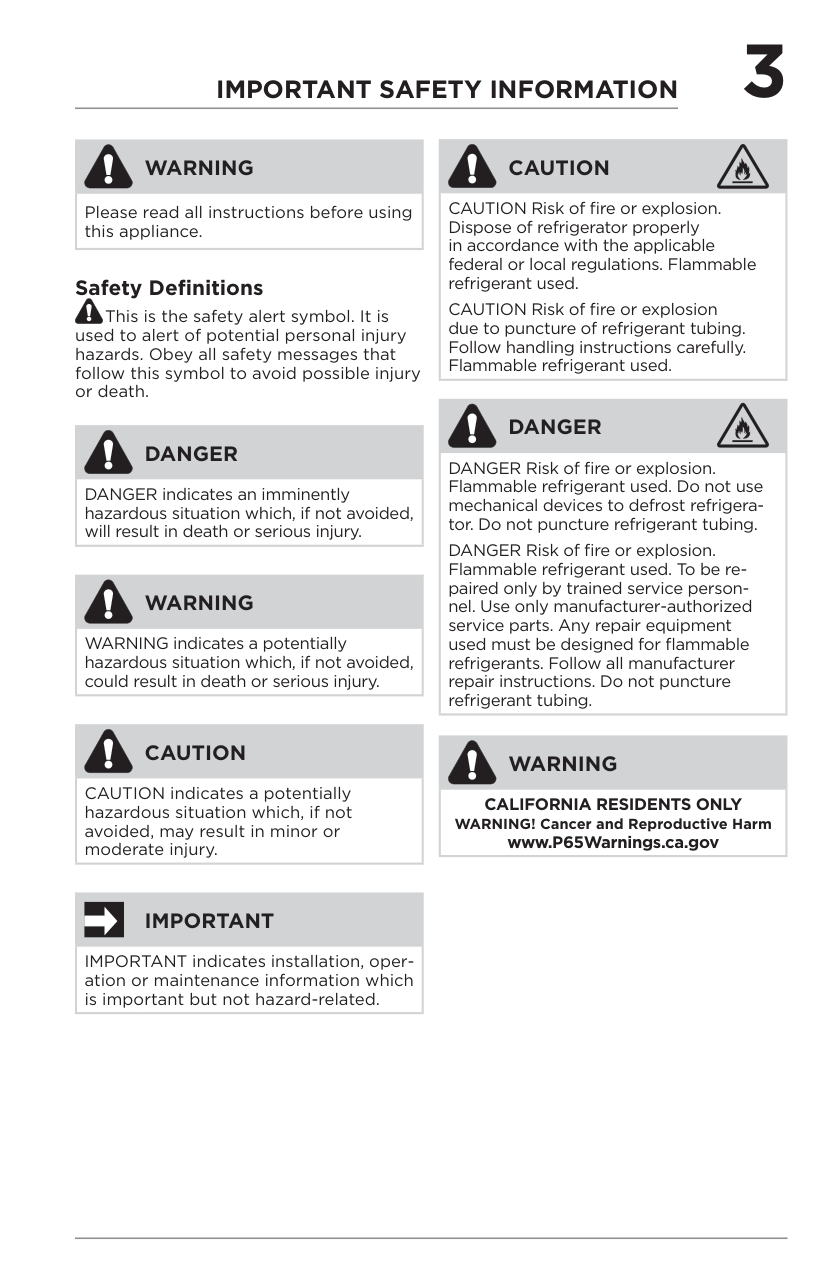

Warning
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.Important
IMPORTANT indicates installation, oper ation or maintenance information which is important but not hazard-related.Danger
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.Caution
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Safety Definitions This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.Warning
Please read all instructions before using this appliance.Important Safety Information
Caution
CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used. CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.Danger
DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigera- tor. Do not puncture refrigerant tubing. DANGER Risk of fire or explosion. Flammable refrigerant used. To be re- paired only by trained service person- nel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.Warning
California Residents Only
WARNING! Cancer and Reproductive Harm www.P65Warnings.ca.gov Page 4
4
Important

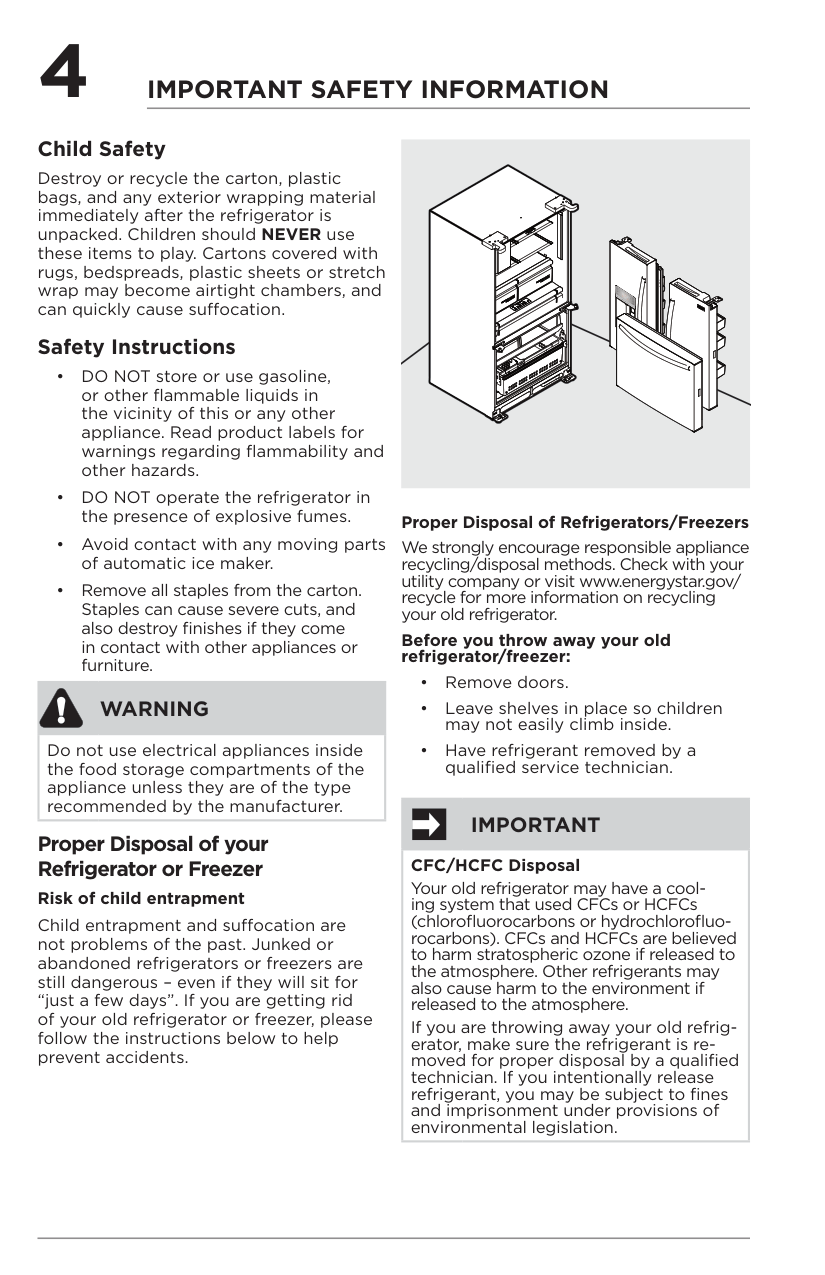

CFC/HCFC Disposal Your old refrigerator may have a cool ing system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluo rocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere. If you are throwing away your old refrig erator, make sure the refrigerant is re moved for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation. Proper Disposal of Refrigerators/Freezers We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.energystar.gov/ recycle for more information on recycling your old refrigerator. Before you throw away your old refrigerator/freezer:Important Safety Information
Safety InstructionsWarning
Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer. Proper Disposal of your Refrigerator or Freezer Risk of child entrapment Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents. Page 5

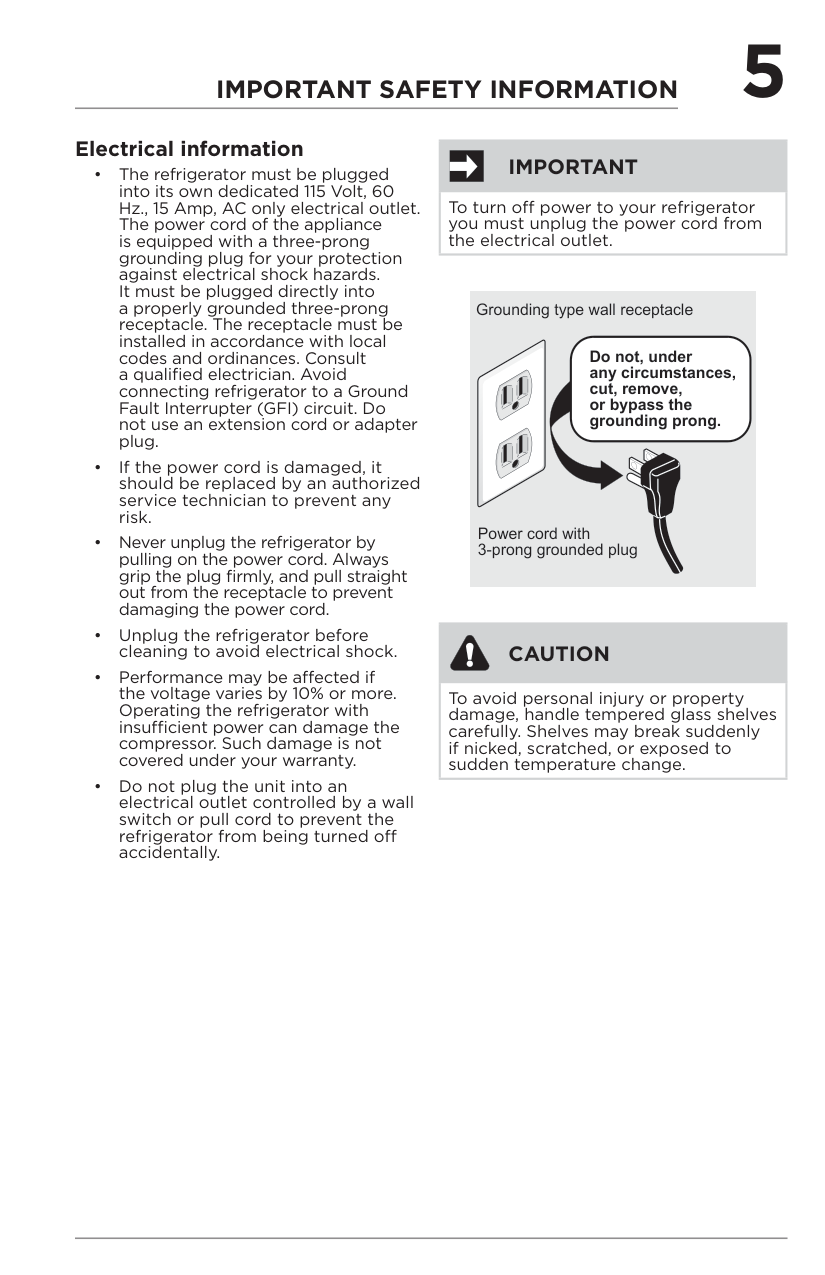

5 Electrical information
Important
To turn off power to your refrigerator you must unplug the power cord from the electrical outlet. Grounding type wall receptacle Power cord with 3-prong grounded plug Do not, under any circumstances, cut, remove, or bypass the grounding prong.Caution
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.Important Safety Information
Page 6

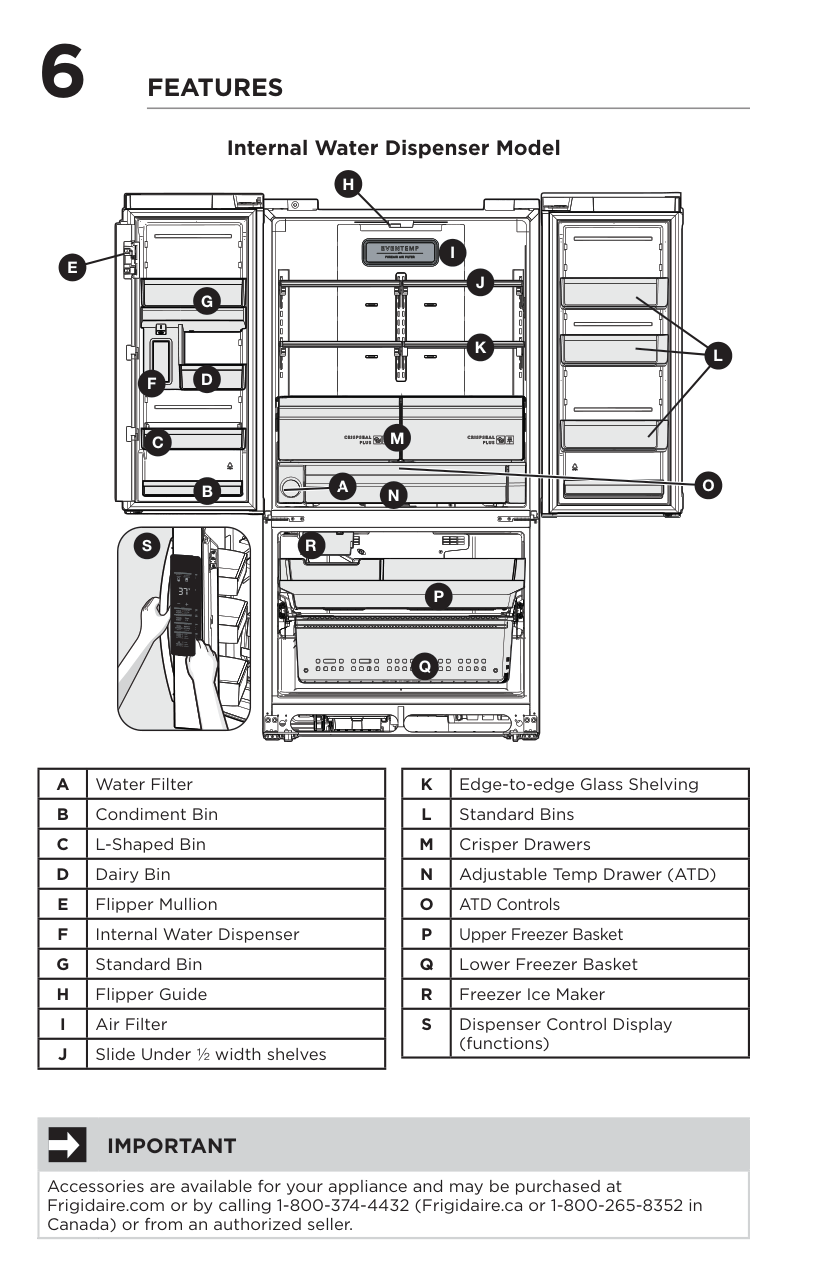

6
Important
Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller. Internal Water Dispenser ModelA
Water FilterB
Condiment BinC
L-Shaped BinD
Dairy BinE
Flipper MullionF
Internal Water DispenserG
Standard BinH
Flipper GuideI
Air FilterJ
Slide Under ½ width shelvesK
Edge-to-edge Glass ShelvingL
Standard BinsM
Crisper DrawersN
Adjustable Temp Drawer (ATD)O
ATD ControlsP
Upper Freezer BasketQ
Lower Freezer BasketR
Freezer Ice MakerS
Dispenser Control Display (functions)Features
B
C
D
E
F
G
H
I
J
M
N
L
P
Q
R
K
A
O
S
Page 7

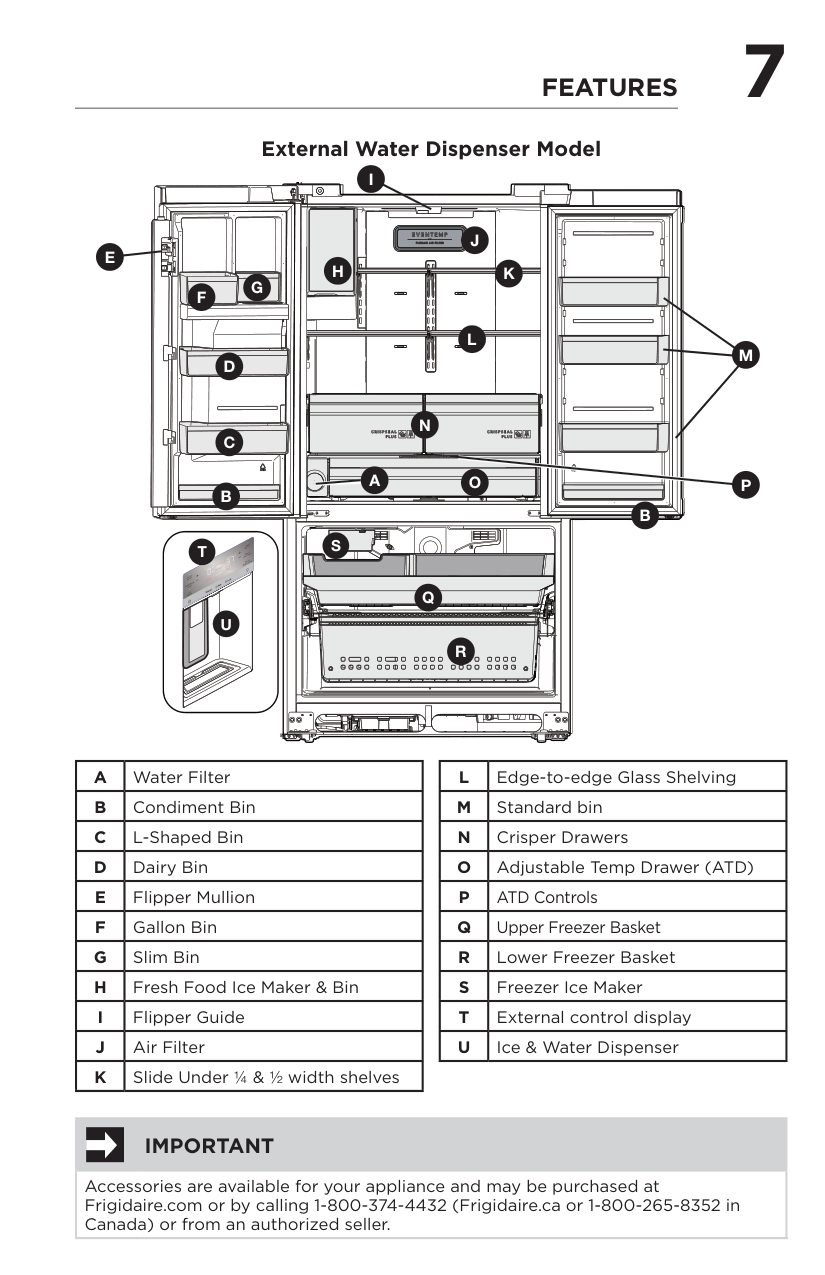

7 External Water Dispenser Model
A
Water FilterB
Condiment BinC
L-Shaped BinD
Dairy BinE
Flipper MullionF
Gallon BinG
Slim BinH
Fresh Food Ice Maker & BinI
Flipper GuideJ
Air FilterK
Slide Under ¼ & ½ width shelvesL
Edge-to-edge Glass ShelvingM
Standard binN
Crisper DrawersO
Adjustable Temp Drawer (ATD)P
ATD ControlsQ
Upper Freezer BasketR
Lower Freezer BasketS
Freezer Ice MakerT
External control displayU
Ice & Water DispenserFeatures
Quick FreezeImportant
Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.A
B
B
C
D
E
F
G
H
I
J
K
M
N
L
O
Q
R
P
S
T
U
Page 8

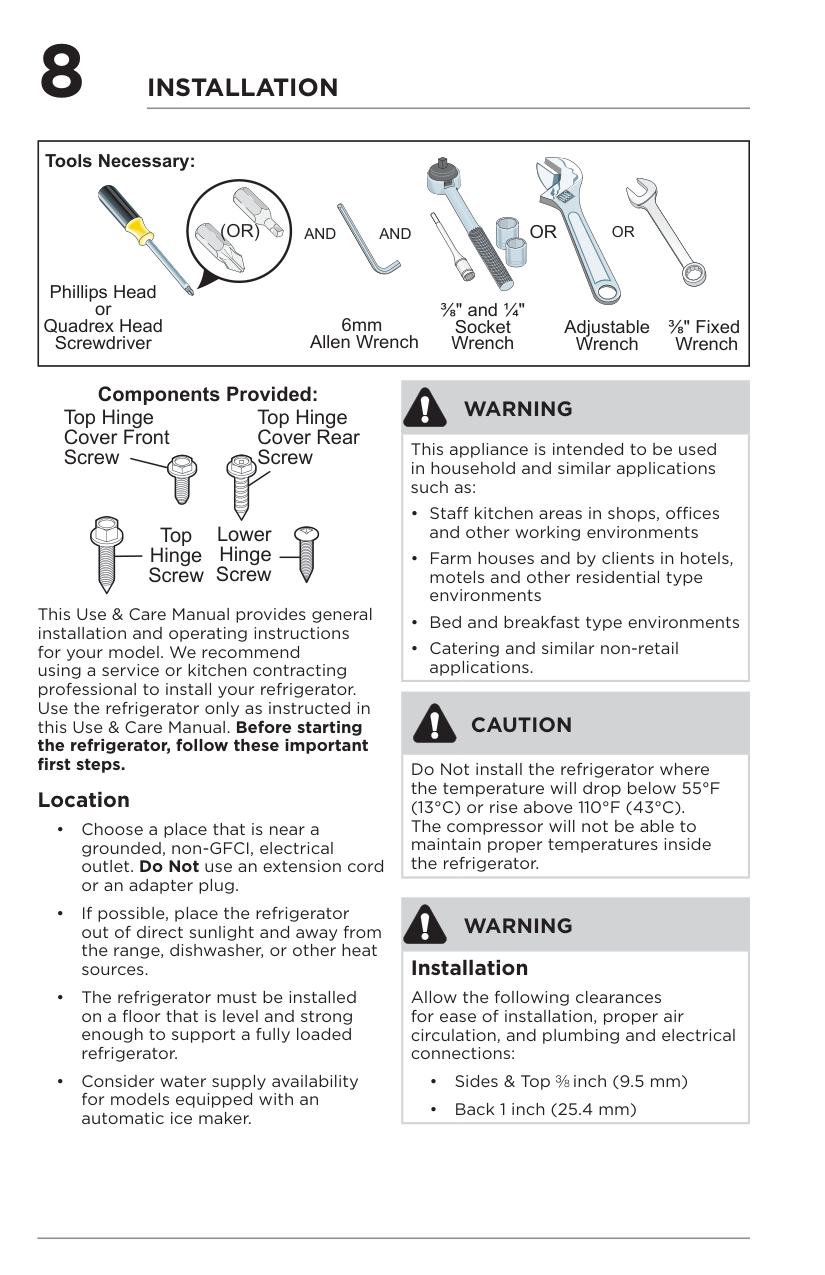

8
Caution
Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator. This Use & Care Manual provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your refrigerator. Use the refrigerator only as instructed in this Use & Care Manual. Before starting the refrigerator, follow these important first steps. Location(Or)
Or
⅜" and ¼" Socket Wrench Adjustable WrenchOr
⅜" Fixed WrenchAnd
And
6mm Allen WrenchInstallation
Warning
Installation Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:Warning
This appliance is intended to be used in household and similar applications such as: Page 9

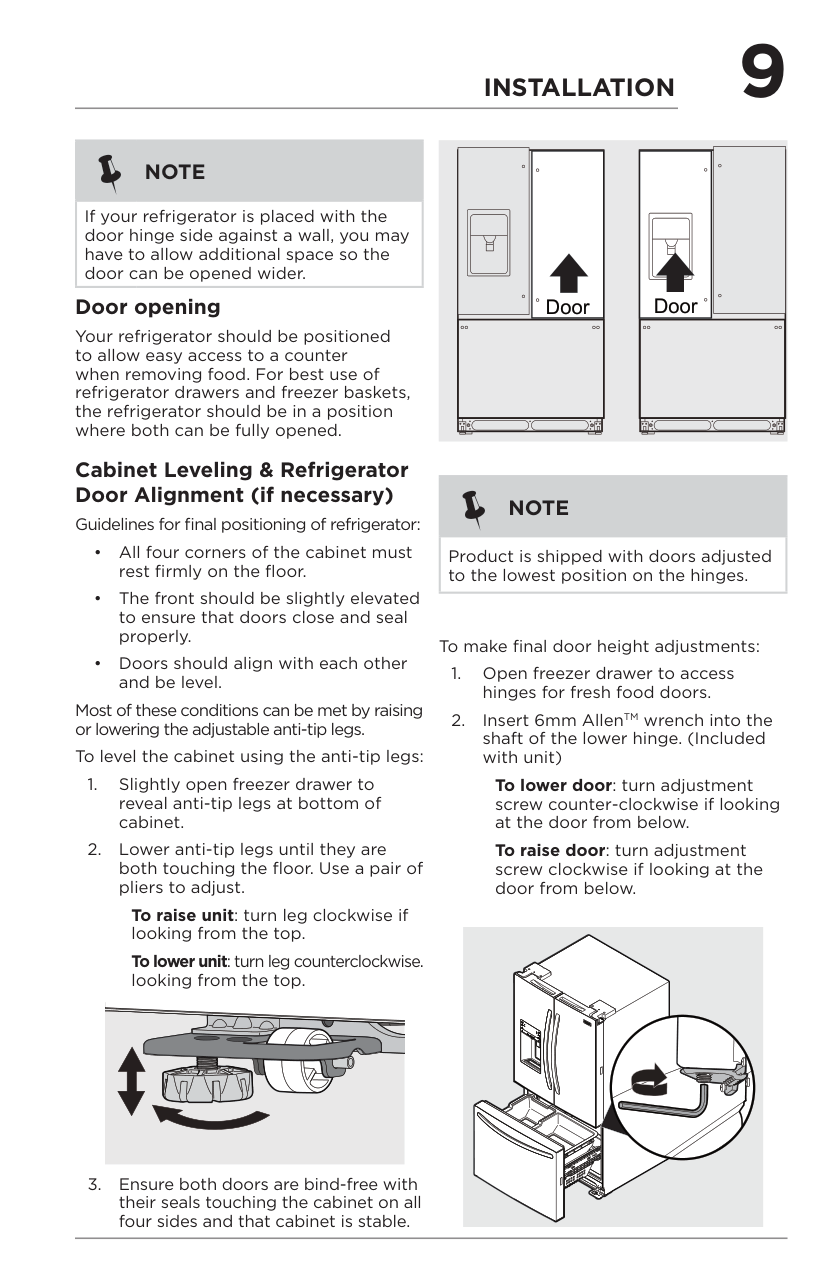

9
Note
If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.Note
Product is shipped with doors adjusted to the lowest position on the hinges.Installation
Door opening Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.To raise unit: turn leg clockwise if
looking from the top.
To lower unit: turn leg counterclockwise.
looking from the top. Door Door To make final door height adjustments:
To lower door: turn adjustment screw counter-clockwise if looking at the door from below.
To raise door: turn adjustment screw clockwise if looking at the door from below.
Page 10
10
Installation

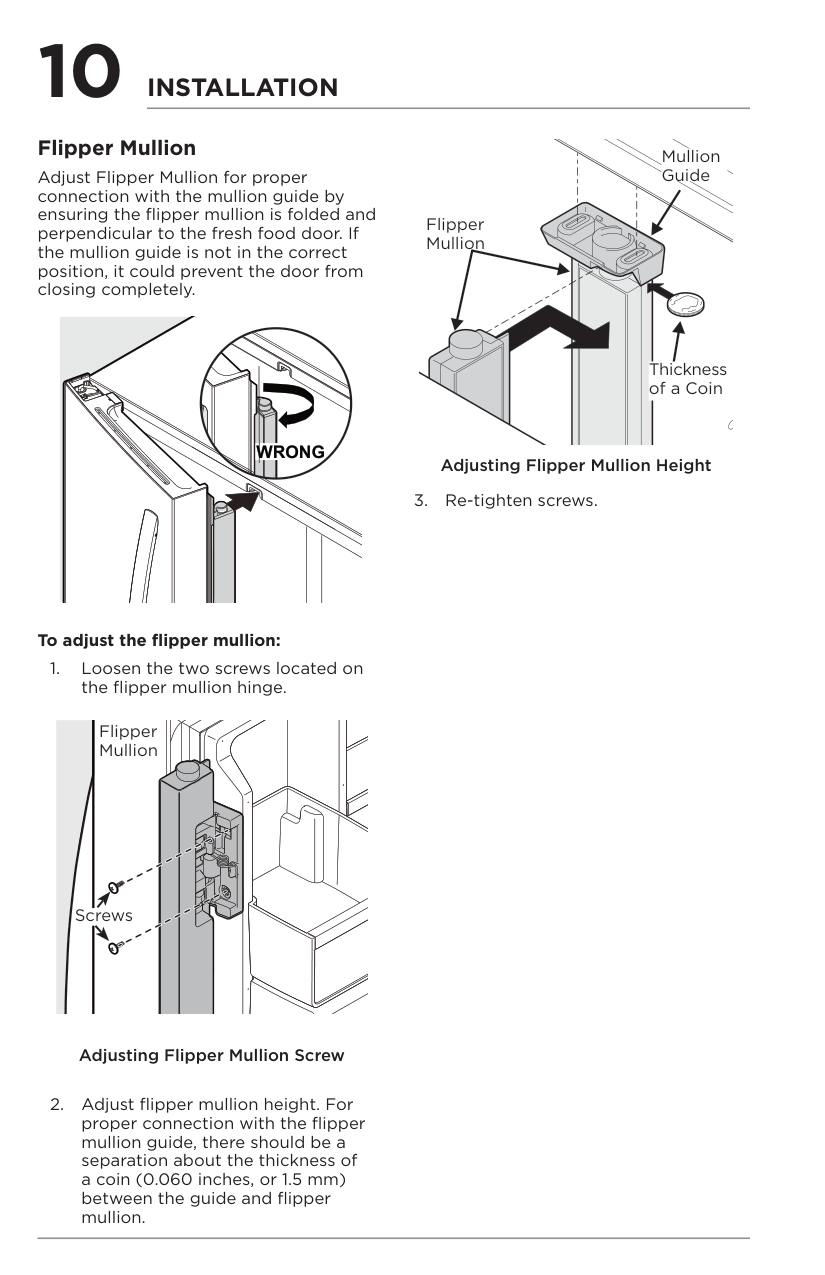

Adjusting Flipper Mullion ScrewWrong
Flipper Mullion Mullion Guide Thickness of a Coin Page 11
11
Warning

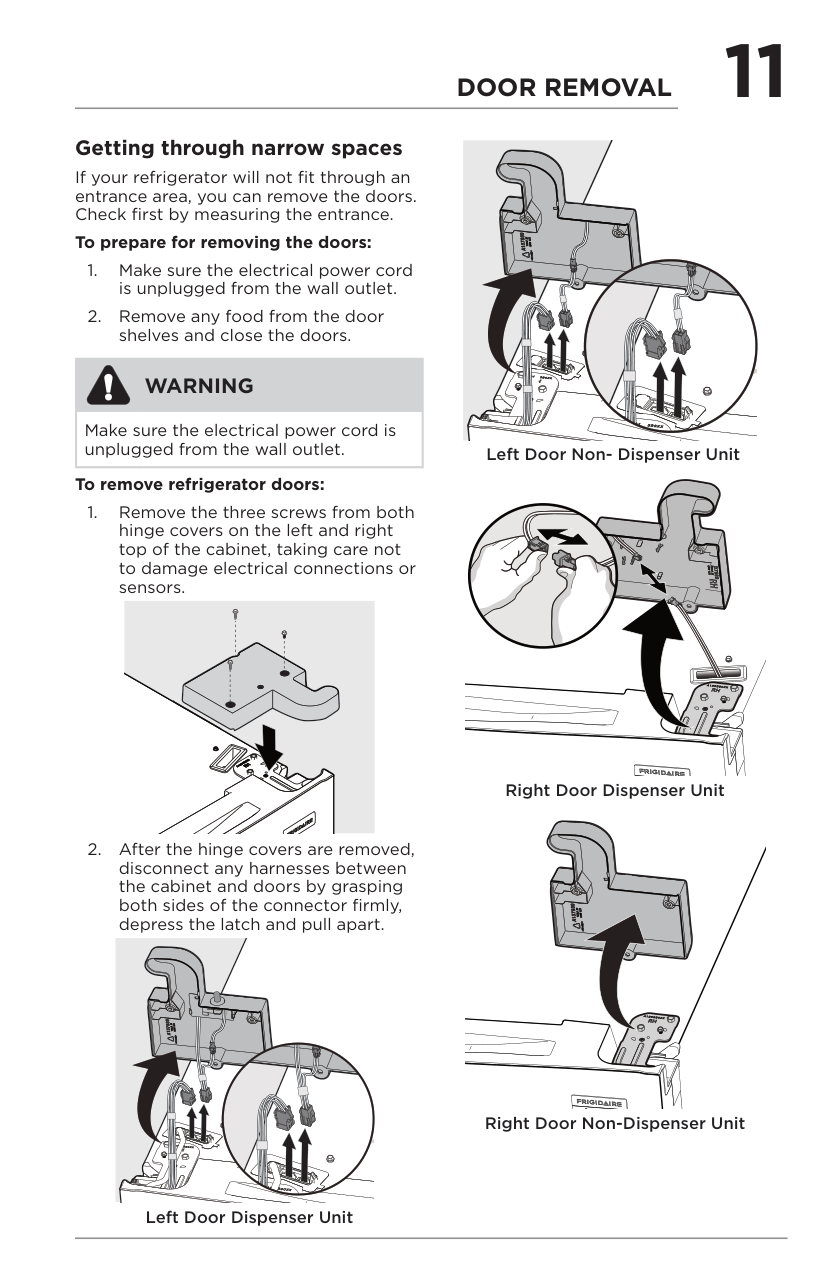

Make sure the electrical power cord is unplugged from the wall outlet. Getting through narrow spaces If your refrigerator will not fit through an entrance area, you can remove the doors. Check first by measuring the entrance. To prepare for removing the doors:Door Removal
Right Door Non-Dispenser Unit Right Door Dispenser Unit Left Door Dispenser Unit Left Door Non- Dispenser Unit To remove refrigerator doors: Page 12
12

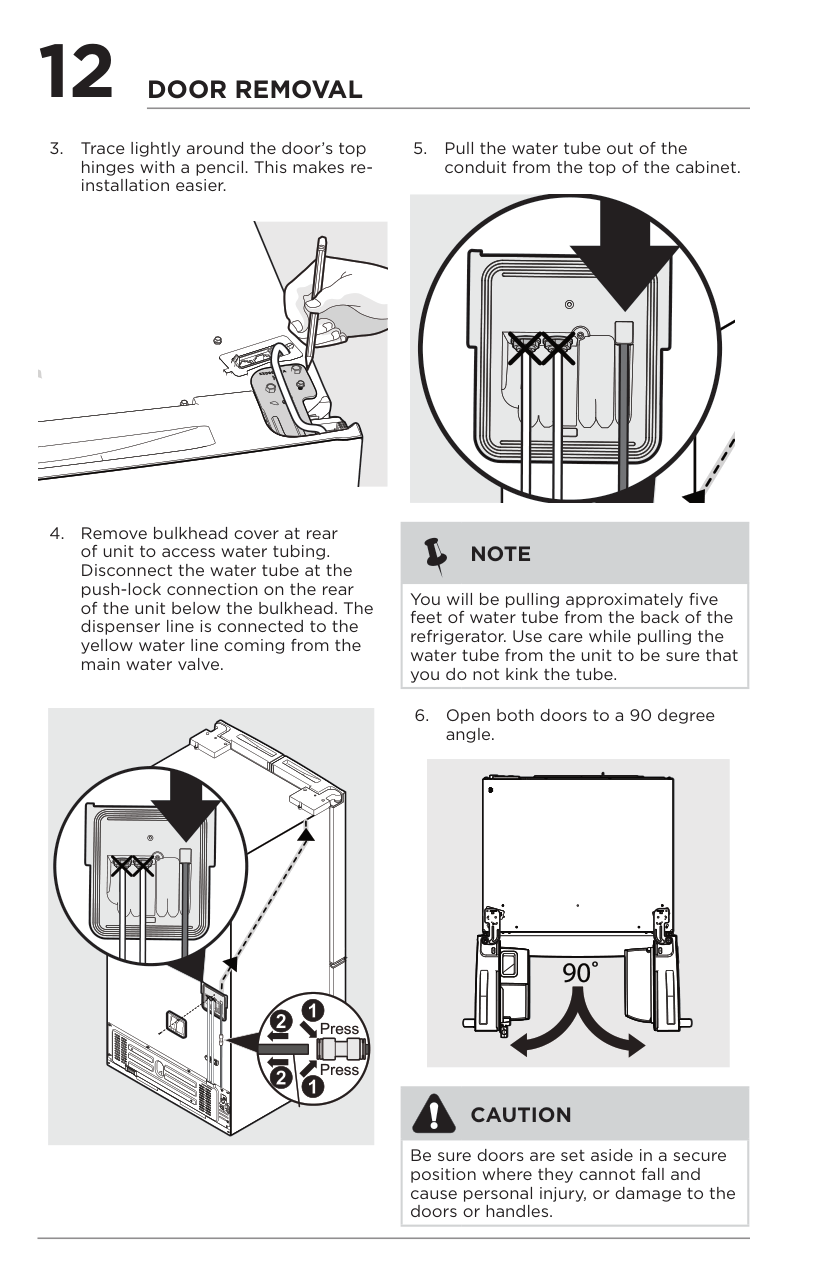

Door Removal
Note
You will be pulling approximately five feet of water tube from the back of the refrigerator. Use care while pulling the water tube from the unit to be sure that you do not kink the tube. 90˚Caution
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles. Page 13

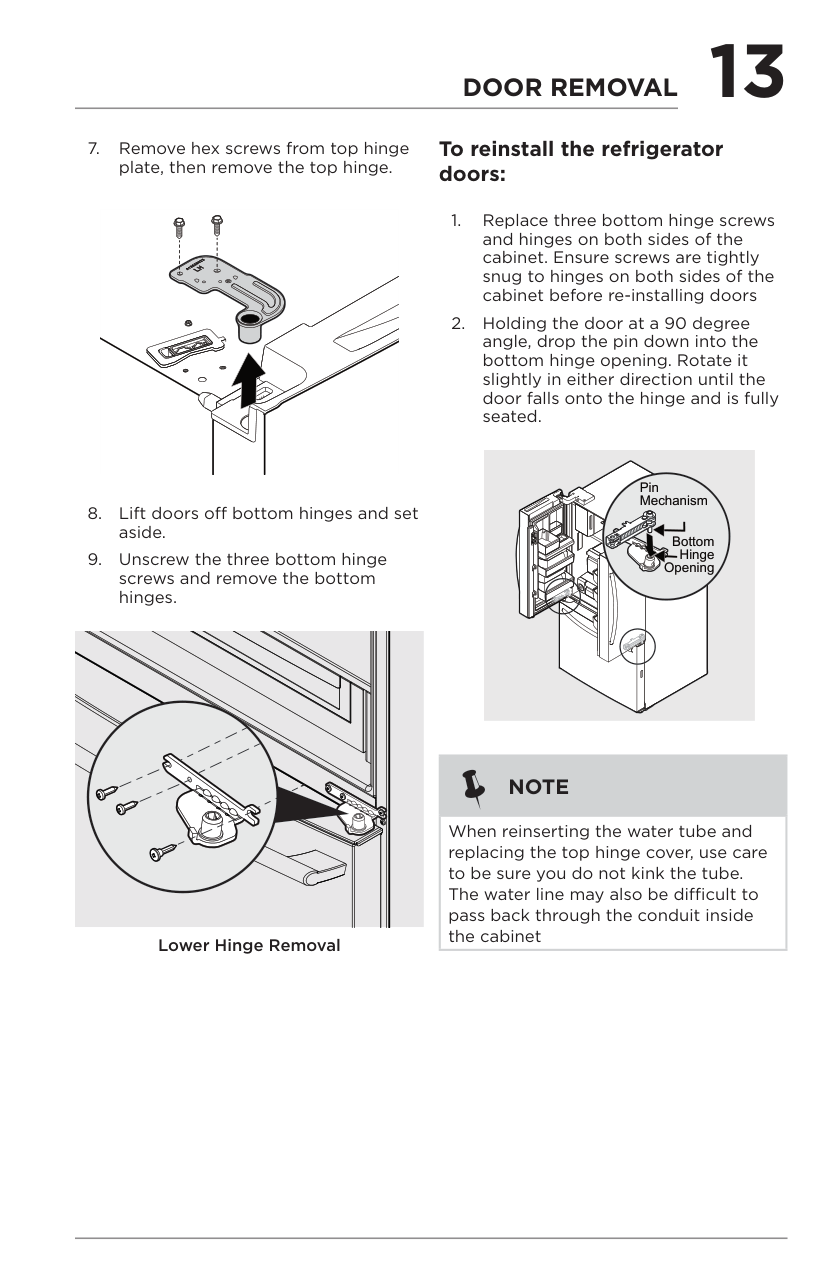

13
Door Removal
Note
When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not kink the tube. The water line may also be difficult to pass back through the conduit inside the cabinet To reinstall the refrigerator doors: Page 14
14
Door Removal
Bottom of the Doors ForRight Door,
turn pin 90˚ counter- clockwise ForLeft Door,

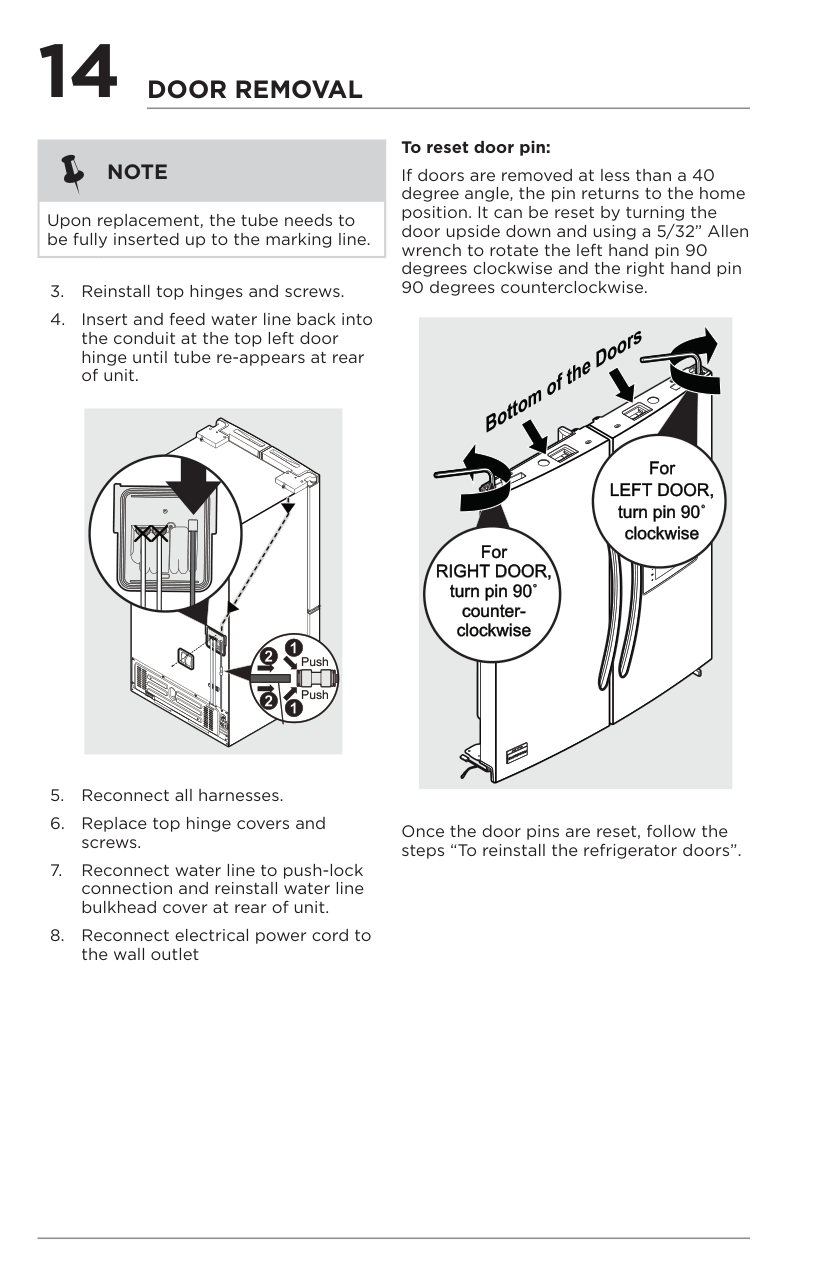

turn pin 90˚ clockwise To reset door pin: If doors are removed at less than a 40 degree angle, the pin returns to the home position. It can be reset by turning the door upside down and using a 5/32” Allen wrench to rotate the left hand pin 90 degrees clockwise and the right hand pin 90 degrees counterclockwise. Once the door pins are reset, follow the steps “To reinstall the refrigerator doors”.Note
Upon replacement, the tube needs to be fully inserted up to the marking line. Page 15
15
Caution

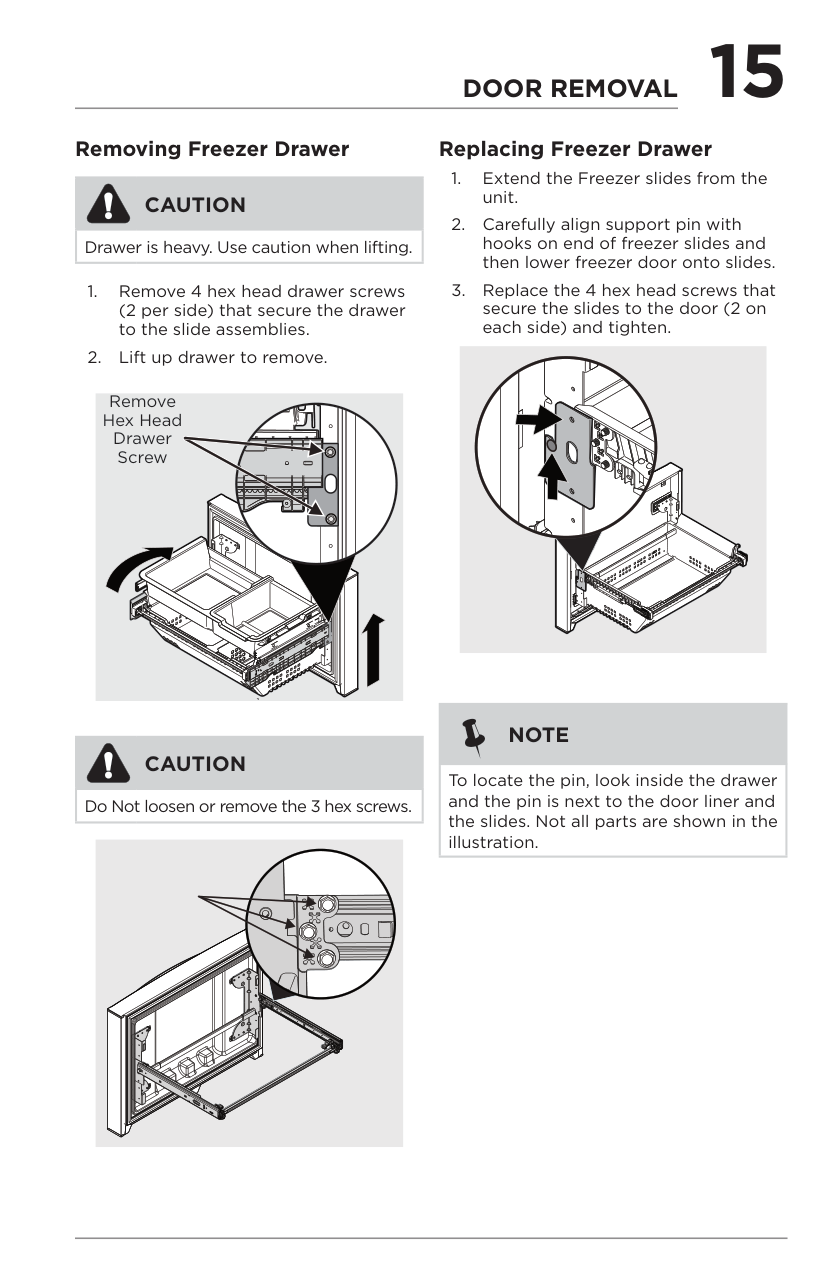

Drawer is heavy. Use caution when lifting. Removing Freezer DrawerCaution
Do Not loosen or remove the 3 hex screws.Door Removal
Note
To locate the pin, look inside the drawer and the pin is next to the door liner and the slides. Not all parts are shown in the illustration. Replacing Freezer Drawer Page 16
16
Caution
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.Note
All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier. The door handle may loosen over time or if it was installed improperly. If this hap pens, tighten the set screws on the handles. Door Handle Mounting InstructionsNote
When tightening the Allen set screws, it is important that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.Door Handle Installation

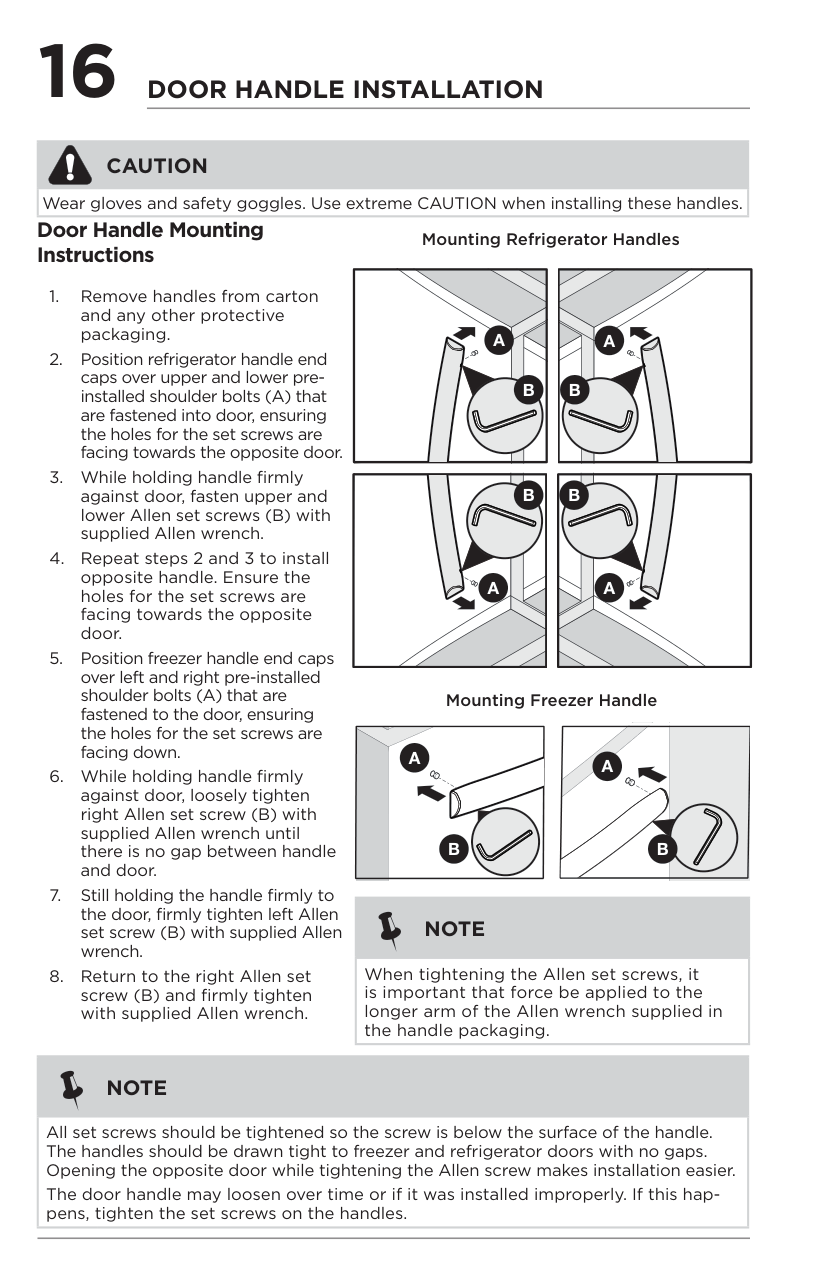

Mounting Freezer HandleA
A
B
B
A
A
A
A
B
B
B
B
Page 17

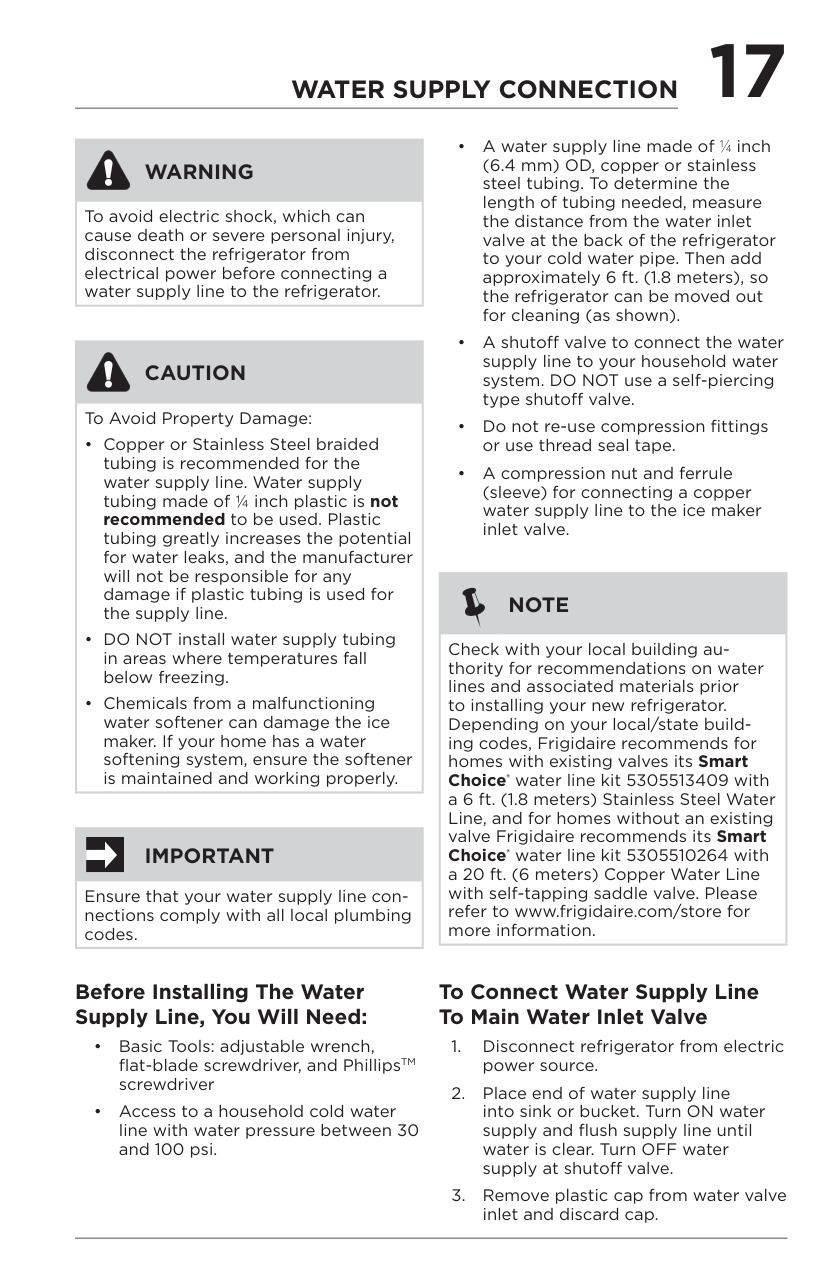

17
Warning
To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.Note
Check with your local building au thority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state build ing codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5305513409 with a 6 ft. (1.8 meters) Stainless Steel Water Line, and for homes without an existing valve Frigidaire recommends its Smart Choice® water line kit 5305510264 with a 20 ft. (6 meters) Copper Water Line with self-tapping saddle valve. Please refer to www.frigidaire.com/store for more information.Caution
To Avoid Property Damage:Important
Ensure that your water supply line con nections comply with all local plumbing codes. Before Installing The Water Supply Line, You Will Need:Water Supply Connection
Page 18
18

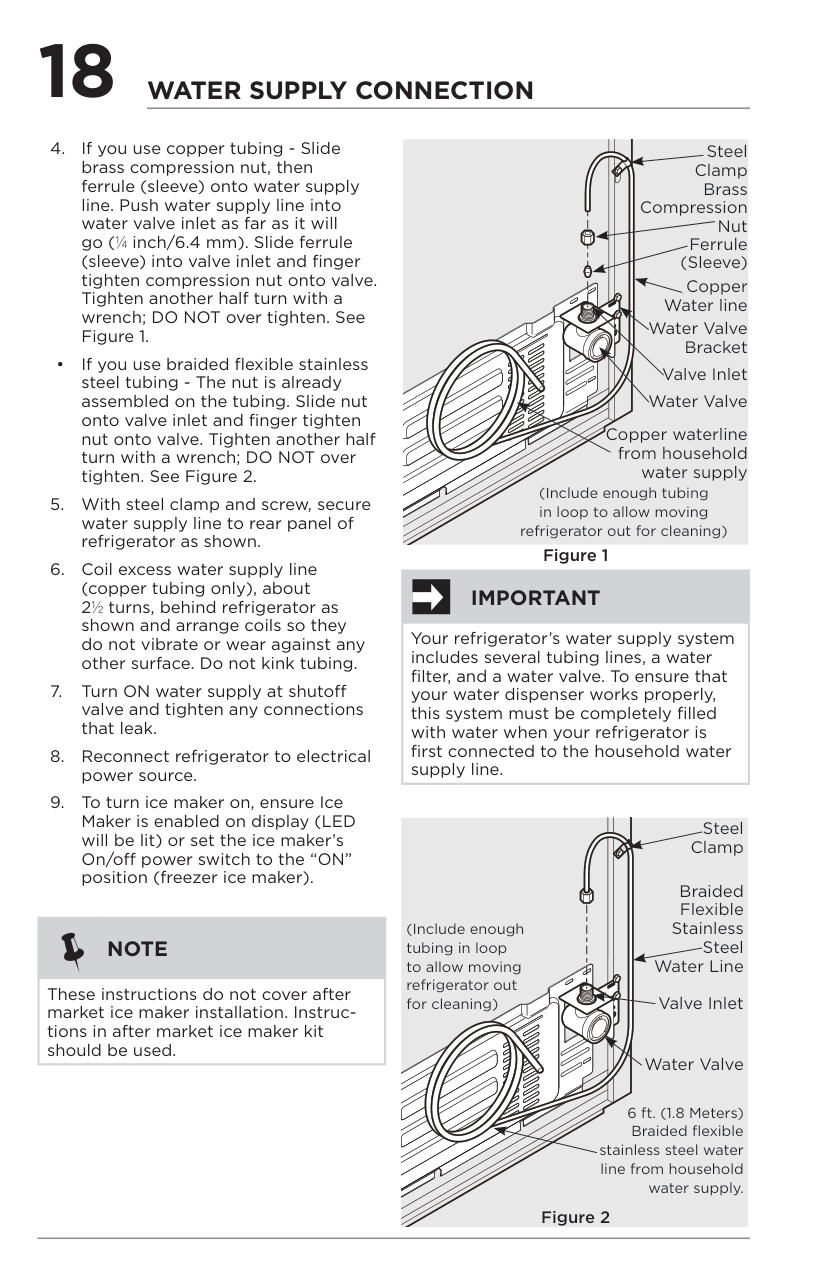

Water Supply Connection
Important
Your refrigerator’s water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.Note
These instructions do not cover after market ice maker installation. Instruc tions in after market ice maker kit should be used. Page 19

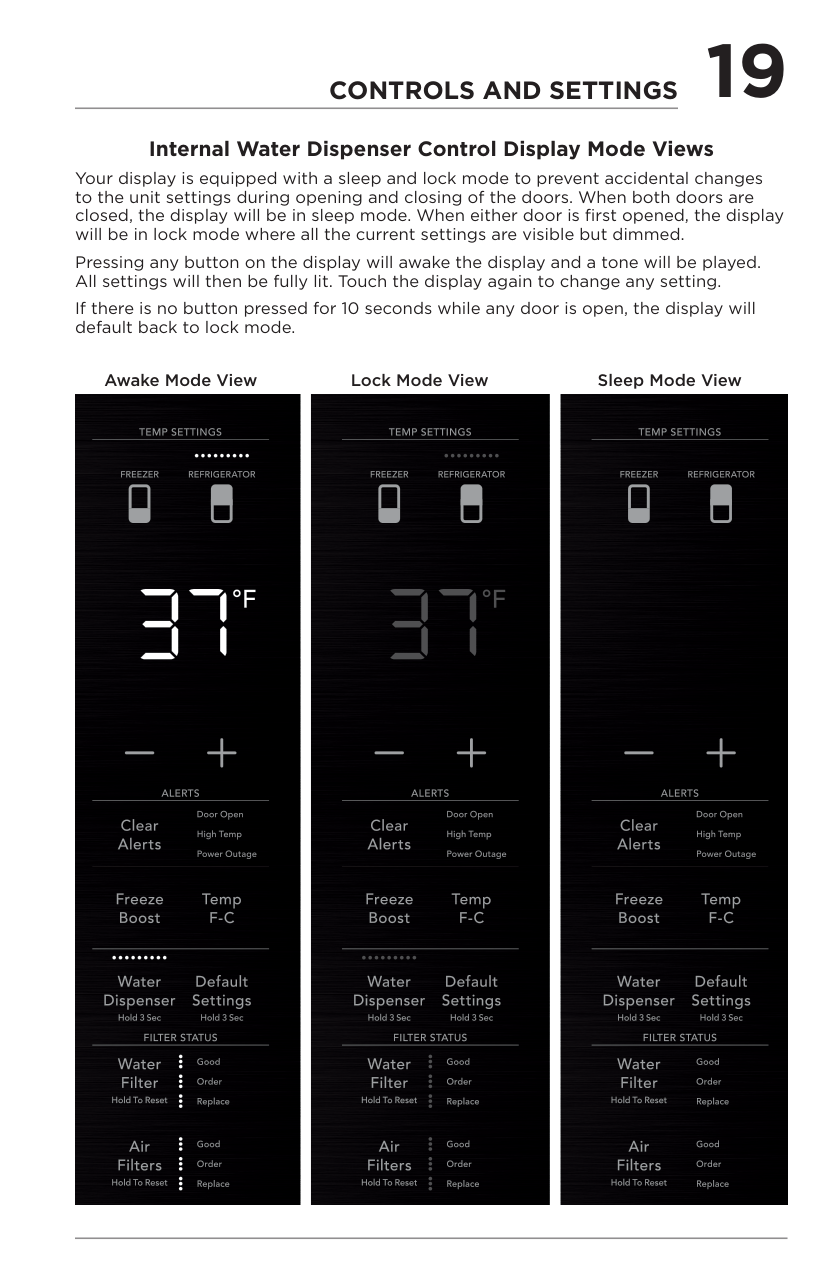

19 Internal Water Dispenser Control Display Mode Views Your display is equipped with a sleep and lock mode to prevent accidental changes to the unit settings during opening and closing of the doors. When both doors are closed, the display will be in sleep mode. When either door is first opened, the display will be in lock mode where all the current settings are visible but dimmed. Pressing any button on the display will awake the display and a tone will be played. All settings will then be fully lit. Touch the display again to change any setting. If there is no button pressed for 10 seconds while any door is open, the display will default back to lock mode. Awake Mode View Lock Mode View Sleep Mode View
Controls And Settings
Page 20

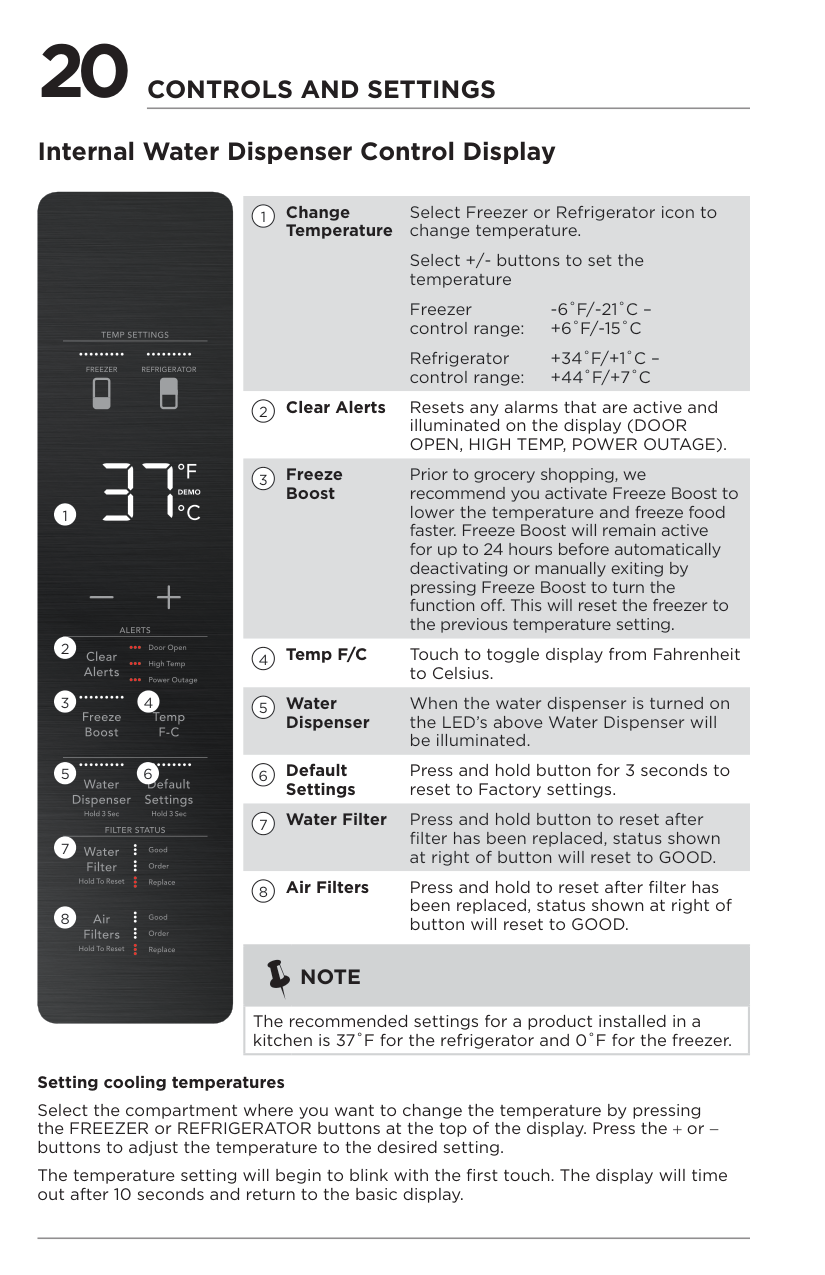

20 1 Change Temperature Select Freezer or Refrigerator icon to change temperature. Select +/- buttons to set the temperature Freezer control range:
-6˚F/-21˚C –
+6˚F/-15˚C
Refrigerator control range:+34˚F/+1˚C –
+44˚F/+7˚C
2 Clear Alerts Resets any alarms that are active and illuminated on the display (DOOROpen, High Temp, Power Outage).
3 Freeze Boost Prior to grocery shopping, we recommend you activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost will remain active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze Boost to turn the function off. This will reset the freezer to the previous temperature setting. 4 Temp F/C Touch to toggle display from Fahrenheit to Celsius. 5 Water Dispenser When the water dispenser is turned on the LED’s above Water Dispenser will be illuminated. 6 Default Settings Press and hold button for 3 seconds to reset to Factory settings. 7 Water Filter Press and hold button to reset after filter has been replaced, status shown at right of button will reset to GOOD. 8 Air Filters Press and hold to reset after filter has been replaced, status shown at right of button will reset to GOOD.Note
The recommended settings for a product installed in a kitchen is 37˚F for the refrigerator and 0˚F for the freezer. Internal Water Dispenser Control Display Setting cooling temperatures Select the compartment where you want to change the temperature by pressing the FREEZER or REFRIGERATOR buttons at the top of the display. Press the + or − buttons to adjust the temperature to the desired setting. The temperature setting will begin to blink with the first touch. The display will time out after 10 seconds and return to the basic display. 1 2 3 6 5 7 8 4Controls And Settings
Page 21

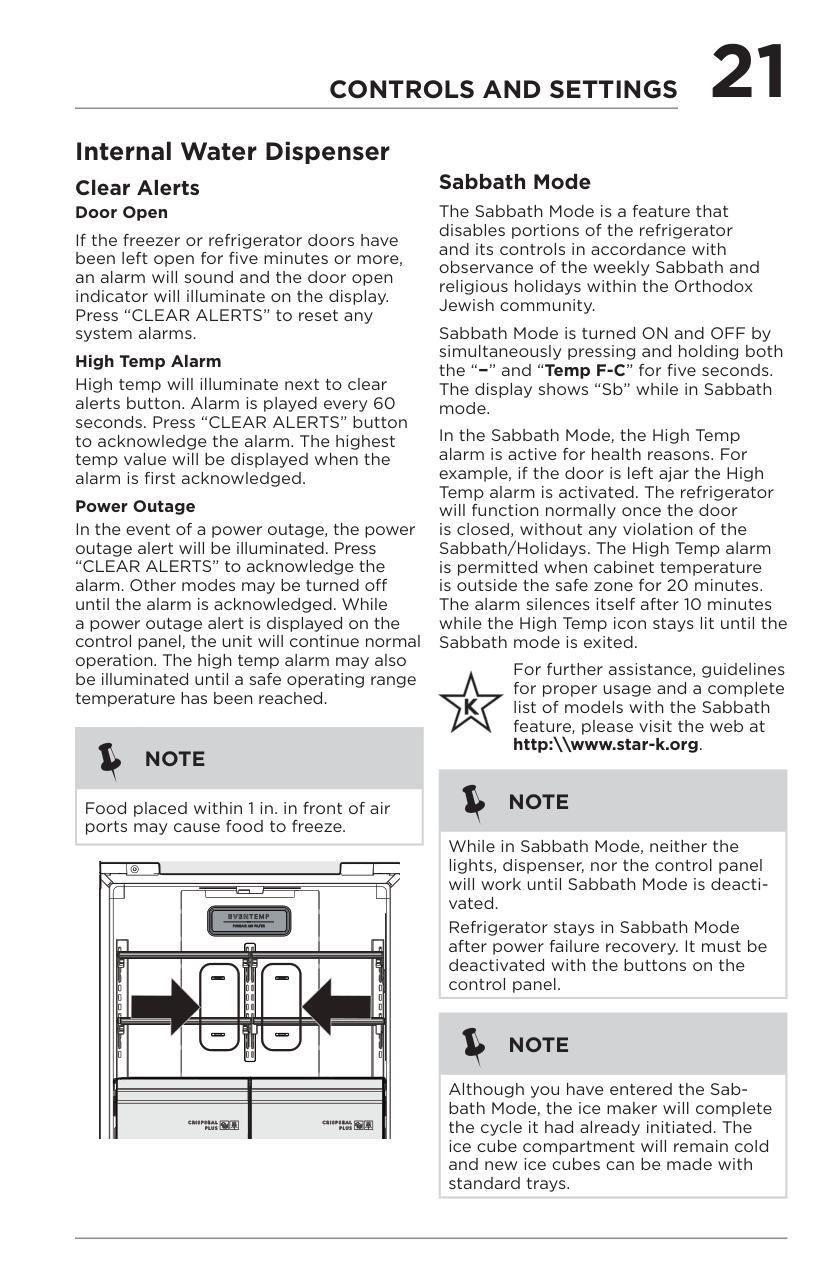

21 Sabbath Mode The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the “−” and “Temp F-C” for five seconds. The display shows “Sb” while in Sabbath mode. In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited. For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.
Note
While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deacti vated. Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.Note
Although you have entered the Sab bath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays. Clear Alerts Door Open If the freezer or refrigerator doors have been left open for five minutes or more, an alarm will sound and the door open indicator will illuminate on the display. Press “CLEAR ALERTS” to reset any system alarms. High Temp Alarm High temp will illuminate next to clear alerts button. Alarm is played every 60 seconds. Press “CLEAR ALERTS” button to acknowledge the alarm. The highest temp value will be displayed when the alarm is first acknowledged. Power Outage In the event of a power outage, the power outage alert will be illuminated. Press “CLEAR ALERTS” to acknowledge the alarm. Other modes may be turned off until the alarm is acknowledged. While a power outage alert is displayed on the control panel, the unit will continue normal operation. The high temp alarm may also be illuminated until a safe operating range temperature has been reached. Internal Water DispenserControls And Settings
Note
Food placed within 1 in. in front of air ports may cause food to freeze. Page 22
22 Controls And Settings

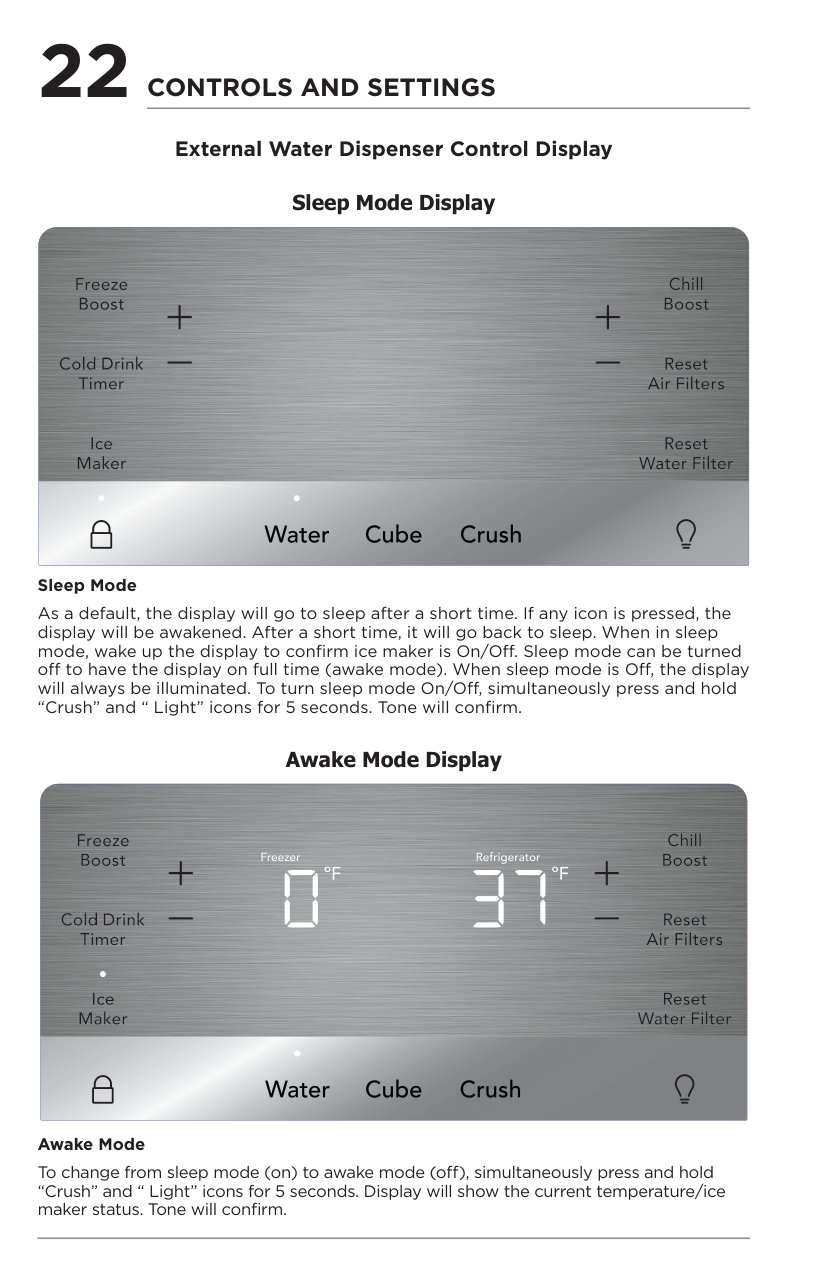

Awake Mode Display Awake Mode To change from sleep mode (on) to awake mode (off), simultaneously press and hold “Crush” and “ Light” icons for 5 seconds. Display will show the current temperature/ice maker status. Tone will confirm. Sleep Mode As a default, the display will go to sleep after a short time. If any icon is pressed, the display will be awakened. After a short time, it will go back to sleep. When in sleep mode, wake up the display to confirm ice maker is On/Off. Sleep mode can be turned off to have the display on full time (awake mode). When sleep mode is Off, the display will always be illuminated. To turn sleep mode On/Off, simultaneously press and hold “Crush” and “ Light” icons for 5 seconds. Tone will confirm. Sleep Mode Display External Water Dispenser Control Display Page 23

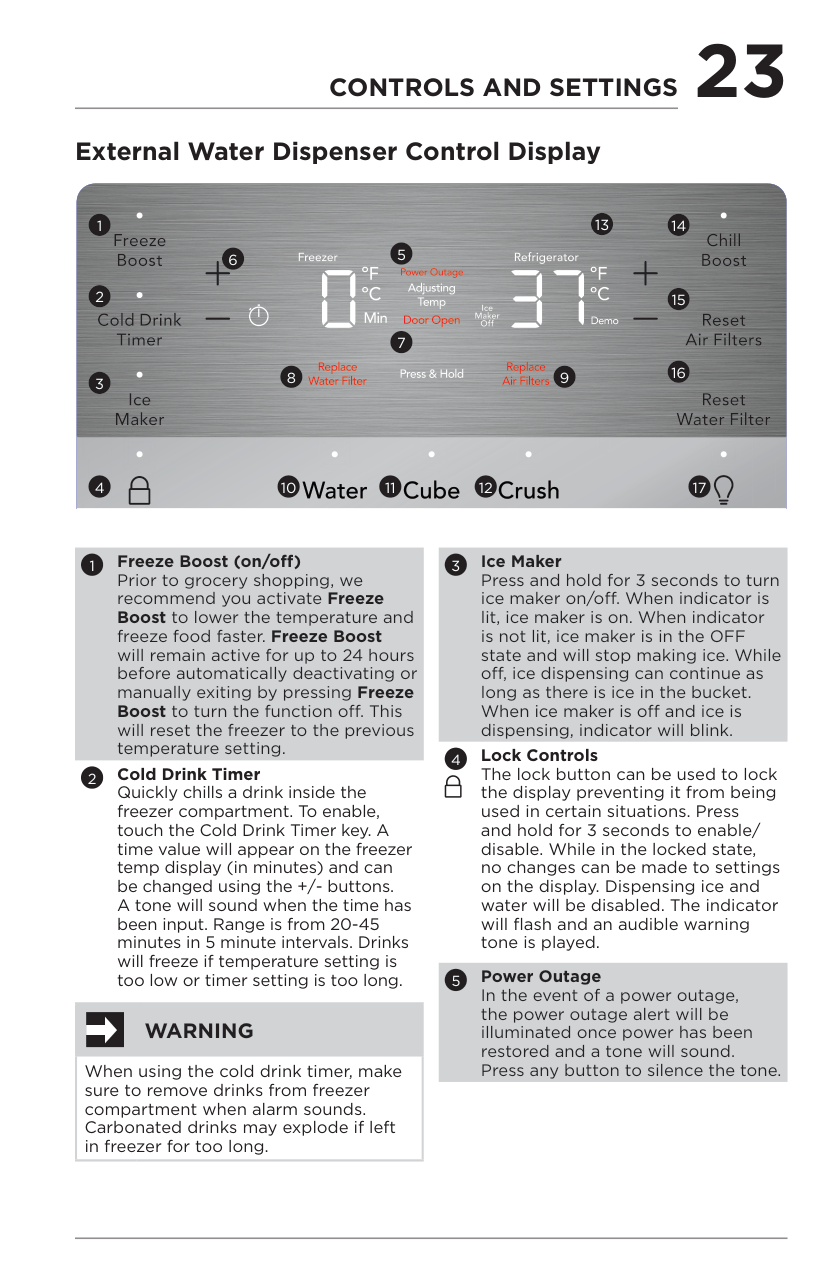

23
Warning
When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long. 1 Freeze Boost (on/off) Prior to grocery shopping, we recommend you activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost will remain active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze Boost to turn the function off. This will reset the freezer to the previous temperature setting. 2 Cold Drink Timer Quickly chills a drink inside the freezer compartment. To enable, touch the Cold Drink Timer key. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. Range is from 20-45 minutes in 5 minute intervals. Drinks will freeze if temperature setting is too low or timer setting is too long. 3 Ice Maker Press and hold for 3 seconds to turn ice maker on/off. When indicator is lit, ice maker is on. When indicator is not lit, ice maker is in the OFF state and will stop making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When ice maker is off and ice is dispensing, indicator will blink. 4 Lock Controls The lock button can be used to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/ disable. While in the locked state, no changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and an audible warning tone is played. 5 Power Outage In the event of a power outage, the power outage alert will be illuminated once power has been restored and a tone will sound. Press any button to silence the tone. 1 2 3 5 10 6 7 9 8 11 12 13 14 16 15 17 4 External Water Dispenser Control DisplayControls And Settings
Page 24

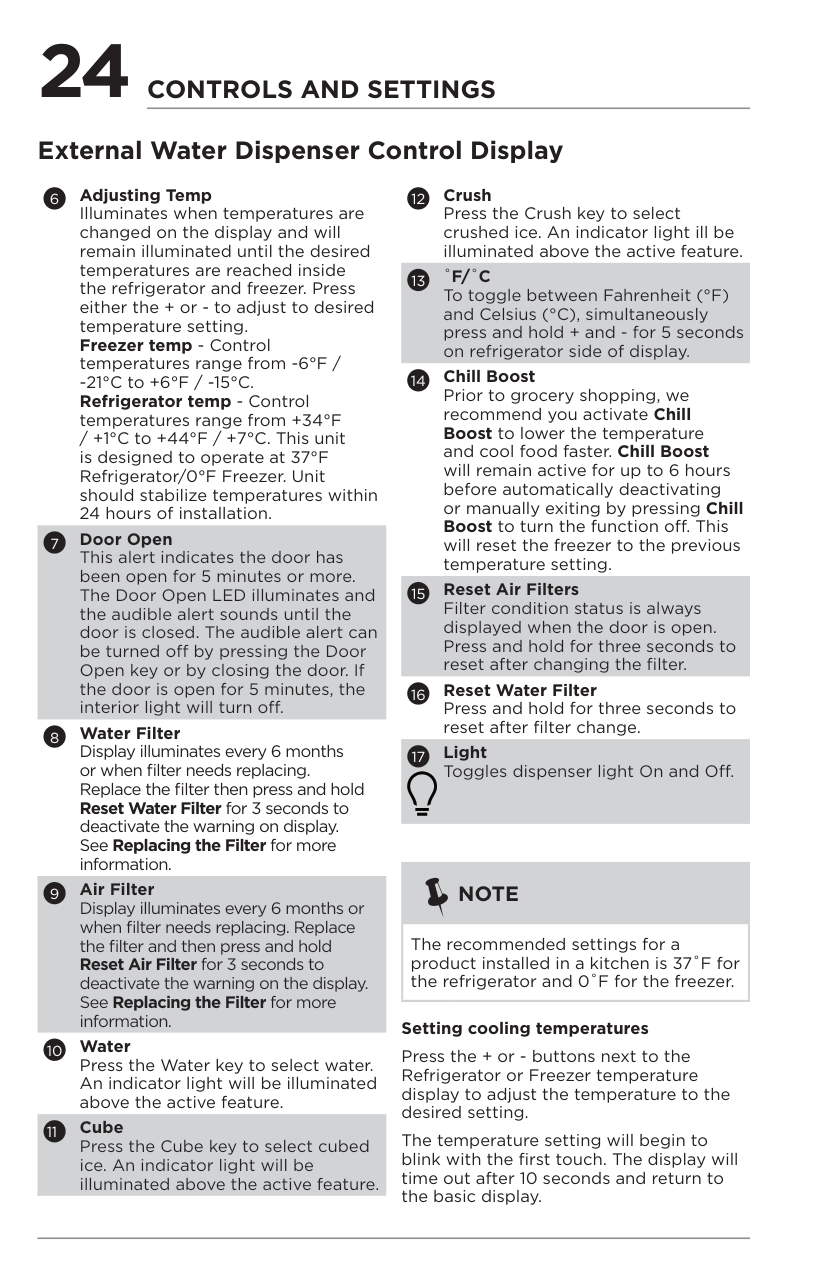

24 Controls And Settings
6 Adjusting Temp Illuminates when temperatures are changed on the display and will remain illuminated until the desired temperatures are reached inside the refrigerator and freezer. Press either the + or - to adjust to desired temperature setting. Freezer temp - Control temperatures range from -6°F / -21°C to +6°F / -15°C. Refrigerator temp - Control temperatures range from +34°F / +1°C to +44°F / +7°C. This unit is designed to operate at 37°F Refrigerator/0°F Freezer. Unit should stabilize temperatures within 24 hours of installation. 7 Door Open This alert indicates the door has been open for 5 minutes or more. The Door Open LED illuminates and the audible alert sounds until the door is closed. The audible alert can be turned off by pressing the Door Open key or by closing the door. If the door is open for 5 minutes, the interior light will turn off. 8 Water Filter Display illuminates every 6 months or when filter needs replacing. Replace the filter then press and hold Reset Water Filter for 3 seconds to deactivate the warning on display. See Replacing the Filter for more information. 9 Air Filter Display illuminates every 6 months or when filter needs replacing. Replace the filter and then press and hold Reset Air Filter for 3 seconds to deactivate the warning on the display. See Replacing the Filter for more information. 10 Water Press the Water key to select water. An indicator light will be illuminated above the active feature. 11 Cube Press the Cube key to select cubed ice. An indicator light will be illuminated above the active feature. 12 Crush Press the Crush key to select crushed ice. An indicator light ill be illuminated above the active feature. 13˚F/˚C
To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of display. 14 Chill Boost Prior to grocery shopping, we recommend you activate Chill Boost to lower the temperature and cool food faster. Chill Boost will remain active for up to 6 hours before automatically deactivating or manually exiting by pressing Chill Boost to turn the function off. This will reset the freezer to the previous temperature setting. 15 Reset Air Filters Filter condition status is always displayed when the door is open. Press and hold for three seconds to reset after changing the filter. 16 Reset Water Filter Press and hold for three seconds to reset after filter change. 17 Light Toggles dispenser light On and Off.Note
The recommended settings for a product installed in a kitchen is 37˚F for the refrigerator and 0˚F for the freezer. Setting cooling temperatures Press the + or - buttons next to the Refrigerator or Freezer temperature display to adjust the temperature to the desired setting. The temperature setting will begin to blink with the first touch. The display will time out after 10 seconds and return to the basic display. External Water Dispenser Control Display Page 25

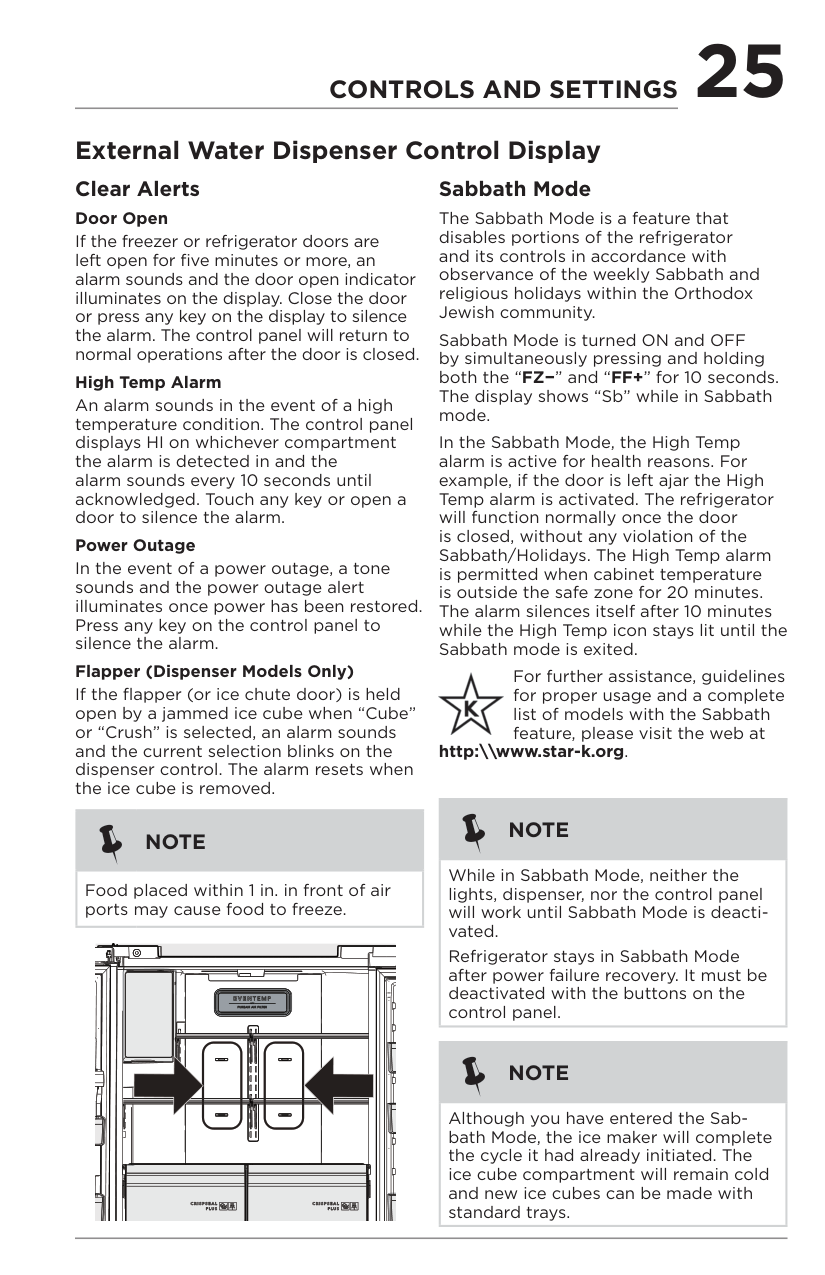

25 Sabbath Mode The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the “FZ−” and “FF+” for 10 seconds. The display shows “Sb” while in Sabbath mode. In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited. For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.
Note
While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deacti vated. Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.Note
Although you have entered the Sab bath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays. Clear Alerts Door Open If the freezer or refrigerator doors are left open for five minutes or more, an alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The control panel will return to normal operations after the door is closed. High Temp Alarm An alarm sounds in the event of a high temperature condition. The control panel displays HI on whichever compartment the alarm is detected in and the alarm sounds every 10 seconds until acknowledged. Touch any key or open a door to silence the alarm. Power Outage In the event of a power outage, a tone sounds and the power outage alert illuminates once power has been restored. Press any key on the control panel to silence the alarm. Flapper (Dispenser Models Only) If the flapper (or ice chute door) is held open by a jammed ice cube when “Cube” or “Crush” is selected, an alarm sounds and the current selection blinks on the dispenser control. The alarm resets when the ice cube is removed.Controls And Settings
Note
Food placed within 1 in. in front of air ports may cause food to freeze. External Water Dispenser Control Display Page 26
26
Note
The water dispenser has a built-in de vice that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.Caution
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction. Priming the water supply systemNote
Dispensed water is not chilled. For colder water, add ice to cup or contain er before dispensing water.Automatic Ice & Water Dispenser

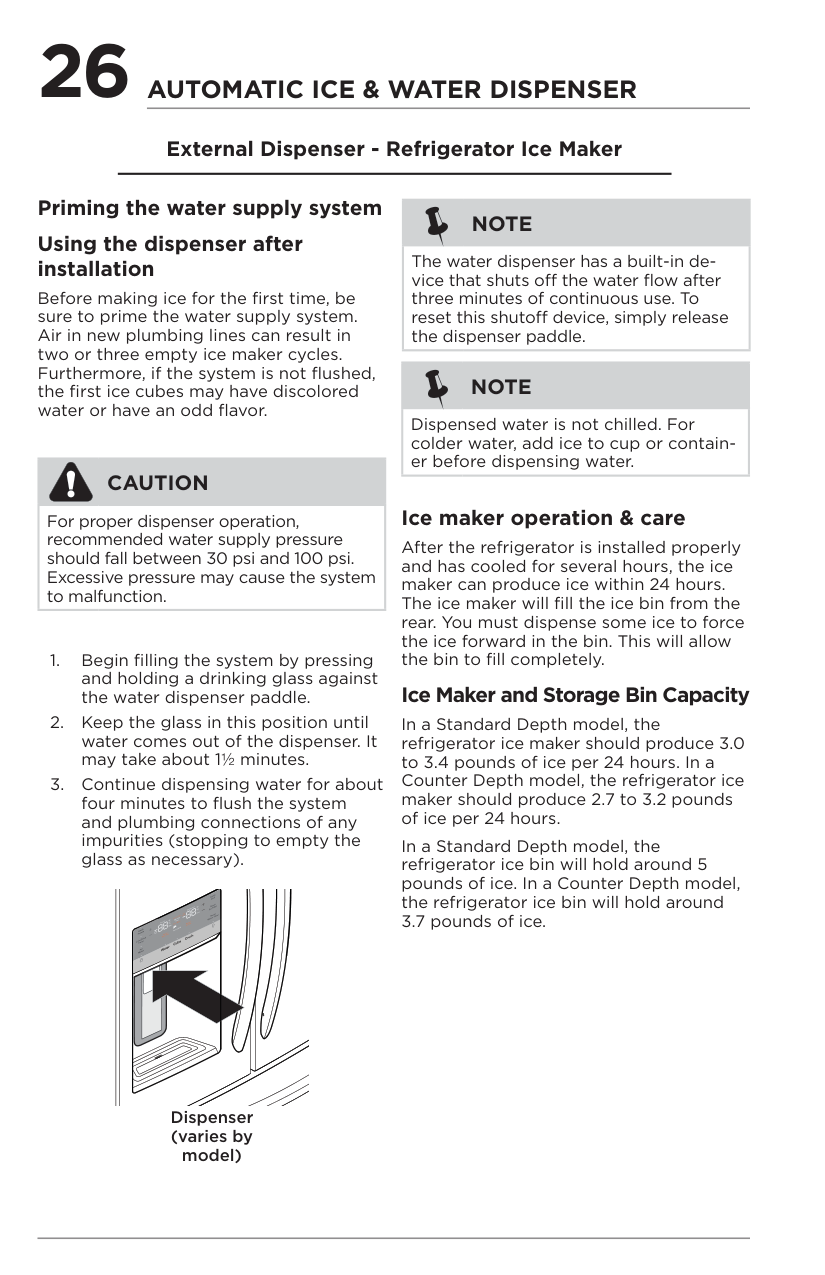

External Dispenser - Refrigerator Ice Maker Dispenser (varies by model) Page 27

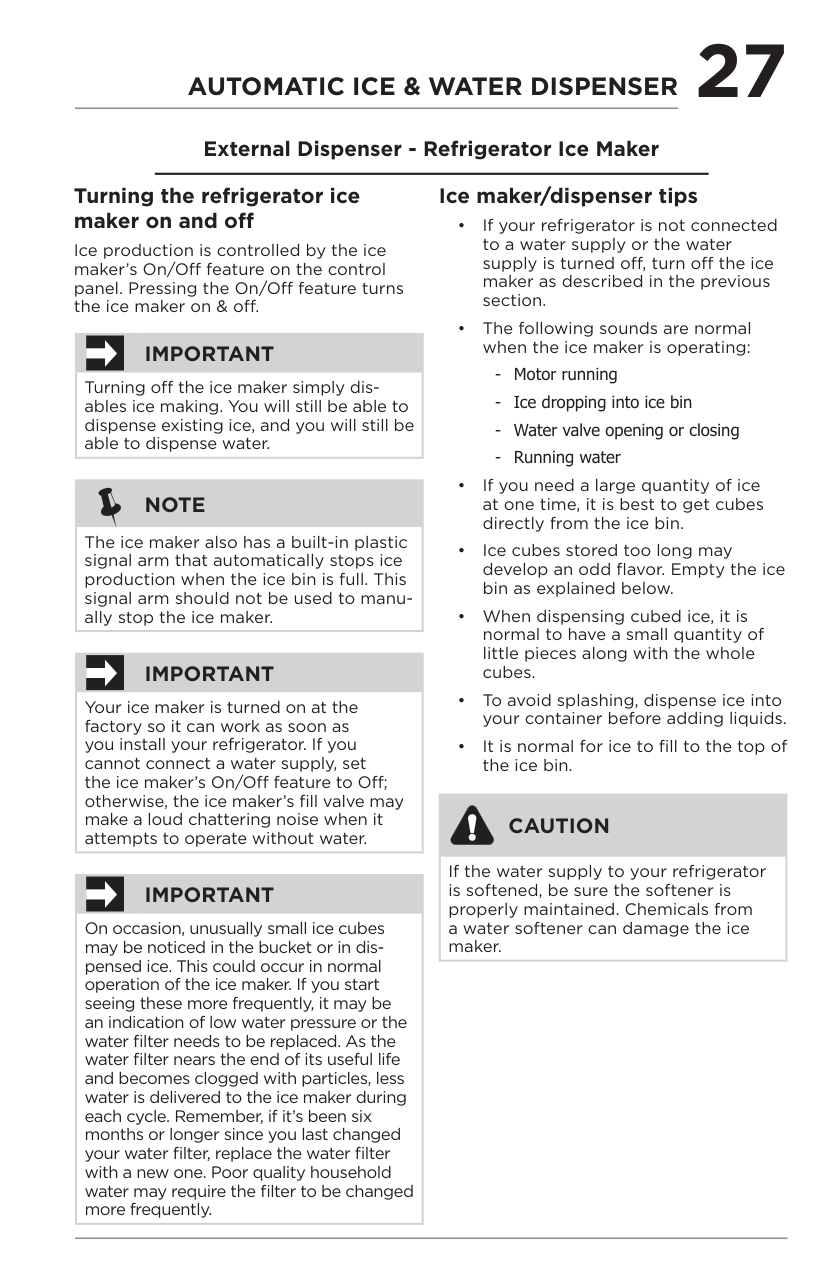

27 External Dispenser - Refrigerator Ice Maker
Automatic Ice & Water Dispenser
Important
Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker’s On/Off feature to Off; otherwise, the ice maker’s fill valve may make a loud chattering noise when it attempts to operate without water.Important
On occasion, unusually small ice cubes may be noticed in the bucket or in dis pensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may be an indication of low water pressure or the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it’s been six months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently. Ice maker/dispenser tipsCaution
If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.Important
Turning off the ice maker simply dis ables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water.Note
The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manu ally stop the ice maker. Turning the refrigerator ice maker on and off Ice production is controlled by the ice maker’s On/Off feature on the control panel. Pressing the On/Off feature turns the ice maker on & off. Page 28

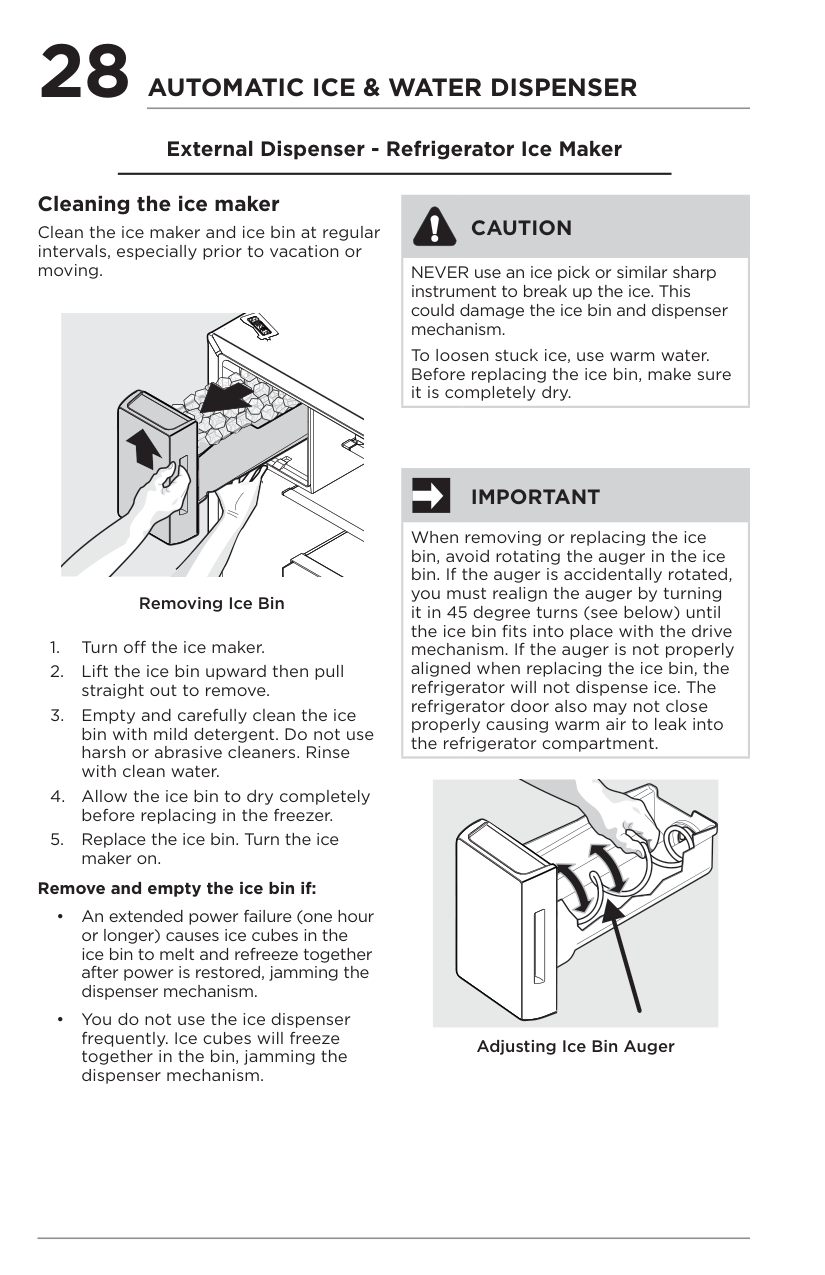

28 Cleaning the ice maker Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.
Caution
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism. To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.Important
When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will not dispense ice. The refrigerator door also may not close properly causing warm air to leak into the refrigerator compartment. Removing Ice BinAutomatic Ice & Water Dispenser
External Dispenser - Refrigerator Ice Maker Adjusting Ice Bin Auger Page 29

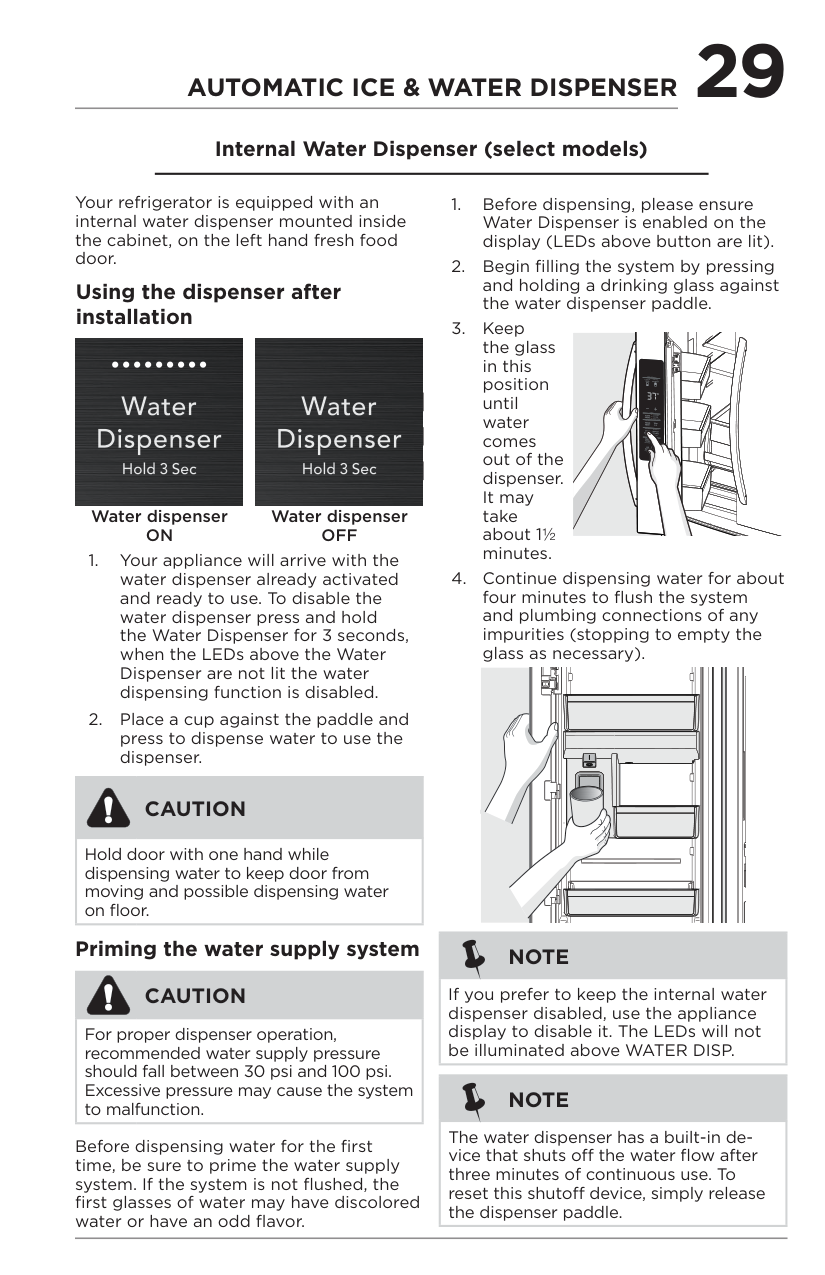

29
Automatic Ice & Water Dispenser
Caution
Hold door with one hand while dispensing water to keep door from moving and possible dispensing water on floor. Your refrigerator is equipped with an internal water dispenser mounted inside the cabinet, on the left hand fresh food door.Note
If you prefer to keep the internal water dispenser disabled, use the appliance display to disable it. The LEDs will not be illuminated above WATER DISP. Water dispenserOn
Water dispenserOff
Caution
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction. Before dispensing water for the first time, be sure to prime the water supply system. If the system is not flushed, the first glasses of water may have discolored water or have an odd flavor. Using the dispenser after installationNote
The water dispenser has a built-in de vice that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle. Internal Water Dispenser (select models) Page 30

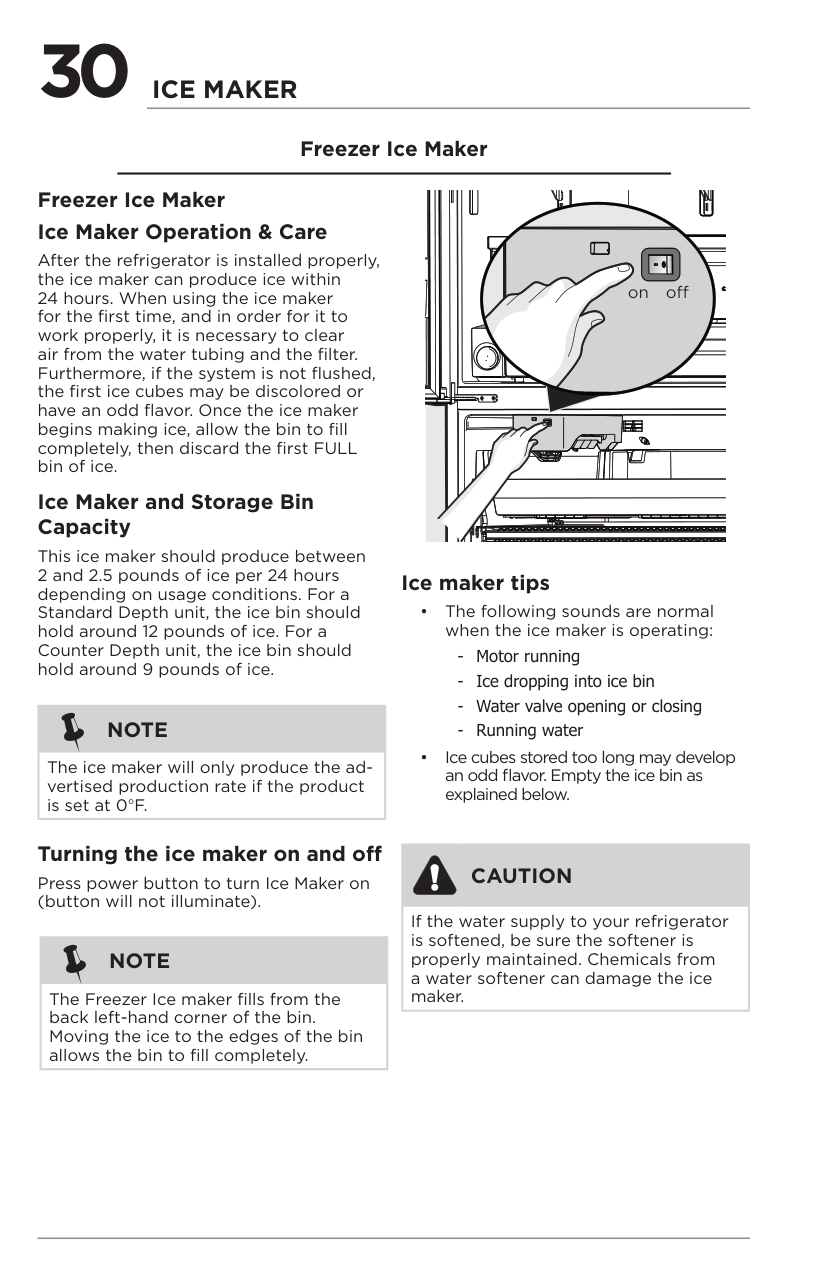

30 Ice Maker Operation & Care After the refrigerator is installed properly, the ice maker can produce ice within 24 hours. When using the ice maker for the first time, and in order for it to work properly, it is necessary to clear air from the water tubing and the filter. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor. Once the ice maker begins making ice, allow the bin to fill completely, then discard the first FULL bin of ice. Ice Maker and Storage Bin Capacity This ice maker should produce between 2 and 2.5 pounds of ice per 24 hours depending on usage conditions. For a Standard Depth unit, the ice bin should hold around 12 pounds of ice. For a Counter Depth unit, the ice bin should hold around 9 pounds of ice. Turning the ice maker on and off Press power button to turn Ice Maker on (button will not illuminate). Freezer Ice Maker
Note
The ice maker will only produce the ad vertised production rate if the product is set at 0°F.Caution
If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker. Ice maker tipsIce Maker
Freezer Ice MakerNote
The Freezer Ice maker fills from the back left-hand corner of the bin. Moving the ice to the edges of the bin allows the bin to fill completely. on off Page 31

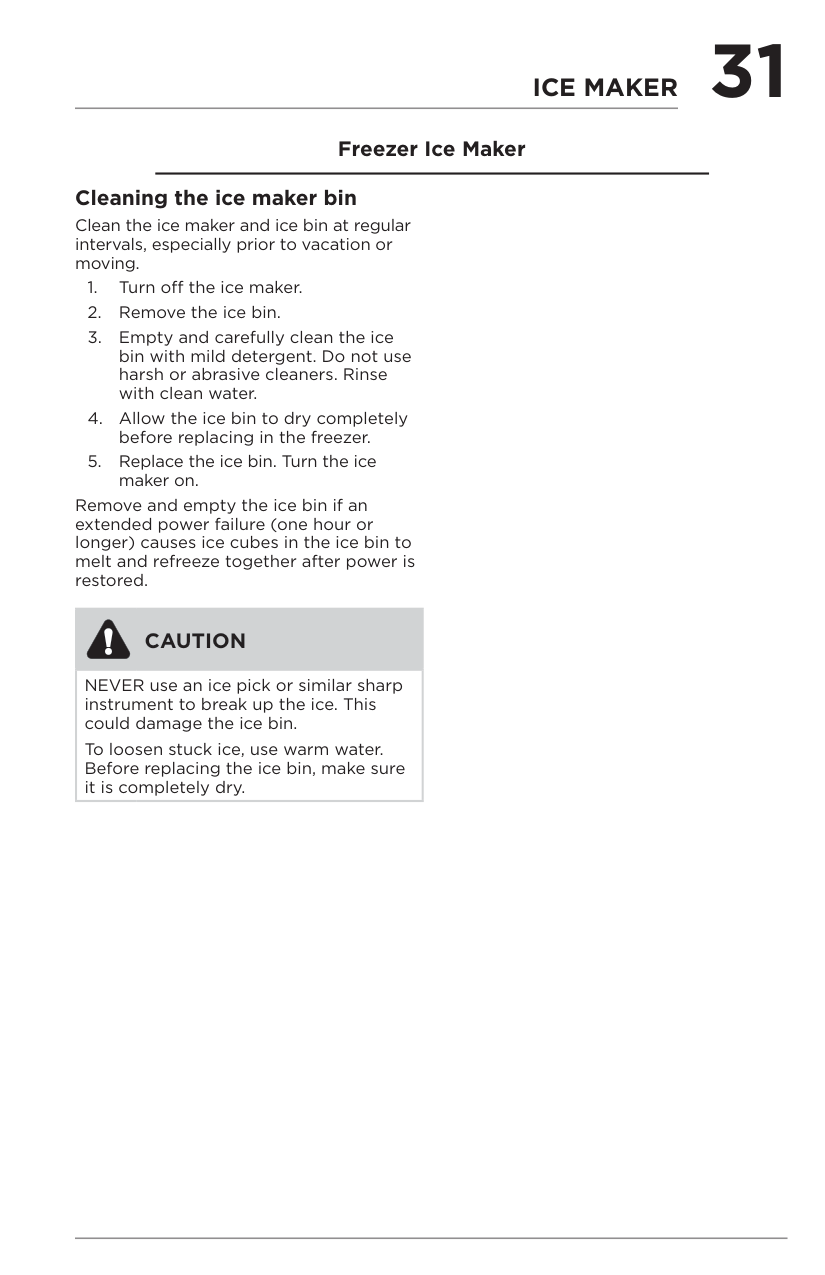

31 Freezer Ice Maker
Caution
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin. To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry. Cleaning the ice maker bin Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.Ice Maker
Page 32
32
Caution

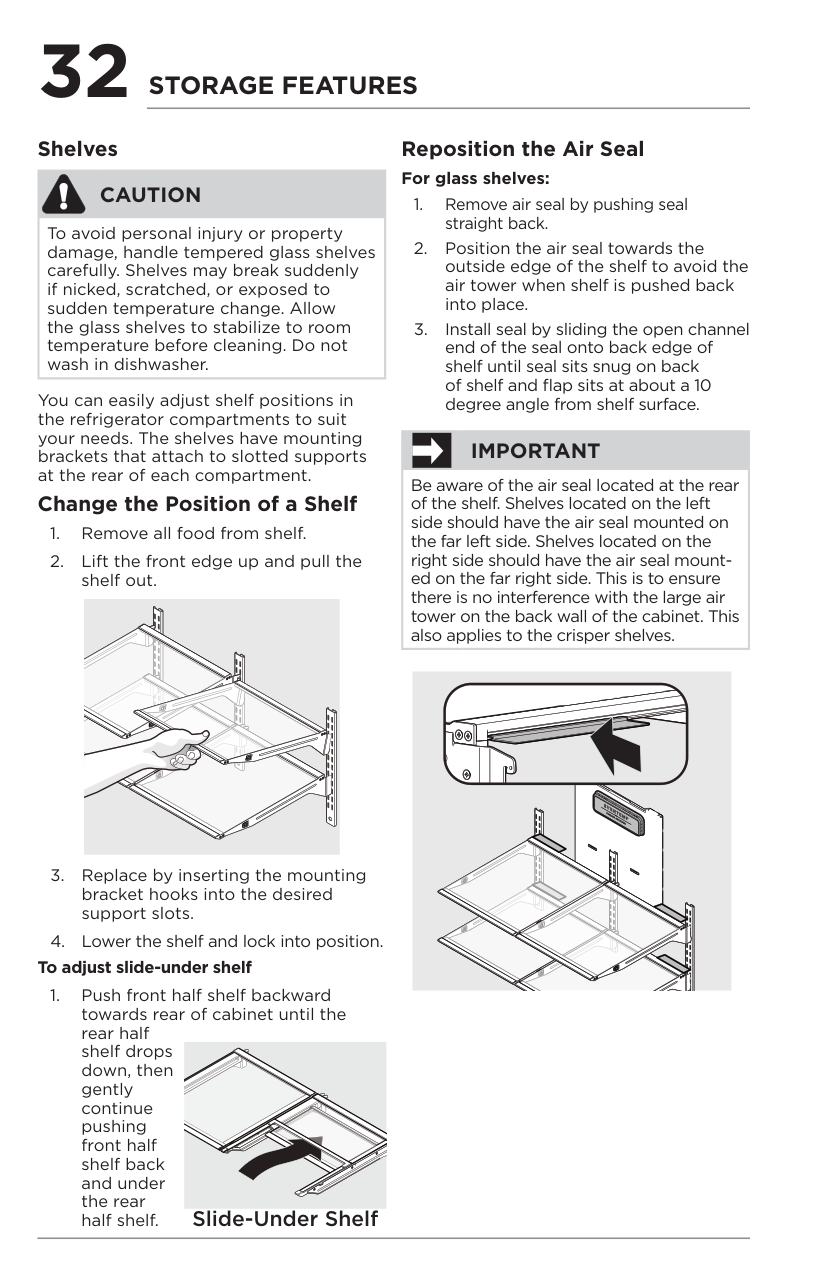

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher. You can easily adjust shelf positions in the refrigerator compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.Storage Features
Important
Be aware of the air seal located at the rear of the shelf. Shelves located on the left side should have the air seal mounted on the far left side. Shelves located on the right side should have the air seal mount ed on the far right side. This is to ensure there is no interference with the large air tower on the back wall of the cabinet. This also applies to the crisper shelves. Change the Position of a Shelf Page 33

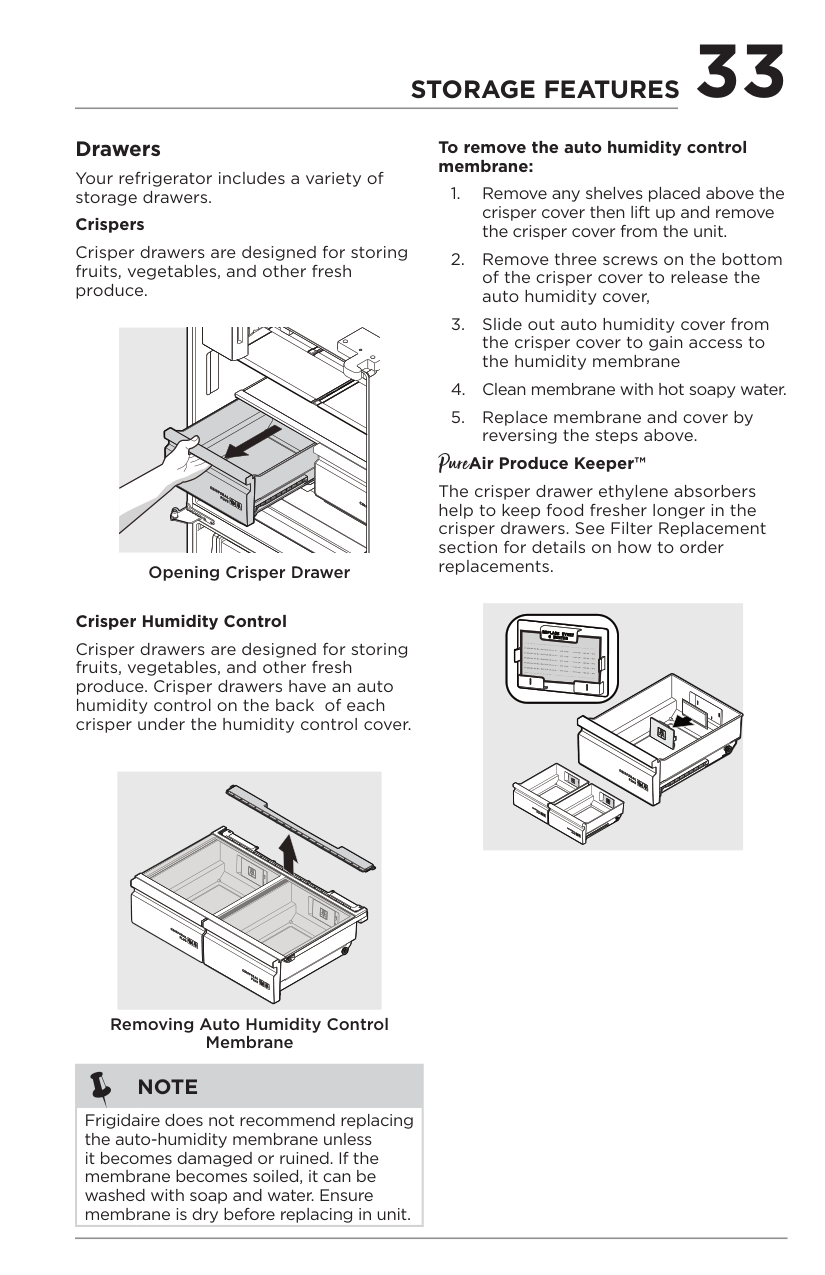

33 Drawers Your refrigerator includes a variety of storage drawers. Crispers Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crisper Humidity Control Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crisper drawers have an auto humidity control on the back of each crisper under the humidity control cover. Opening Crisper Drawer Removing Auto Humidity Control Membrane To remove the auto humidity control membrane:
Storage Features
Note
Frigidaire does not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, it can be washed with soap and water. Ensure membrane is dry before replacing in unit. Page 34
34 Storage Features

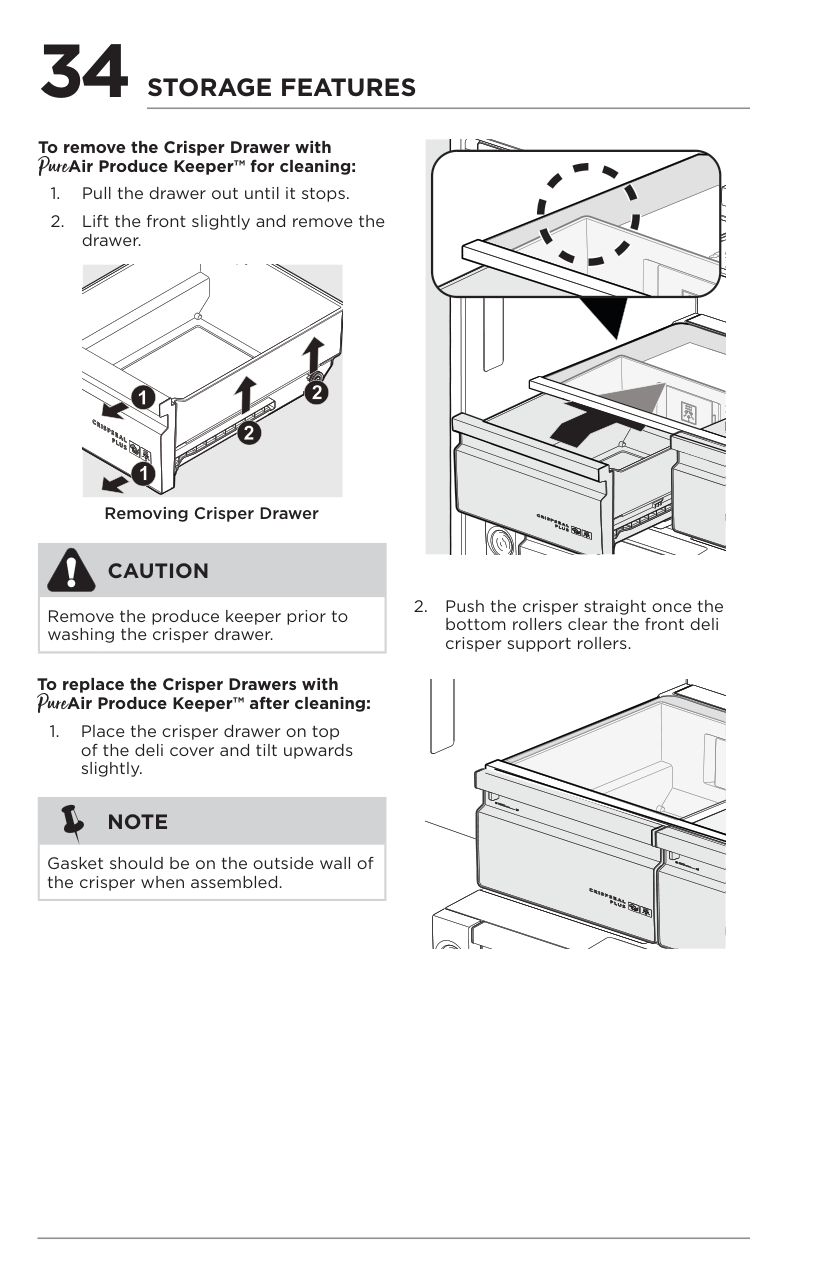

Removing Crisper Drawer To remove the Crisper Drawer with PureAir Produce Keeper™ for cleaning:Note
Gasket should be on the outside wall of the crisper when assembled.Caution
Remove the produce keeper prior to washing the crisper drawer. Page 35

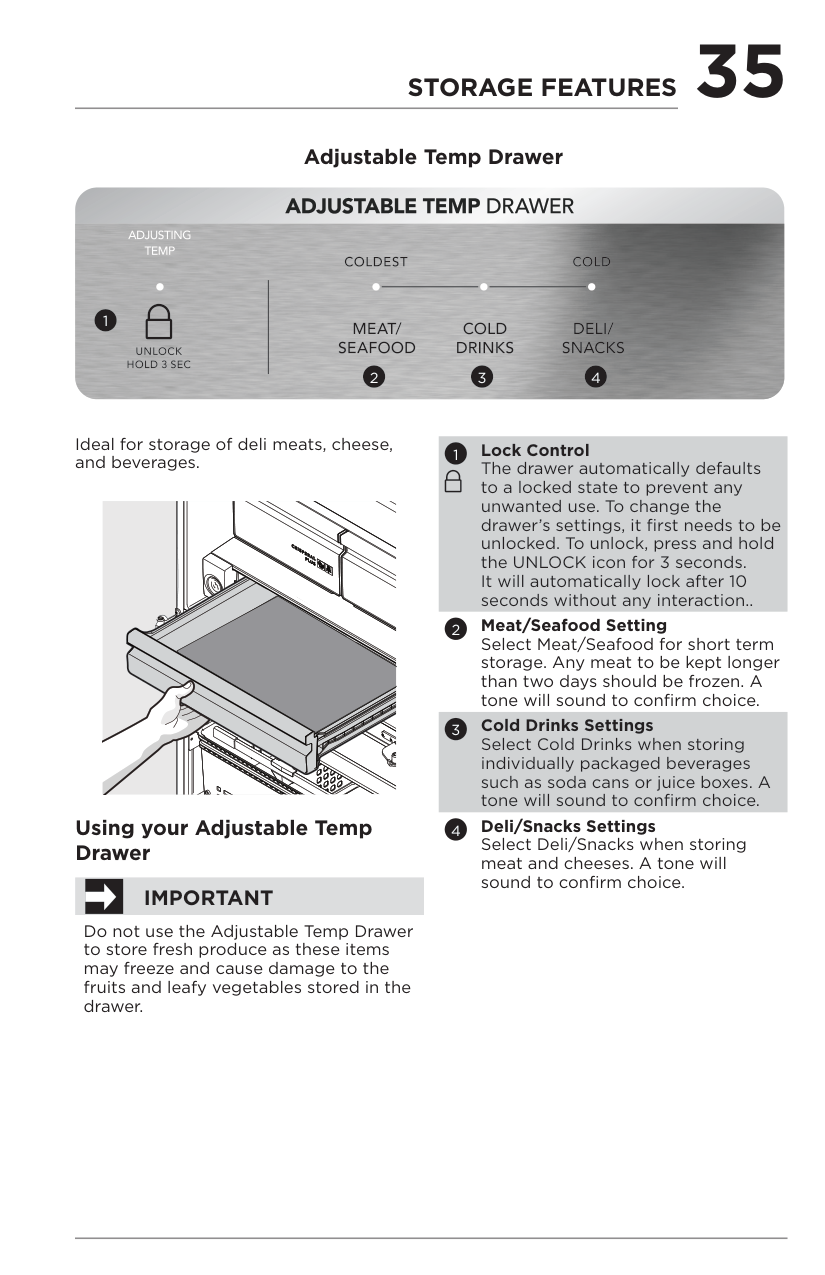

35 Ideal for storage of deli meats, cheese, and beverages. 1 2 3 4 1 Lock Control The drawer automatically defaults to a locked state to prevent any unwanted use. To change the drawer’s settings, it first needs to be unlocked. To unlock, press and hold the UNLOCK icon for 3 seconds. It will automatically lock after 10 seconds without any interaction.. 2 Meat/Seafood Setting Select Meat/Seafood for short term storage. Any meat to be kept longer than two days should be frozen. A tone will sound to confirm choice. 3 Cold Drinks Settings Select Cold Drinks when storing individually packaged beverages such as soda cans or juice boxes. A tone will sound to confirm choice. 4 Deli/Snacks Settings Select Deli/Snacks when storing meat and cheeses. A tone will sound to confirm choice. Using your Adjustable Temp Drawer
Important
Do not use the Adjustable Temp Drawer to store fresh produce as these items may freeze and cause damage to the fruits and leafy vegetables stored in the drawer. Adjustable Temp DrawerStorage Features
Page 36

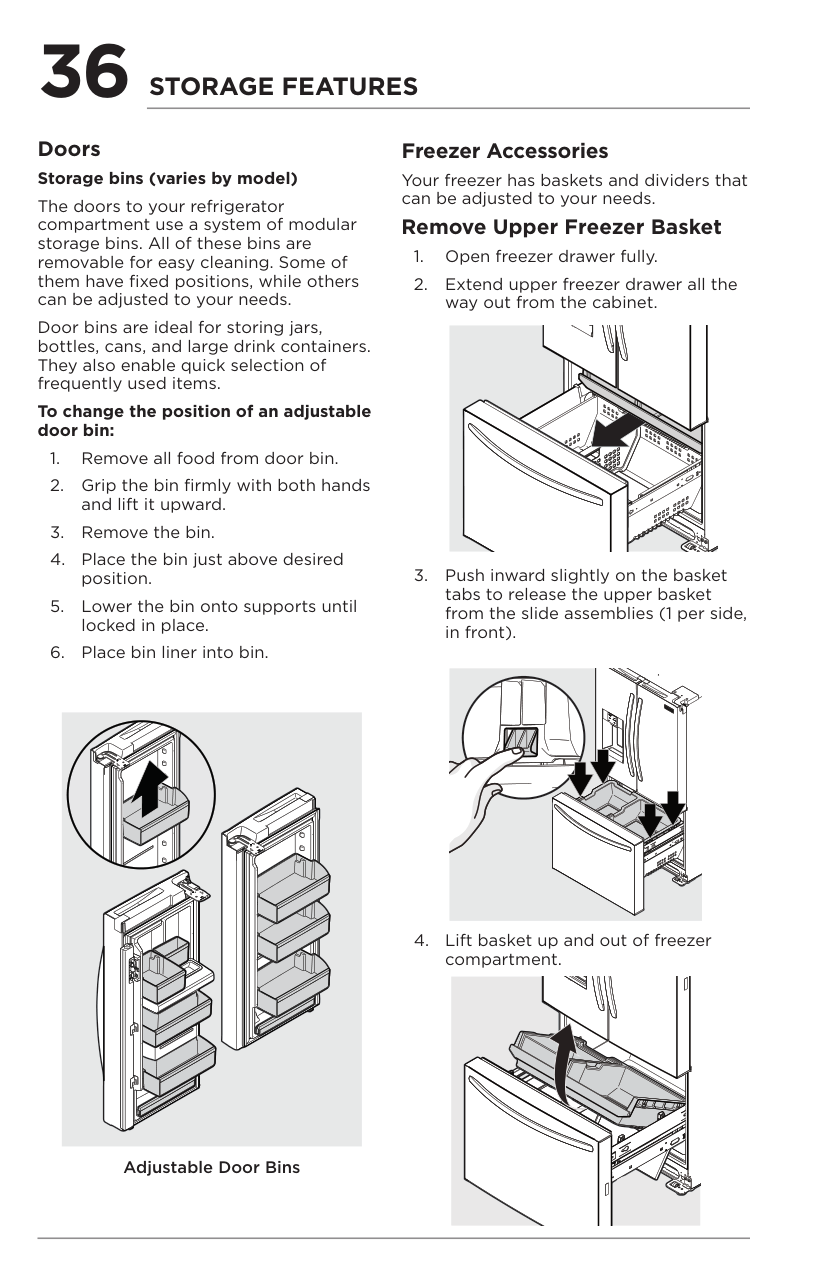

36 Storage Features
Adjustable Door Bins Doors Storage bins (varies by model) The doors to your refrigerator compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs. Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items. To change the position of an adjustable door bin: Page 37
37

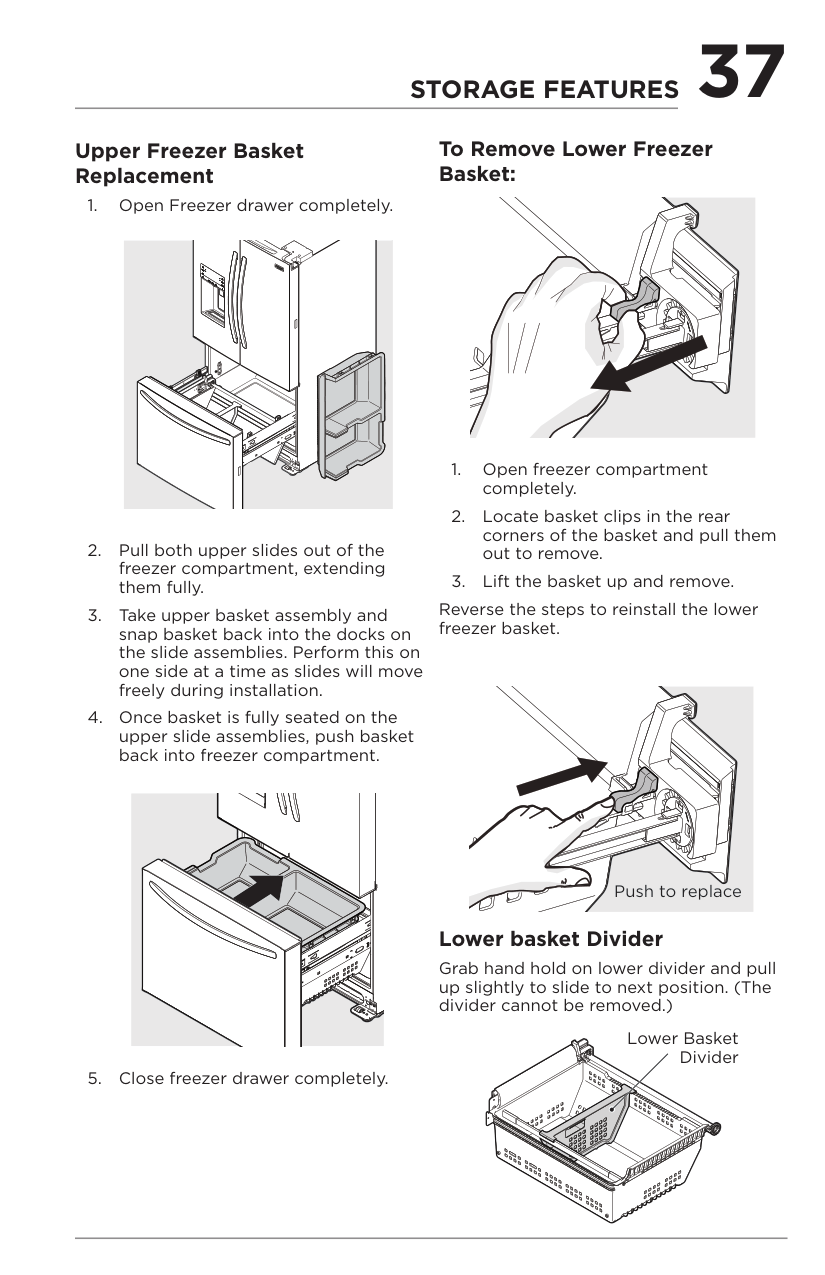

Storage Features
Lower basket Divider Grab hand hold on lower divider and pull up slightly to slide to next position. (The divider cannot be removed.) To Remove Lower Freezer Basket: Push to replace Upper Freezer Basket Replacement Page 38

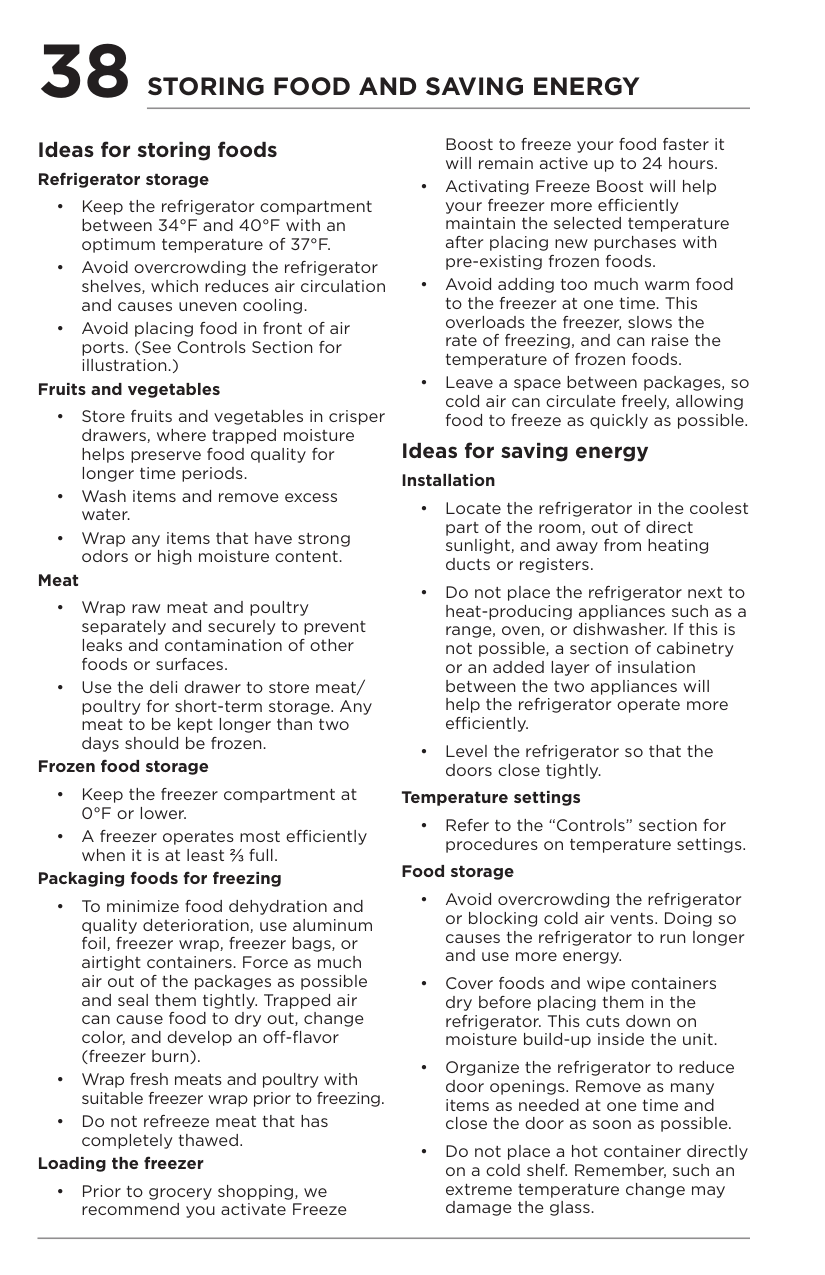

38 Ideas for storing foods Refrigerator storage
Storing Food And Saving Energy
Page 39
39
K
Features vary by modelNormal Operating Sounds

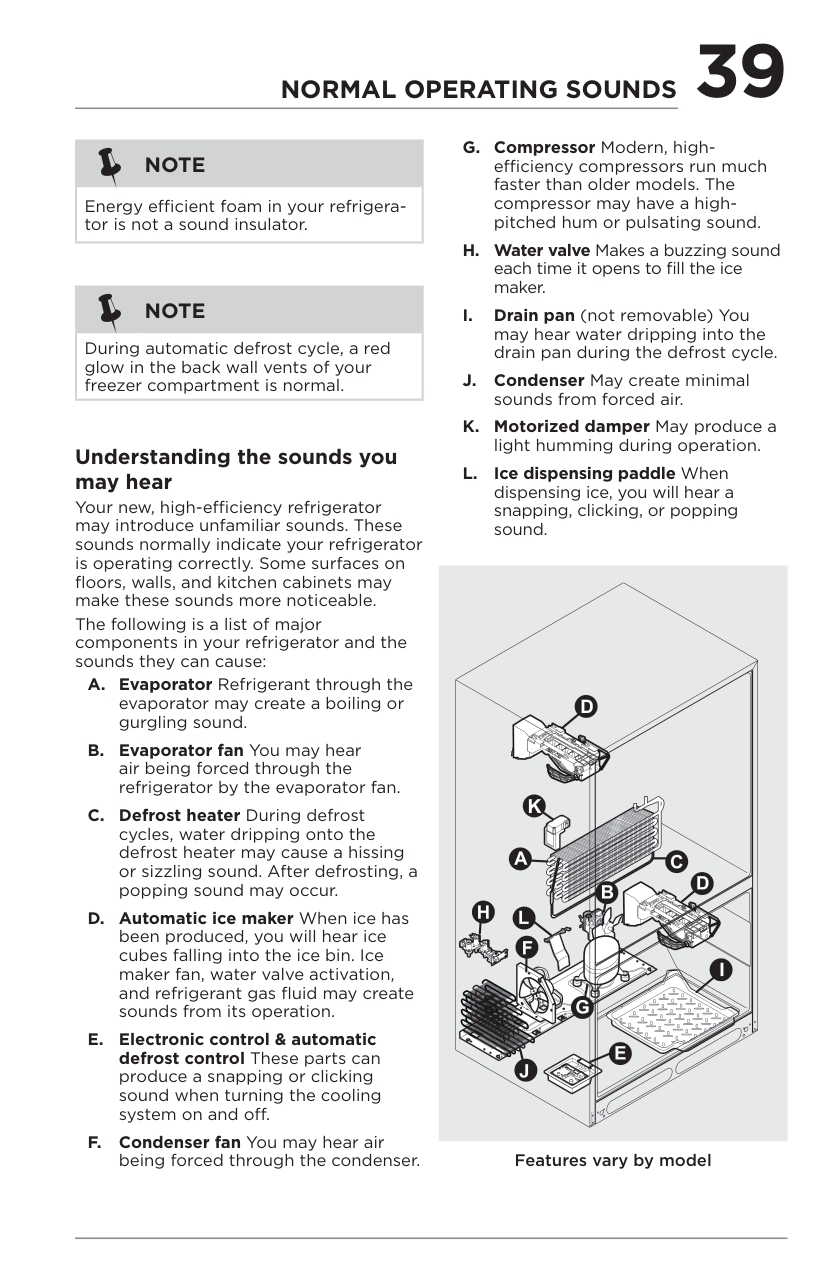

Understanding the sounds you may hear Your new, high-efficiency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable. The following is a list of major components in your refrigerator and the sounds they can cause: A. Evaporator Refrigerant through the evaporator may create a boiling or gurgling sound. B. Evaporator fan You may hear air being forced through the refrigerator by the evaporator fan. C. Defrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur. D. Automatic ice maker When ice has been produced, you will hear ice cubes falling into the ice bin. Ice maker fan, water valve activation, and refrigerant gas fluid may create sounds from its operation. E. Electronic control & automatic defrost control These parts can produce a snapping or clicking sound when turning the cooling system on and off. F. Condenser fan You may hear air being forced through the condenser.Note
Energy efficient foam in your refrigera tor is not a sound insulator.Note
During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal. G. Compressor Modern, high- efficiency compressors run much faster than older models. The compressor may have a high- pitched hum or pulsating sound. H. Water valve Makes a buzzing sound each time it opens to fill the ice maker.I.
Drain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle. J. Condenser May create minimal sounds from forced air. K. Motorized damper May produce a light humming during operation. L. Ice dispensing paddle When dispensing ice, you will hear a snapping, clicking, or popping sound. Page 40

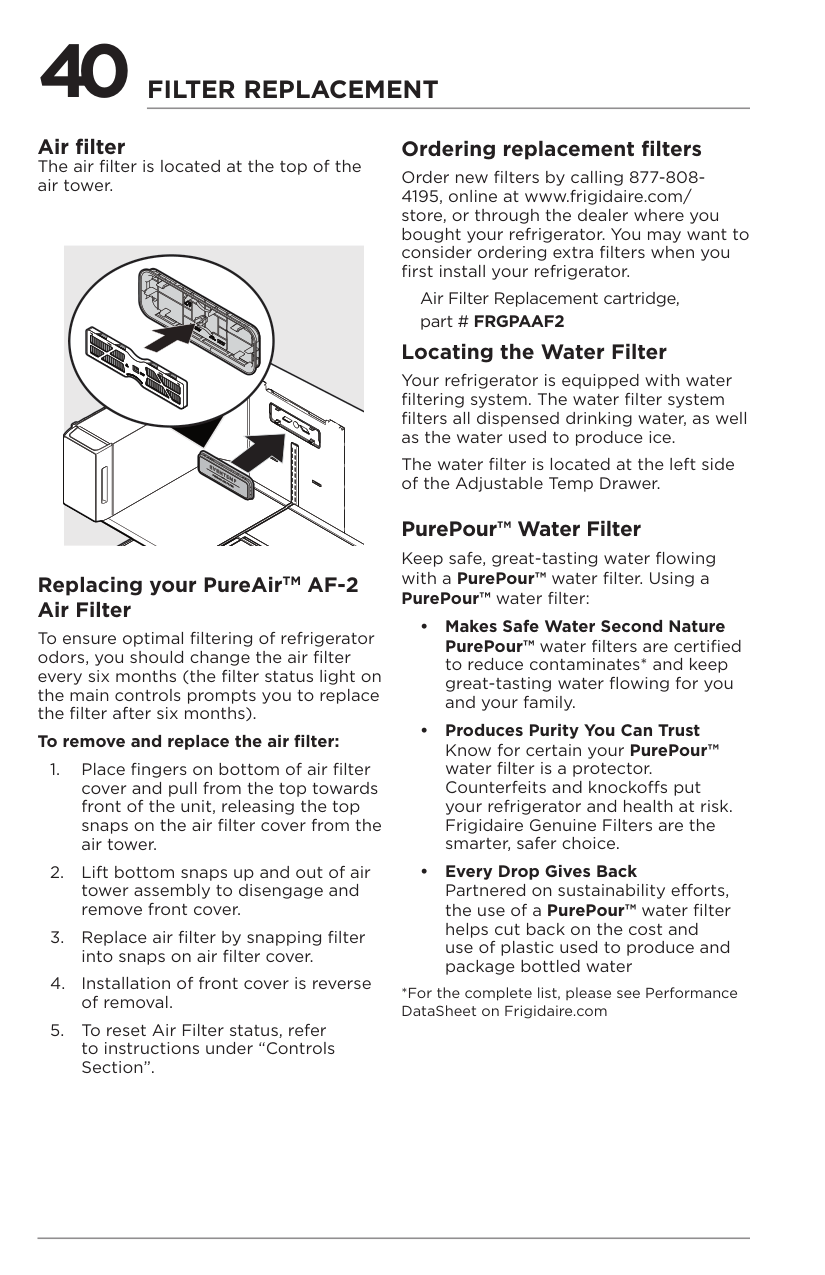

40 Filter Replacement
Air filter The air filter is located at the top of the air tower. Ordering replacement filters Order new filters by calling 877-808- 4195, online at www.frigidaire.com/ store, or through the dealer where you bought your refrigerator. You may want to consider ordering extra filters when you first install your refrigerator.Air Filter Replacement cartridge,
part # FRGPAAF2 Locating the Water Filter Your refrigerator is equipped with water filtering system. The water filter system filters all dispensed drinking water, as well as the water used to produce ice. The water filter is located at the left side of the Adjustable Temp Drawer. Replacing your PureAirTM AF-2 Air Filter To ensure optimal filtering of refrigerator odors, you should change the air filter every six months (the filter status light on the main controls prompts you to replace the filter after six months). To remove and replace the air filter:
Page 41
41 Do not use with water that is microbio logically unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts. Test & certification results:
100°F
PurePour™ Water Filter PWF-1

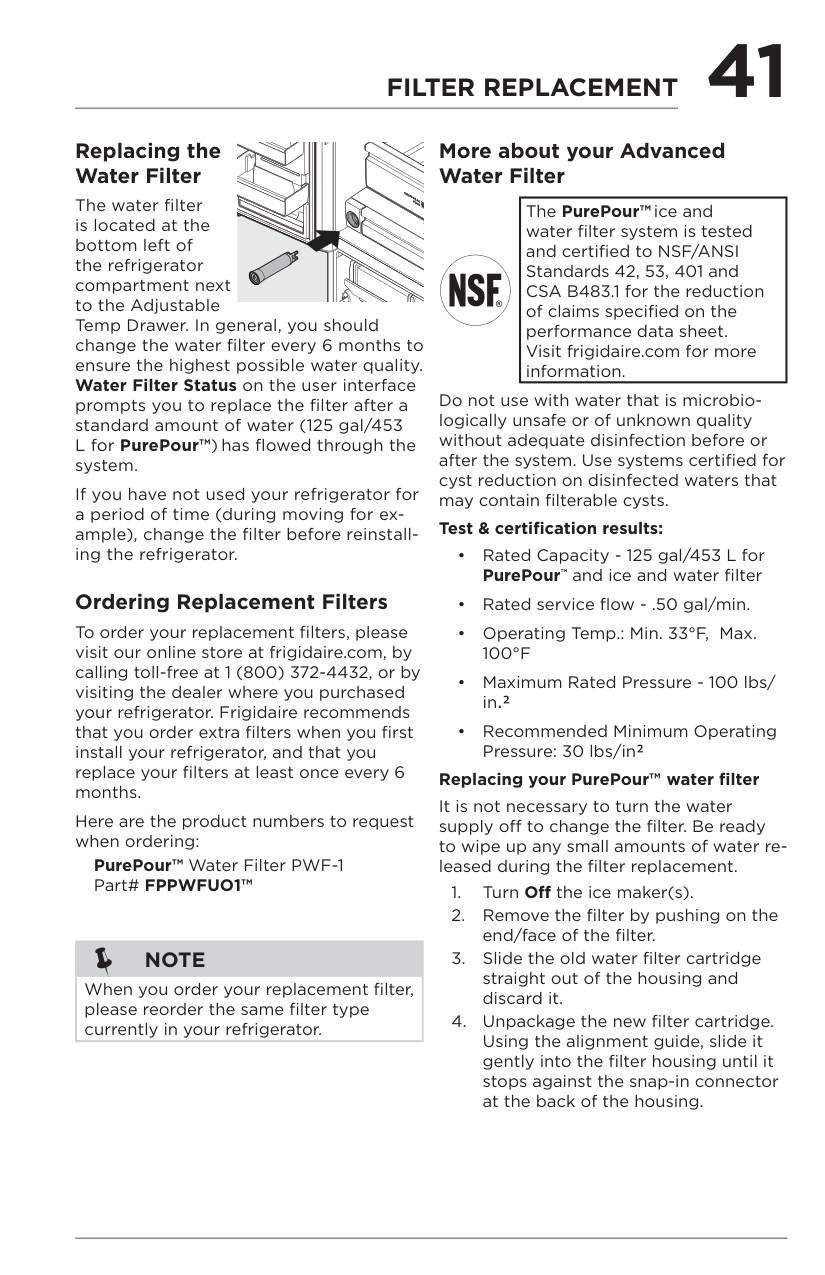

Part# FPPWFUO1™ Replacing the Water Filter The water filter is located at the bottom left of the refrigerator compartment next to the Adjustable Temp Drawer. In general, you should change the water filter every 6 months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (125 gal/453 L for PurePour™) has flowed through the system. If you have not used your refrigerator for a period of time (during moving for ex ample), change the filter before reinstall ing the refrigerator. More about your Advanced Water Filter
Note
When you order your replacement filter, please reorder the same filter type currently in your refrigerator. The PurePour™ ice and water filter system is tested and certified to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of claims specified on the performance data sheet. Visit frigidaire.com for more information.Filter Replacement
Page 42

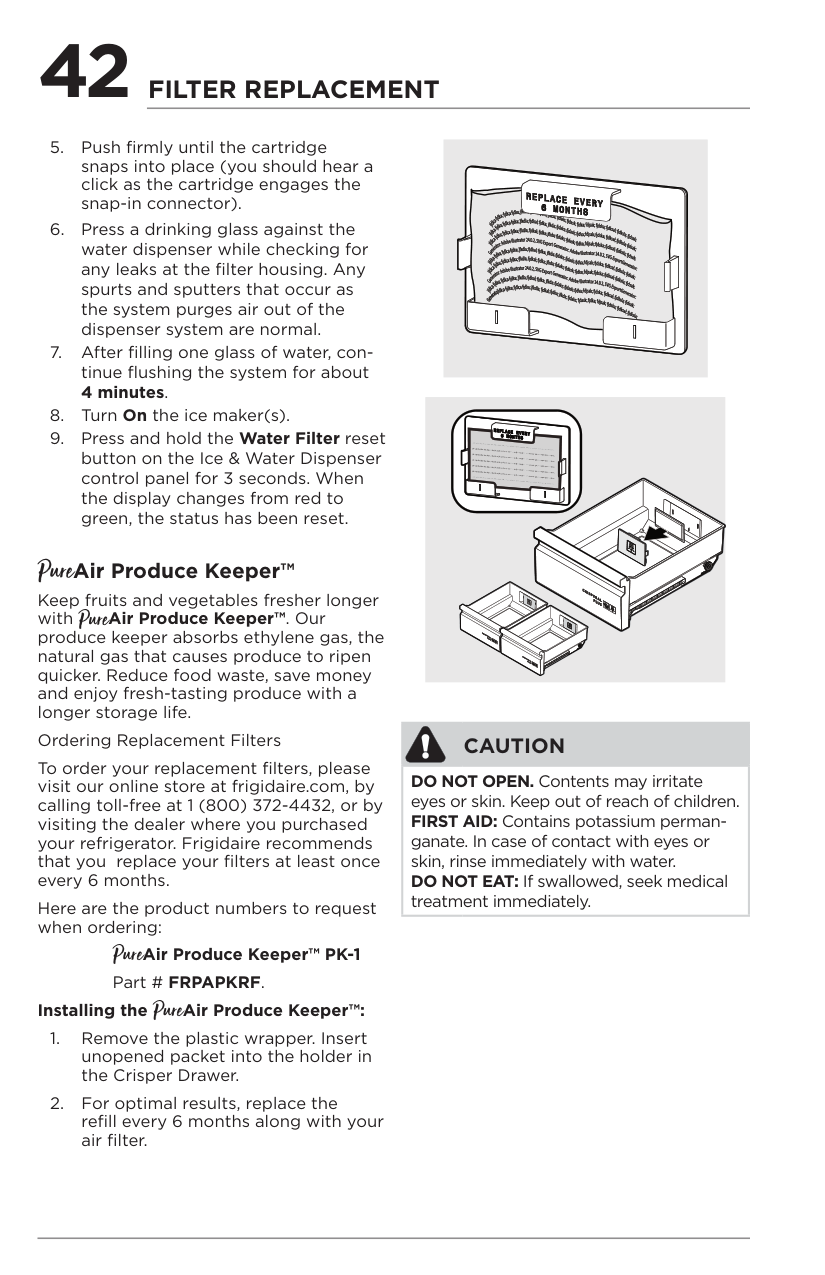

42 Filter Replacement
PureAir Produce Keeper™ Keep fruits and vegetables fresher longer with PureAir Produce Keeper™. Our produce keeper absorbs ethylene gas, the natural gas that causes produce to ripen quicker. Reduce food waste, save money and enjoy fresh-tasting produce with a longer storage life. Ordering Replacement Filters To order your replacement filters, please visit our online store at frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you replace your filters at least once every 6 months. Here are the product numbers to request when ordering:PureAir Produce Keeper™ PK-1
Part # FRPAPKRF. Installing the PureAir Produce Keeper™:
Caution
DO NOT OPEN. Contents may irritate eyes or skin. Keep out of reach of children. FIRST AID: Contains potassium perman ganate. In case of contact with eyes or skin, rinse immediately with water. DO NOT EAT: If swallowed, seek medical treatment immediately.f d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak;
G
e n e r a t o jf d k; a fdk a; fd k;a f dk a; jfk dla; fdkal; f dk a; jfkda; fda ks ; f da sk; f dk a; f djs ak; fds ka; f dksal; fdksla; jf d k ; af d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak; jf d k ; a
f d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak;
G
e n e r a t o r:A
d ob e Illu stra to r 2G
enerator: Ado b eIllu str at or
, S
Vg
Expo rtGenerator: jf d k ; af d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak; jf d k ; a
f d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak;
G
e n e r a t o r:A
d ob e Illu stra to r 2G
enerator: Ado b eIllu str ato r 2 4.0 .2,
Sv
G Ex portG enerator: jf d k ; af d k a ; f dk ;a f dka; jfk dl a; fd ka l; fdka; jfkda ; fdaks; fdask; f d ka; f djs ak; f ds ka; fd ksal ; fdk sla; fdsak;
Page 43

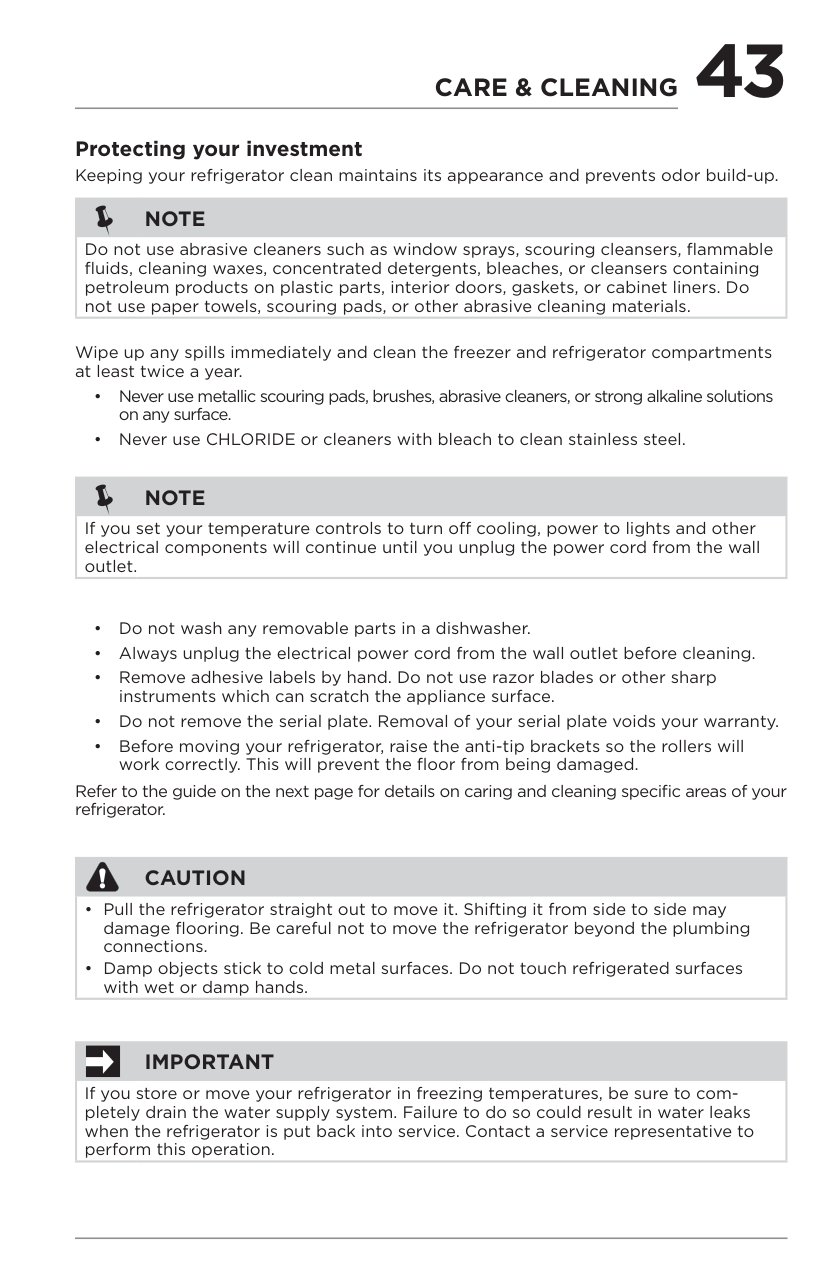

43
Important
If you store or move your refrigerator in freezing temperatures, be sure to com pletely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.Caution
Note
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials. Note
If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet. Protecting your investment Keeping your refrigerator clean maintains its appearance and prevents odor build-up.Care & Cleaning
Page 44
44 Care & Cleaning

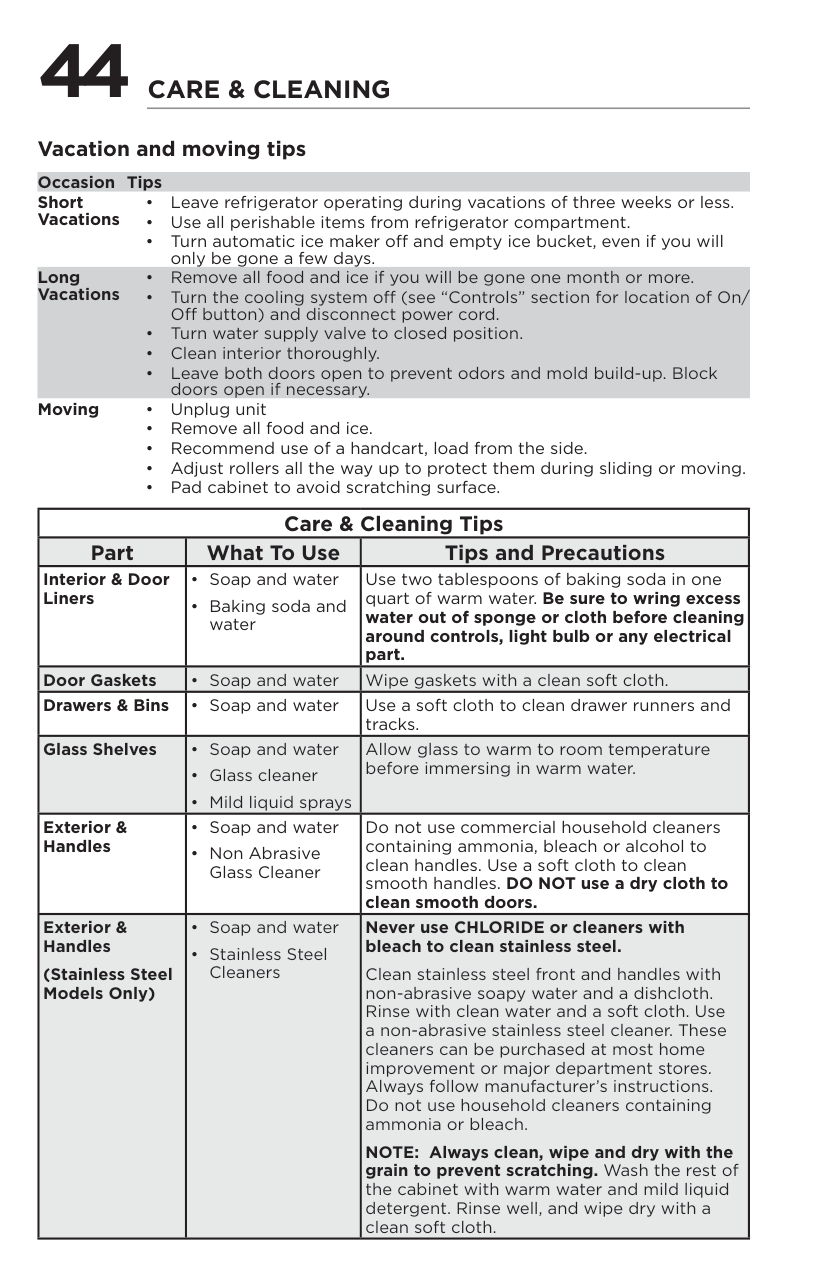

Vacation and moving tips Occasion Tips Short Vacations Page 45
45

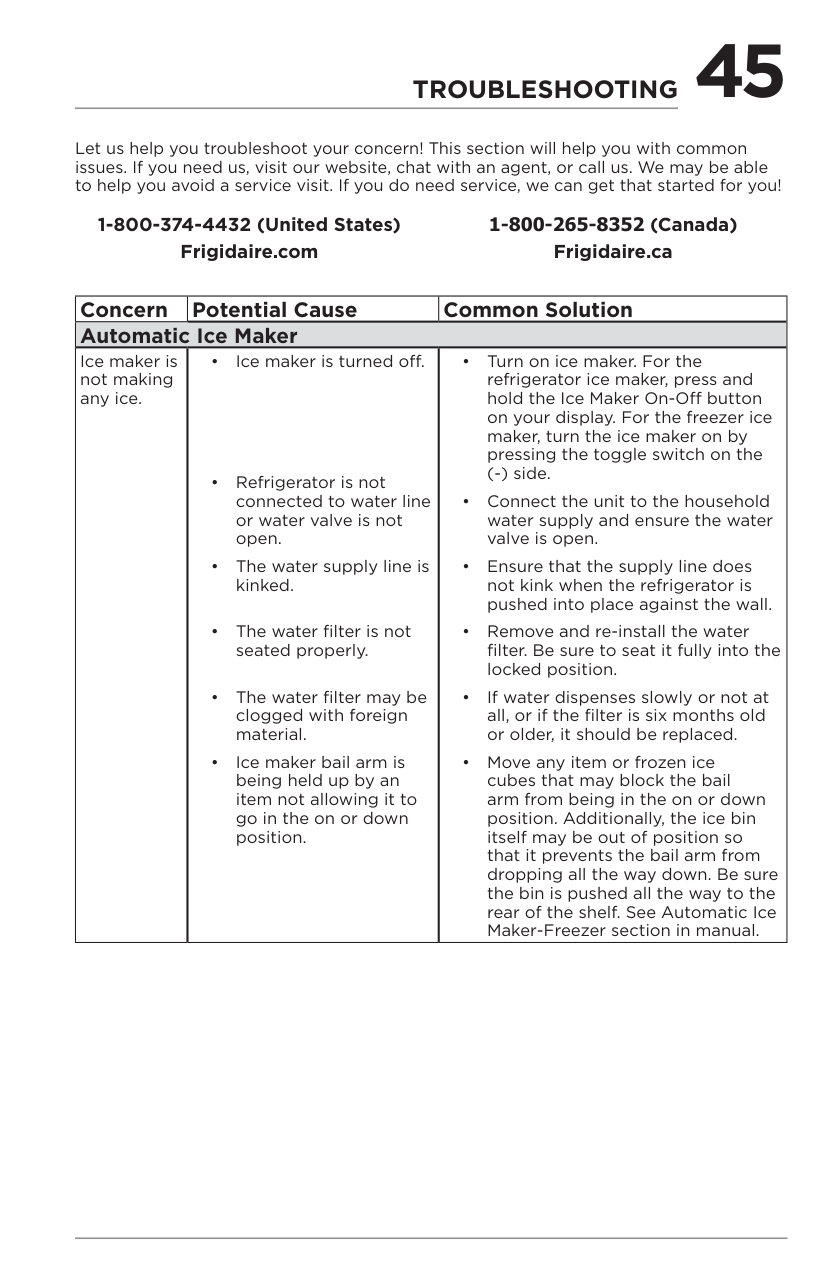

Troubleshooting
Concern Potential Cause Common Solution Automatic Ice Maker Ice maker is not making any ice. Page 46

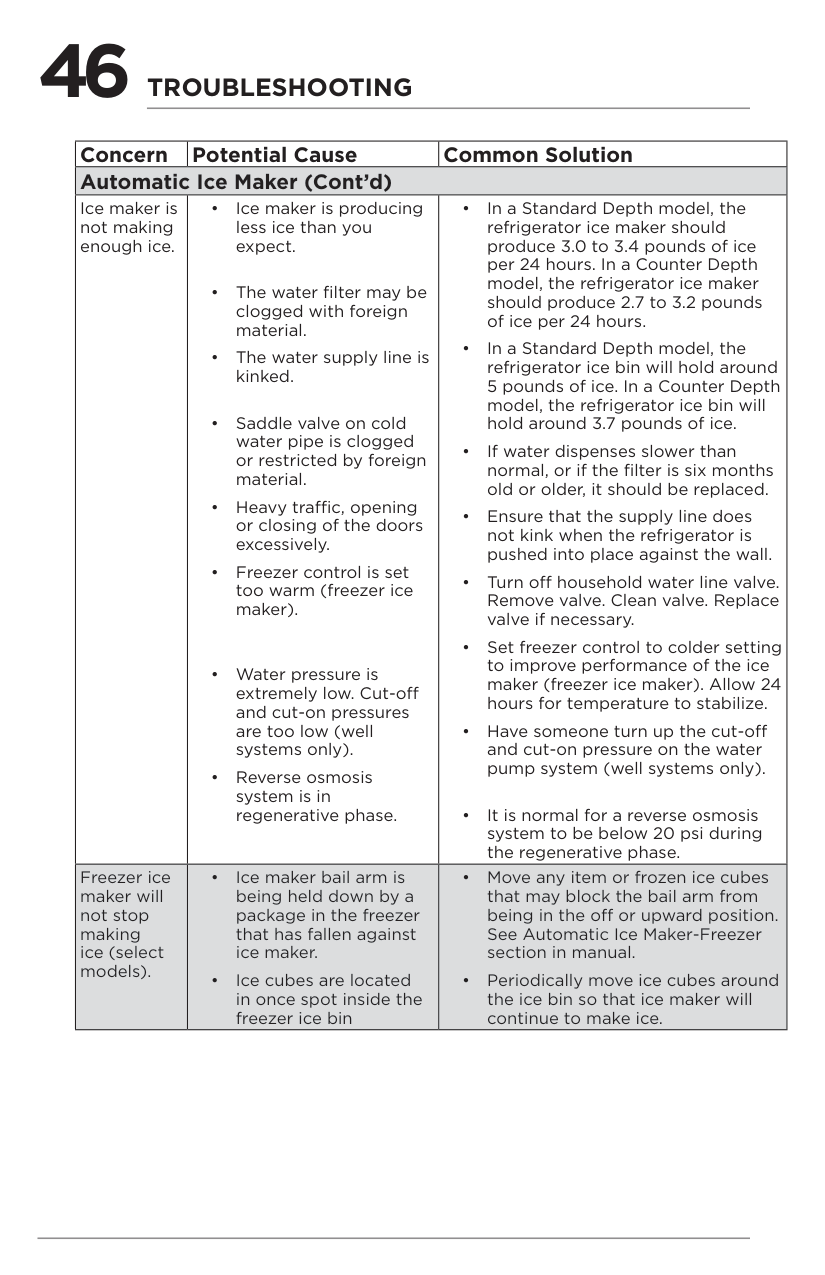

46 Concern Potential Cause Common Solution Automatic Ice Maker (Cont’d) Ice maker is not making enough ice.
Troubleshooting
Page 47

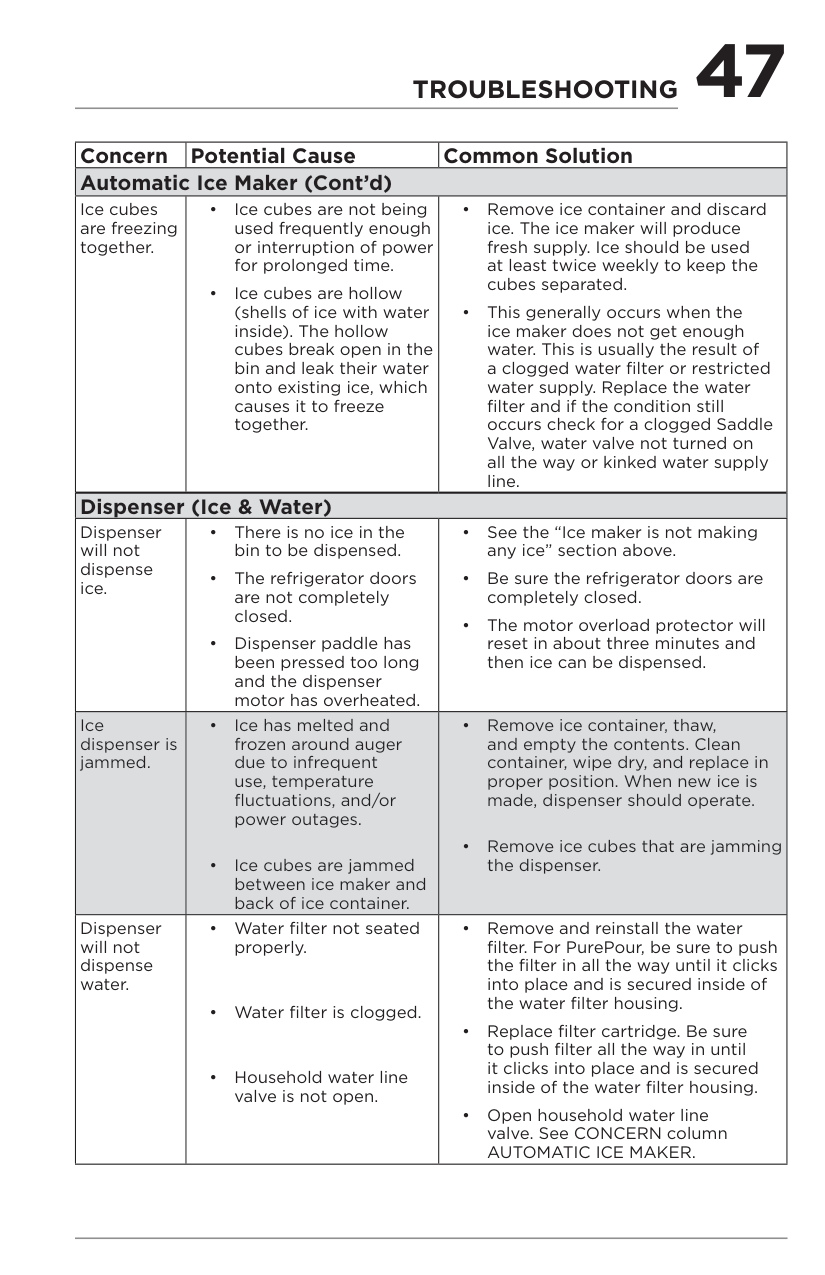

47 Concern Potential Cause Common Solution Automatic Ice Maker (Cont’d) Ice cubes are freezing together.
Automatic Ice Maker.
Troubleshooting
Page 48

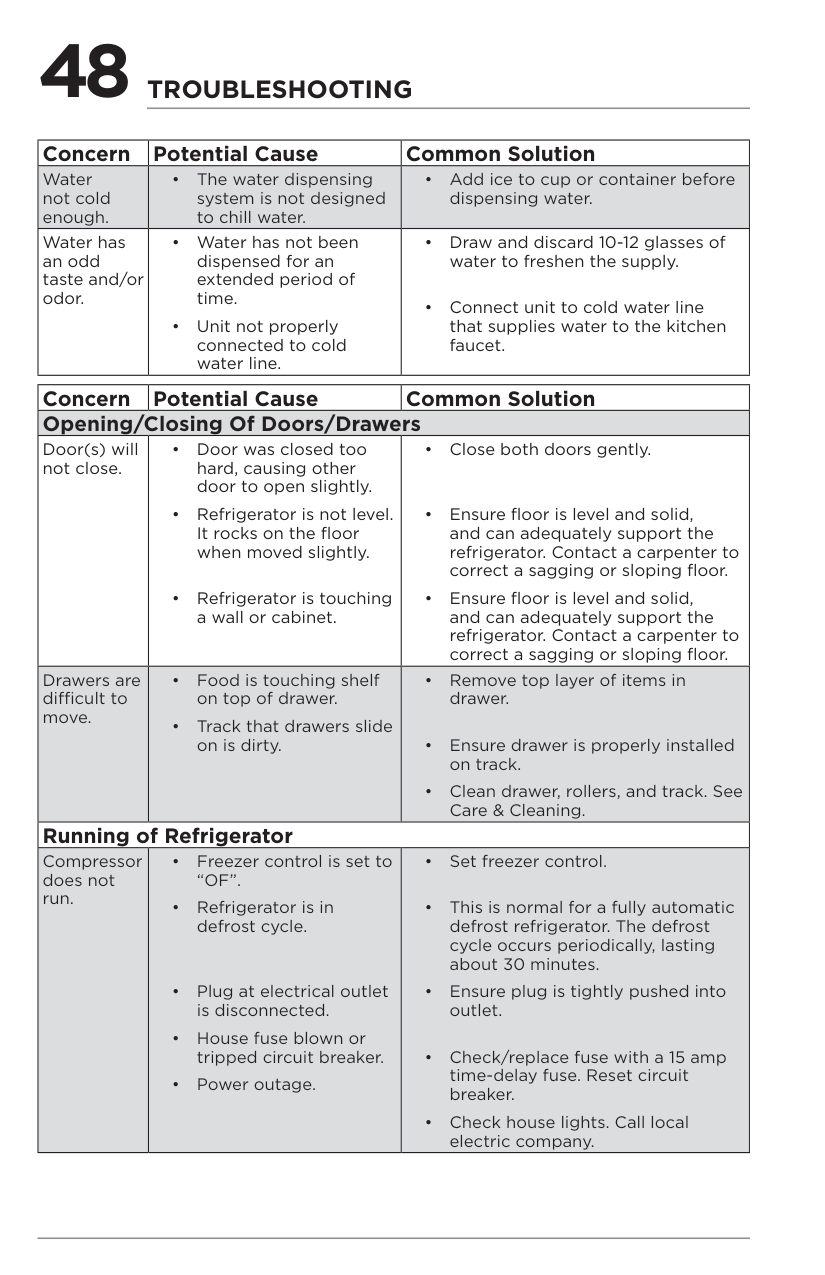

48 Troubleshooting
Concern Potential Cause Common Solution Water not cold enough.“Of”.
Page 49
49
Troubleshooting

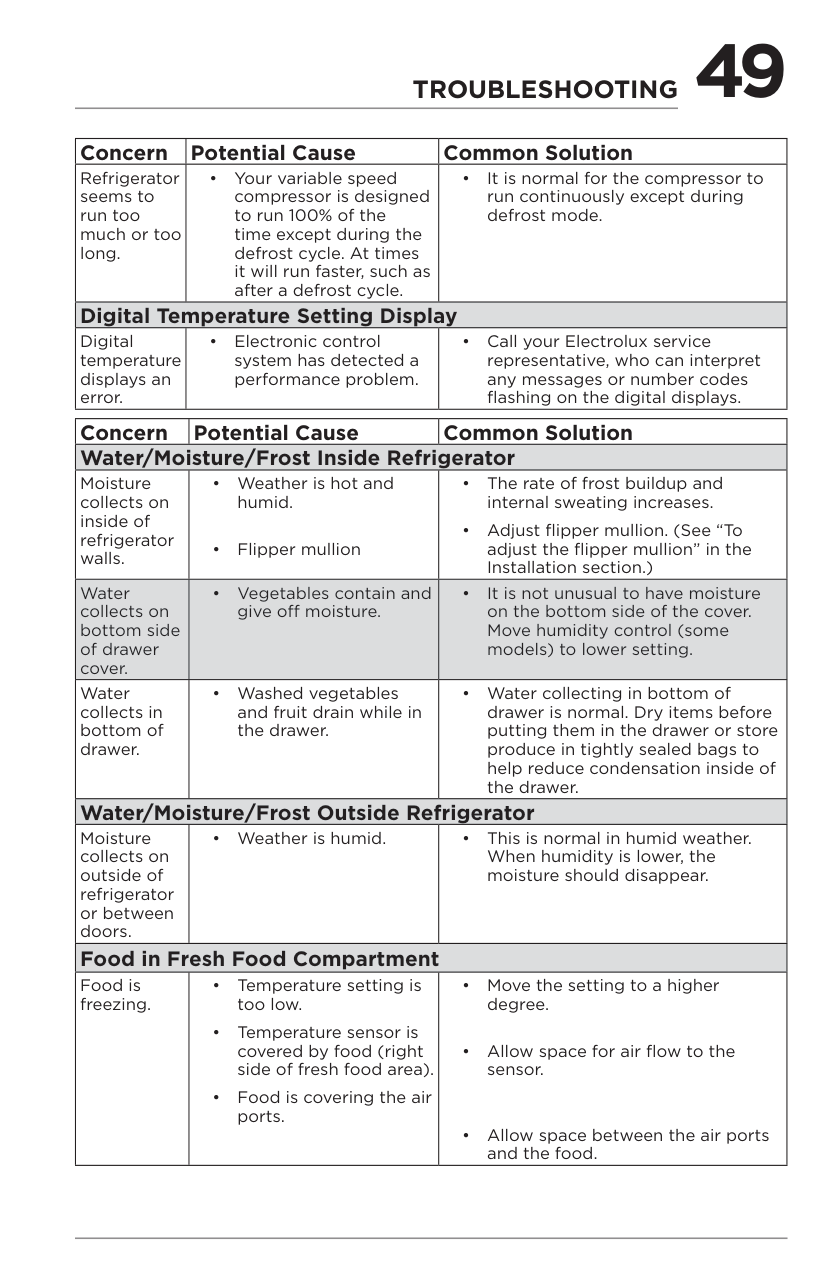

Concern Potential Cause Common Solution Refrigerator seems to run too much or too long. Page 50
50 Limited Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. Exclusions This warranty does not cover the following:Disclaimer Of Implied Warranties; Limitation Of Remedies
Customer’S Sole And Exclusive Remedy Under This Limited Warranty Shall Be
Product Repair Or Replacement As Provided Herein. Claims Based On Implied
Warranties, Including Warranties Of Merchantability Or Fitness For A Particular
Purpose, Are Limited To One Year Or The Shortest Period Allowed By Law, But Not
LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTALDamages Such As Property Damage And Incidental Expenses Resulting From Any
BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGALRights. You May Also Have Other Rights That Vary From State To State.
If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.Usa
1-800-374-4432 Frigidaire 10200 David Taylor Drive Charlotte, NC 28262 Canada 1.800.265.8352 Electrolux Canada Corp. 5855 Terry Fox Way Mississauga, Ontario, CanadaL5V 3E4
Page 52
welcomehome Frigidaire.com 1-800-374-4432 Frigidaire.ca 1-800-265-8352 owner support accessories service Our home is your home. Visit us if you need help with any of these things: registration (See your registration card for more information.)
