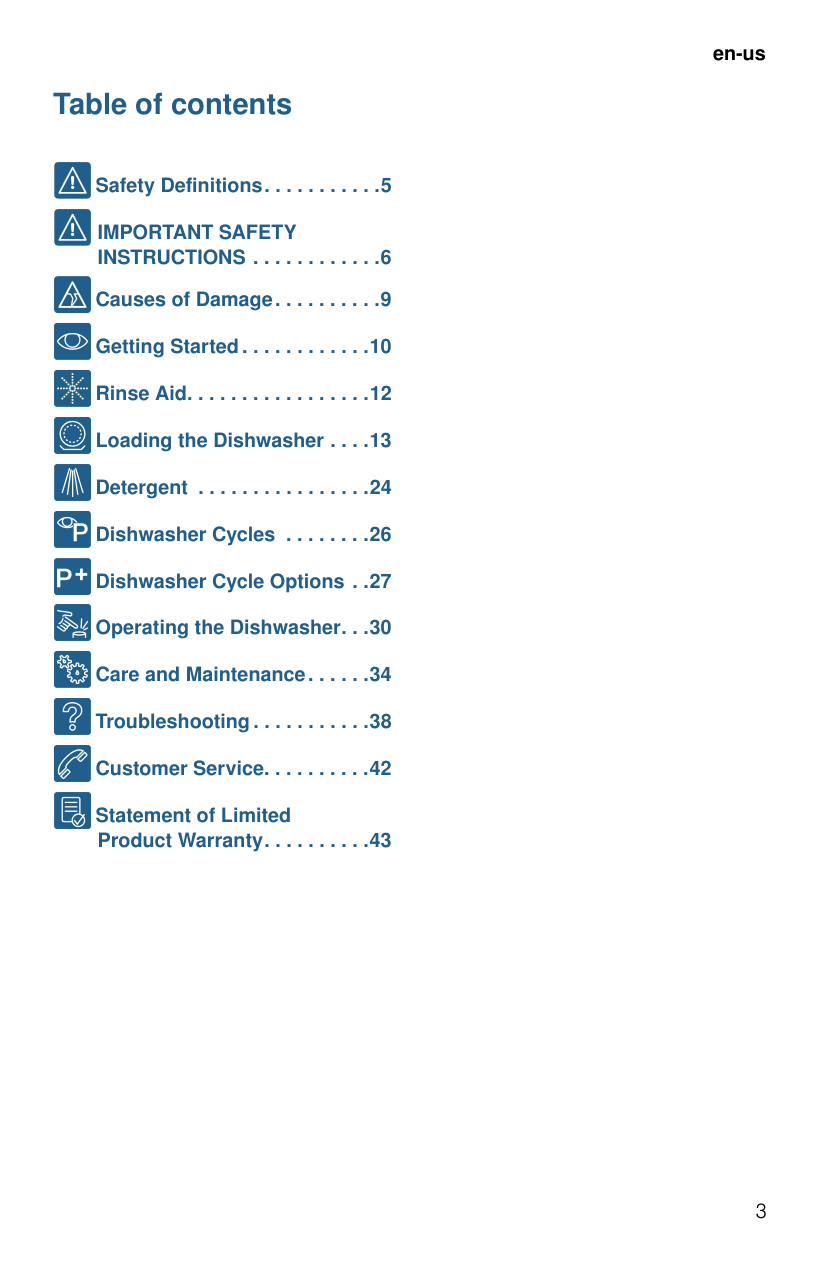

3 Table of contents Operating instructions ( Safety Definitions. . . . . . . . . . .5

( Important Safety

Instructions . . . . . . . . . . . .6

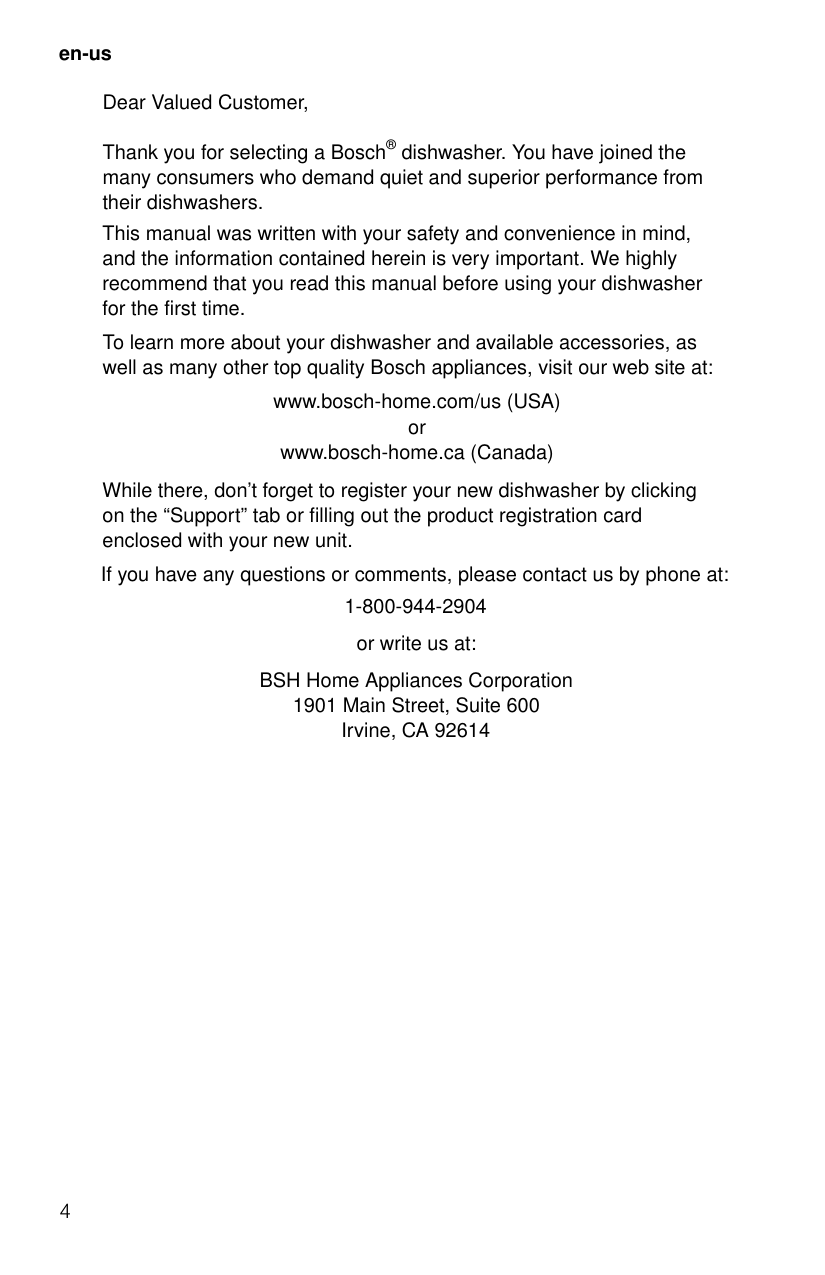

Valued Customer

Thank You For Selecting A Bosch

Dishwasher. You Have Joined The

Many Consumers Who Demand Quiet And Superior Performance From

Their Dishwashers

If You Have Any Questions Or Comments, Please Contact Us By Phone At

While There Don't Forget To Register Your New Dishwasher By Clicking

Enclosed With Your New Unit

www.boschHomecom.us USA

Or

www.boschHome.ca Canada

To Learn More About Your Dishwasher And Available Accessories, As

Well As Many Other Top Quality Bosch Appliances, Visit Our Website At

This Manual Was Written With Your Safety And Convenience In Mind

And The Information Contained Herein Is Very Important. We Highly

Recommend That You Read This Manual Before Using Your Dishwasher

For The First Time

BSH Home Appliances Corporation

Main Street, Suite

Or Write Us At

Irvine, CA

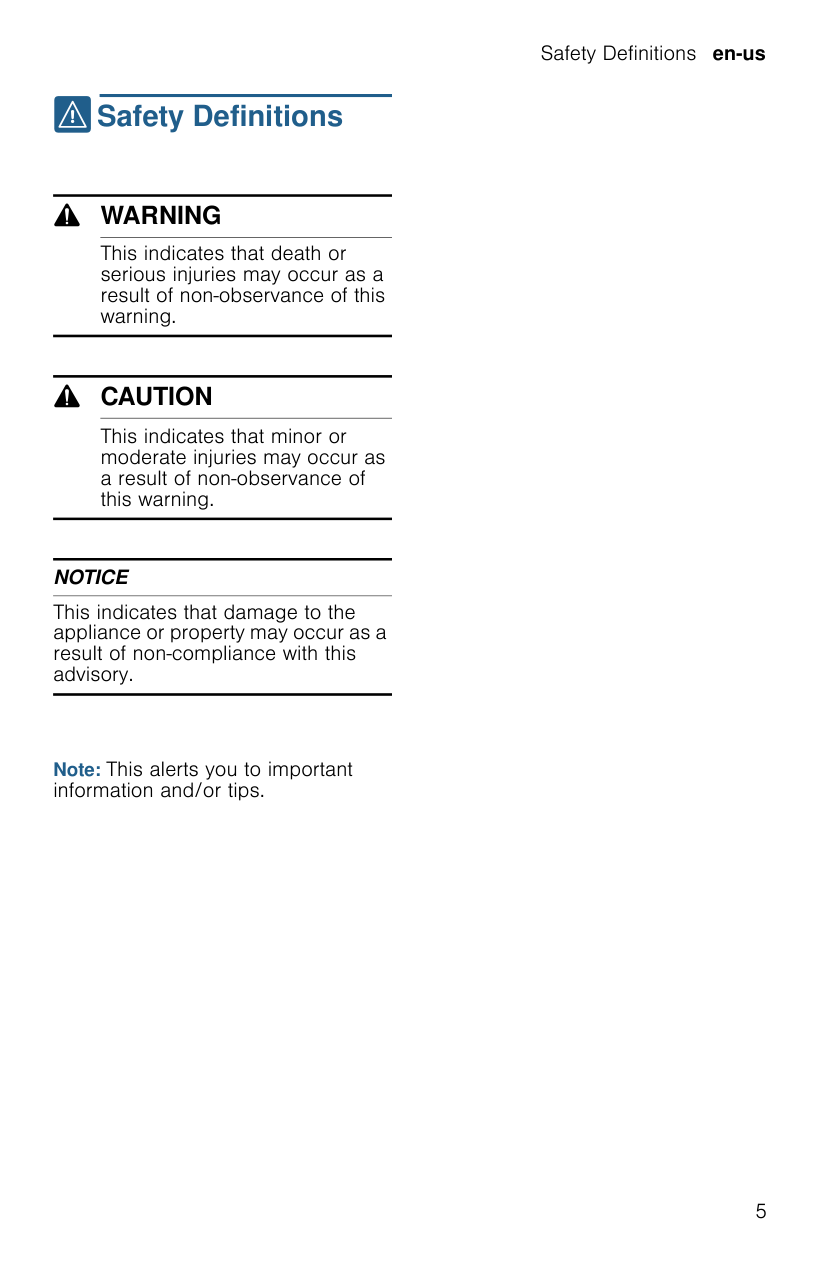

Safety Definitions

Safety Definitions

Warning

Caution

Notice

Note: This alerts you to important information and/or tips.

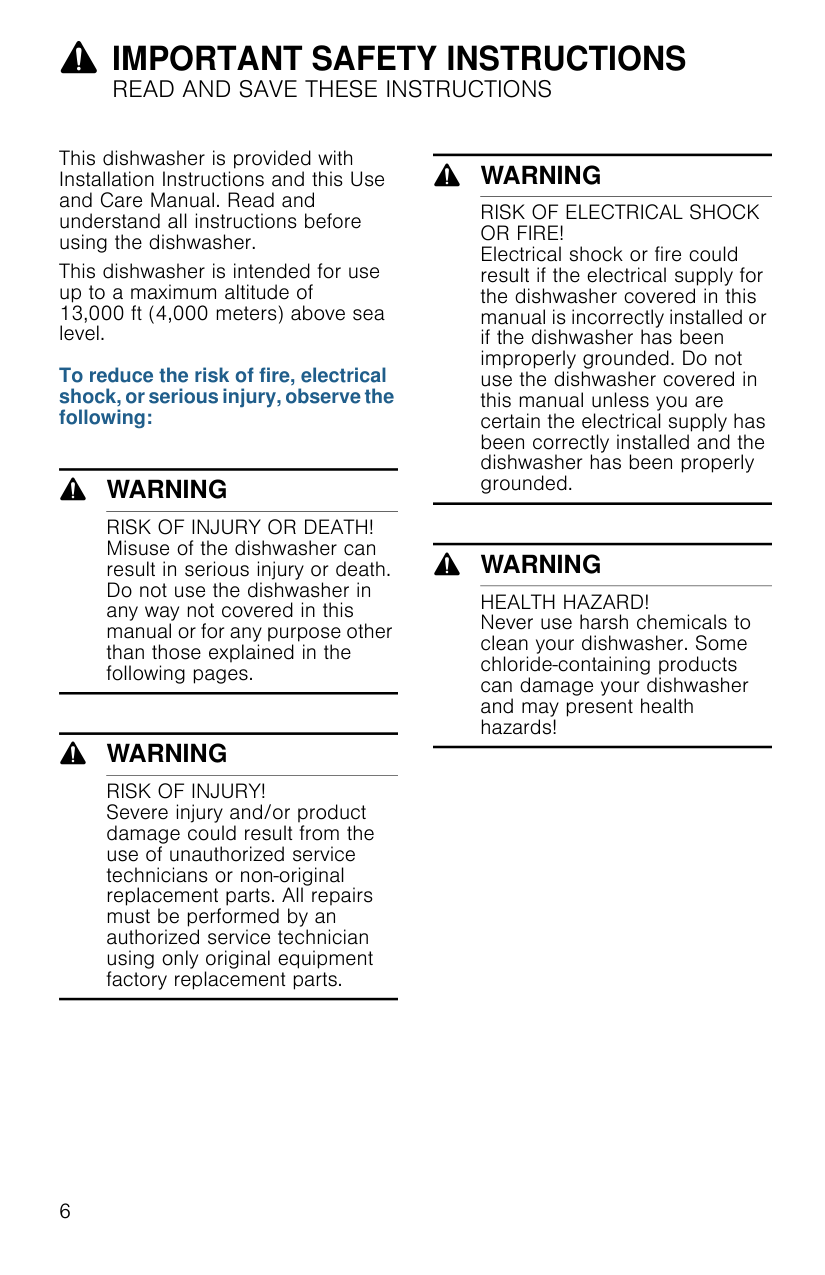

9 Important Safety Instructions

Read And Save These Instructions

Important Safety Instructions

Important Safety Instructions

Read And Save These Instructions

9 Warning

Risk Of Injury Or Death!

9 Warning

Risk Of Injury!

9 Warning

Risk Of Electrical Shock

Or Fire!

9 Warning

Health Hazard!

9 Important Safety Instructions

Read And Save These Instructions

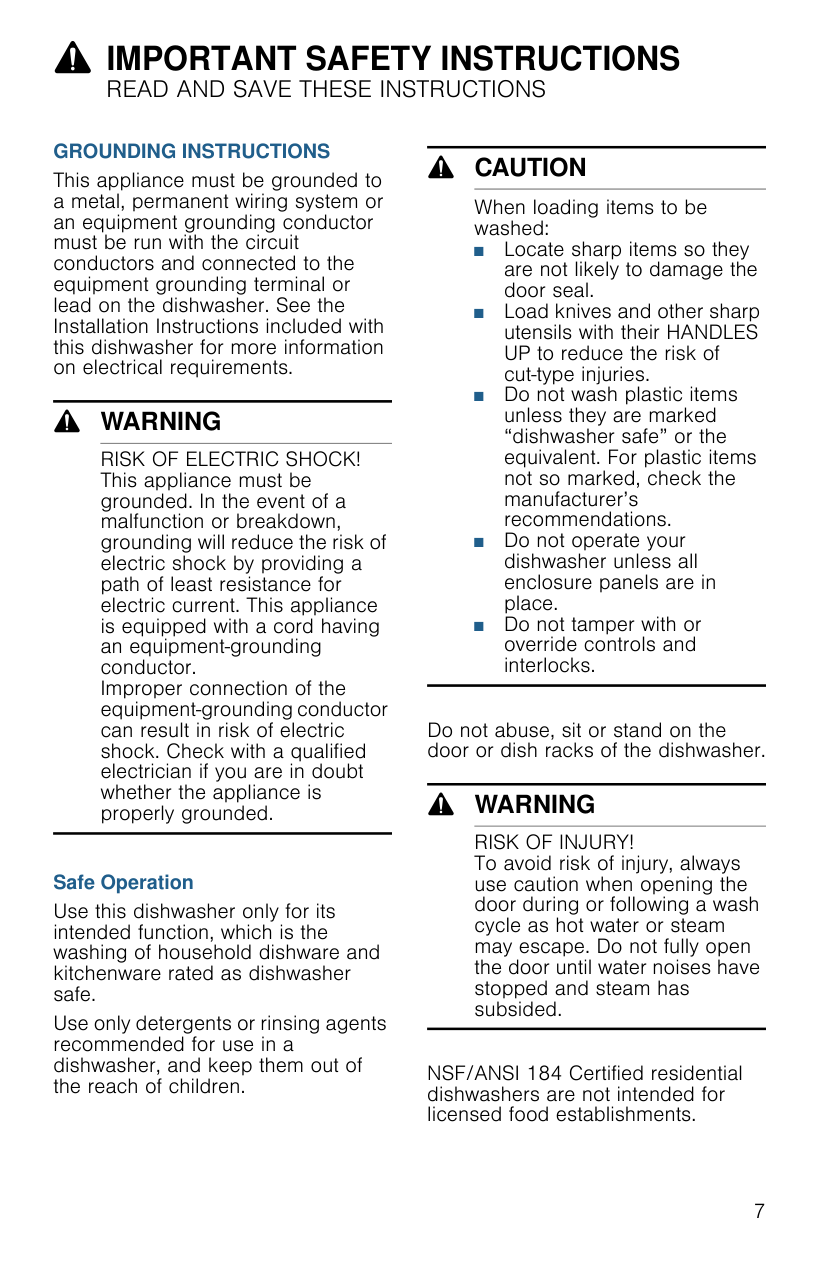

Grounding Instructions

9 Warning

Risk Of Electric Shock!

9 Caution

9 Warning

Risk Of Injury!

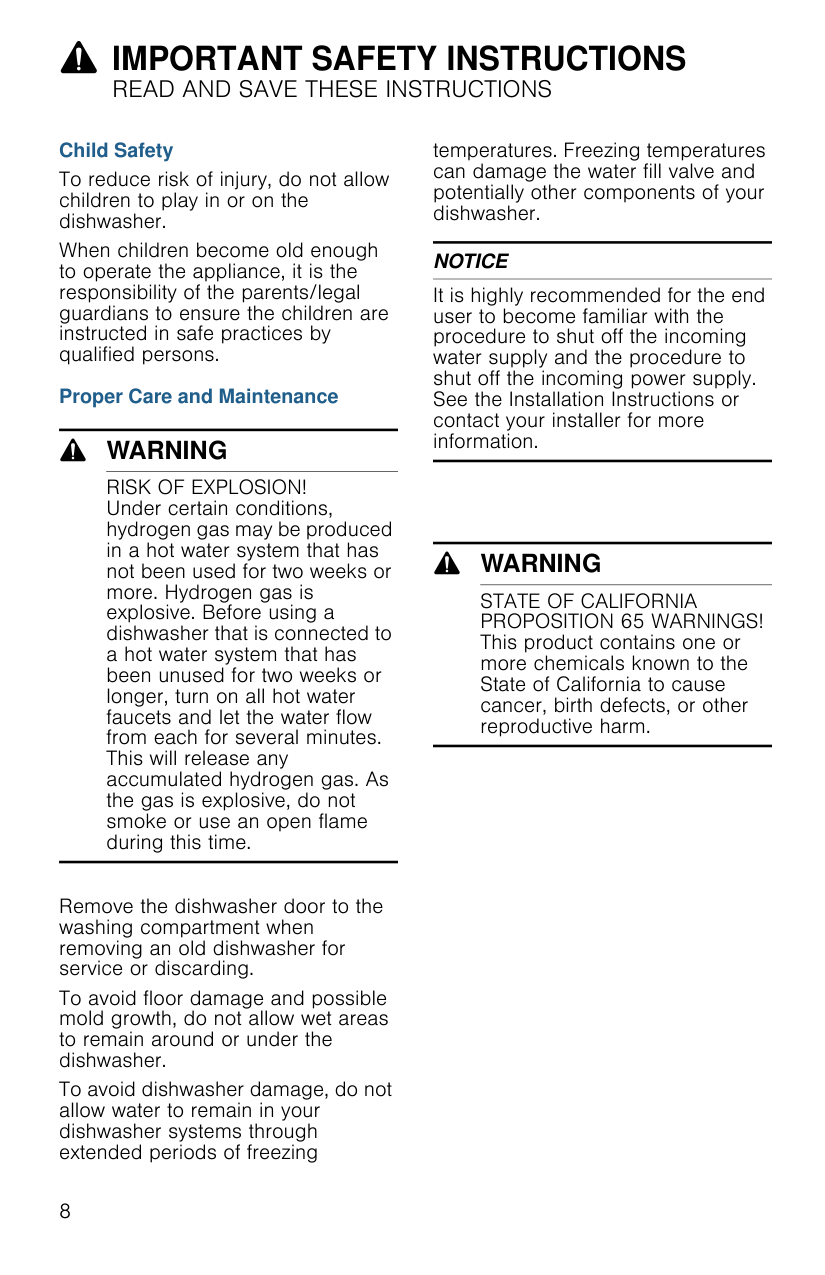

9 Important Safety Instructions

Read And Save These Instructions

9 Warning

Risk Of Explosion!

Notice

9 Warning

State Of California

Proposition 65 Warnings!

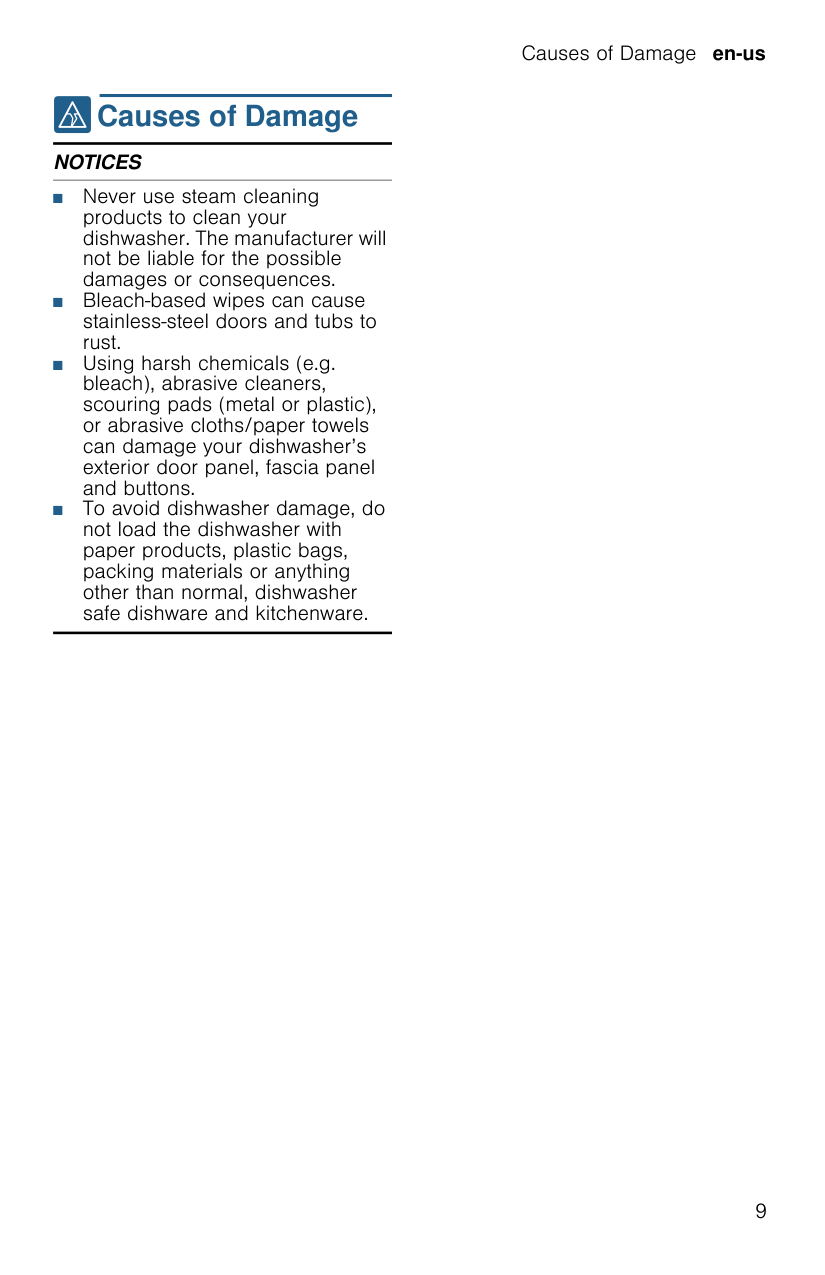

Causes of Damage

ƒ Causes of Damage

Causes of Damage NOTICES

■ Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for the possible damages or consequences.

■ Bleach-based wipes can cause stainless-steel doors and tubs to rust.

■ Using harsh chemicals (e.g. bleach), abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels can damage your dishwasher's exterior door panel, fascia panel and buttons.

■ To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware.

Getting Started

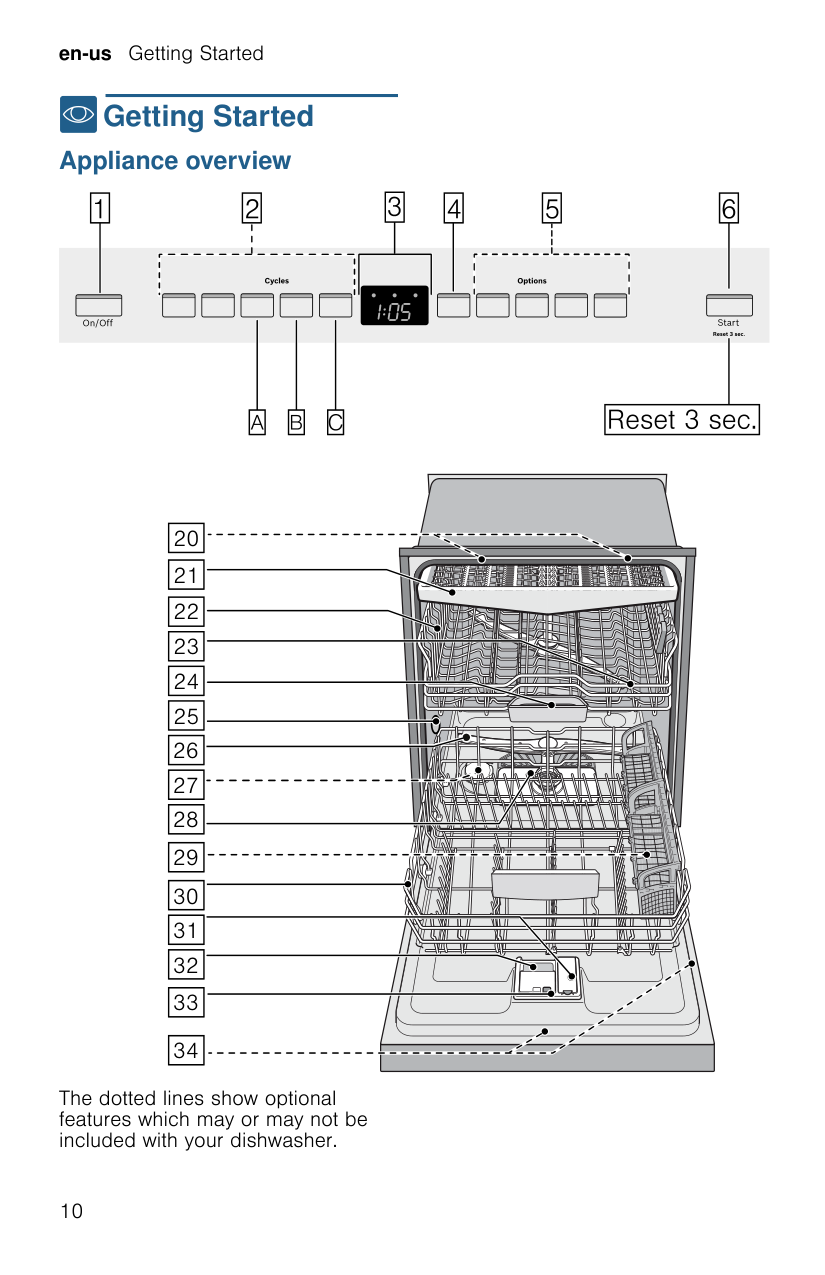

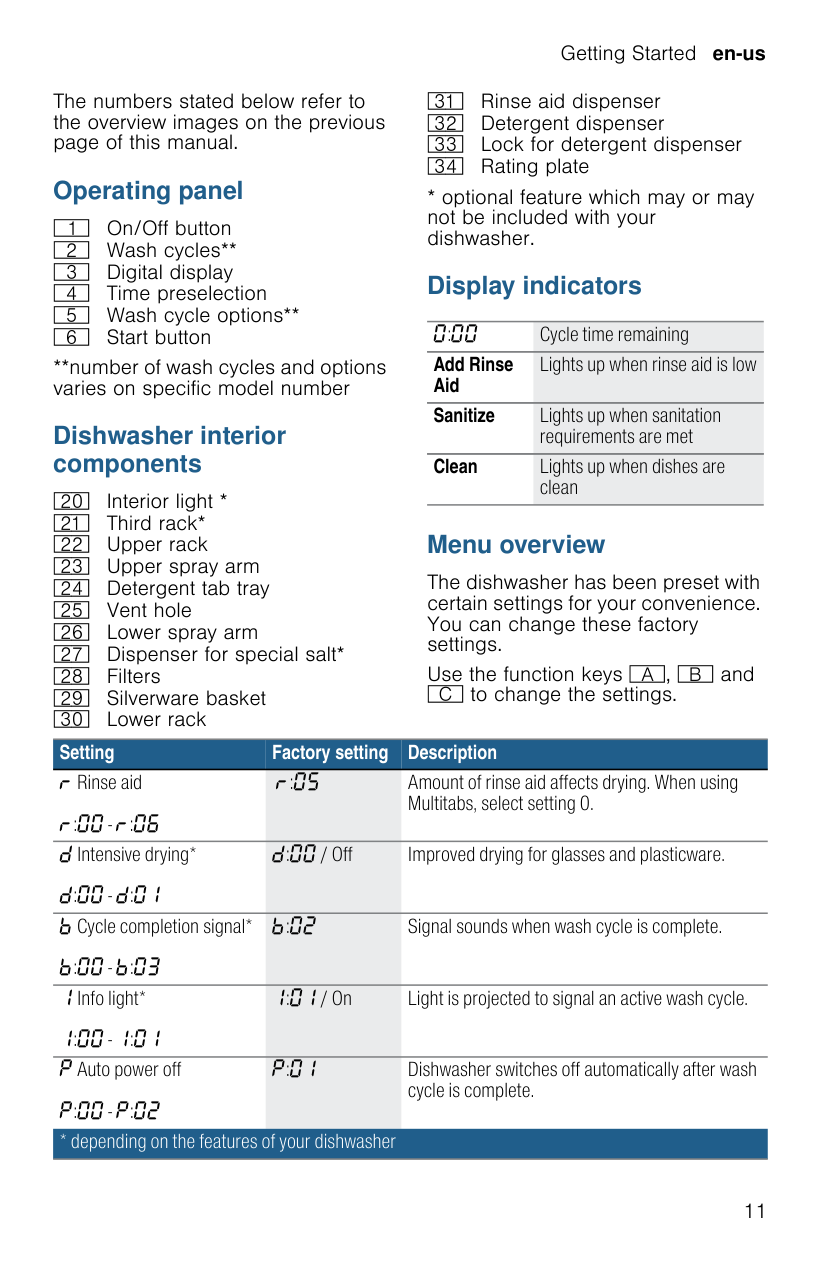

Getting Started Appliance overview

The dotted lines show optional features which may or may not be included with your dishwasher.

Getting Started 11 The numbers stated below refer to the overview images on the previous page of this manual. Operating panel **number of wash cycles and options varies on specific model number Dishwasher interior components

H

P

1B

1J

1R

1Z

9B

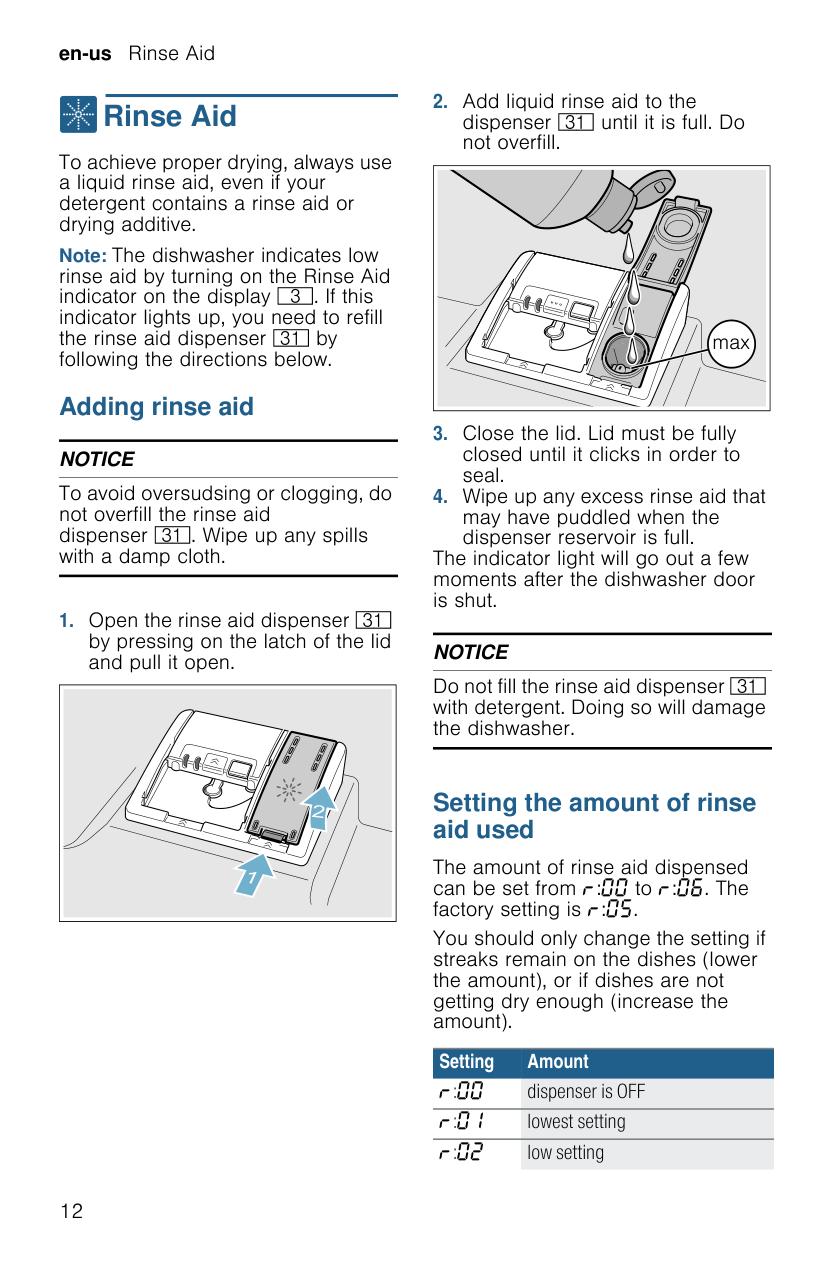

Rinse Aid

To achieve proper drying, always use a liquid rinse aid, even if your detergent contains a rinse aid or drying additive.

Note: The dishwasher indicates low rinse aid by turning on the Rinse Aid indicator on the display. If this indicator lights up, you need to refill the rinse aid dispenser by following the directions below.

Adding rinse aid

Notice To avoid oversudsing or clogging, do not overfill the rinse aid dispenser. Wipe up any spills with a damp cloth.

The indicator light will go out a few moments after the dishwasher door is shut.

Notice Do not fill the rinse aid dispenser with detergent. Doing so will damage the dishwasher.

Setting the amount of rinse aid used

The amount of rinse aid dispensed can be adjusted. You should only change the setting if streaks remain on the dishes (lower the amount), or if dishes are not getting dry enough (increase the amount).

Loading the Dishwasher 13

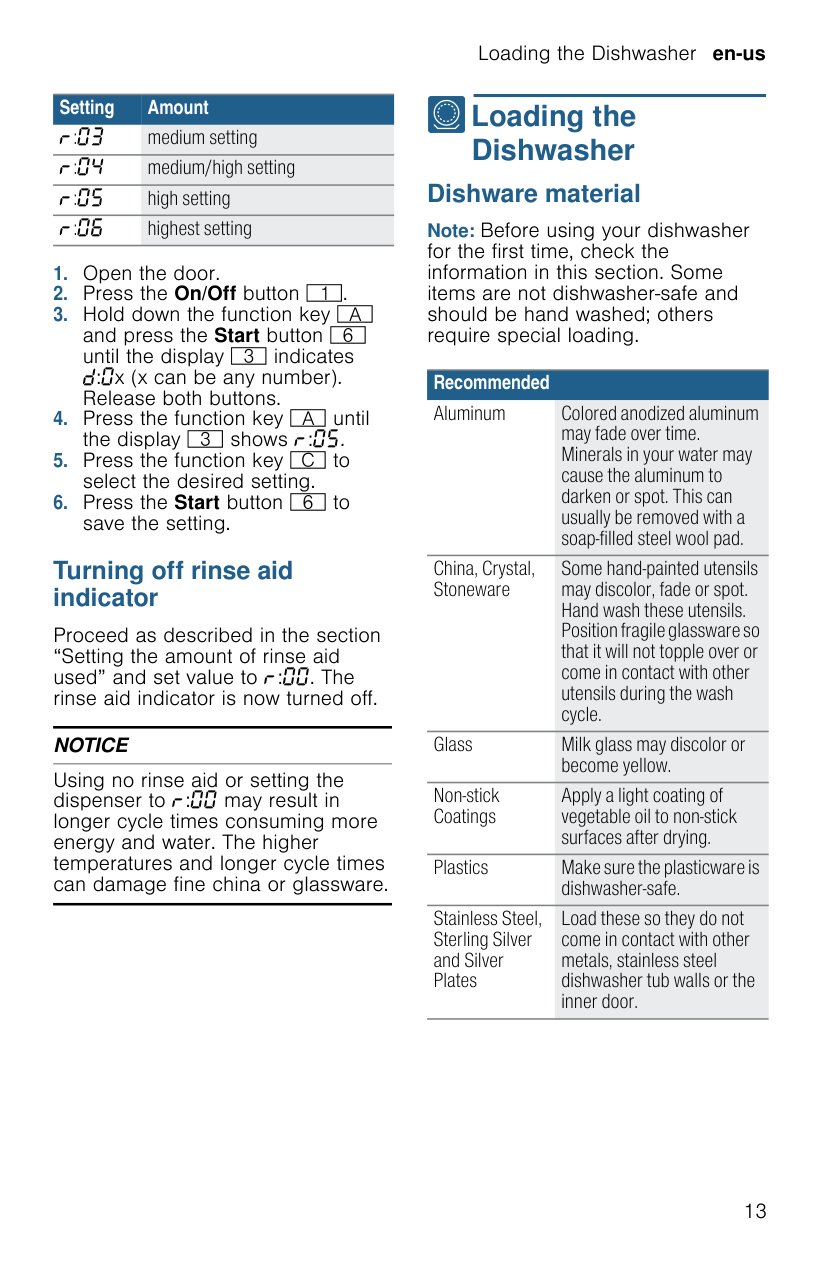

Turning off rinse aid indicator Proceed as described in the section "Setting the amount of rinse aid used" and set value to lowest setting. The rinse aid indicator is now turned off.

Notice

Loading the Dishwasher

Loading the Dishwasher Dishware material Note: Before using your dishwasher for the first time, check the information in this section. Some items are not dishwasher-safe and should be hand washed; others require special loading.

Medium setting Medium/high setting High setting Highest setting

Setting | Amount Recommended ---|--- Aluminum | Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed with a soap-filled steel wool pad. China, Crystal, Stoneware | Some hand-painted utensils may discolor, fade or spot. Hand wash these utensils. Position fragile glassware so that it will not topple over or come in contact with other utensils during the wash cycle. Glass | Milk glass may discolor or become yellow. Non-stick Coatings | Apply a light coating of vegetable oil to non-stick surfaces after drying. Plastics | Make sure the plasticware is dishwasher-safe. Stainless Steel, Sterling Silver and Silver Plates | Load these so they do not come in contact with other metals, stainless steel dishwasher tub walls or the inner door.

Loading the Dishwasher

Loading the racks For best dishwashing results, observe the following when loading the dishwasher: ■ Do not pre-wash items with loosely attached food soil. ■ Remove all food particles, bones, toothpicks and excessive grease. ■ Pre-treat items having burned-on, baked-on or starchy soils. ■ Load dishes in the dishwasher racks so the insides of bowls, pots and pans are facing the spray arms. ■ Avoid nesting and contact points between dishes. ■ Separate items of dissimilar metals. Use care to not block movement of the spray arms. ■ Only wash household dishware and kitchenware rated as dishwasher-safe. Refer to the Dishware Materials section for more information about dishware suitability.

Notice To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware.

Loading the upper rack Ensure items do not protrude through the bottom of the racks and block the spray arms. Note: When pushing the upper rack into the dishwasher, push it until it stops against the back of the tub so the upper rack spray arm connects to the water supply at the back of the tub. Do not push racks in using the door.

Loading the lower rack Place large items in the lower rack. Load pots, pans and bowls upside down. Do not block the vent hole with tall baking sheets. Load these items on the right side of the dishwasher.

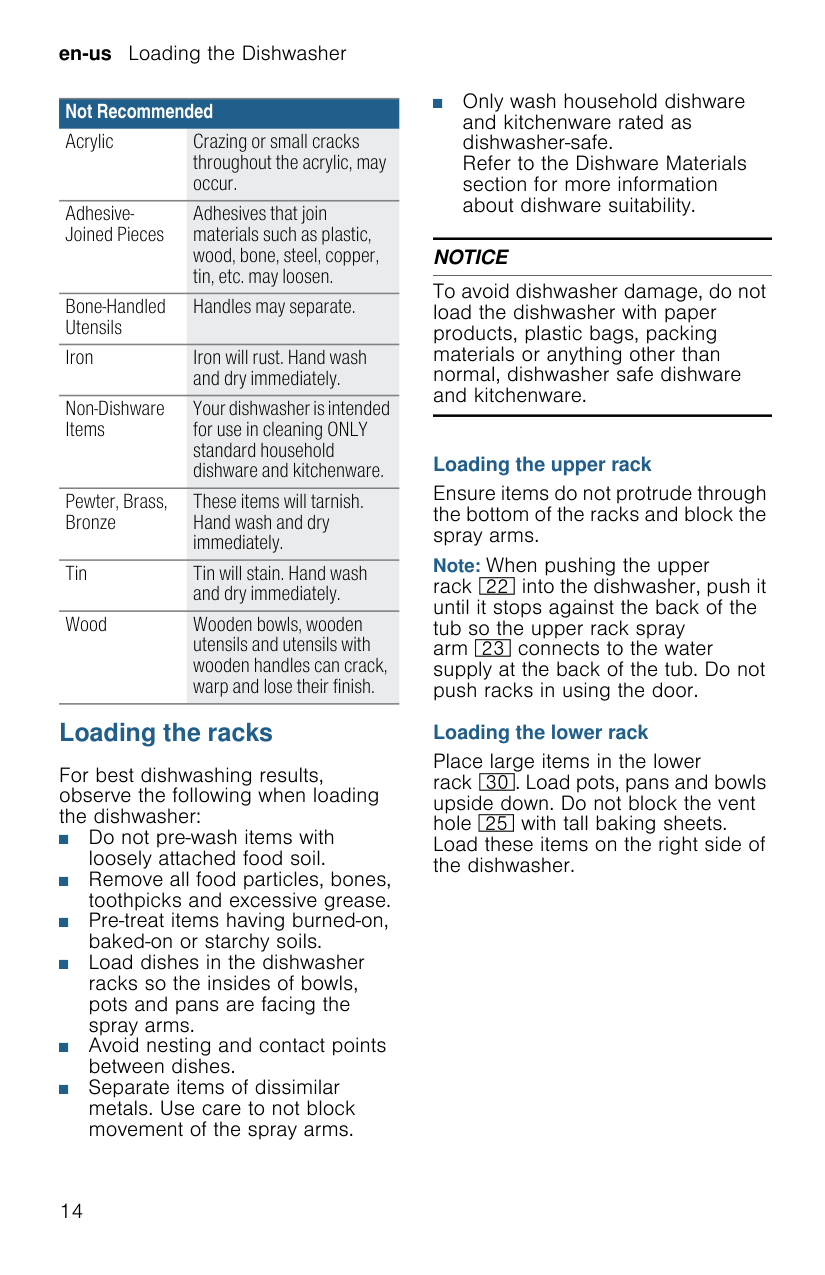

Not Recommended

Acrylic Crazing or small cracks throughout the acrylic, may occur.

Adhesive-Joined Pieces Adhesives that join materials such as plastic, wood, bone, steel, copper, tin, etc. may loosen.

Bone-Handled Utensils Handles may separate.

Iron Iron will rust. Hand wash and dry immediately.

Non-Dishware Items Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware.

Pewter, Brass, Bronze These items will tarnish. Hand wash and dry immediately.

Tin Tin will stain. Hand wash and dry immediately.

Wood Wooden bowls, wooden utensils and utensils with wooden handles can crack, warp and lose their finish.

Loading the Dishwasher

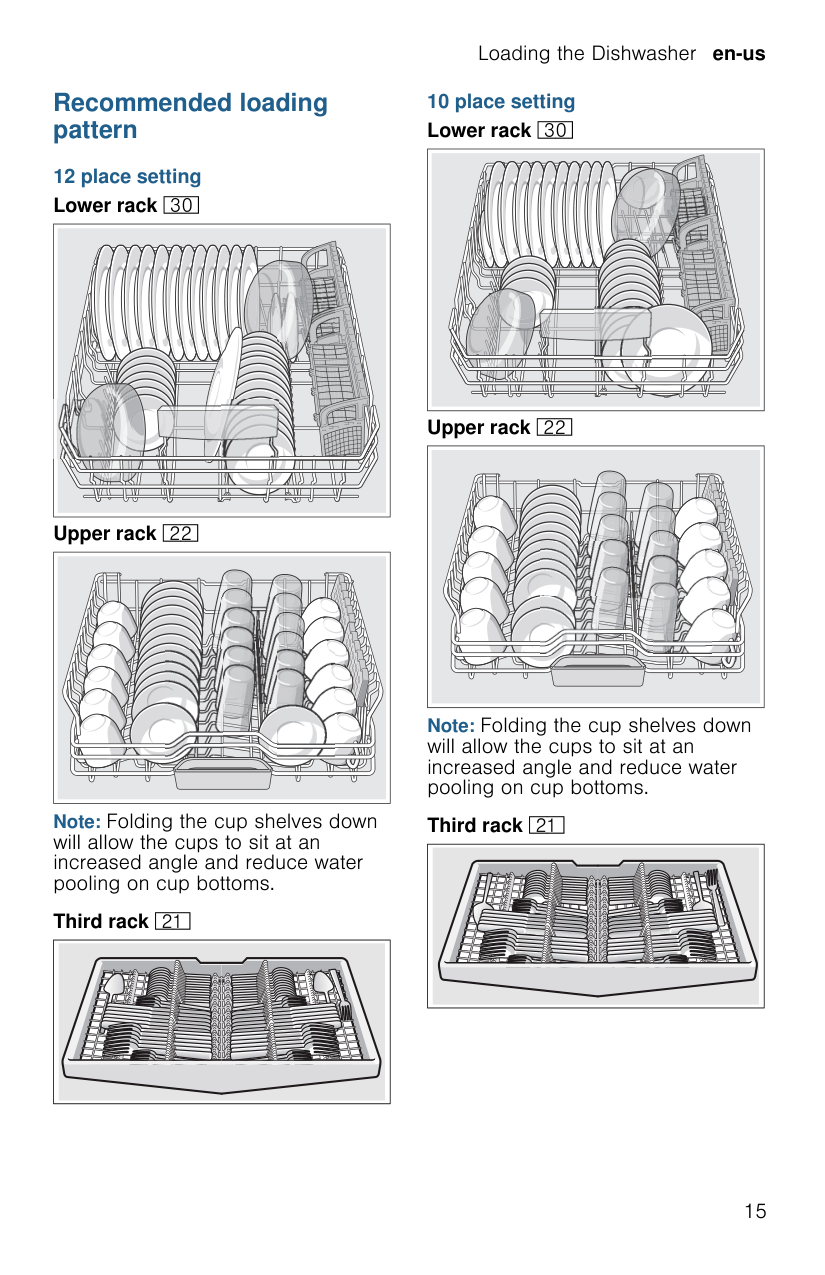

Recommended loading pattern

12 place setting Lower rack 9 Upper rack 12 Note: Folding the cup shelves down will allow the cups to sit at an increased angle and reduce water pooling on cup bottoms. Third rack 1

10 place setting Lower rack 9 Upper rack 12 Note: Folding the cup shelves down will allow the cups to sit at an increased angle and reduce water pooling on cup bottoms. Third rack 1

Loading the Dishwasher

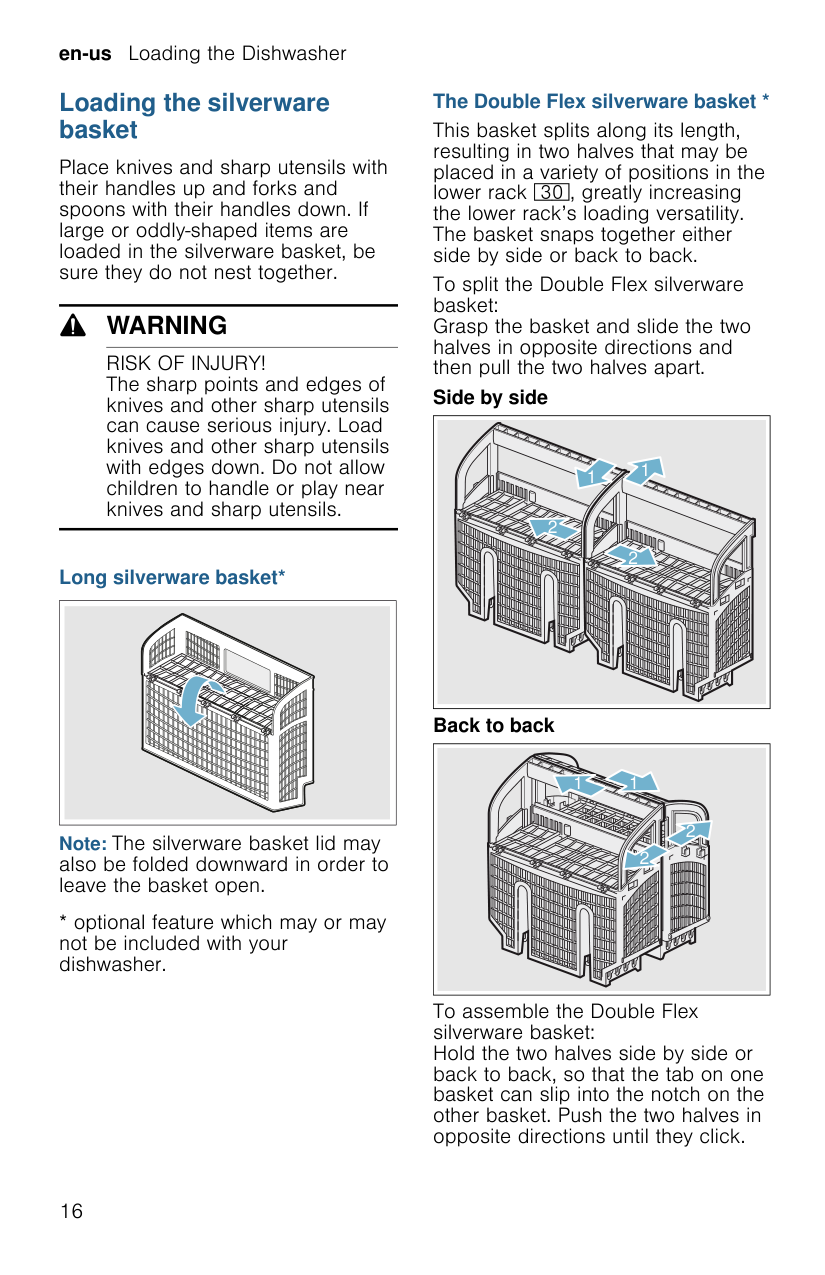

Loading the silverware basket

Place knives and sharp utensils with their handles up and forks and spoons with their handles down. If large or oddly-shaped items are loaded in the silverware basket, be sure they do not nest together.

Warning

Risk Of Injury!

The sharp points and edges of knives and other sharp utensils can cause serious injury. Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils.

Long silverware basket*

Note: The silverware basket lid may also be folded downward in order to leave the basket open.

The Double Flex silverware basket *

This basket splits along its length, resulting in two halves that may be placed in a variety of positions in the lower rack, greatly increasing the lower rack's loading versatility. The basket snaps together either side by side or back to back.

To split the Double Flex silverware basket:

Grasp the basket and slide the two halves in opposite directions and then pull the two halves apart.

Side by side Back to back

To assemble the Double Flex silverware basket:

Hold the two halves side by side or back to back, so that the tab on one basket can slip into the notch on the other basket. Push the two halves in opposite directions until they click.

Loading the Dishwasher

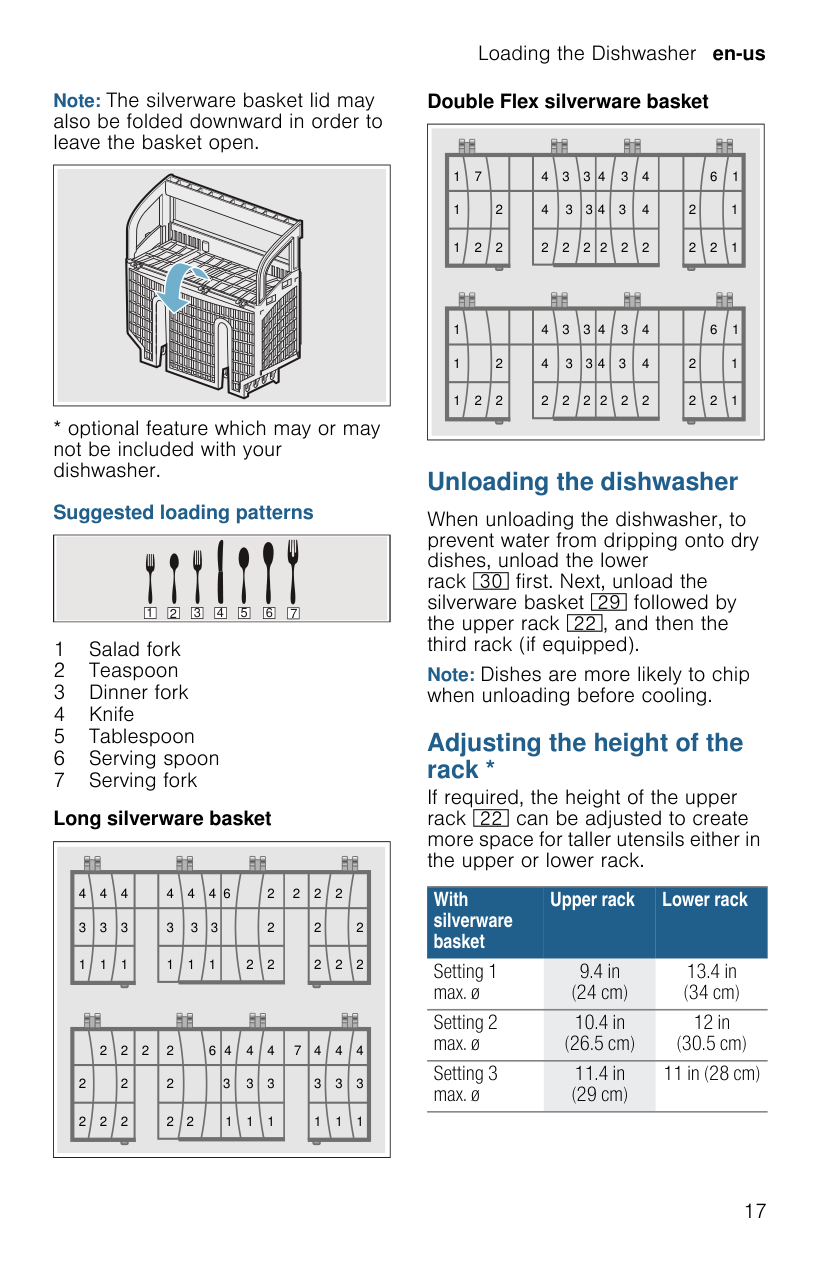

Note: The silverware basket lid may also be folded downward in order to leave the basket open.

Suggested loading patterns

Long silverware basket Double Flex silverware basket

Unloading the dishwasher

When unloading the dishwasher, to prevent water from dripping onto dry dishes, unload the lower rack first. Next, unload the silverware basket followed by the upper rack, and then the third rack (if equipped).

Note: Dishes are more likely to chip when unloading before cooling.

Adjusting the height of the rack *

If required, the height of the upper rack can be adjusted to create more space for taller utensils either in the upper or lower rack.

1 Salad fork 2 Teaspoon 3 Dinner fork 4 Knife 5 Tablespoon 6 Serving spoon 7 Serving fork

With silverware basket Upper rack Lower rack

Setting 1 max. ø 9.4 in (24 cm) 13.4 in (34 cm)

Setting 2 max. ø 10.4 in (26.5 cm) 12 in (30.5 cm)

Setting 3 max. ø 11.4 in (29 cm) 11 in (28 cm)

Loading the Dishwasher

Arrange large plates up to a diameter of 13.4 in (34 cm) in the lower basket as illustrated.

RackMatic®*

The height of the upper rack can be adjusted in 3 steps to create more space.

Note: Check spray arm for clearance after adjustment.

Manually adjustable upper rack*

Note: This feature is available for racks with 5 wheels per side, not racks with 3 wheels per side.

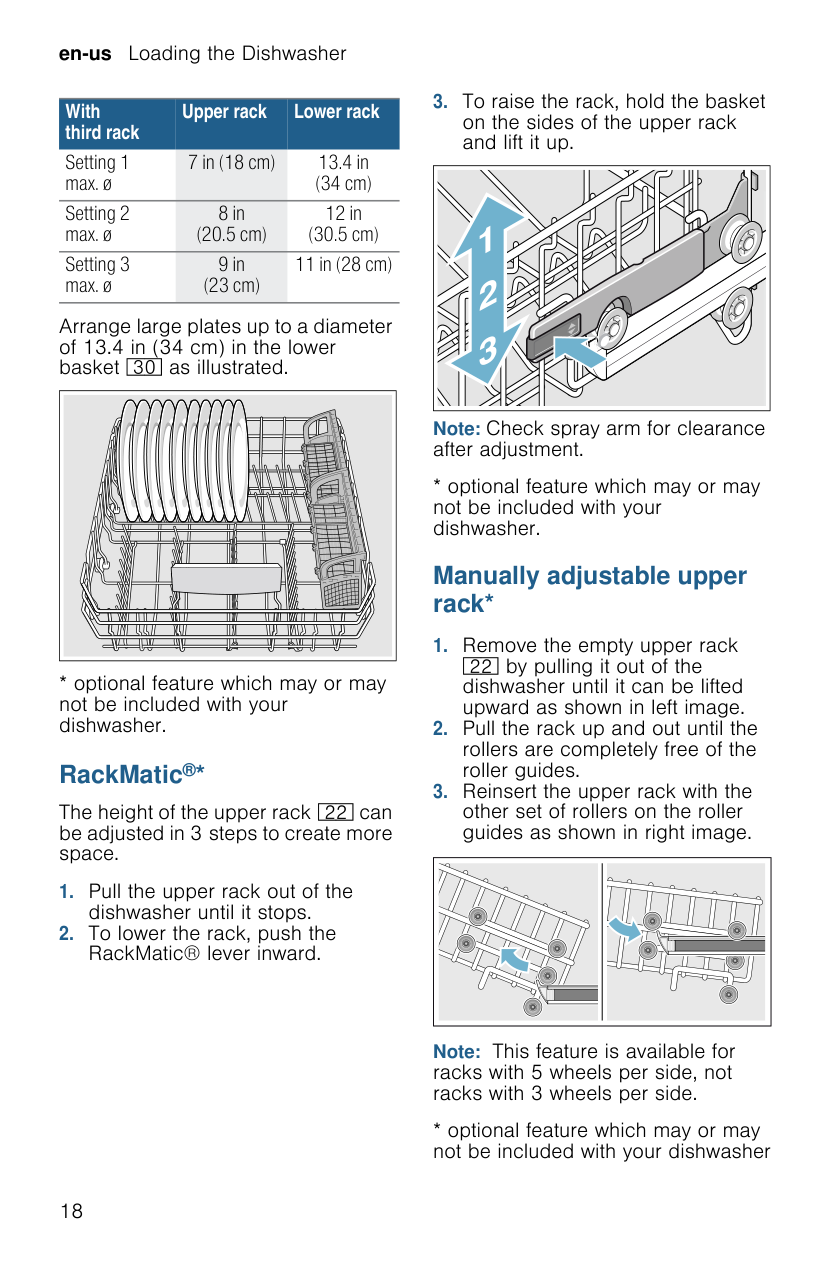

With third rack | Upper rack | Lower rack Setting 1 | max. ø 7 in (18 cm) | 13.4 in (34 cm) Setting 2 | max. ø 8 in (20.5 cm) | 12 in (30.5 cm) Setting 3 | max. ø 9 in (23 cm) | 11 in (28 cm)

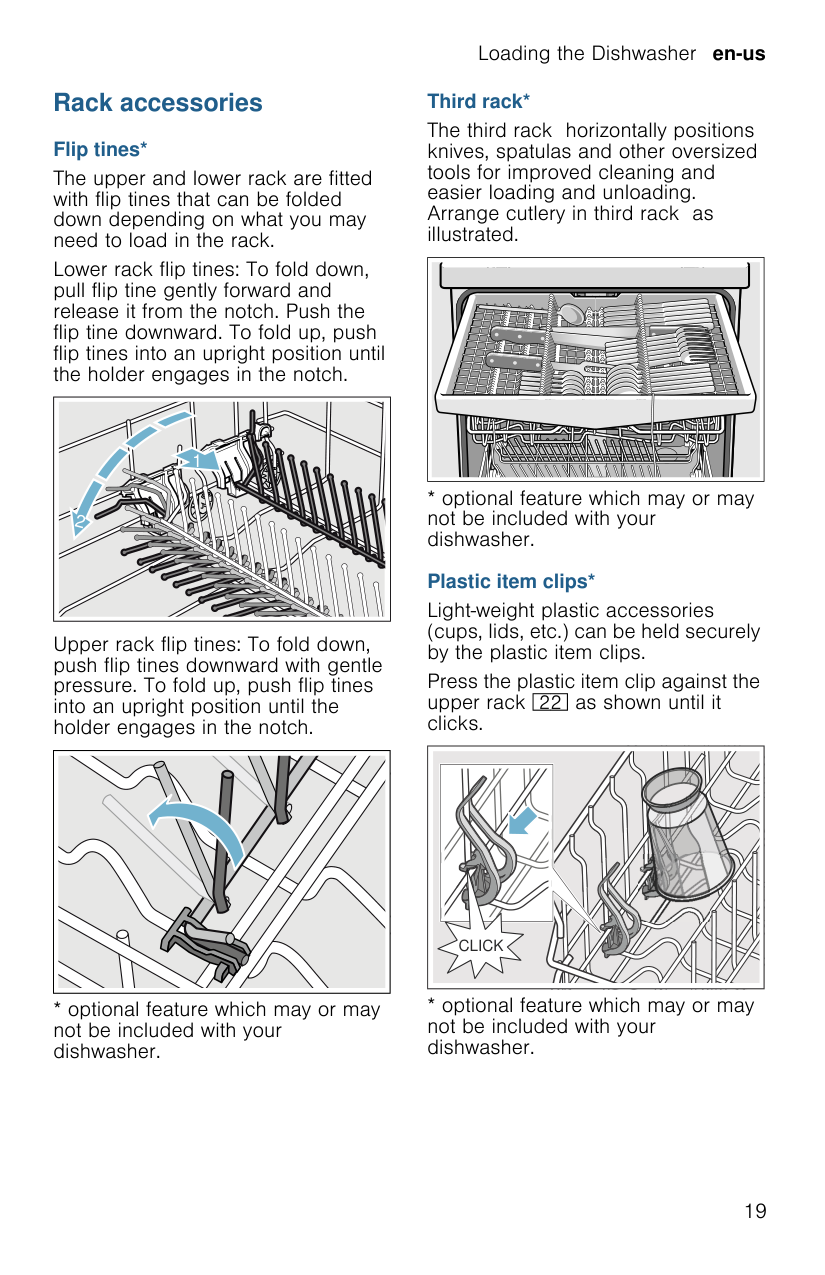

Loading the Dishwasher 19 Rack accessories Flip tines* The upper and lower rack are fitted with flip tines that can be folded down depending on what you may need to load in the rack. Lower rack flip tines: To fold down, pull flip tine gently forward and release it from the notch. Push the flip tine downward. To fold up, push flip tines into an upright position until the holder engages in the notch. Upper rack flip tines: To fold down, push flip tines downward with gentle pressure. To fold up, push flip tines into an upright position until the holder engages in the notch.

Loading the Dishwasher

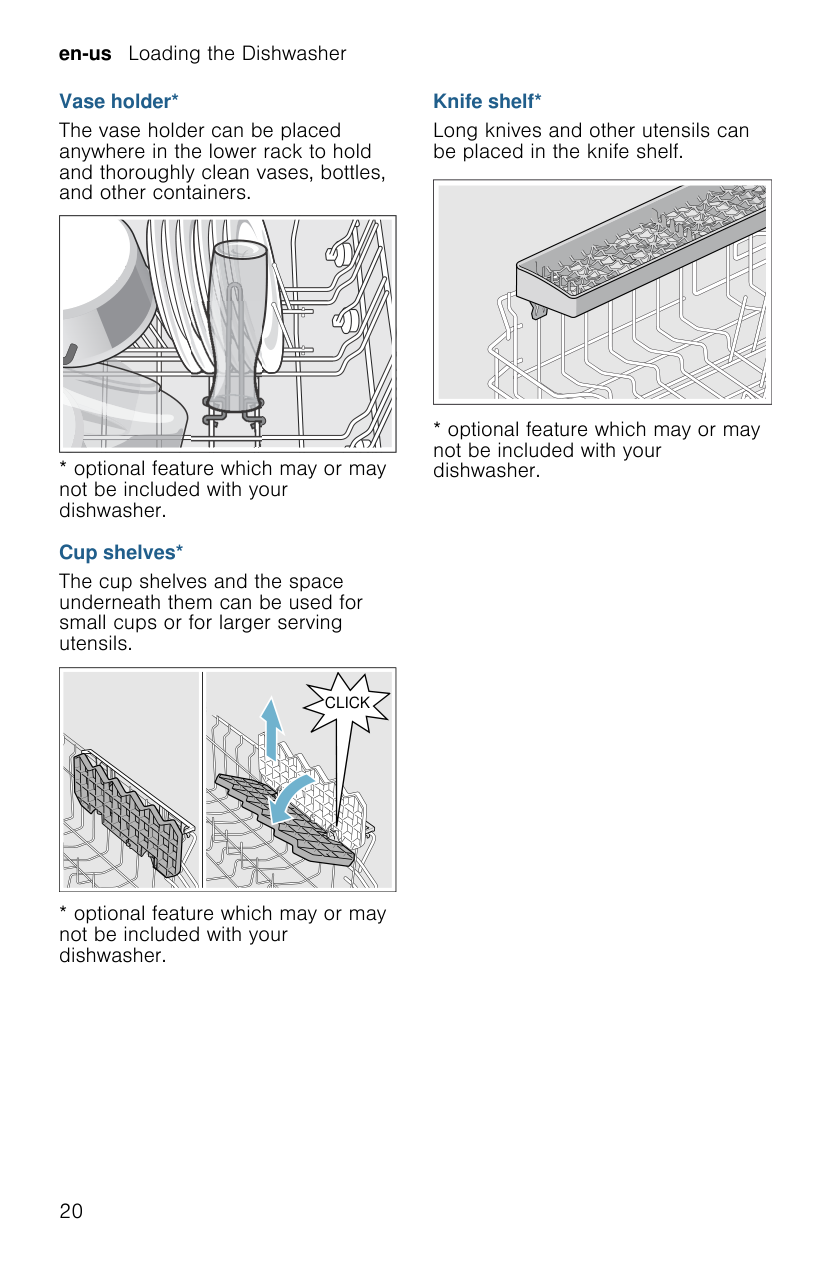

Vase holder* The vase holder can be placed anywhere in the lower rack to hold and thoroughly clean vases, bottles, and other containers.

Cup shelves* The cup shelves and the space underneath them can be used for small cups or for larger serving utensils.

Knife shelf* Long knives and other utensils can be placed in the knife shelf.

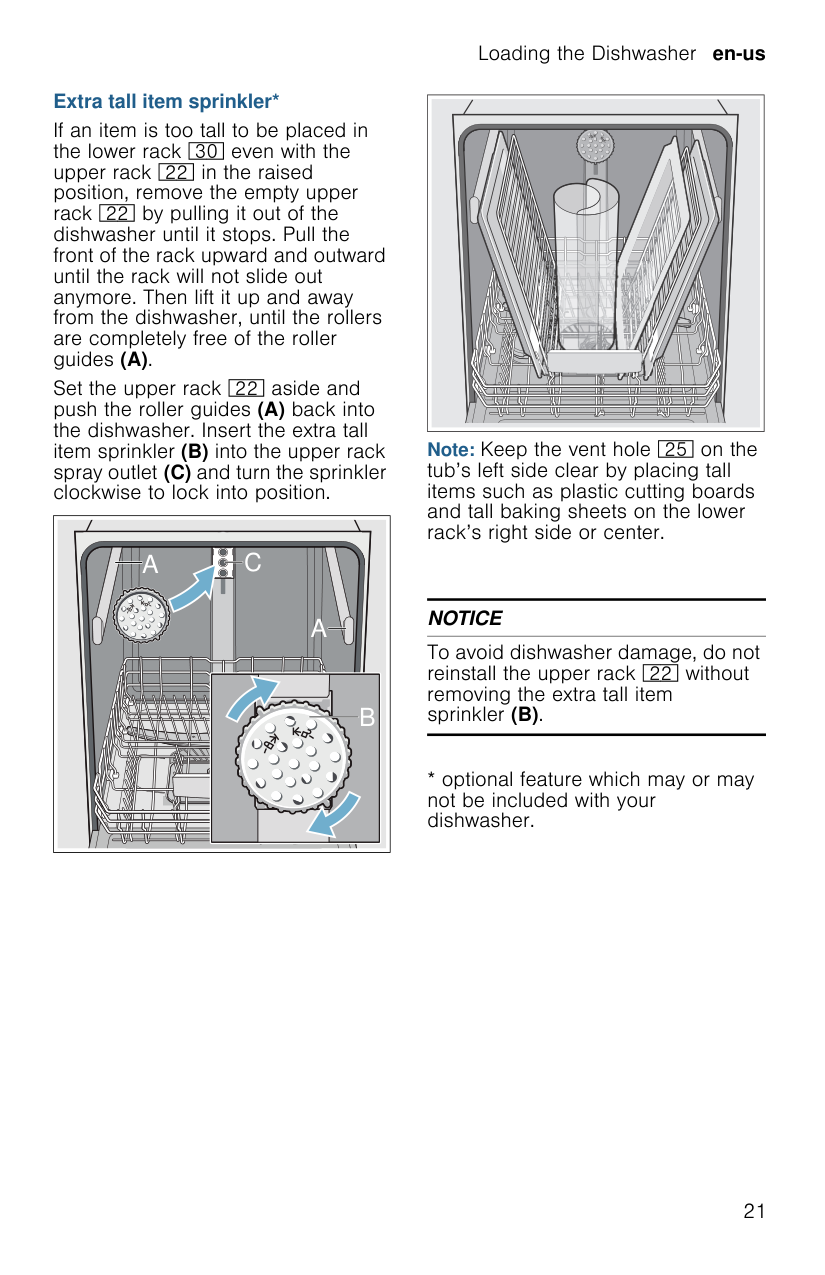

Loading the Dishwasher 21 Extra tall item sprinkler* If an item is too tall to be placed in the lower rack 9" even with the upper rack 12 in the raised position, remove the empty upper rack 12 by pulling it out of the dishwasher until it stops. Pull the front of the rack upward and outward until the rack will not slide out anymore. Then lift it up and away from the dishwasher, until the rollers are completely free of the roller guides (A). Set the upper rack 12 aside and push the roller guides (A) back into the dishwasher. Insert the extra tall item sprinkler (B) into the upper rack spray outlet (C) and turn the sprinkler clockwise to lock into position. Note: Keep the vent hole 1J on the tub's left side clear by placing tall items such as plastic cutting boards and tall baking sheets on the lower rack's right side or center.

Notice

Loading the Dishwasher

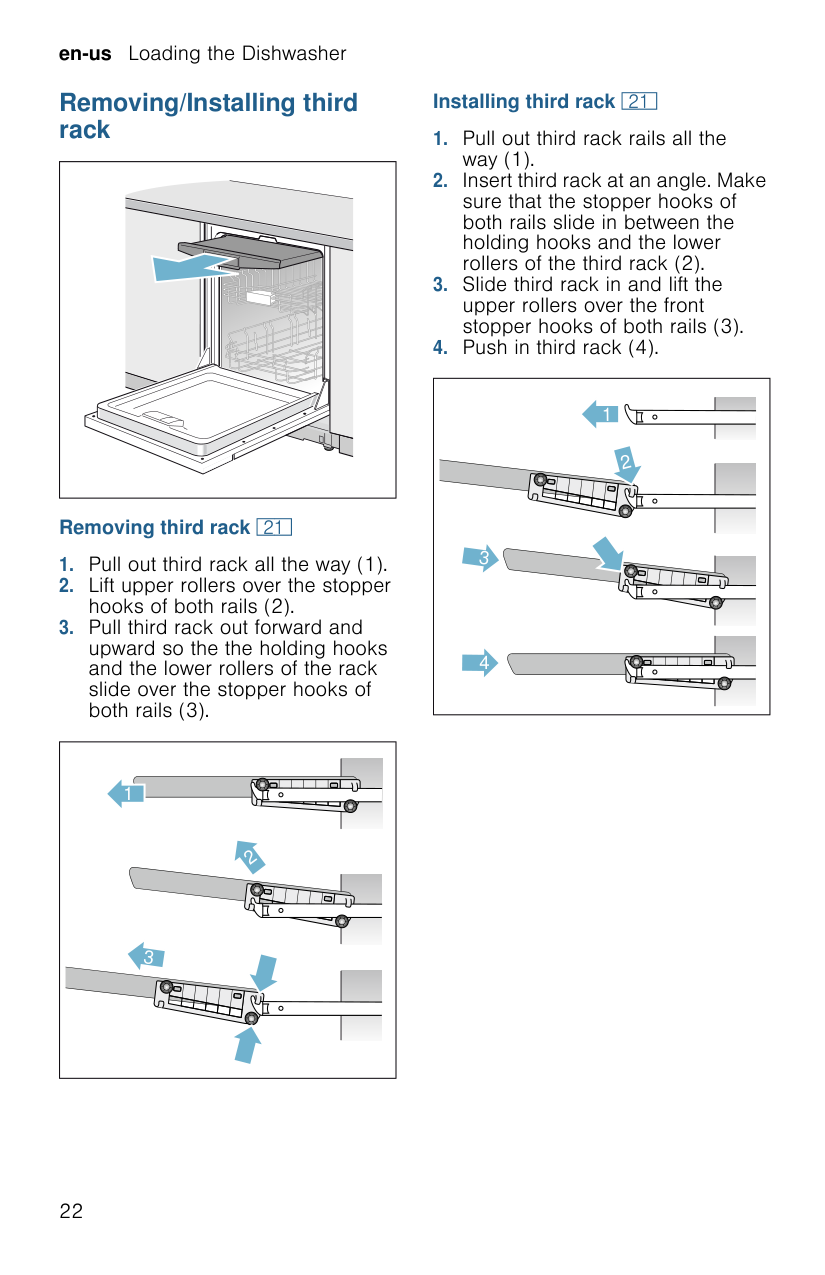

Removing/Installing third rack

Removing third rack 1*

Installing third rack 1*

Loading the Dishwasher

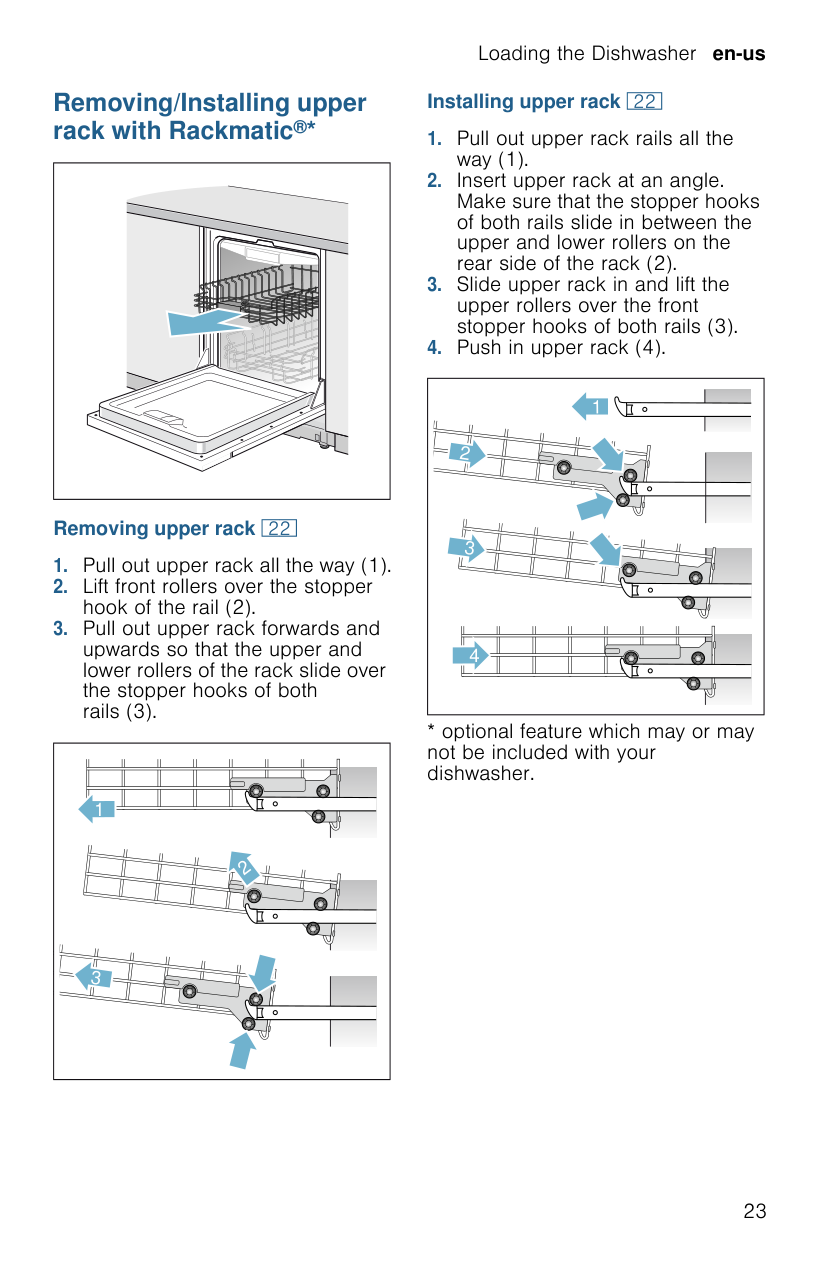

Removing/Installing upper rack with Rackmatic®*

Removing upper rack

Installing upper rack

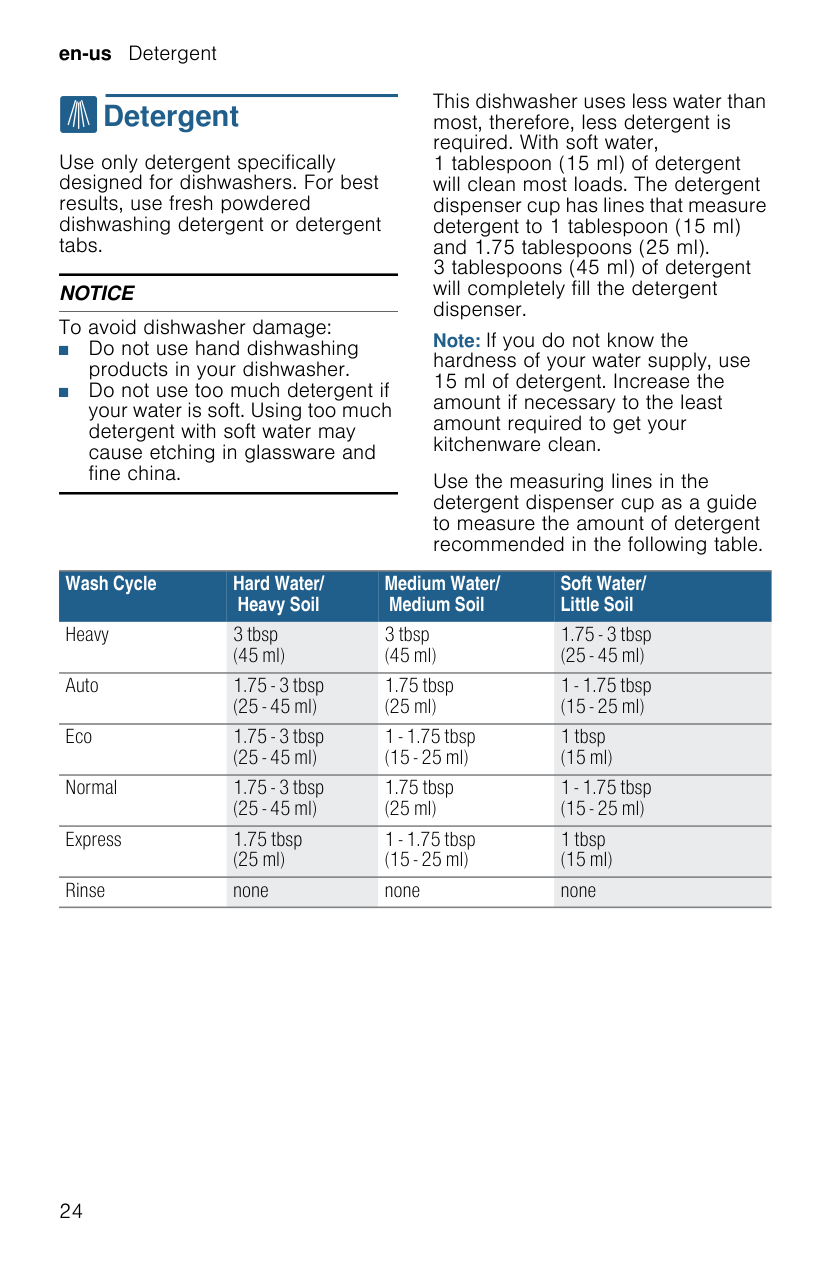

Detergent

Use only detergent specifically designed for dishwashers. For best results, use fresh powdered dishwashing detergent or detergent tabs.

Notice

To avoid dishwasher damage: ■ Do not use hand dishwashing products in your dishwasher. ■ Do not use too much detergent if your water is soft. Using too much detergent with soft water may cause etching in glassware and fine china.

This dishwasher uses less water than most, therefore, less detergent is required. With soft water, 1 tablespoon (15 ml) of detergent will clean most loads. The detergent dispenser cup has lines that measure detergent to 1 tablespoon (15 ml) and 1.75 tablespoons (25 ml). 3 tablespoons (45 ml) of detergent will completely fill the detergent dispenser.

Note: If you do not know the hardness of your water supply, use 15 ml of detergent. Increase the amount if necessary to the least amount required to get your kitchenware clean.

Use the measuring lines in the detergent dispenser cup as a guide to measure the amount of detergent recommended in the following table.

| Wash Cycle | Hard Water/Heavy Soil | Medium Water/Medium Soil | Soft Water/Little Soil | |---|---|---|---| | Heavy | 3 tbsp (45 ml) | 3 tbsp (45 ml) | 1.75 - 3 tbsp (25 - 45 ml) | | Auto | 1.75 - 3 tbsp (25 - 45 ml) | 1.75 tbsp (25 ml) | 1 - 1.75 tbsp (15 - 25 ml) | | Eco | 1.75 - 3 tbsp (25 - 45 ml) | 1 - 1.75 tbsp (15 - 25 ml) | 1 tbsp (15 ml) | | Normal | 1.75 - 3 tbsp (25 - 45 ml) | 1.75 tbsp (25 ml) | 1 - 1.75 tbsp (15 - 25 ml) | | Express | 1.75 tbsp (25 ml) | 1 - 1.75 tbsp (15 - 25 ml) | 1 tbsp (15 ml) | | Rinse | none | none | none |

Detergent

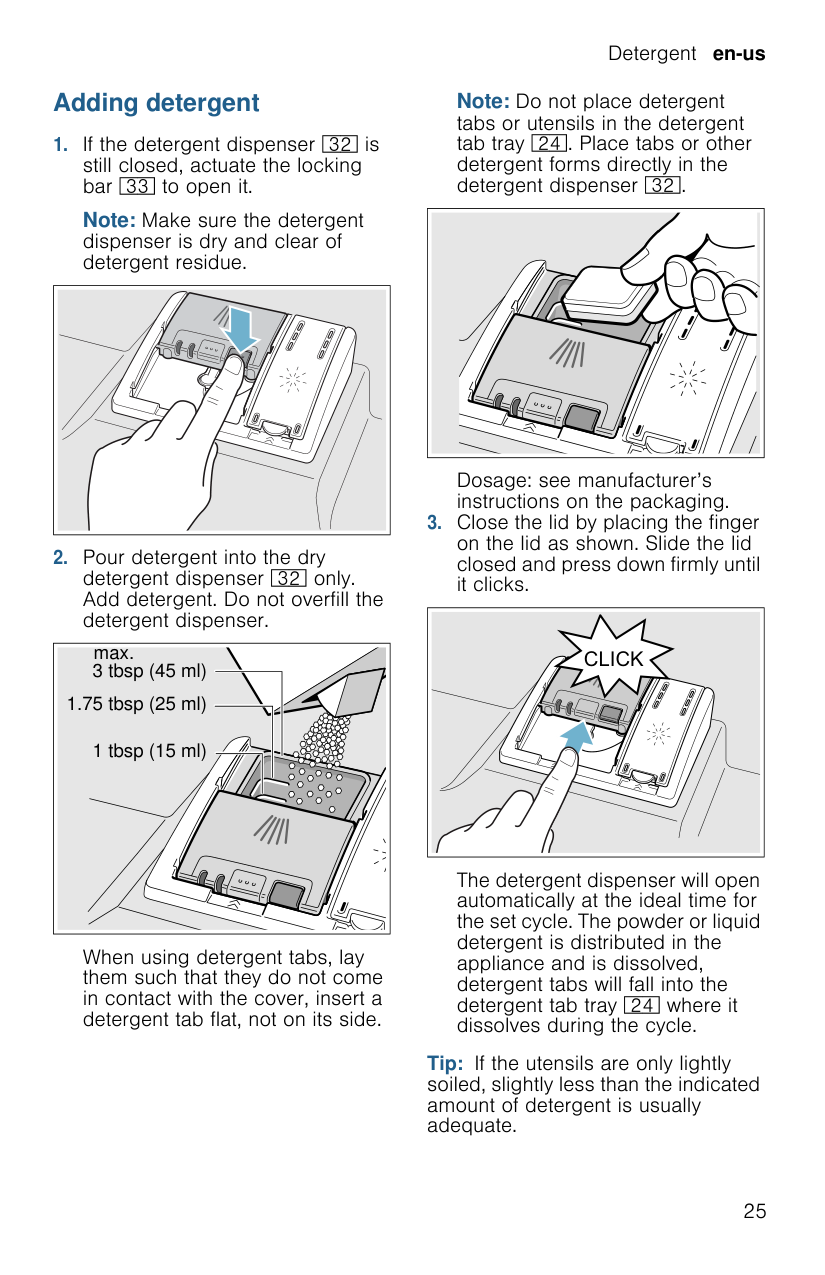

Adding detergent

Tip: If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

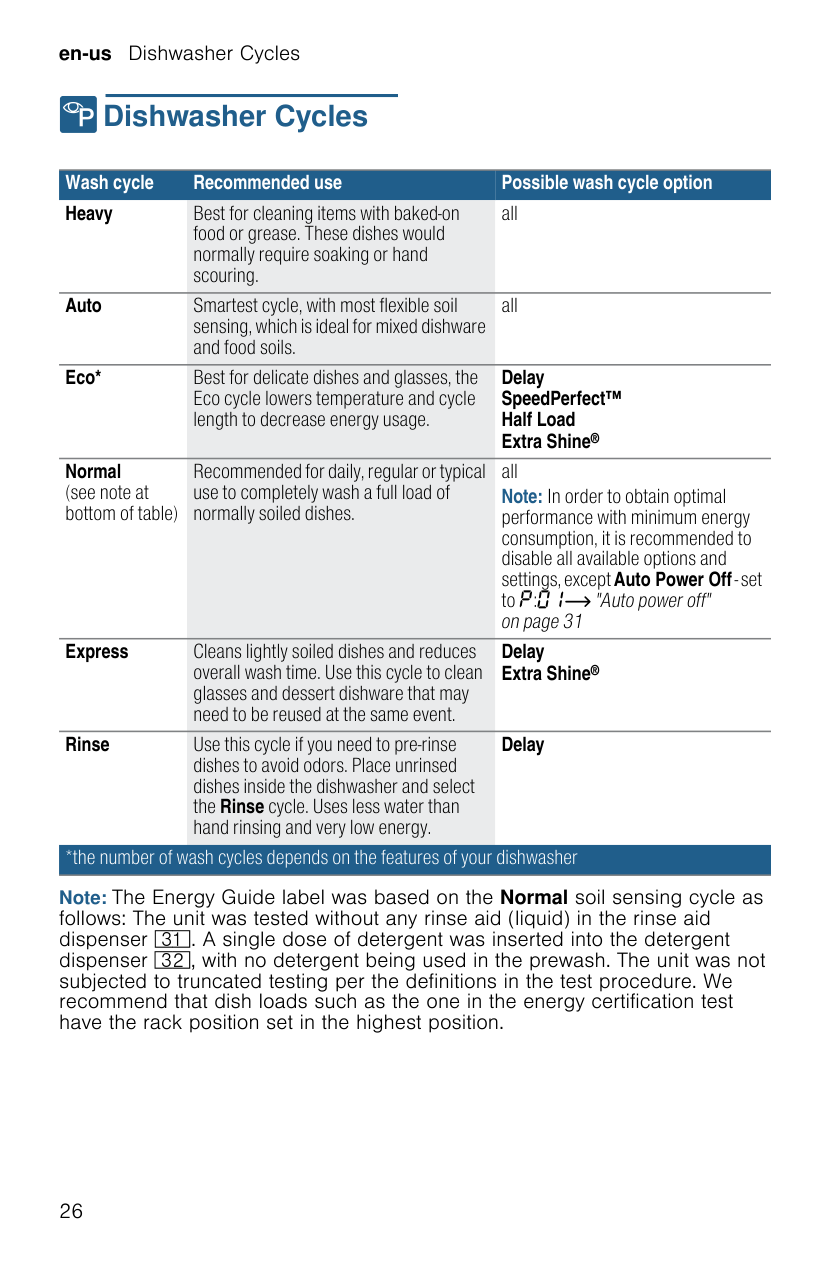

Dishwasher Cycles

Dishwasher Cycles

Note: The Energy Guide label was based on the Normal soil sensing cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser 9*. A single dose of detergent was inserted into the detergent dispenser 92, with no detergent being used in the prewash. The unit was not subjected to truncated testing per the definitions in the test procedure. We recommend that dish loads such as the one in the energy certification test have the rack position set in the highest position.

Wash cycle Recommended use Possible wash cycle option Heavy Best for cleaning items with baked-on food or grease. These dishes would normally require soaking or hand scouring. all Auto Smartest cycle, with most flexible soil sensing, which is ideal for mixed dishware and food soils. all Eco* Best for delicate dishes and glasses, the Eco cycle lowers temperature and cycle length to decrease energy usage. Delay SpeedPerfect™ Half Load Extra Shine® Normal (see note at bottom of table) Recommended for daily, regular or typical use to completely wash a full load of normally soiled dishes. all Note: In order to obtain optimal performance with minimum energy consumption, it is recommended to disable all available options and settings, except Auto Power Off - set to "Auto power off" on page 31 Express Cleans lightly soiled dishes and reduces overall wash time. Use this cycle to clean glasses and dessert dishware that may need to be reused at the same event. Delay Extra Shine® Rinse Use this cycle if you need to pre-rinse dishes to avoid odors. Place unrinsed dishes inside the dishwasher and select the Rinse cycle. Uses less water than hand rinsing and very low energy. Delay

*the number of wash cycles depends on the features of your dishwasher

Dishwasher Cycle Options

27

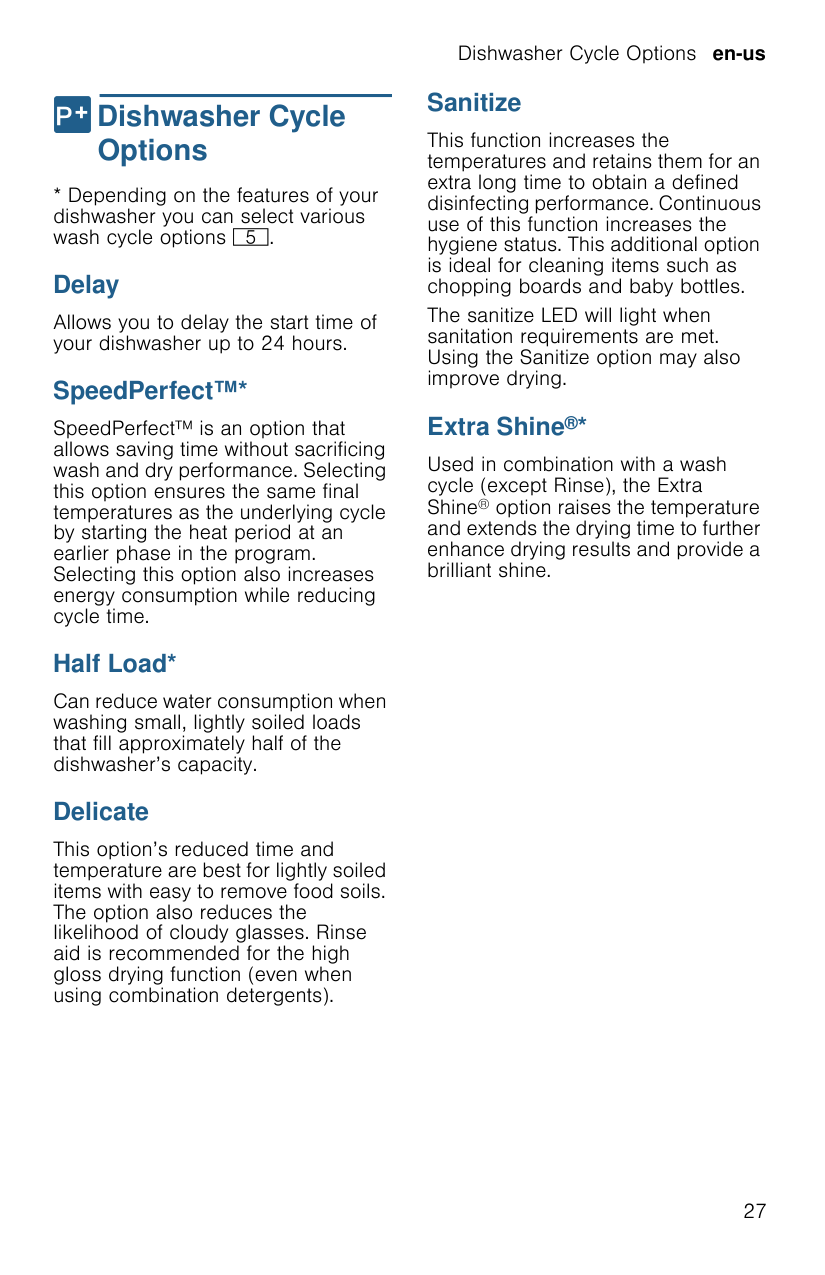

Dishwasher Cycle Options

Dishwasher Cycle Options * Depending on the features of your dishwasher you can select various wash cycle options H.

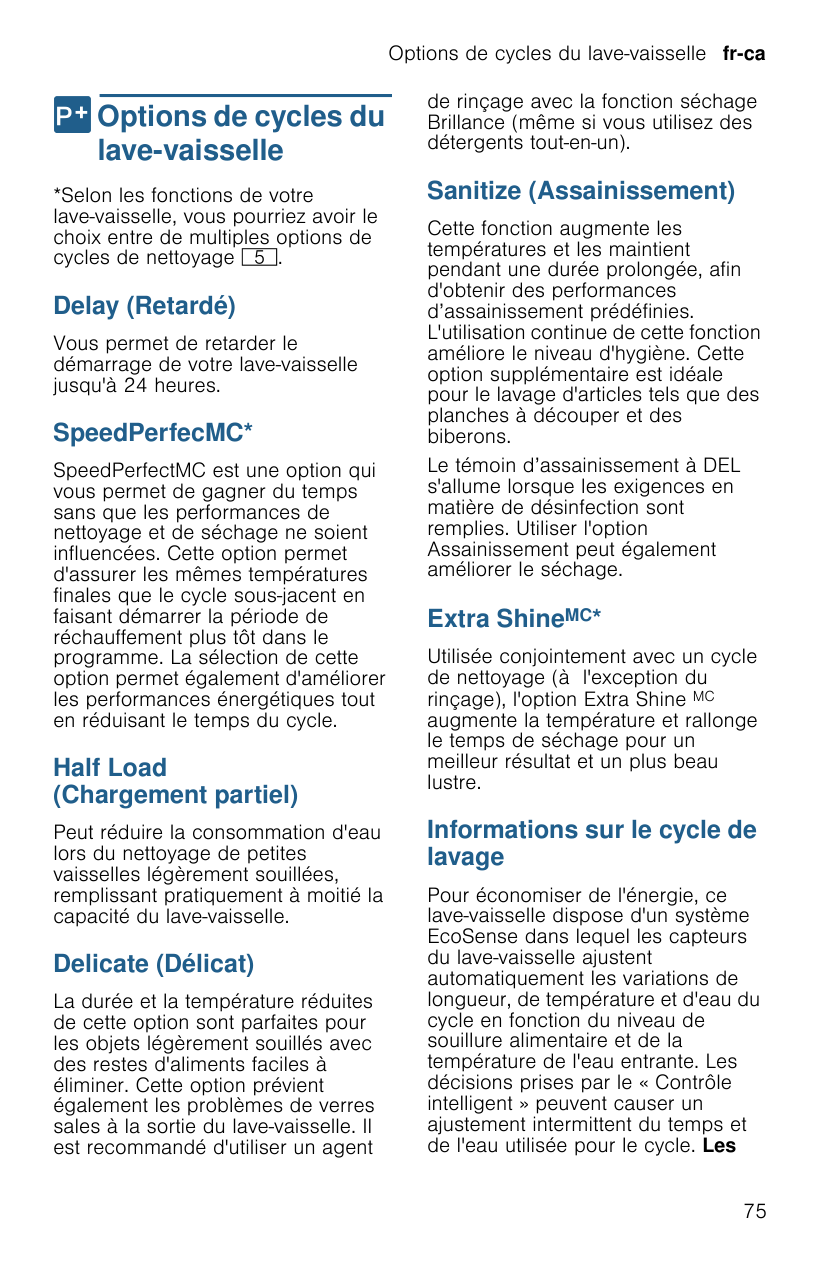

Delay

Allows you to delay the start time of your dishwasher up to 24 hours.

SpeedPerfect™*

SpeedPerfect™ is an option that allows saving time without sacrificing wash and dry performance. Selecting this option ensures the same final temperatures as the underlying cycle by starting the heat period at an earlier phase in the program. Selecting this option also increases energy consumption while reducing cycle time.

Half Load*

Can reduce water consumption when washing small, lightly soiled loads that fill approximately half of the dishwasher's capacity.

Delicate

This option's reduced time and temperature are best for lightly soiled items with easy to remove food soils. The option also reduces the likelihood of cloudy glasses. Rinse aid is recommended for the high gloss drying function (even when using combination detergents).

Sanitize

This function increases the temperatures and retains them for an extra long time to obtain a defined disinfecting performance. Continuous use of this function increases the hygiene status. This additional option is ideal for cleaning items such as chopping boards and baby bottles. The sanitize LED will light when sanitation requirements are met. Using the Sanitize option may also improve drying.

Extra Shine®*

Used in combination with a wash cycle (except Rinse), the Extra Shine® option raises the temperature and extends the drying time to further enhance drying results and provide a brilliant shine.

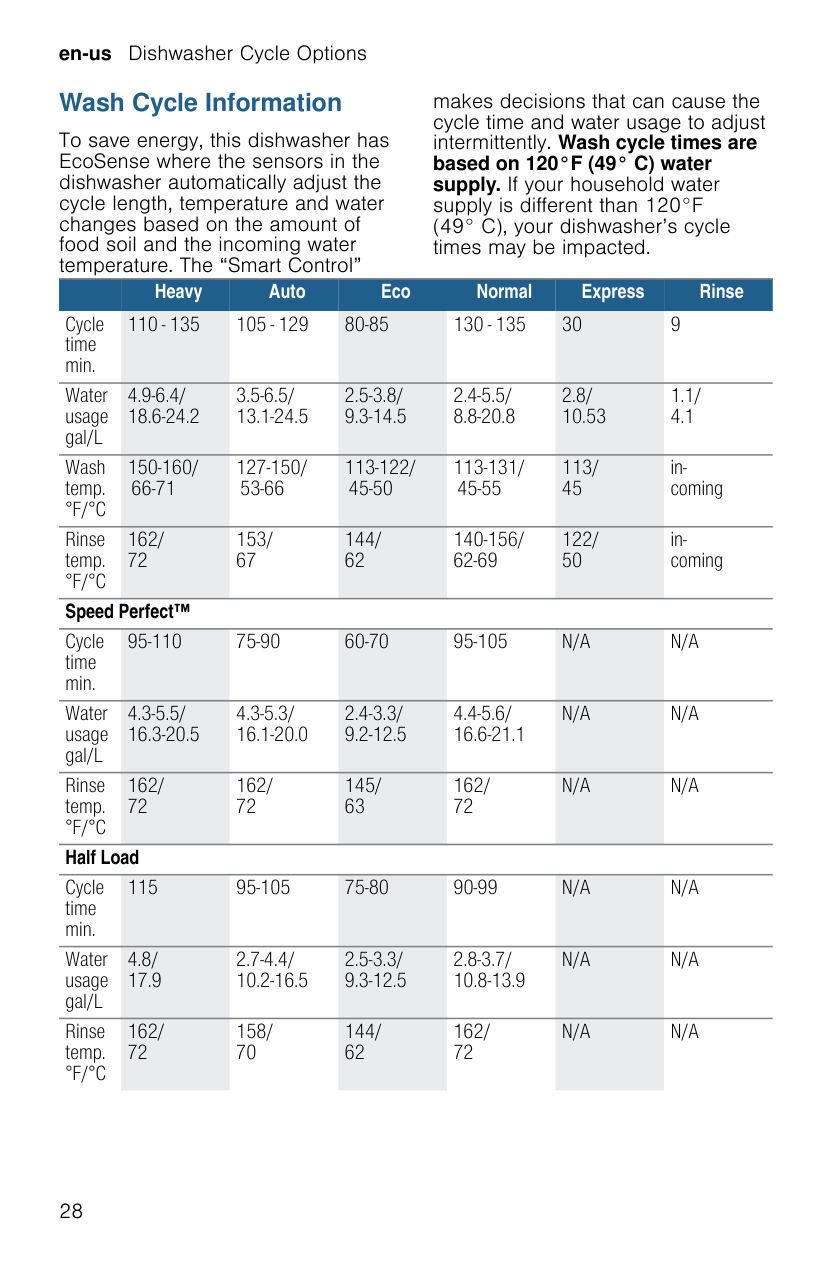

Dishwasher Cycle Options 28 Wash Cycle Information To save energy, this dishwasher has EcoSense where the sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the amount of food soil and the incoming water temperature. The "Smart Control" makes decisions that can cause the cycle time and water usage to adjust intermittently. Wash cycle times are based on 120°F (49° C) water supply. If your household water supply is different than 120°F (49° C), your dishwasher's cycle times may be impacted. Heavy Auto Eco Normal Express Rinse Cycle time min. 110 - 135 105 - 129 80-85 130 - 135 30 9 Water usage gal/L 4.9-6.4/ 18.6-24.2 3.5-6.5/ 13.1-24.5 2.5-3.8/ 9.3-14.5 2.4-5.5/ 8.8-20.8 2.8/ 10.53 1.1/ 4.1 Wash temp. °F/°C 150-160/ 66-71 127-150/ 53-66 113-122/ 45-50 113-131/ 45-55 113/ 45 in- coming Rinse temp. °F/°C 162/ 72 153/ 67 144/ 62 140-156/ 62-69 122/ 50 in- coming Speed Perfect™ Cycle time min. 95-110 75-90 60-70 95-105 Water usage gal/L 4.3-5.5/ 16.3-20.5 4.3-5.3/ 16.1-20.0 2.4-3.3/ 9.2-12.5 4.4-5.6/ 16.6-21.1 Rinse temp. °F/°C 162/ 72 162/ 72 145/ 63 162/ 72 Half Load Cycle time min. 115 95-105 75-80 90-99 Water usage gal/L 4.8/ 17.9 2.7-4.4/ 10.2-16.5 2.5-3.3/ 9.3-12.5 2.8-3.7/ 10.8-13.9 Rinse temp. °F/°C 162/ 72 158/ 70 144/ 62 162/ 72

Dishwasher Cycle Options

Note: Only sanitizing cycles have been designed to meet the requirements of Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, to imply that all cycles have passed sanitization performance tests.

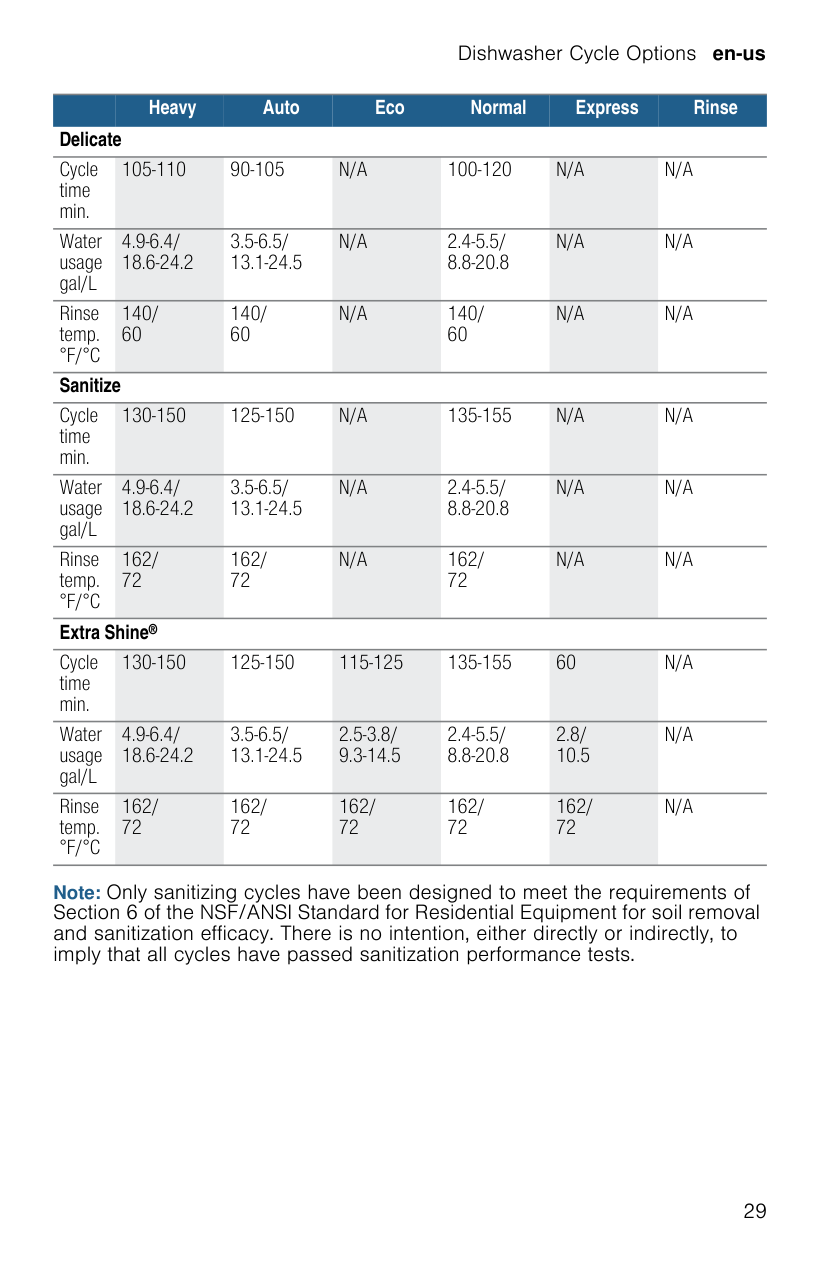

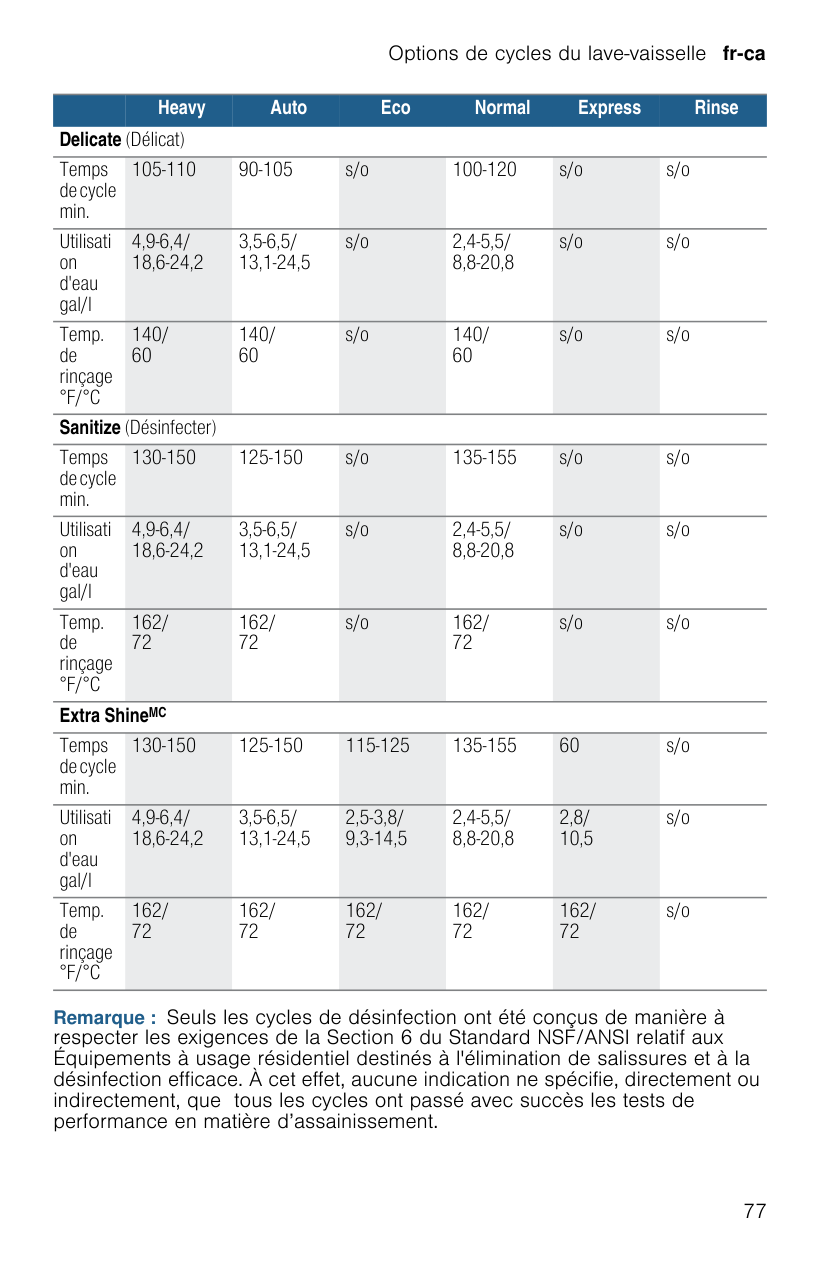

| Cycle | Delicate | Sanitize | Extra Shine® | |-------|----------|----------|--------------| | | Cycle time (min.) | Cycle time (min.) | Cycle time (min.) | | Heavy | 105-110 | 130-150 | 130-150 | | Auto | 90-105 | 125-150 | 125-150 | | Eco | N/A | N/A | 115-125 | | Normal | 100-120 | 135-155 | 135-155 | | Express | N/A | N/A | 60 | | Rinse | N/A | N/A | N/A | | | Water usage (gal/L) | Water usage (gal/L) | Water usage (gal/L) | | Heavy | 4.9-6.4/18.6-24.2 | 4.9-6.4/18.6-24.2 | 4.9-6.4/18.6-24.2 | | Auto | 3.5-6.5/13.1-24.5 | 3.5-6.5/13.1-24.5 | 3.5-6.5/13.1-24.5 | | Eco | N/A | N/A | 2.5-3.8/9.3-14.5 | | Normal | 2.4-5.5/8.8-20.8 | 2.4-5.5/8.8-20.8 | 2.4-5.5/8.8-20.8 | | Express | N/A | N/A | 2.8/10.5 | | Rinse | N/A | N/A | N/A | | | Rinse temp. (°F/°C) | Rinse temp. (°F/°C) | Rinse temp. (°F/°C) | | Heavy | 140/60 | 162/72 | 162/72 | | Auto | 140/60 | 162/72 | 162/72 | | Eco | N/A | N/A | 162/72 | | Normal | 140/60 | 162/72 | 162/72 | | Express | N/A | N/A | 162/72 | | Rinse | N/A | N/A | N/A |

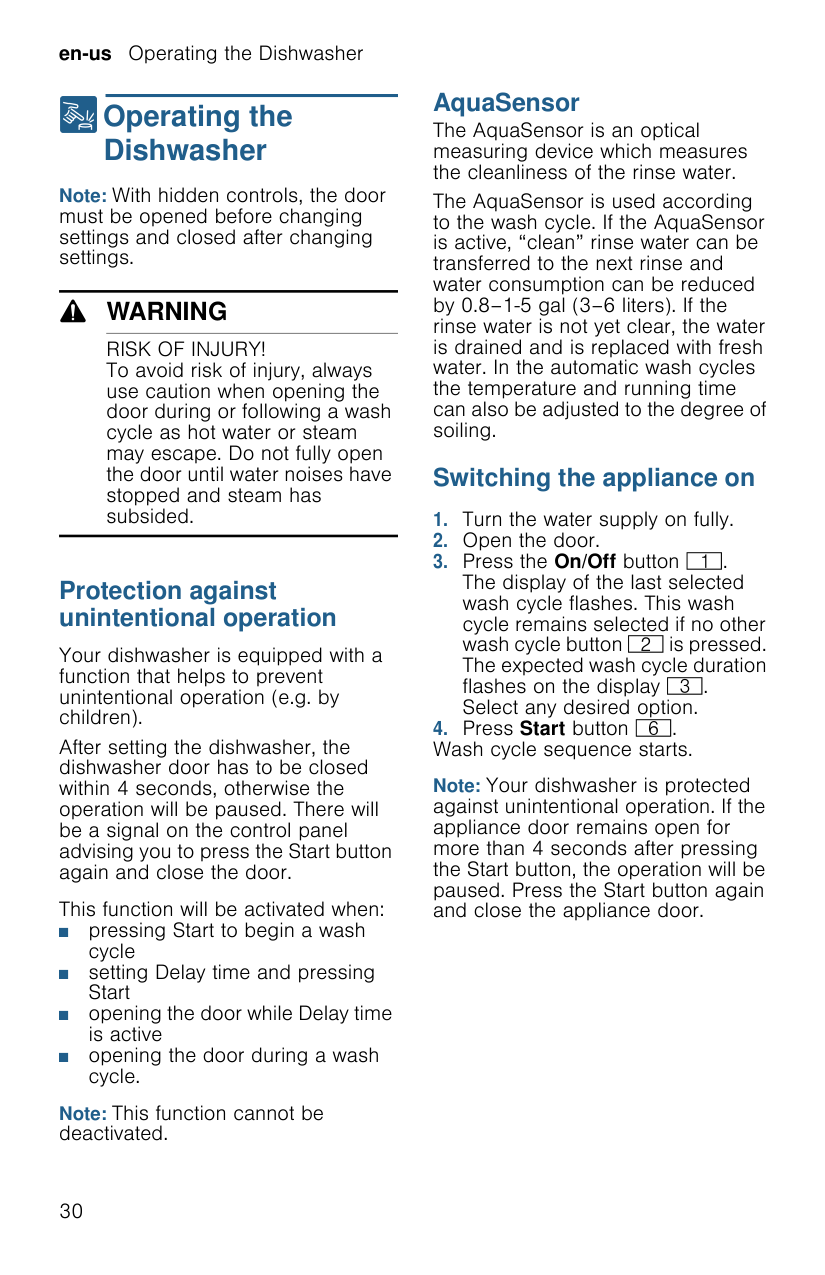

Operating the Dishwasher 30 1 Operating the Dishwasher Operating the Dishwasher Note: With hidden controls, the door must be opened before changing settings and closed after changing settings.

Warning

Risk Of Injury!

To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.

Protection against unintentional operation

Your dishwasher is equipped with a function that helps to prevent unintentional operation (e.g. by children).

After setting the dishwasher, the dishwasher door has to be closed within 4 seconds, otherwise the operation will be paused. There will be a signal on the control panel advising you to press the Start button again and close the door.

This function will be activated when: ■ pressing Start to begin a wash cycle ■ setting Delay time and pressing Start ■ opening the door while Delay time is active ■ opening the door during a wash cycle.

Note: This function cannot be deactivated.

AquaSensor

The AquaSensor is an optical measuring device which measures the cleanliness of the rinse water. The AquaSensor is used according to the wash cycle. If the AquaSensor is active, "clean" rinse water can be transferred to the next rinse and water consumption can be reduced by 0.8–1.5 gal (3–6 liters). If the rinse water is not yet clear, the water is drained and is replaced with fresh water. In the automatic wash cycles the temperature and running time can also be adjusted to the degree of soiling.

Switching the appliance on

Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Press the Start button again and close the appliance door.

Operating the Dishwasher 31

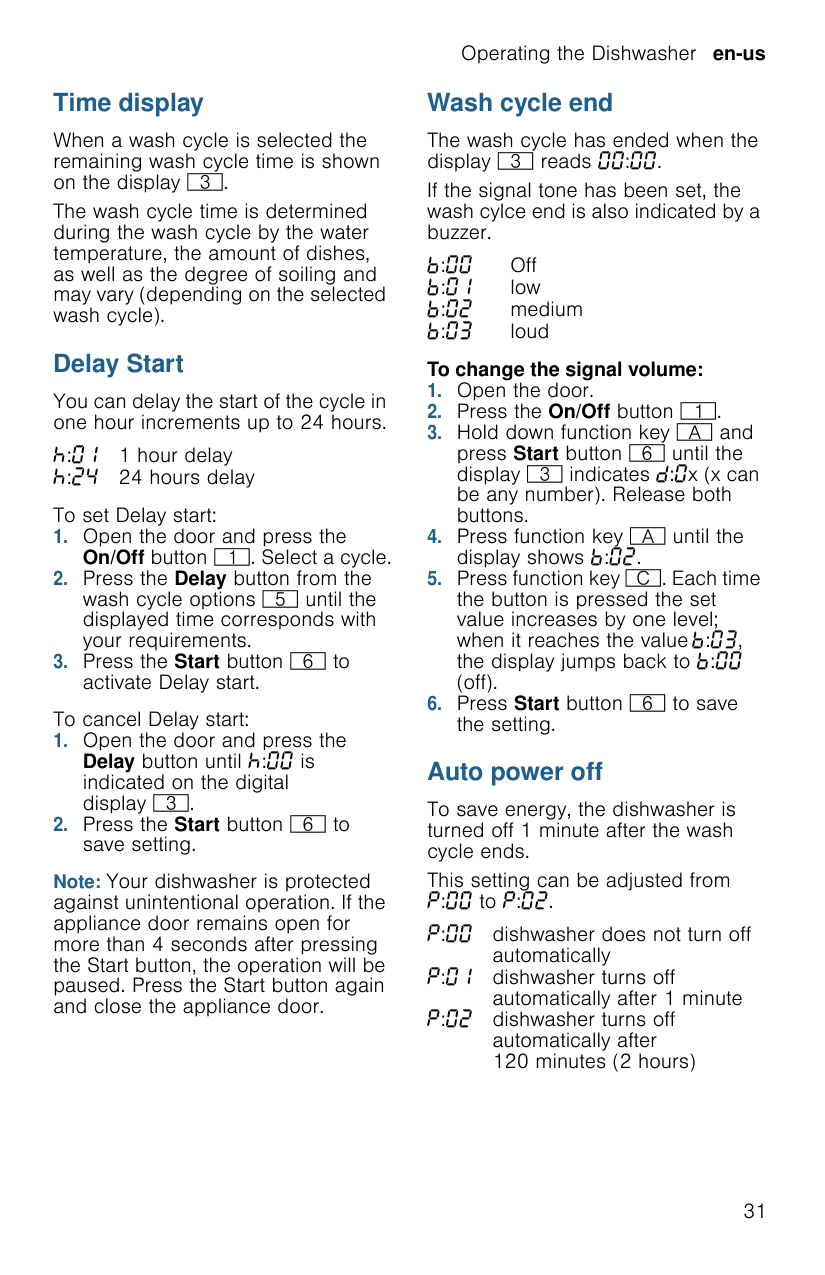

Time display When a wash cycle is selected the remaining wash cycle time is shown on the display 8. The wash cycle time is determined during the wash cycle by the water temperature, the amount of dishes, as well as the degree of soiling and may vary (depending on the selected wash cycle).

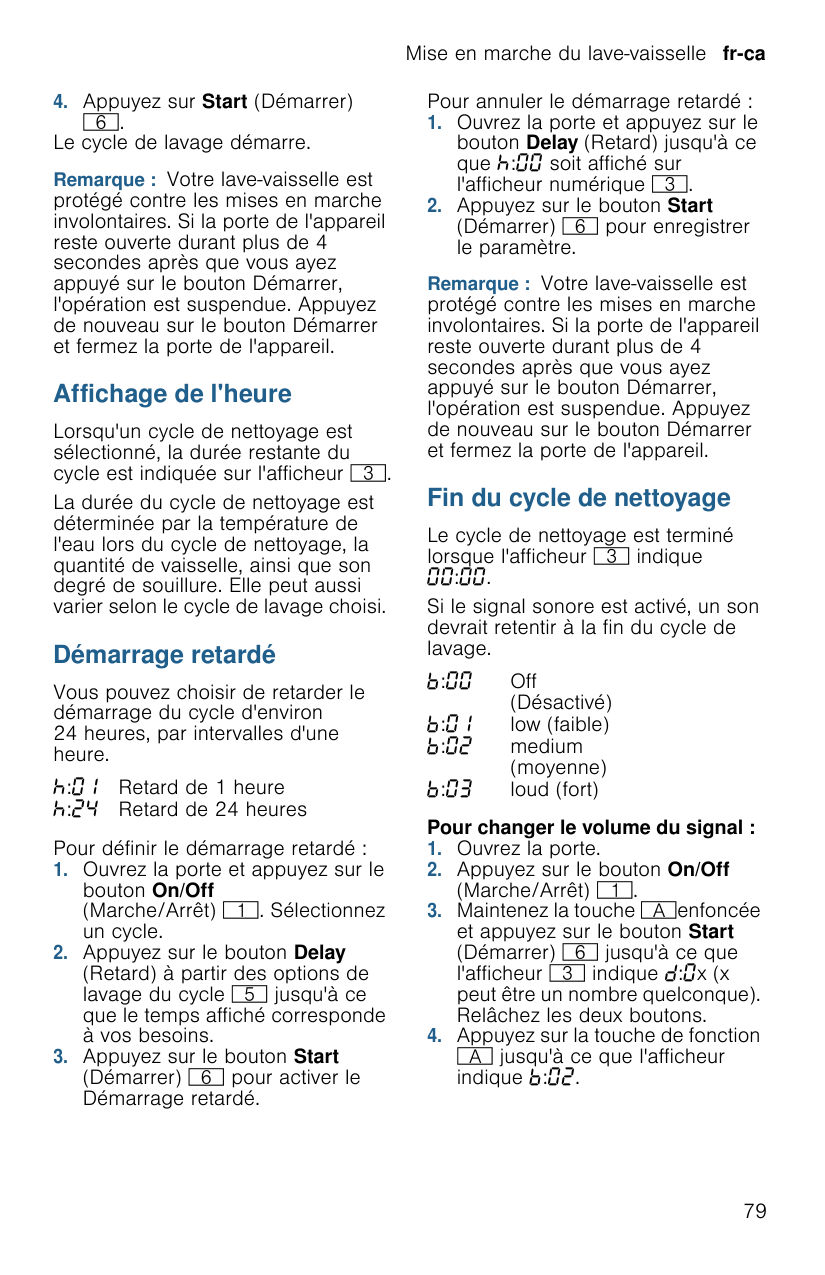

Delay Start You can delay the start of the cycle in one hour increments up to 24 hours. To set Delay start:

To cancel Delay start:

Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Press the Start button again and close the appliance door.

Wash cycle end The wash cycle has ended when the display 8 reads 00:00. If the signal tone has been set, the wash cycle end is also indicated by a buzzer.

To change the signal volume:

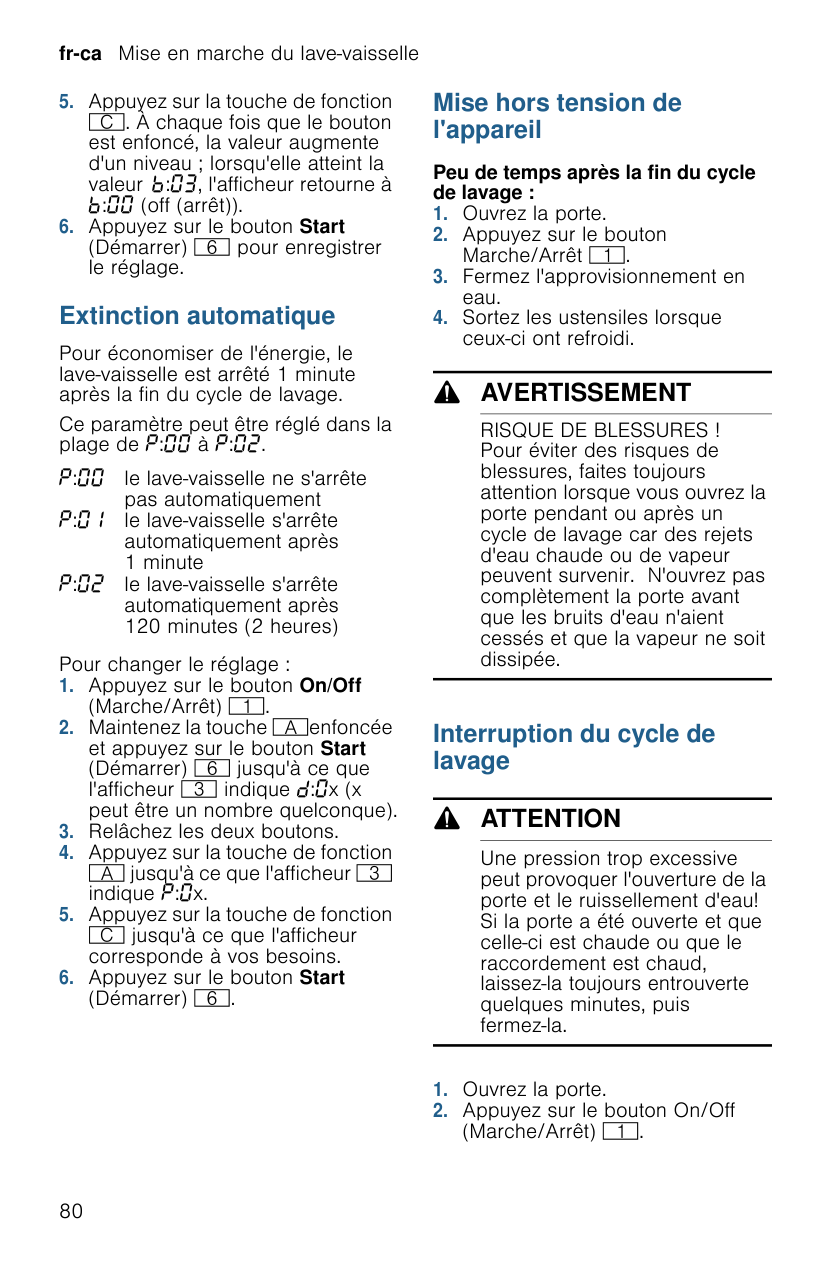

Auto power off To save energy, the dishwasher is turned off 1 minute after the wash cycle ends. This setting can be adjusted from 0:00 to 0:03.

00:02 1 hour delay

00:24 24 hours delay

2:00 Off

2:01 low

2:02 medium

2:03 loud

0:00 dishwasher does not turn off automatically

0:01 dishwasher turns off automatically after 1 minute

0:02 dishwasher turns off automatically after 120 minutes (2 hours)

Operating the Dishwasher

To change the setting:

Switching off the appliance

Short time after the end of the wash cycle:

Warning Risk Of Injury!

To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.

Interrupting the wash cycle

Caution

Expansion (overpressure) may cause the appliance door to open and/or water to escape! If the door was opened on an appliance which has a hot water connection or is heated, always leave the door ajar for several minutes and then close.

Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Press the Start button again and close the appliance door.

Terminating the wash cycle (Reset)

You may now power the dishwasher back on and begin a new cycle if desired.

Changing the wash cycle

When the Start button has been pressed, the wash cycle cannot be changed. The only way a wash cycle can be changed is by terminating the wash cycle (Reset).

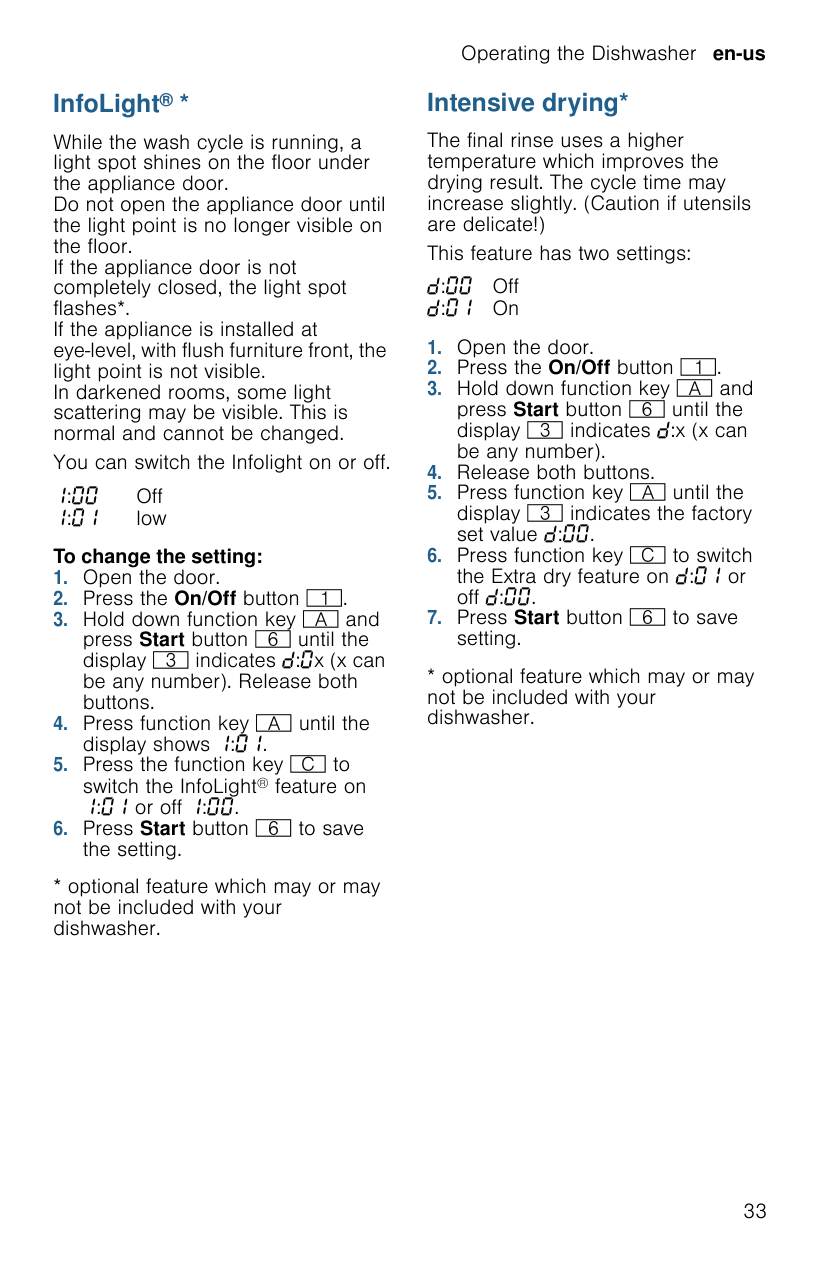

Operating the Dishwasher 33 InfoLight® * While the wash cycle is running, a light spot shines on the floor under the appliance door. Do not open the appliance door until the light point is no longer visible on the floor. If the appliance door is not completely closed, the light spot flashes*. If the appliance is installed at eye-level, with flush furniture front, the light point is not visible. In darkened rooms, some light scattering may be visible. This is normal and cannot be changed. You can switch the Infolight on or off. To change the setting:

Off

Low

Off

On

Care and Maintenance 34 2 Care and Maintenance Care and Maintenance A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents future problems. Overall condition of the dishwasher

Notice

Warning

Care and Maintenance 35 Cleaning intervals The filter system 1b is designed to minimize maintenance while providing premium cleaning performance and minimum energy consumption. Depending on use habits and water hardness, the filter system will require some maintenance to sustain premium cleaning performance. Your filter system may need to be cleaned when: ■ You notice food soils remaining on the filter system or objects trapped in the Large Object Trap. ■ A drop in cleaning performance or a gritty film forms on the dishware. When washing normally attached food soils that have been scraped before loading, in a household that runs the dishwasher every other day, your filter should be cleaned: Note: Clean the filter after washing loads with large amounts of food soils or loads with a heavy starch content, like potatoes and pasta, to maintain optimal performance. To check or clean the filter system:

Care and Maintenance

Spray arms Check spray arms 1:, 1R for grease and limescale deposits. If you find such deposits: ■ Fill detergent dispenser 92 with detergent and start the appliance without utensils in the cycle with the highest rinsing temperature. ~ "Wash Cycle Information" on page 28 ■ Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers. ■ Unscrew the upper spray arm 1: and pull off the lower spray 1R arm as shown. Inspect for deposits.

Drain pump Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case: ■ Disconnect the appliance from the power supply. ■ Remove the filters. ~ "Filters" on page 34 ■ Scoop out standing water - use a sponge if necessary. ■ Using a spoon, pry off the pump cover until it clicks, then grip the cover and pull upward until it resists and then pull forward. ■ Check inner compartment and remove any foreign objects.

Warning Use caution when removing parts for cleaning as some debris may be sharp. ■ Place cover in the original position, press down and engage. ■ Reinstall filters.

Note: The drain pump will not work properly if the drain pump cover is not snapped in completely until it clicks.

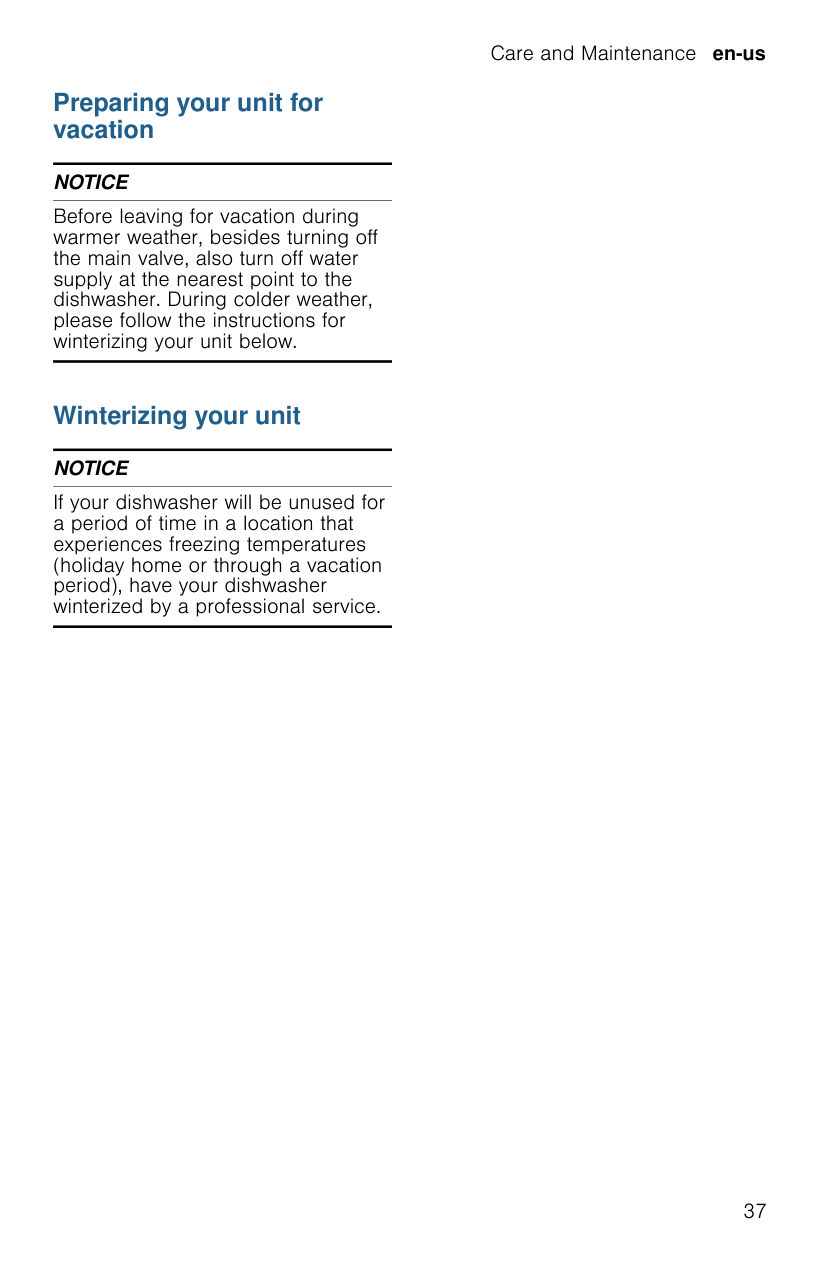

Care and Maintenance 37 Preparing your unit for vacation

Notice

Notice

Troubleshooting 38

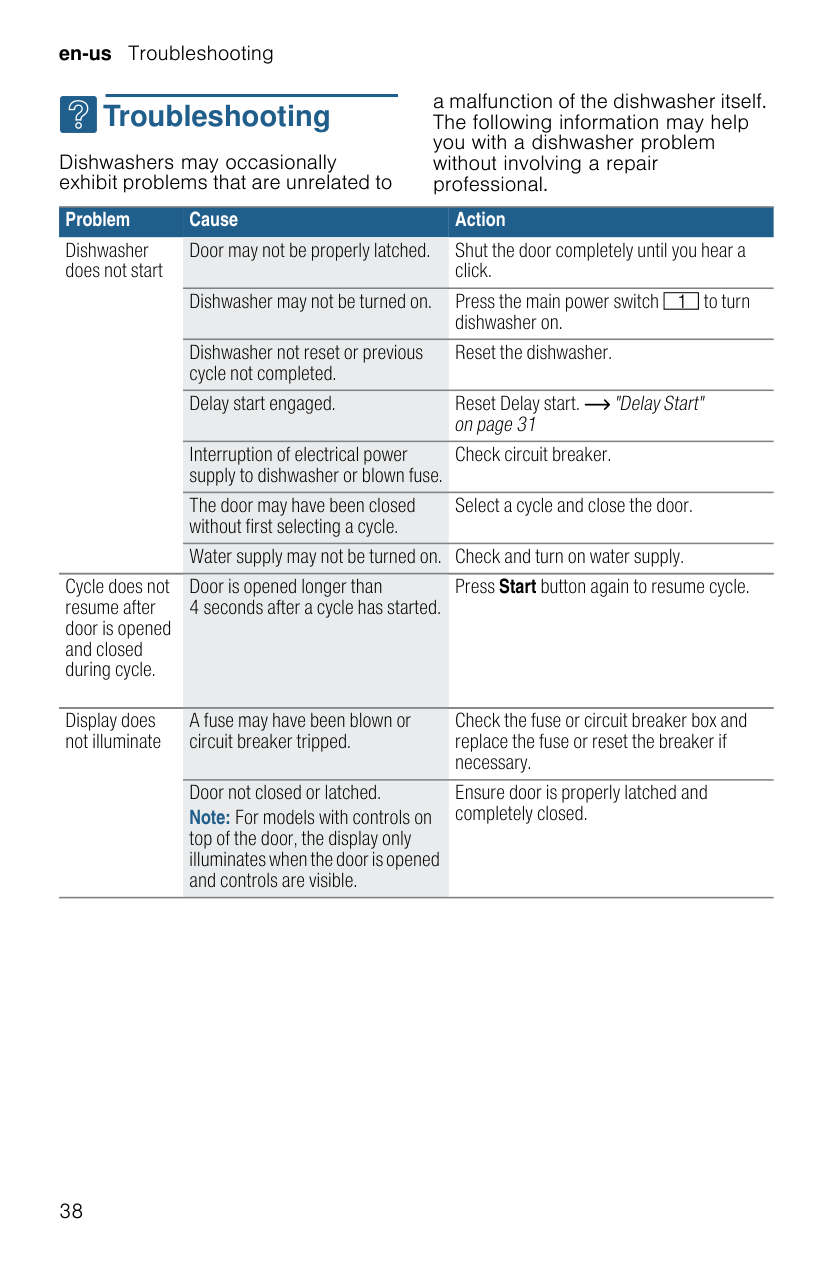

3 Troubleshooting

Troubleshooting Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you with a dishwasher problem without involving a repair professional.

Problem | Cause | Action ---|---|--- Dishwasher does not start | Door may not be properly latched. | Shut the door completely until you hear a click. | Dishwasher may not be turned on. | Press the main power switch to turn dishwasher on. | Dishwasher not reset or previous cycle not completed. | Reset the dishwasher. | Delay start engaged. | Reset Delay start. See "Delay Start" on page 31 | Interruption of electrical power supply to dishwasher or blown fuse. | Check circuit breaker. | The door may have been closed without first selecting a cycle. | Select a cycle and close the door. | Water supply may not be turned on. | Check and turn on water supply. Cycle does not resume after door is opened and closed during cycle. | Door is opened longer than 4 seconds after a cycle has started. | Press Start button again to resume cycle. Display does not illuminate | A fuse may have been blown or circuit breaker tripped. | Check the fuse or circuit breaker box and replace the fuse or reset the breaker if necessary. | Door not closed or latched. Note: For models with controls on top of the door, the display only illuminates when the door is opened and controls are visible. | Ensure door is properly latched and completely closed.

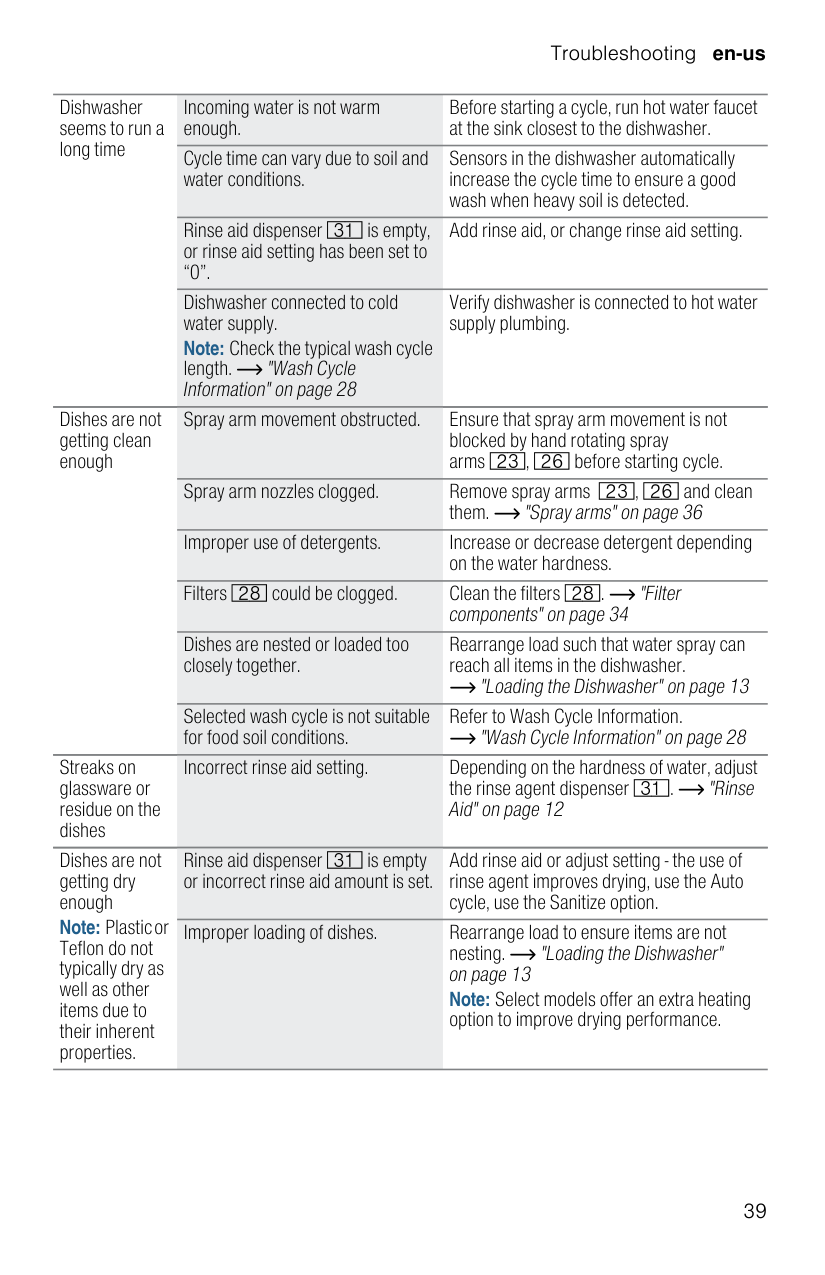

Troubleshooting 39 Dishwasher seems to run a long time Incoming water is not warm enough. Before starting a cycle, run hot water faucet at the sink closest to the dishwasher. Cycle time can vary due to soil and water conditions. Sensors in the dishwasher automatically increase the cycle time to ensure a good wash when heavy soil is detected. Rinse aid dispenser 9* is empty, or rinse aid setting has been set to "0". Add rinse aid, or change rinse aid setting. Dishwasher connected to cold water supply. Note: Check the typical wash cycle length. ~ "Wash Cycle Information" on page 28 Verify dishwasher is connected to hot water supply plumbing. Dishes are not getting clean enough Spray arm movement obstructed. Ensure that spray arm movement is not blocked by hand rotating spray arms 1:, 1R before starting cycle. Spray arm nozzles clogged. Remove spray arms 1:, 1R and clean them. ~ "Spray arms" on page 36 Improper use of detergents. Increase or decrease detergent depending on the water hardness. Filters 1b could be clogged. Clean the filters 1b. ~ "Filter components" on page 34 Dishes are nested or loaded too closely together. Rearrange load such that water spray can reach all items in the dishwasher. ~ "Loading the Dishwasher" on page 13 Selected wash cycle is not suitable for food soil conditions. Refer to Wash Cycle Information. ~ "Wash Cycle Information" on page 28 Streaks on glassware or residue on the dishes Incorrect rinse aid setting. Depending on the hardness of water, adjust the rinse agent dispenser 9*. ~ "Rinse Aid" on page 12 Dishes are not getting dry enough Note: Plastic or Teflon do not typically dry as well as other items due to their inherent properties. Rinse aid dispenser 9* is empty or incorrect rinse aid amount is set. Add rinse aid or adjust setting - the use of rinse agent improves drying, use the Auto cycle, use the Sanitize option. Improper loading of dishes. Rearrange load to ensure items are not nesting. ~ "Loading the Dishwasher" on page 13 Note: Select models offer an extra heating option to improve drying performance.

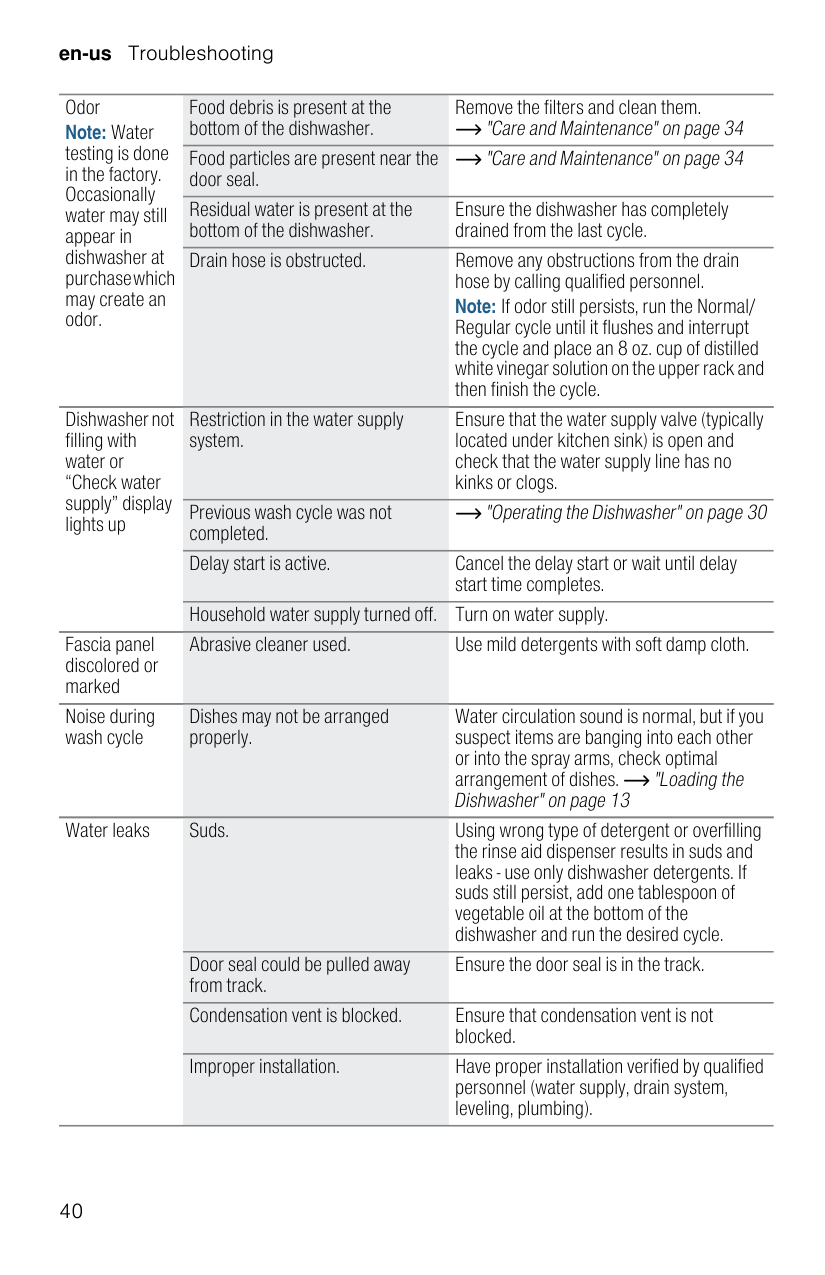

Troubleshooting 40

Odor Note: Water testing is done in the factory. Occasionally water may still appear in dishwasher at purchase which may create an odor.

Food debris is present at the bottom of the dishwasher. Remove the filters and clean them. ~ "Care and Maintenance" on page 34

Food particles are present near the door seal. ~ "Care and Maintenance" on page 34

Residual water is present at the bottom of the dishwasher. Ensure the dishwasher has completely drained from the last cycle.

Drain hose is obstructed. Remove any obstructions from the drain hose by calling qualified personnel.

Note: If odor still persists, run the Normal/Regular cycle until it flushes and interrupt the cycle and place an 8 oz. cup of distilled white vinegar solution on the upper rack and then finish the cycle.

Dishwasher not filling with water or "Check water supply" display lights up

Restriction in the water supply system. Ensure that the water supply valve (typically located under kitchen sink) is open and check that the water supply line has no kinks or clogs.

Previous wash cycle was not completed. ~ "Operating the Dishwasher" on page 30

Delay start is active. Cancel the delay start or wait until delay start time completes.

Household water supply turned off. Turn on water supply.

Fascia panel discolored or marked

Abrasive cleaner used. Use mild detergents with soft damp cloth.

Noise during wash cycle

Dishes may not be arranged properly. Water circulation sound is normal, but if you suspect items are banging into each other or into the spray arms, check optimal arrangement of dishes. ~ "Loading the Dishwasher" on page 13

Water leaks

Suds. Using wrong type of detergent or overfilling the rinse aid dispenser results in suds and leaks - use only dishwasher detergents. If suds still persist, add one tablespoon of vegetable oil at the bottom of the dishwasher and run the desired cycle.

Door seal could be pulled away from track. Ensure the door seal is in the track.

Condensation vent is blocked. Ensure that condensation vent is not blocked.

Improper installation. Have proper installation verified by qualified personnel (water supply, drain system, leveling, plumbing).

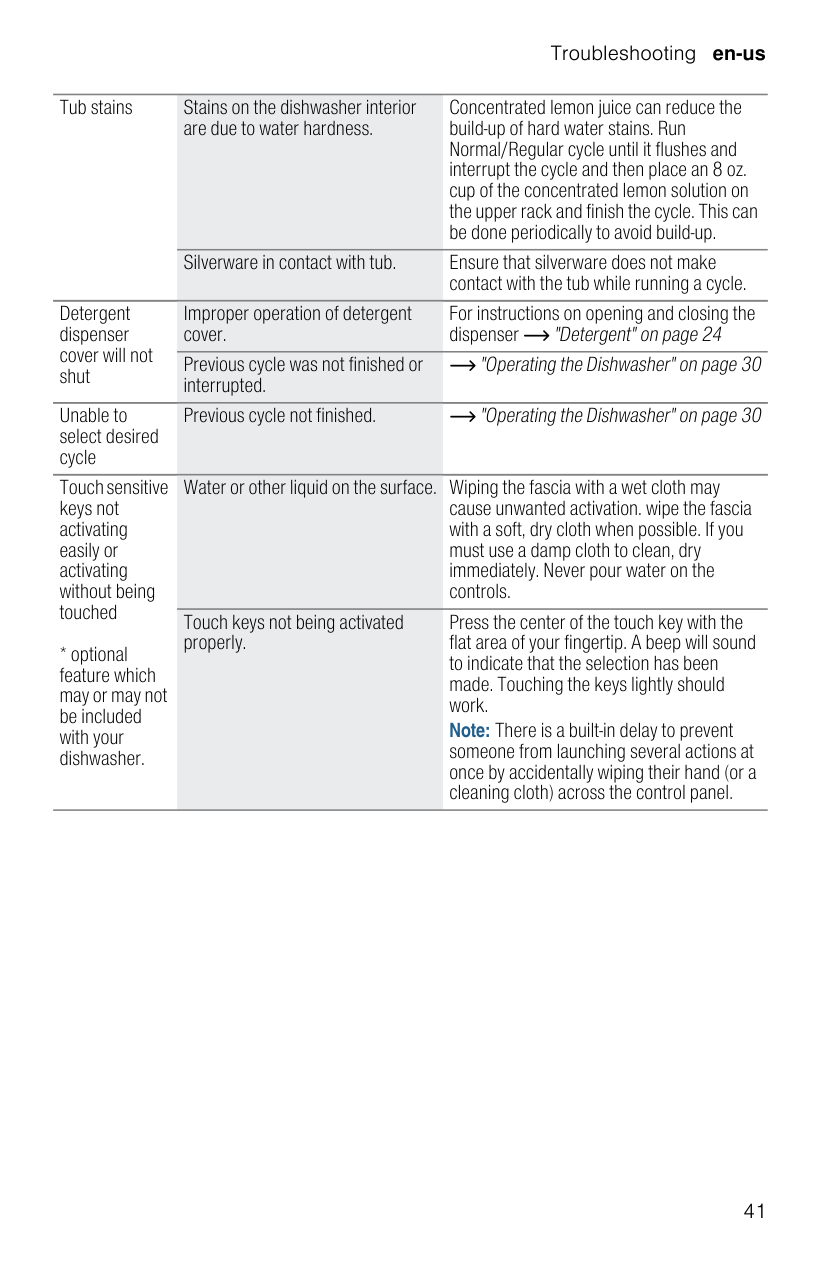

Troubleshooting 41 -------- Tub stains Stains on the dishwasher interior are due to water hardness. Concentrated lemon juice can reduce the build-up of hard water stains. Run Normal/Regular cycle until it flushes and interrupt the cycle and then place an 8 oz. cup of the concentrated lemon solution on the upper rack and finish the cycle. This can be done periodically to avoid build-up. Silverware in contact with tub. Ensure that silverware does not make contact with the tub while running a cycle. Detergent dispenser cover will not shut Improper operation of detergent cover. For instructions on opening and closing the dispenser ~ "Detergent" on page 24 Previous cycle was not finished or interrupted. ~ "Operating the Dishwasher" on page 30 Unable to select desired cycle Previous cycle not finished. ~ "Operating the Dishwasher" on page 30 Touch sensitive keys not activating easily or activating without being touched

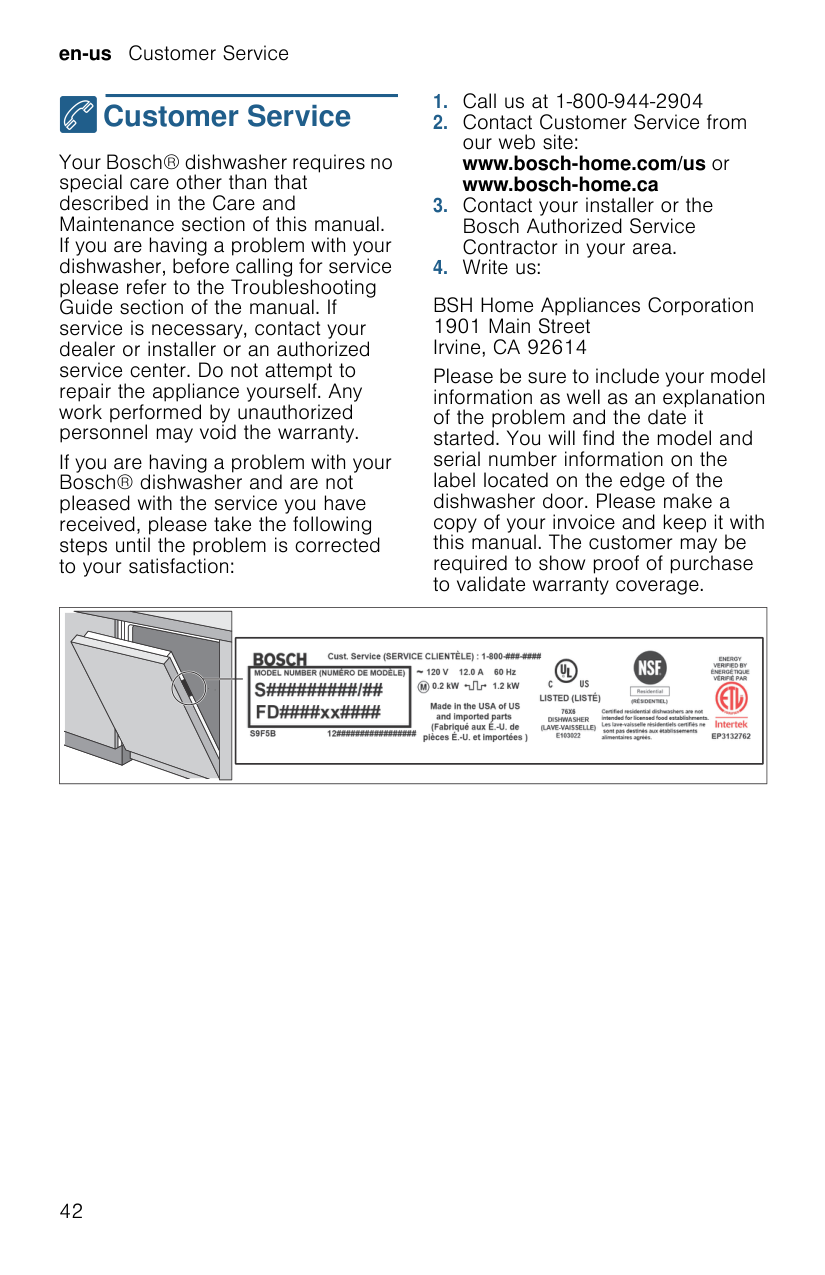

Customer Service 42 4 Customer Service Customer Service Your Bosch® dishwasher requires no special care other than that described in the Care and Maintenance section of this manual. If you are having a problem with your dishwasher, before calling for service please refer to the Troubleshooting Guide section of the manual. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty. If you are having a problem with your Bosch® dishwasher and are not pleased with the service you have received, please take the following steps until the problem is corrected to your satisfaction:

Statement of Limited Product Warranty

‡ Statement of Limited Product Warranty

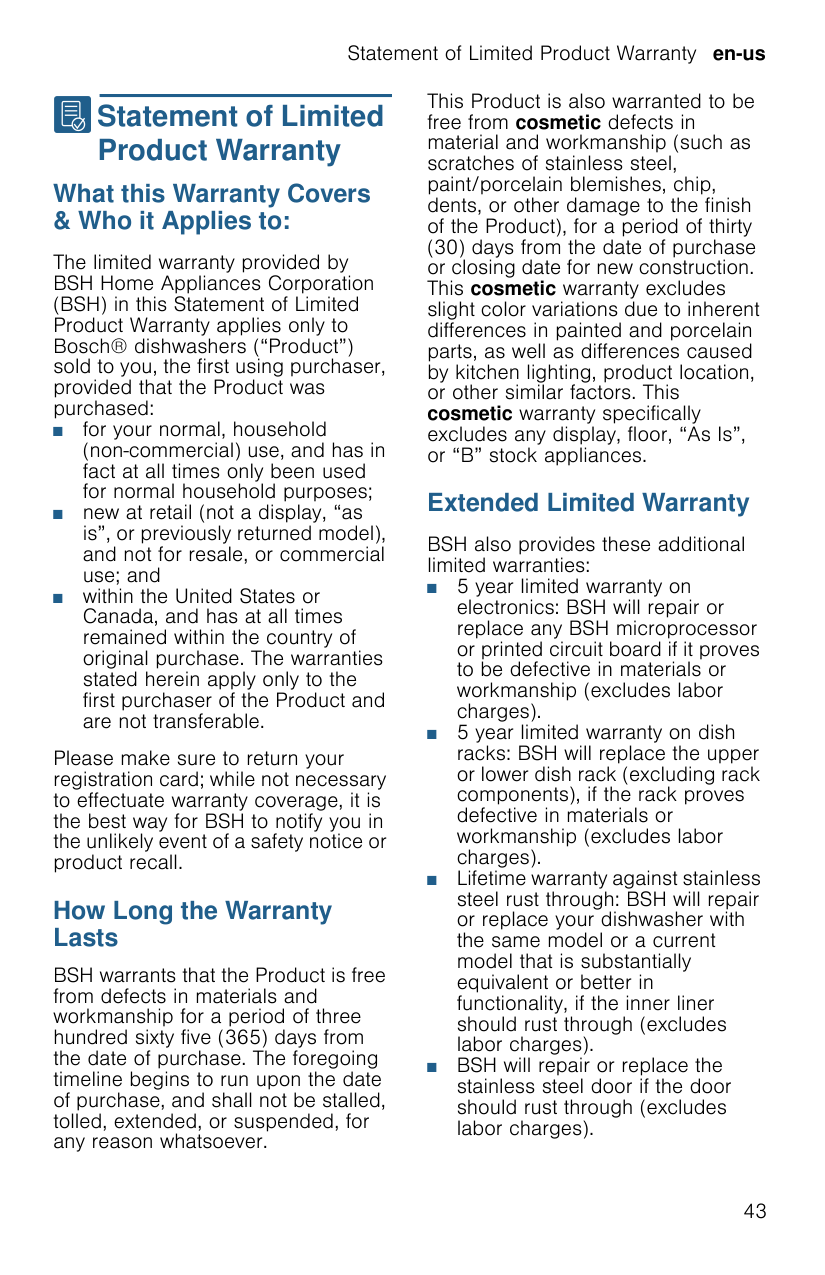

Statement of Limited Product Warranty What this Warranty Covers & Who it Applies to:

The limited warranty provided by BSH Home Appliances Corporation (BSH) in this Statement of Limited Product Warranty applies only to Bosch® dishwashers ("Product") sold to you, the first using purchaser, provided that the Product was purchased:

■ for your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes;

■ new at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use; and

■ within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for BSH to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts

BSH warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty five (365) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product), for a period of thirty (30) days from the date of purchase or closing date for new construction.

This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

Extended Limited Warranty

BSH also provides these additional limited warranties:

■ 5 year limited warranty on electronics: BSH will repair or replace any BSH microprocessor or printed circuit board if it proves to be defective in materials or workmanship (excludes labor charges).

■ 5 year limited warranty on dish racks: BSH will replace the upper or lower dish rack (excluding rack components), if the rack proves defective in materials or workmanship (excludes labor charges).

■ Lifetime warranty against stainless steel rust through: BSH will repair or replace your dishwasher with the same model or a current model that is substantially equivalent or better in functionality, if the inner liner should rust through (excludes labor charges).

■ BSH will repair or replace the stainless steel door if the door should rust through (excludes labor charges).

Statement of Limited Product Warranty 44

Repair/Replace as Your Exclusive Remedy During this warranty period, BSH or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then BSH will replace your Product (upgraded models may be available to you, in the sole discretion of BSH, for an additional charge). All removed parts and components shall become the property of BSH at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. BSH's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a BSH-authorized service provider during normal business hours. For safety and property damage concerns, BSH highly recommends that you do not attempt to repair the Product yourself, or use an unauthorized servicer; BSH will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Authorized service providers are those persons or companies that have been specially trained on BSH products, and who possess, in the opinion of BSH, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, BSH would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

Out of Warranty Product BSH is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired.

Warranty Exclusions The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following: ■ Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels);

Statement of Limited Product Warranty

■ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or exploration of the appliance's internal workings);

■ Adjustment, alteration or modification of any kind;

■ A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations;

■ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product;

■ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.

In no event shall BSH have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

To The Extent Allowed By Law, This Warranty Sets Out Your Exclusive Remedies With Respect To Product, Whether The Claim Arises In Contract Or Tort (Including Strict Liability, Or Negligence) Or Otherwise. This Warranty Is In Lieu Of All Other Warranties, Whether Express Or Implied. Any Warranty Implied By Law, Whether For Merchantability Or Fitness For A Particular Purpose, Or Otherwise, Shall Be Effective Only For The Period That This Express Limited Warranty Is Effective. In No Event Will The Manufacturer Be Liable For Consequential, Special, Incidental, Indirect, "Business Loss", And/Or Punitive Damages, Losses, Or Expenses, Including Without Limitation Time Away From Work, Hotels And/Or Restaurant Meals, Remodelling Expenses In Excess Of Direct Damages Which Are Definitively Caused Exclusively By BSH, Or Otherwise. Some States Do Not Allow The Exclusion Or Limitation Of Incidental Or Consequential Damages, And Some States Do Not Allow Limitations On How Long An Implied Warranty Lasts, So The Above Limitations May Not Apply To You. This Warranty Gives You Specific Legal Rights, And You May Also Have Other Rights Which Vary From State To State. No attempt to alter, modify or amend this warranty

Statement of Limited Product Warranty 46 shall be effective unless authorized in writing by an officer of BSH Home Appliances Corporation. How to Obtain Warranty Service

To Obtain Warranty Service

For Your Product, You

Should Contact The Nearest

Bsh Authorized Service

Center, Or Call 1-800-944-2904

Statement of Limited Product Warranty

Maintenance

Your Dishwasher & Bosch

You are a homeowner.

If you have

Other questions or comments

Don't forget to

Register your new dishwasher

www.BoscHome.Com.us EU

Or

www.BoscHome.ca Canada

For more

Information about your dishwasher, accessories

BSH Home Appliances Corporation

Main Street, Suite

Address

Irvine, CA

Dear Customer,

A number of consumers who require their dishwasher to operate silently and with high performance.

Available and other Bosch high quality equipment

Address

Dishwasher By clicking on the "Assistance" tab or by filling out the product registration form sent with your new appliance.

Please contact us by calling

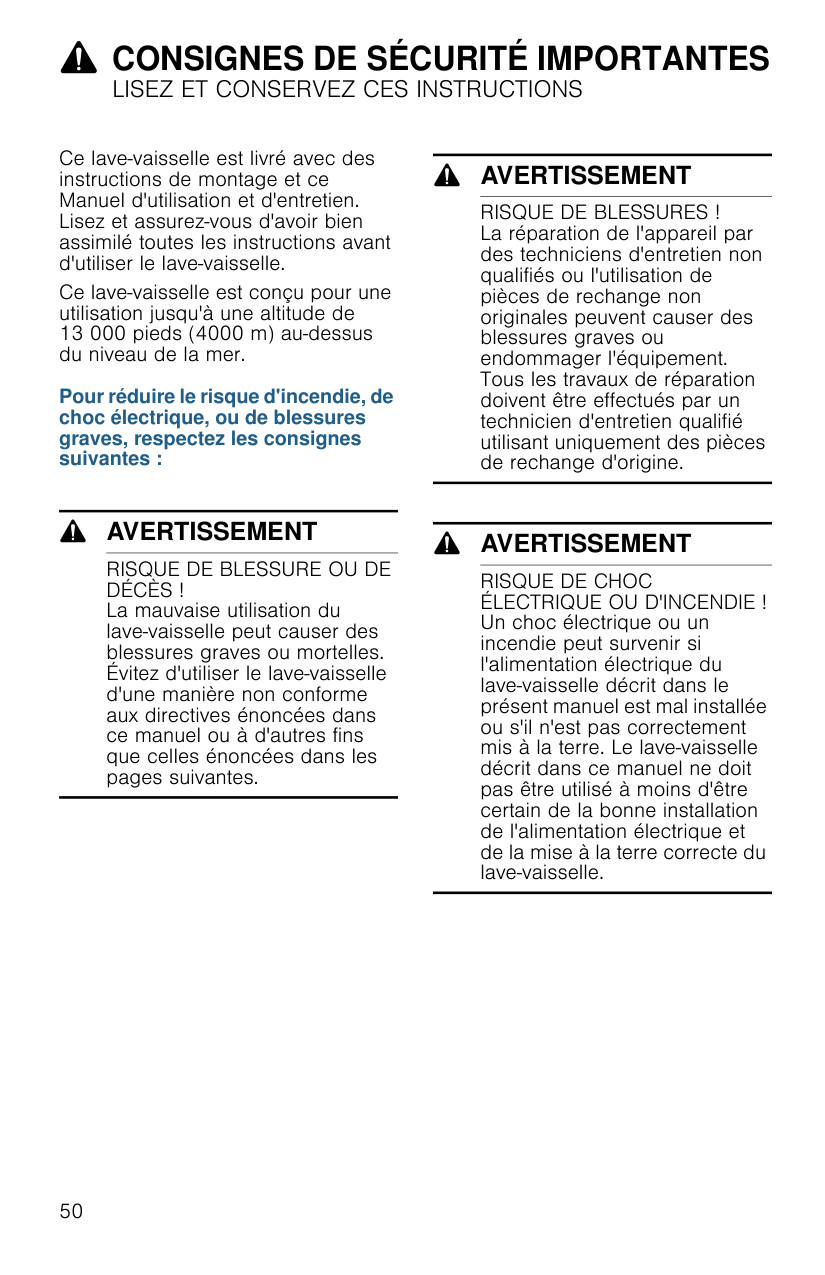

Important Safety Instructions

Read and Keep These Instructions

Important Safety Instructions

Important Safety Instructions

Read and Keep These Instructions

This dishwasher is supplied with assembly instructions and this User and Care Manual. Read and make sure you understand all instructions before using the dishwasher.

This dishwasher is designed for use up to an altitude of 13,000 feet (4000 m) above sea level.

To reduce the risk of fire, electric shock, or serious injury, follow these instructions:

Risk of fire, electric shock, or serious injury

Warning

Risk of Injury or Death!

Improper use of the dishwasher can cause serious or fatal injury. Avoid using the dishwasher in a manner not in compliance with the guidelines outlined in this manual or for purposes other than those stated on the following pages.

Warning

Risk of Injury!

Repair of the appliance by unqualified service technicians or the use of non-original replacement parts can cause serious injury or damage to the equipment. All repair work must be performed by a qualified service technician using only genuine replacement parts.

Warning

Risk of Electric Shock or Fire!

Electric shock or fire can occur if the electrical power supply to the dishwasher described in this manual is improperly installed or if it is not properly grounded. The dishwasher described in this manual must not be used unless you are certain the electrical power supply is properly installed and the dishwasher is properly grounded.

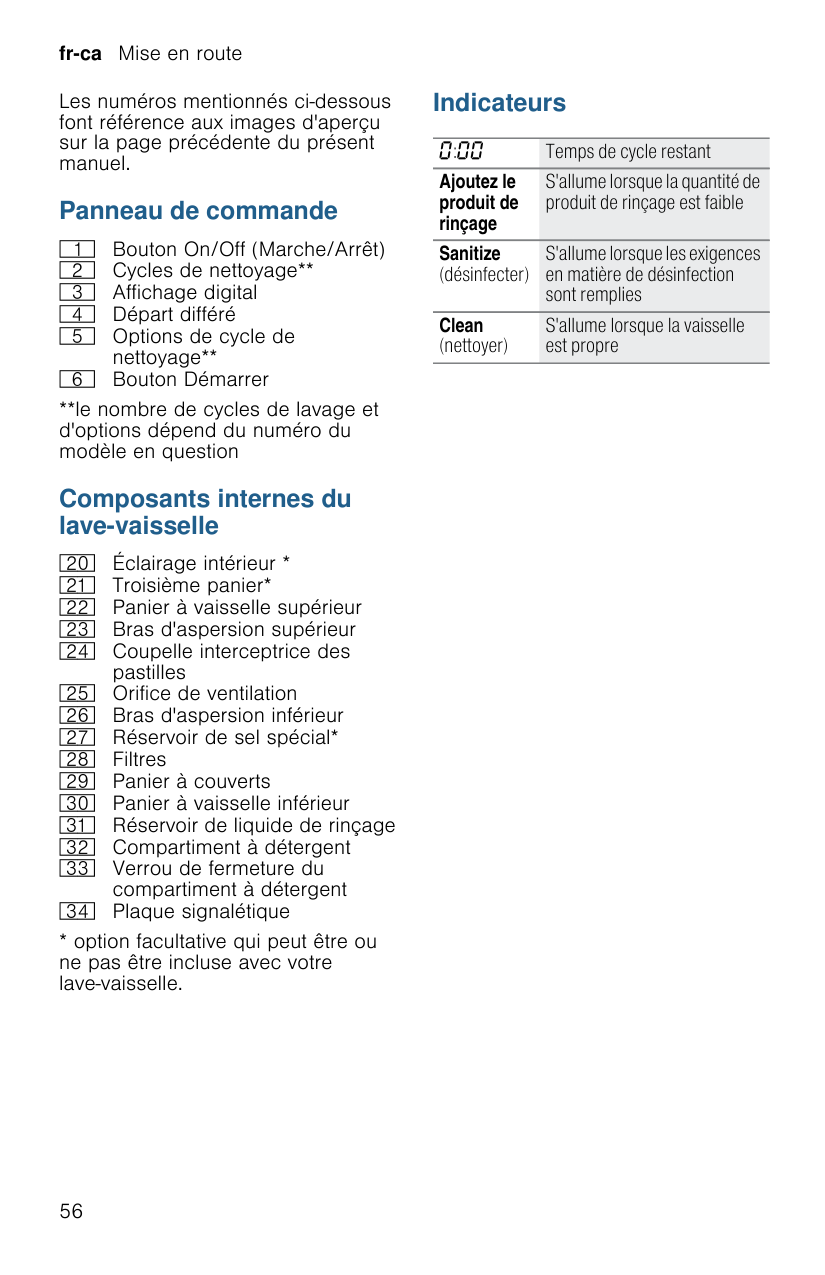

Control Panel **the number of wash cycles and options depends on the model number in question

Internal Components of the Dishwasher

Indicators --------

( On/Off Button

0 Wash Cycles**

8 Digital Display

@ Delayed Start

H

P

1" Interior Lighting *

1* Third Basket*

12 Upper Dish Basket

1: Upper Spray Arm

1B

1J

1R

1Z

1b Filters

1j Cutlery Basket

9" Lower Dish Basket

9* Rinse Aid Reservoir

92 Detergent Compartment

9: Detergent Compartment Lock

9B

‹:‹‹ Remaining Cycle Time

Add Rinse Aid Lights when rinse aid quantity is low

Sanitize Lights when sanitization requirements are met

Clean Lights when dishes are clean

Loading the Dishwasher

Disabling the Rinse Aid Indicator

Follow the steps in "Adjusting the Amount of Rinse Aid Used" and set the value to the lowest setting. The rinse aid indicator is now disabled.

Notice

Using no rinse aid or setting the dispenser to the lowest setting may result in longer cycle times, which will consume more energy and water. Higher temperatures and longer cycle times may damage fine china or glassware.

Loading the Dishwasher

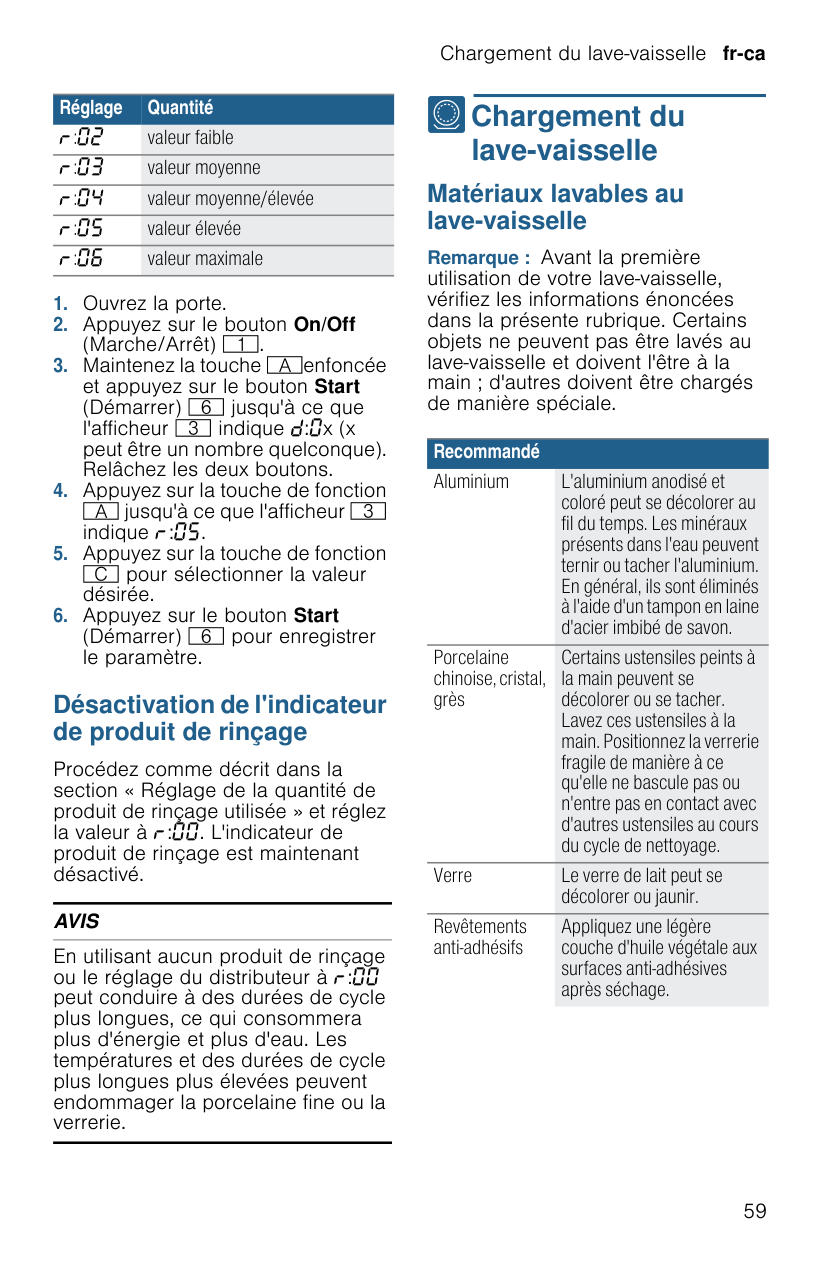

Dishwasher-Safe Materials

Note: Before first use of your dishwasher, review the information in this section. Some items cannot be washed in the dishwasher and must be hand-washed; others must be loaded in a special way.

Aluminum

Anodized and colored aluminum may fade over time. Minerals in the water may dull or stain aluminum. Generally, these are removed using a steel wool pad dampened with soap.

China, Crystal, Stoneware

Some hand-painted utensils may fade or stain. Hand-wash these utensils. Position fragile glassware so it does not tip or contact other utensils during the wash cycle.

Glass

Milk glass may fade or yellow.

Non-Stick Coatings

Apply a light coating of vegetable oil to non-stick surfaces after drying.

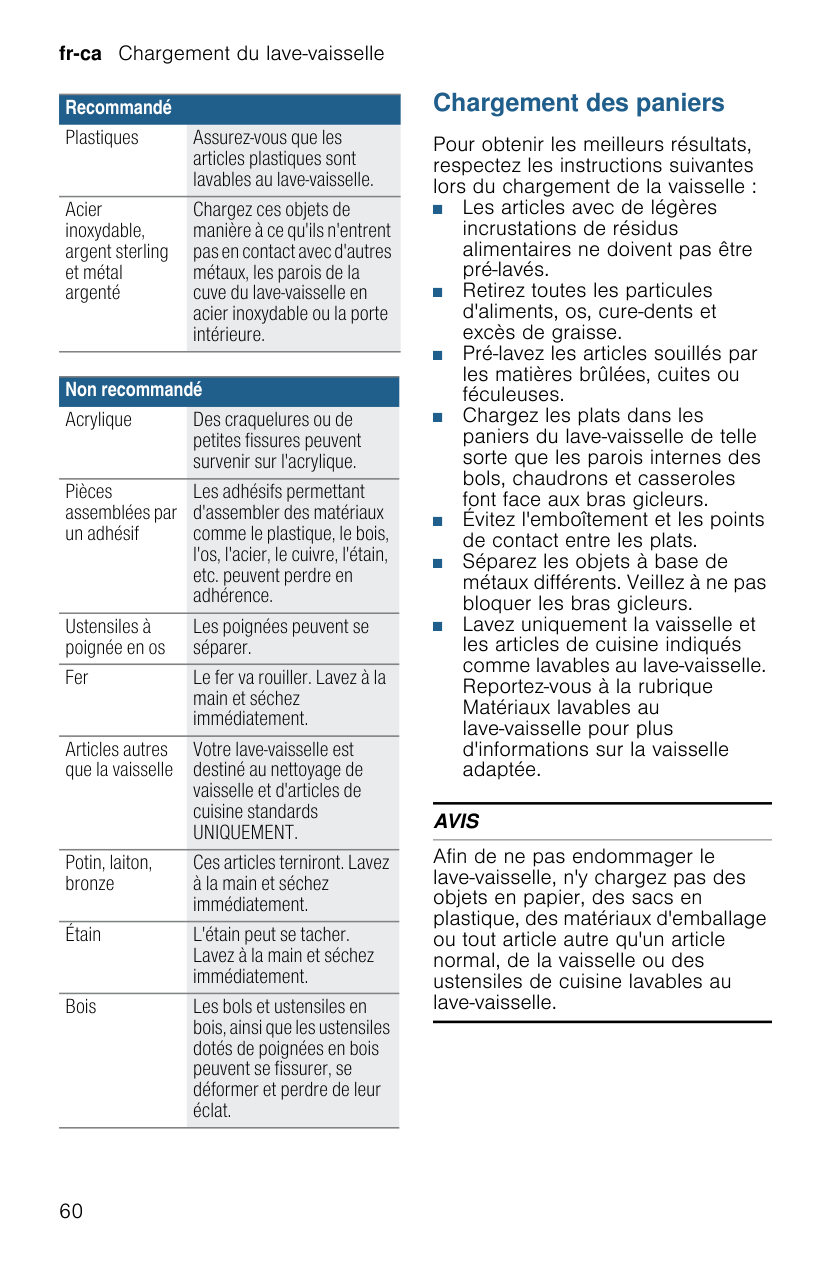

Loading the Dishwasher

Loading the Baskets

For best results, follow these instructions when loading dishes:

■ Items with light food residue buildup do not need to be pre-washed. ■ Remove all food particles, bones, toothpicks, and excess grease. ■ Pre-wash items soiled by burnt, baked, or starchy materials. ■ Load dishes in the dishwasher baskets so that the inner walls of bowls, pots, and pans face the spray arms. ■ Avoid nesting and contact points between dishes. ■ Separate items made of different metals. Be careful not to block the spray arms. ■ Wash only dishes and kitchen items marked as dishwasher safe. See the Dishwasher Safe Materials section for more information on suitable dishes.

Notice

To avoid damaging the dishwasher, do not load paper items, plastic bags, packaging materials, or anything other than standard dishwasher-safe dishes and kitchen utensils.

Plastics Make sure plastic items are dishwasher safe.

Stainless Steel, Sterling Silver, and Silver-Plated Metal Load these items so they do not contact other metals, the stainless steel dishwasher tub walls, or the inner door.

Not Recommended

Acrylic Crazing or small cracks may occur on acrylic.

Adhesive-Bonded Pieces Adhesives used to bond materials such as plastic, wood, bone, steel, copper, tin, etc., may lose adhesion.

Bone-Handled Utensils Handles may separate.

Iron Iron will rust. Hand wash and dry immediately.

Non-Dishware Items Your dishwasher is intended for cleaning standard dishes and kitchen items only.

Pewter, Brass, Bronze These items will tarnish. Hand wash and dry immediately.

Tin Tin may stain. Hand wash and dry immediately.

Wood Wood bowls and utensils, and utensils with wood handles may crack, warp, and lose their shine.

Recommended

Loading the Dishwasher

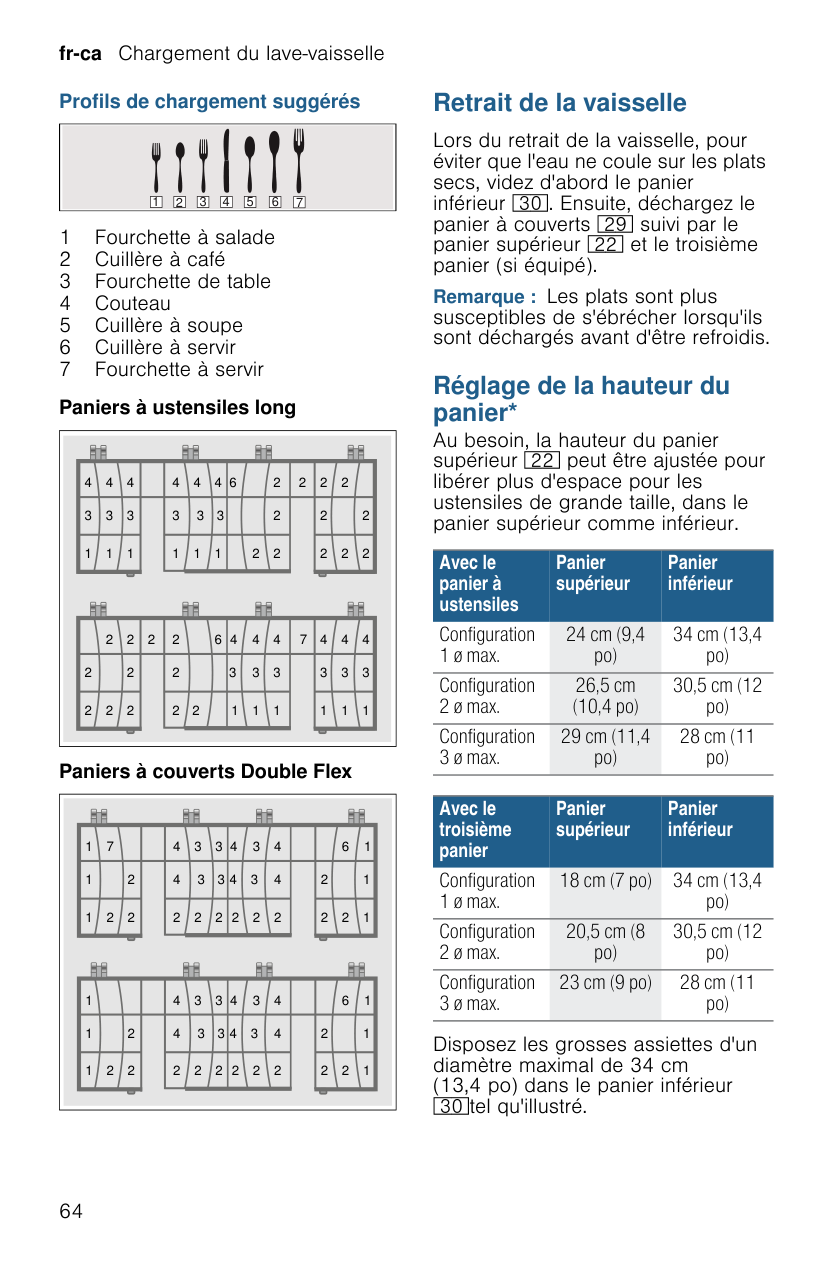

Suggested Loading Profiles

Long Utensil Baskets Double Flex Cutlery Baskets

Removing Dishes

When removing dishes, to prevent water from running onto dry dishes, empty the lower basket first. Then, unload the cutlery basket followed by the upper basket and the third basket (if equipped).

Note: Dishes are more likely to chip when unloaded before they have cooled.

Basket Height Adjustment*

If needed, the height of the upper basket can be adjusted to free up more space for large utensils in both the upper and lower baskets.

Arrange large plates with a maximum diameter of 34 cm (13.4 in.) in the lower basket as illustrated.

1 Salad Fork 2 Teaspoon 3 Dinner Fork 4 Knife 5 Tablespoon 6 Serving Spoon 7 Serving Fork

With Utensil Basket

Upper Basket | Lower Basket

Configuration 1 ø max. 24 cm (9.4 in.) | 34 cm (13.4 in.) Configuration 2 ø max. 26.5 cm (10.4 in.) | 30.5 cm (12 in.) Configuration 3 ø max. 29 cm (11.4 in.) | 28 cm (11 in.)

With Third Basket

Upper Basket | Lower Basket

Configuration 1 ø max. 18 cm (7 in.) | 34 cm (13.4 in.) Configuration 2 ø max. 20.5 cm (8 in.) | 30.5 cm (12 in.) Configuration 3 ø max. 23 cm (9 in.) | 28 cm (11 in.)

Detergent

71

Detergent

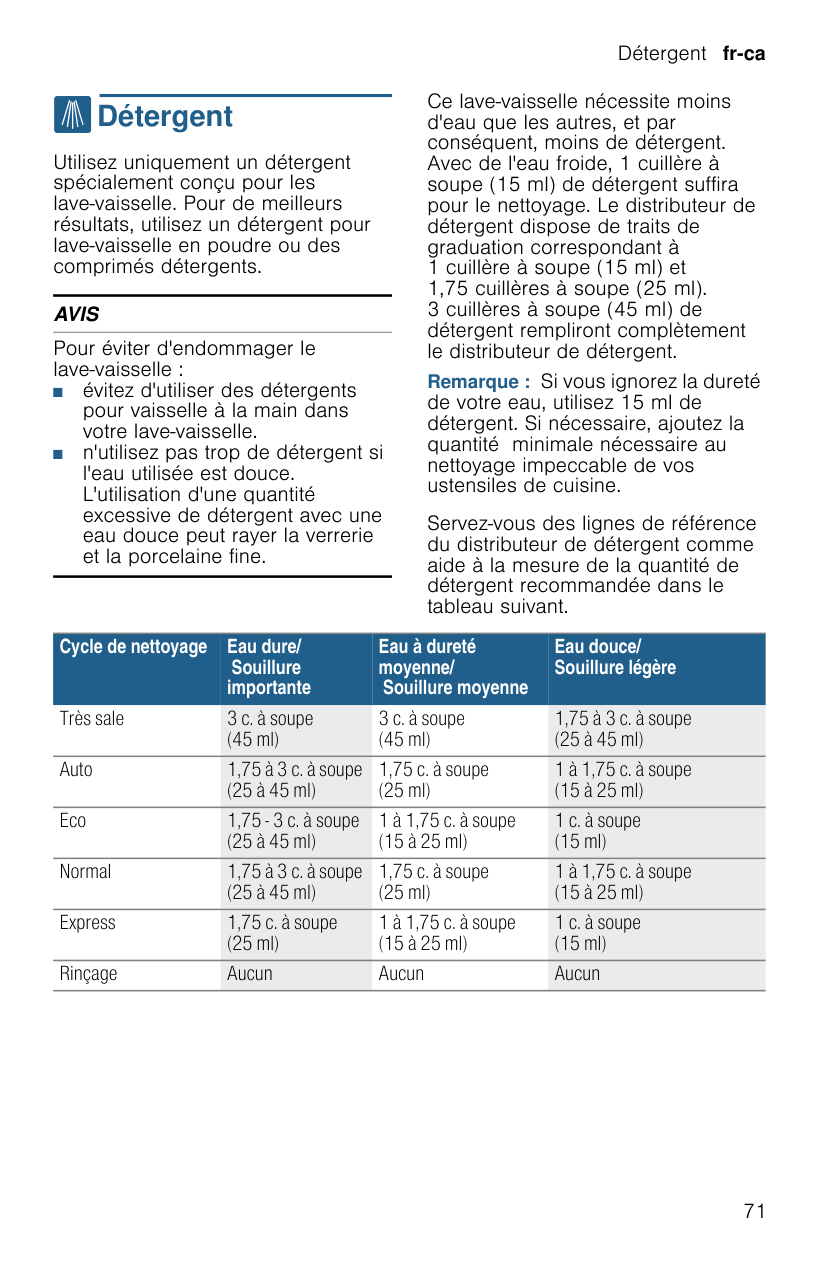

Use only detergent specially designed for dishwashers. For best results, use powder dishwasher detergent or detergent tablets.

Notice

To prevent damaging the dishwasher:

■ Avoid using hand dishwashing detergents in your dishwasher. ■ Do not use too much detergent if the water used is soft. Using excessive detergent with soft water can scratch glassware and fine china.

This dishwasher requires less water than others, and therefore, less detergent. With cold water, 1 tablespoon (15 ml) of detergent will be sufficient for cleaning. The detergent dispenser has graduation marks corresponding to 1 tablespoon (15 ml) and 1.75 tablespoons (25 ml). 3 tablespoons (45 ml) of detergent will fill the detergent dispenser completely.

Note: If you are unsure of your water hardness, use 15 ml of detergent. If necessary, add the minimum amount needed for spotless cleaning of your dishes.

Use the reference lines of the detergent dispenser as an aid in measuring the recommended amount of detergent in the following table.

| Cleaning Cycle | Hard Water/Heavy Soiling | Medium Water Hardness/Medium Soiling | Soft Water/Light Soiling | |---|---|---|---| | Very Dirty | 3 tbsp (45 ml) | 3 tbsp (45 ml) | 1.75 to 3 tbsp (25 to 45 ml) | | Auto | 1.75 to 3 tbsp (25 to 45 ml) | 1.75 tbsp (25 ml) | 1 to 1.75 tbsp (15 to 25 ml) | | Eco | 1.75 to 3 tbsp (25 to 45 ml) | 1 to 1.75 tbsp (15 to 25 ml) | 1 tbsp (15 ml) | | Normal | 1.75 to 3 tbsp (25 to 45 ml) | 1.75 tbsp (25 ml) | 1 to 1.75 tbsp (15 to 25 ml) | | Express | 1.75 tbsp (25 ml) | 1 to 1.75 tbsp (15 to 25 ml) | 1 tbsp (15 ml) | | Rinse | None | None | None |

Detergent

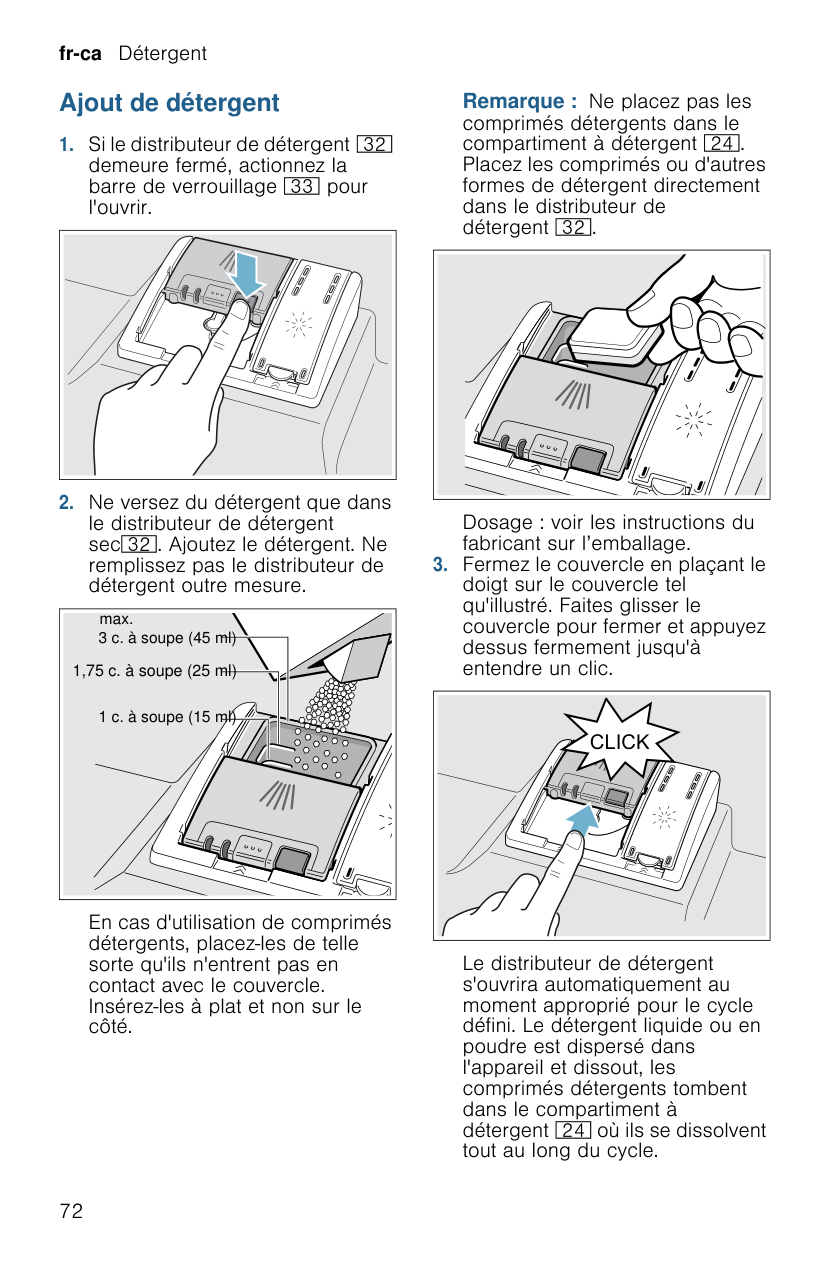

Adding Detergent

If using detergent tablets, position them so they do not contact the lid. Insert them flat, not on their side.

Note: Do not place detergent tablets in the detergent compartment 1B. Place tablets or other forms of detergent directly in the detergent dispenser 92.

Dosage: see manufacturer's instructions on the package.

The detergent dispenser will open automatically at the appropriate time for the selected cycle. Liquid or powder detergent is dispersed in the appliance and dissolves; detergent tablets fall into the detergent compartment 1B where they dissolve throughout the cycle.

Dishwasher Cycles

Tip: If dishes are lightly soiled, a quantity of detergent slightly less than the recommended amount is sufficient.

Dishwasher Cycles

Note: The Energy Guide labeling is based on the Normal soil level detection cycle as follows: the unit was tested with an empty rinse aid dispenser. A single dose of detergent was introduced into the detergent dispenser, with no detergent being used otherwise.

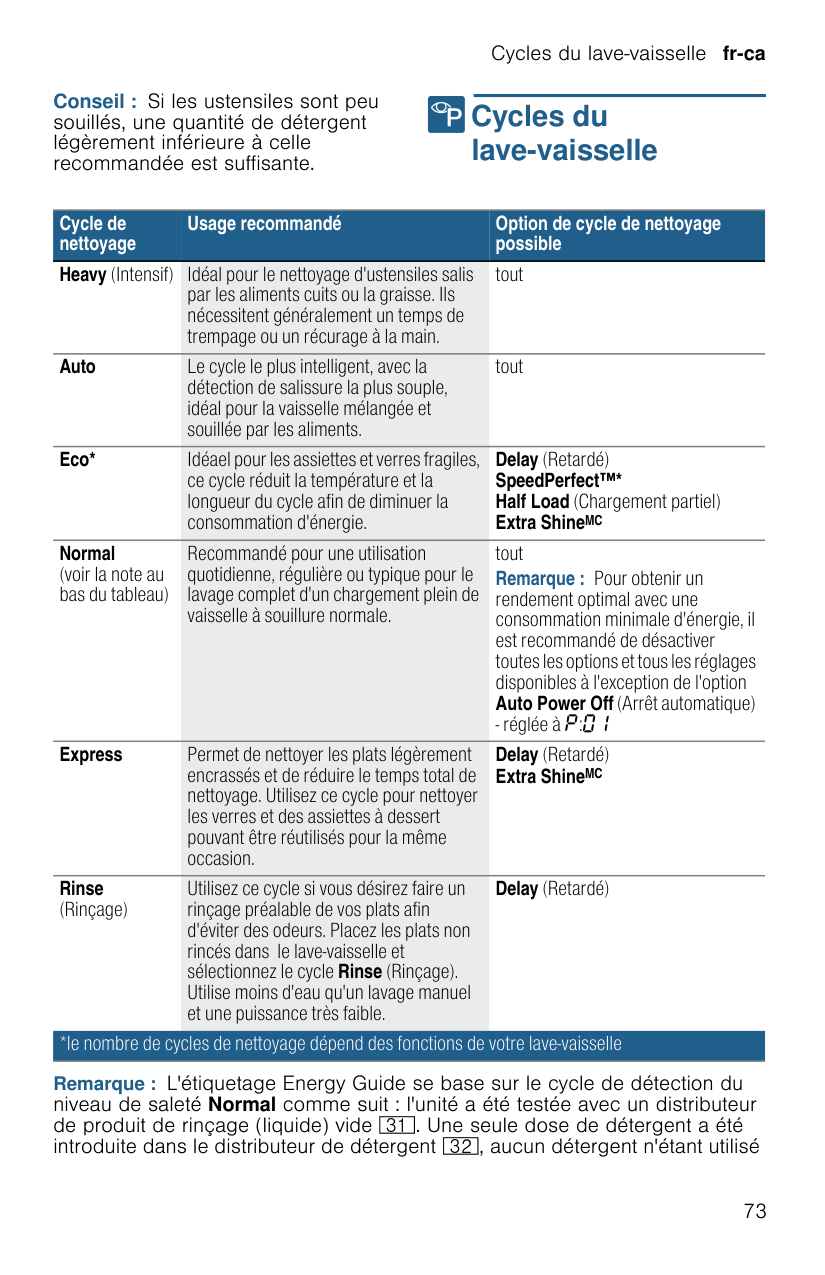

| Wash Cycle | Recommended Use | Possible Wash Cycle Options | |---|---|---| | Heavy | Ideal for cleaning dishes soiled by cooked foods or grease. They generally require soaking time or hand scrubbing. | All | | Auto | The most intelligent cycle, with the most flexible soil detection, ideal for mixed and soiled dishes. | All | | Eco* | Ideal for delicate plates and glasses, this cycle reduces temperature and cycle length to decrease energy consumption. | Delay, SpeedPerfect™*, Half Load, Extra Shine™ | | Normal (see note at bottom of table) | Recommended for daily, regular, or typical use for washing a full load of dishes with normal soil. | All | | Express | Cleans lightly soiled dishes and reduces total cleaning time. Use this cycle to clean glasses and dessert plates that can be reused for the same occasion. | Delay, Extra Shine™ | | Rinse | Use this cycle if you want to rinse dishes beforehand to avoid odors. Place unrinsed dishes in the dishwasher and select the Rinse cycle. Uses less water than manual washing and very low power. | Delay |

Note: For optimal performance with minimal energy consumption, it is recommended to disable all available options and settings except for the Auto Power Off option.

*the number of wash cycles depends on your dishwasher's features

Dishwasher Cycle Options

Dishwasher Cycle Options

*Depending on your dishwasher's features, you may have a choice among multiple cleaning cycle options.

Delay

Allows you to delay the start of your dishwasher up to 24 hours.

SpeedPerfect™*

SpeedPerfect™ is an option that allows you to save time without affecting cleaning and drying performance. This option ensures the same final temperatures as the underlying cycle by starting the heating period earlier in the program. Selecting this option also improves energy performance while reducing cycle time.

Half Load

Can reduce water consumption when cleaning small lightly soiled dishes, filling approximately half the dishwasher capacity.

Delicate

The reduced duration and temperature of this option are perfect for lightly soiled items with food residue that is easy to remove. This option also prevents spotted glassware from coming out of the dishwasher. It is recommended to use a rinse aid with the Brilliance drying function (even if you use all-in-one detergents).

Sanitize

This function increases temperatures and maintains them for an extended period to achieve predefined sanitization performance. Continuous use of this function improves hygiene levels. This additional option is ideal for washing items such as cutting boards and baby bottles.

The sanitize LED indicator lights when sanitization requirements are met. Using the Sanitize option can also improve drying.

Extra Shine™*

Used in conjunction with a cleaning cycle (except rinse), the Extra Shine™ option increases temperature and extends drying time for better results and a brighter shine.

Wash Cycle Information

To save energy, this dishwasher features an EcoSense system in which the dishwasher's sensors automatically adjust variations in cycle length, temperature, and water based on the level of food soil and incoming water temperature. Decisions made by "Intelligent Control" may cause intermittent adjustment of the time and water used for the cycle.

Dishwasher Cycle Options

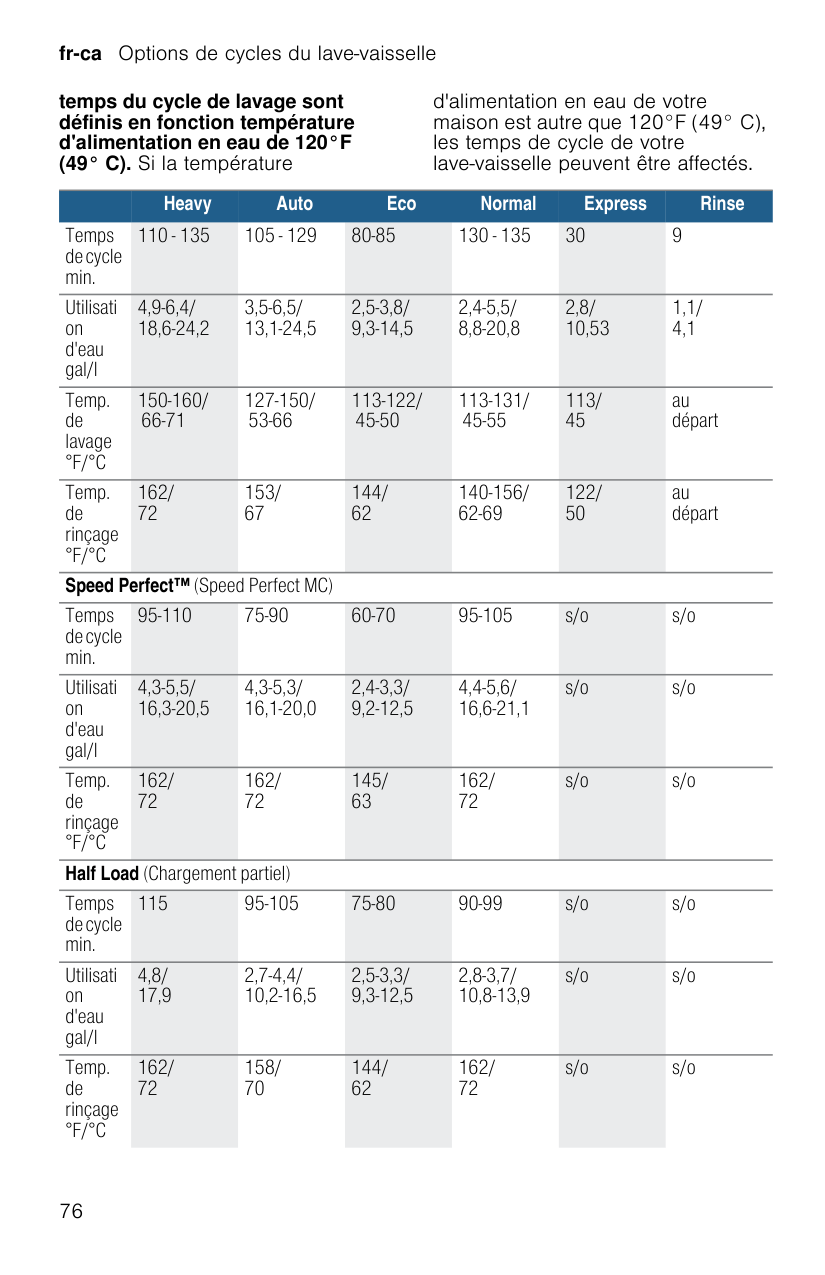

Cycle times are based on water supply temperature of 120°F (49°C). If your home's water supply temperature is different from 120°F (49°C), your dishwasher cycle times may be affected.

| Cycle | Cycle Time (min.) | Water Usage (gal/l) | Wash Temp (°F/°C) | Rinse Temp (°F/°C) | |-------|------------------|-------------------|------------------|-------------------| | Heavy | 110 - 135 | 4.9-6.4/18.6-24.2 | 150-160/66-71 | 162/72 | | Auto | 105 - 129 | 3.5-6.5/13.1-24.5 | 127-150/53-66 | 153/67 | | Eco | 80-85 | 2.5-3.8/9.3-14.5 | 113-122/45-50 | 144/62 | | Normal | 130 - 135 | 2.4-5.5/8.8-20.8 | 113-131/45-55 | 140-156/62-69 | | Express | 30 | 2.8/10.53 | 113/45 | 122/50 | | Rinse | 9 | 1.1/4.1 | — | — |

Speed Perfect™

| Cycle | Cycle Time (min.) | Water Usage (gal/l) | Rinse Temp (°F/°C) | |-------|------------------|-------------------|-------------------| | Heavy | 95-110 | 4.3-5.5/16.3-20.5 | 162/72 | | Auto | 75-90 | 4.3-5.3/16.1-20.0 | 162/72 | | Eco | 60-70 | 2.4-3.3/9.2-12.5 | 145/63 | | Normal | 95-105 | 4.4-5.6/16.6-21.1 | 162/72 | | Express | — | — | — | | Rinse | — | — | — |

Half Load

| Cycle | Cycle Time (min.) | Water Usage (gal/l) | Rinse Temp (°F/°C) | |-------|------------------|-------------------|-------------------| | Heavy | 115 | 4.8/17.9 | 162/72 | | Auto | 95-105 | 2.7-4.4/10.2-16.5 | 158/70 | | Eco | 75-80 | 2.5-3.3/9.3-12.5 | 144/62 | | Normal | 90-99 | 2.8-3.7/10.8-13.9 | 162/72 | | Express | — | — | — | | Rinse | — | — | — |

Dishwasher Cycle Options

Note: Only the sanitize cycles have been designed to meet the requirements of Section 6 of the NSF/ANSI Standard for Residential Use Food Soil Removal and Sanitization Equipment. As such, no statement is made, directly or indirectly, that all cycles have successfully passed performance testing for sanitization effectiveness.

Delicate

| | Cycle Time (min.) | Water Usage (gal/L) | Rinse Temp (°F/°C) | |---|---|---|---| | Heavy | 105-110 | 4.9-6.4/18.6-24.2 | 140/60 | | Auto | 90-105 | 3.5-6.5/13.1-24.5 | 140/60 | | Eco | s/o | s/o | s/o | | Normal | 100-120 | 2.4-5.5/8.8-20.8 | 140/60 | | Express | s/o | s/o | s/o | | Rinse | s/o | s/o | s/o |

Sanitize

| | Cycle Time (min.) | Water Usage (gal/L) | Rinse Temp (°F/°C) | |---|---|---|---| | Heavy | 130-150 | 4.9-6.4/18.6-24.2 | 162/72 | | Auto | 125-150 | 3.5-6.5/13.1-24.5 | 162/72 | | Eco | s/o | s/o | s/o | | Normal | 135-155 | 2.4-5.5/8.8-20.8 | 162/72 | | Express | s/o | s/o | s/o | | Rinse | s/o | s/o | s/o |

Extra Shine

| | Cycle Time (min.) | Water Usage (gal/L) | Rinse Temp (°F/°C) | |---|---|---|---| | Heavy | 130-150 | 4.9-6.4/18.6-24.2 | 162/72 | | Auto | 125-150 | 3.5-6.5/13.1-24.5 | 162/72 | | Eco | 115-125 | 2.5-3.8/9.3-14.5 | 162/72 | | Normal | 135-155 | 2.4-5.5/8.8-20.8 | 162/72 | | Express | 60 | 2.8/10.5 | 162/72 | | Rinse | s/o | s/o | s/o |

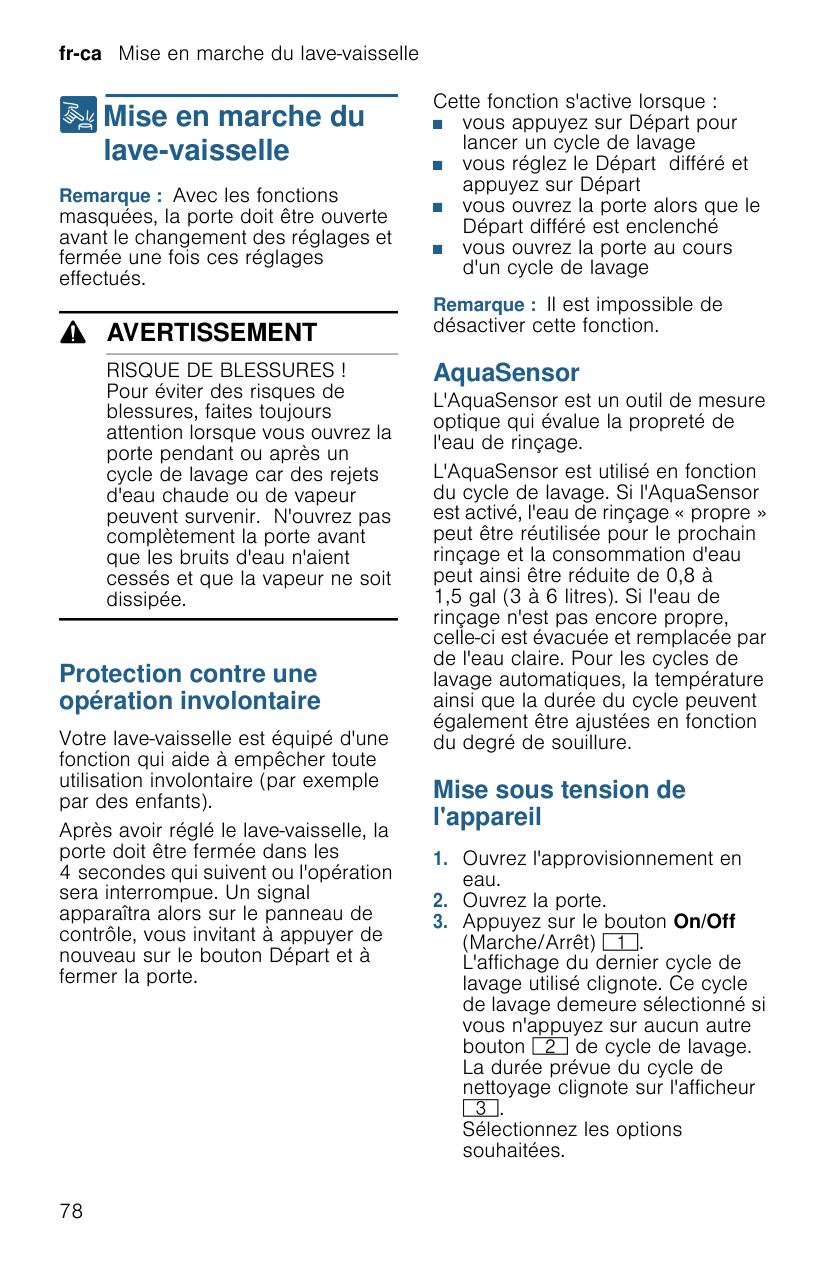

Starting the Dishwasher

1 Starting the Dishwasher

Starting the Dishwasher Note: With hidden functions, the door must be opened before changing settings and closed once these settings have been made.

9 Warning

Risk of Injury!

To avoid risk of injury, always be careful when opening the door during or after a wash cycle as hot water or steam discharge may occur. Do not fully open the door until water sounds have ceased and steam has dissipated.

Protection Against Unintended Operation

Your dishwasher is equipped with a function that helps prevent any unintended use (for example by children).

After setting the dishwasher, the door must be closed within 4 seconds or the operation will be interrupted. A signal will then appear on the control panel, prompting you to press the Start button again and close the door.

This function activates when:

■ you press Start to begin a wash cycle ■ you set Delayed Start and press Start ■ you open the door while Delayed Start is engaged ■ you open the door during a wash cycle

Note: It is impossible to deactivate this function.

AquaSensor

The AquaSensor is an optical measuring tool that evaluates the cleanliness of the rinse water.

The AquaSensor is used depending on the wash cycle. If AquaSensor is activated, "clean" rinse water can be reused for the next rinse and water consumption can be reduced by 0.8 to 1.5 gal (3 to 6 liters). If the rinse water is not yet clean, it is drained and replaced with fresh water. For automatic wash cycles, the temperature as well as the cycle duration can also be adjusted based on the degree of soiling.

Powering On the Appliance

The display of the last wash cycle used flashes. This wash cycle remains selected if you do not press any other wash cycle button.

The expected duration of the cleaning cycle flashes on the display.

Select the desired options.

Starting the Dishwasher

The wash cycle begins.

Note: Your dishwasher is protected against unintended starts. If the door remains open for more than 4 seconds after you press the Start button, the operation is suspended. Press the Start button again and close the door.

Display of Time

When a cleaning cycle is selected, the remaining cycle time is shown on display 8. The duration of the cleaning cycle is determined by the water temperature during the cleaning cycle, the amount of dishes, and their level of soiling. It may also vary depending on the wash cycle chosen.

Delayed Start

You can choose to delay the start of the cycle by approximately 24 hours, in one-hour intervals.

To set delayed start:

To cancel delayed start:

Note: Your dishwasher is protected against unintended starts. If the door remains open for more than 4 seconds after you press the Start button, the operation is suspended. Press the Start button again and close the door.

End of Cleaning Cycle

The cleaning cycle is complete when display 8 shows the cycle end indicator.

If the sound signal is activated, a tone should sound at the end of the wash cycle.

To change the signal volume:

Volume Options:

Off (Disabled) Low Medium Loud

80

Starting the Dishwasher

Auto Shutoff

To save energy, the dishwasher shuts off 1 minute after the wash cycle ends. This setting can be adjusted in the range of off to 120 minutes.

To change the setting:

Turning Off the Appliance

Shortly after the wash cycle ends:

Warning

Risk of Injury!

To avoid risk of injury, always be careful when opening the door during or after a wash cycle as hot water or steam may be released. Do not fully open the door until water sounds have stopped and steam has dissipated.

Interrupting the Wash Cycle

Caution

Excessive pressure may cause the door to open and water to spill! If the door has been opened and is hot or the connection is hot, always leave it slightly open for a few minutes, then close it.

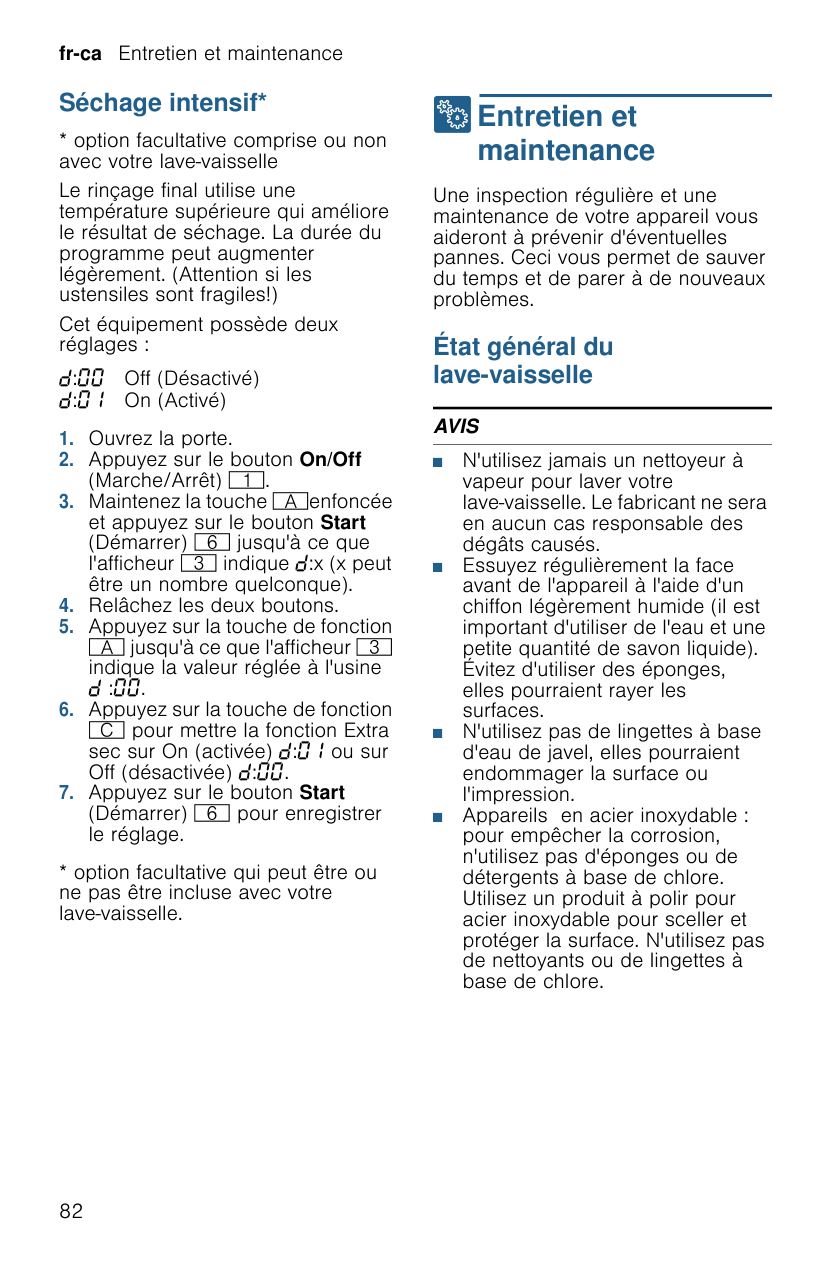

Intensive Drying*

The final rinse uses a higher temperature that improves drying results. The program duration may increase slightly. (Be careful if dishes are fragile!)

This equipment has two settings:

Care and Maintenance

Regular inspection and maintenance of your appliance will help prevent potential failures. This allows you to save time and prevent new problems.

General Condition of the Dishwasher

Warning

■ Never use a steam cleaner to wash your dishwasher. The manufacturer will not be responsible for any damage caused.

■ Regularly wipe the front of the appliance with a slightly damp cloth (it is important to use water and a small amount of liquid soap). Avoid using sponges, as they could scratch surfaces.

■ Do not use bleach-based wipes, as they could damage the surface or printing.

■ Stainless steel appliances: to prevent corrosion, do not use sponges or chlorine-based detergents. Use a stainless steel polish product to seal and protect the surface. Do not use chlorine-based cleaners or wipes.

š:‹‹ Off (Deactivated)

š:‹‚ On (Activated)

Troubleshooting

91

--------

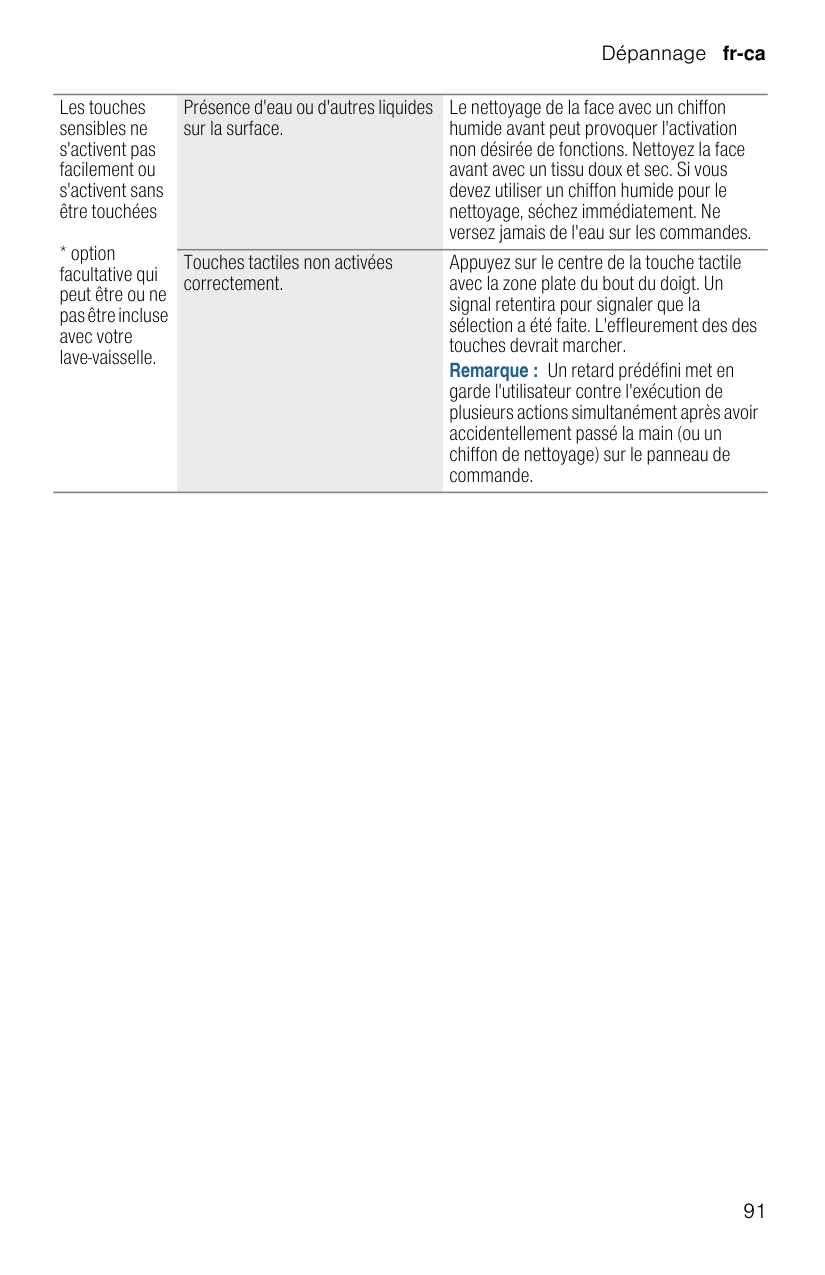

Touch Controls Not Activating Easily or Activating Without Being Touched

Water or other liquids on the surface.

Cleaning the front panel with a damp cloth beforehand can cause undesired activation of functions. Clean the front panel with a soft, dry cloth. If you must use a damp cloth for cleaning, dry immediately. Never pour water on the controls.

Touch controls not activated properly.

Press the center of the touch control with the flat area of your fingertip. A signal will sound to indicate that the selection has been made. Light touching of the controls should work.

Note: A preset delay alerts the user against performing multiple actions simultaneously after accidentally swiping your hand (or cleaning cloth) across the control panel.


.Bjo
4Usffu

#4)
)Pnf
"Qqmjbodft
$Psqpsbujpo

*Swjof

#4)
Tf
Sîtfswf
Mf
Espju
Ef
Npejgjfs
Mft
Epooîft
Ufdiojrvft
Pv
Mf
Eftjho

Tbot
Qsîbwjt
$Fsubjot
Npeñmft
Tpou
Dfsujgjît
Qpvs
Vof
Vujmjtbujpo
Bv
$Bobeb

#4)
OFtu
Qbt
Sftqpotbcmf
Qpvs
Mft
Qspevjut
Usbotqpsuît
Eft
±Ubut6Ojt
Qpvs

#4)
Sftfswft
Uif
Sjhiu
Up
Dibohf
Tqfdjgjdbujpot
Ps
Eftjho
Xjuipvu
Opujdf

4Pnf
Npefmt
Bsf
Dfsujgjfe
Gps
Vtf
Jo
$Bobeb
#4)
Jt
Opu
Sftqpotjcmf
Gps

Qspevdut
Xijdi
Bsf
Usbotqpsufe
Gspn
Uif
6Ojufe
4Ubuft
Gps
Vtf
Jo
$Bobeb

$Ifdl
Xjui
Zpvs
Mpdbm
$Bobejbo
Ejtusjcvups
Ps
Efbmfs
